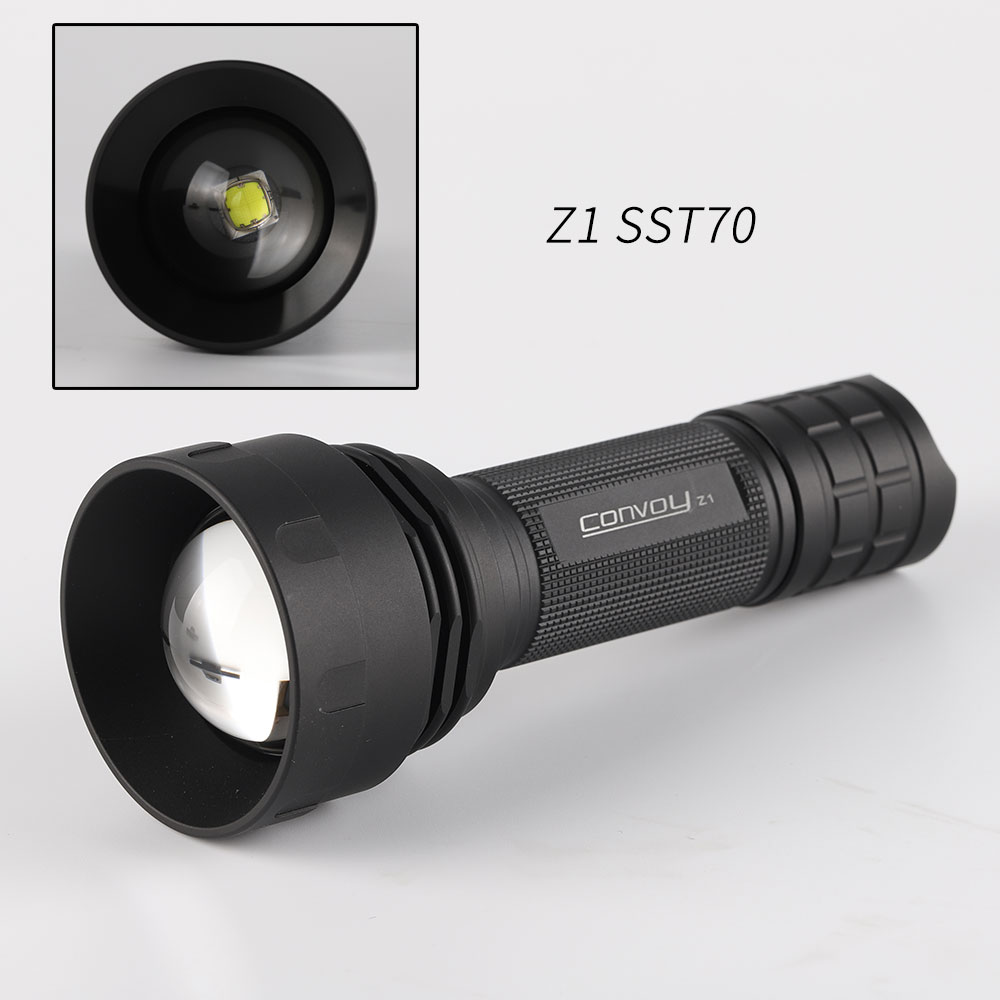

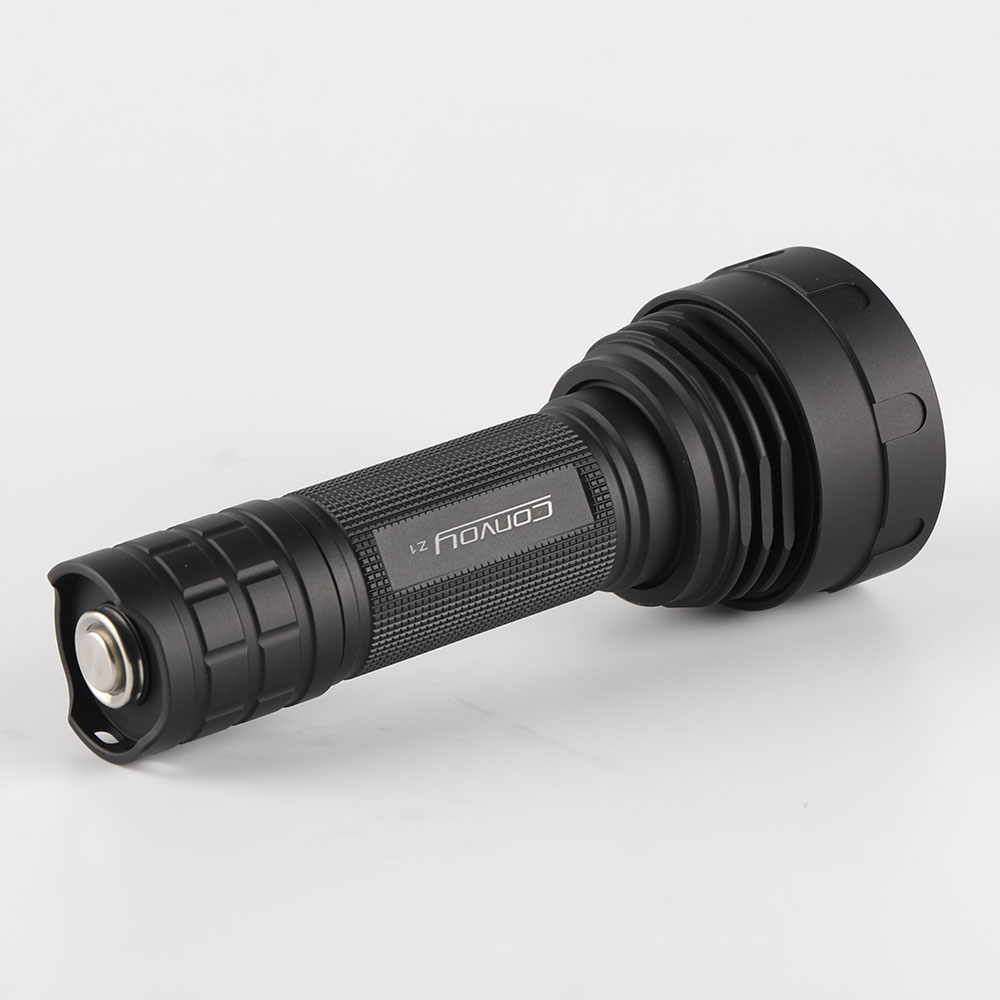

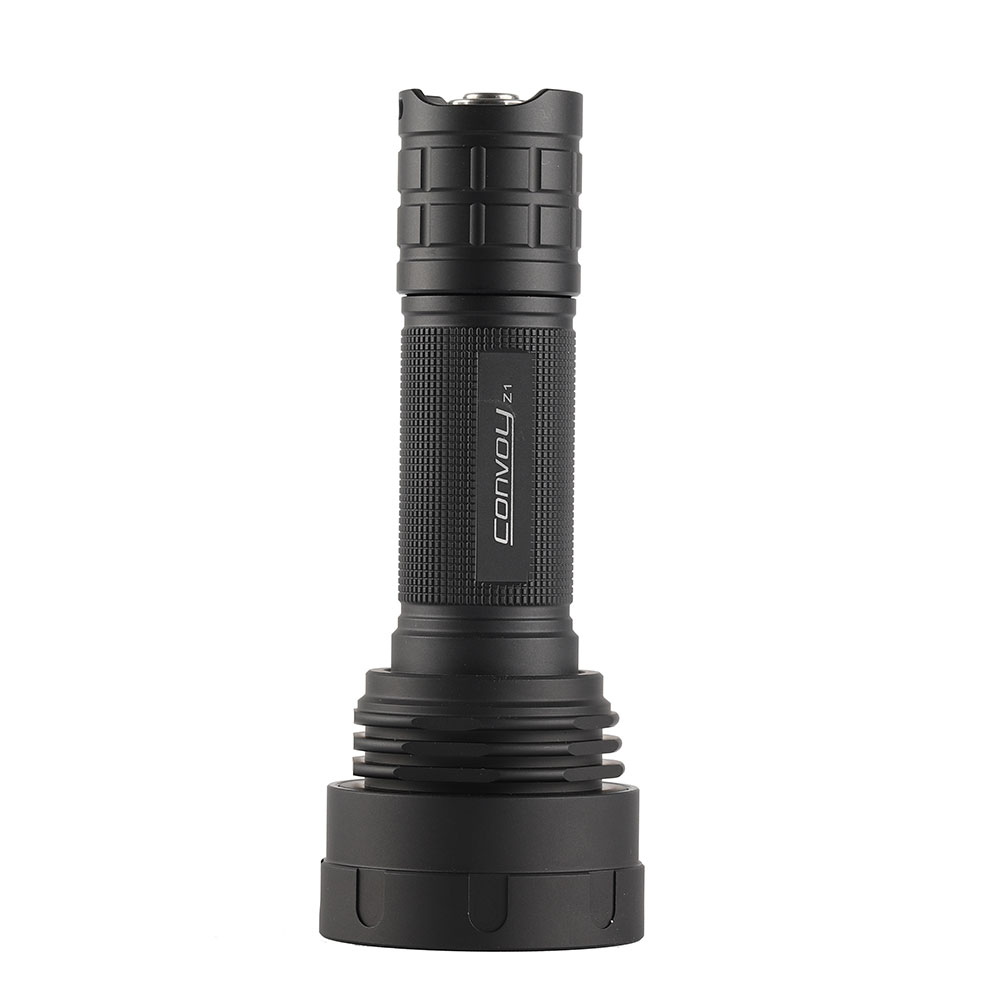

Convoy Z1 zoomable flashlight ,SST70,KP CSLPM1.F1,KY CSLNM1.FY,KR CSLNM1.23,KB CSLNM1.14 SST-10-IR 21700 flashlight

• Mode:one mode 100% for IR LED , 12groups for other LEDs.

• Mode memory: yes

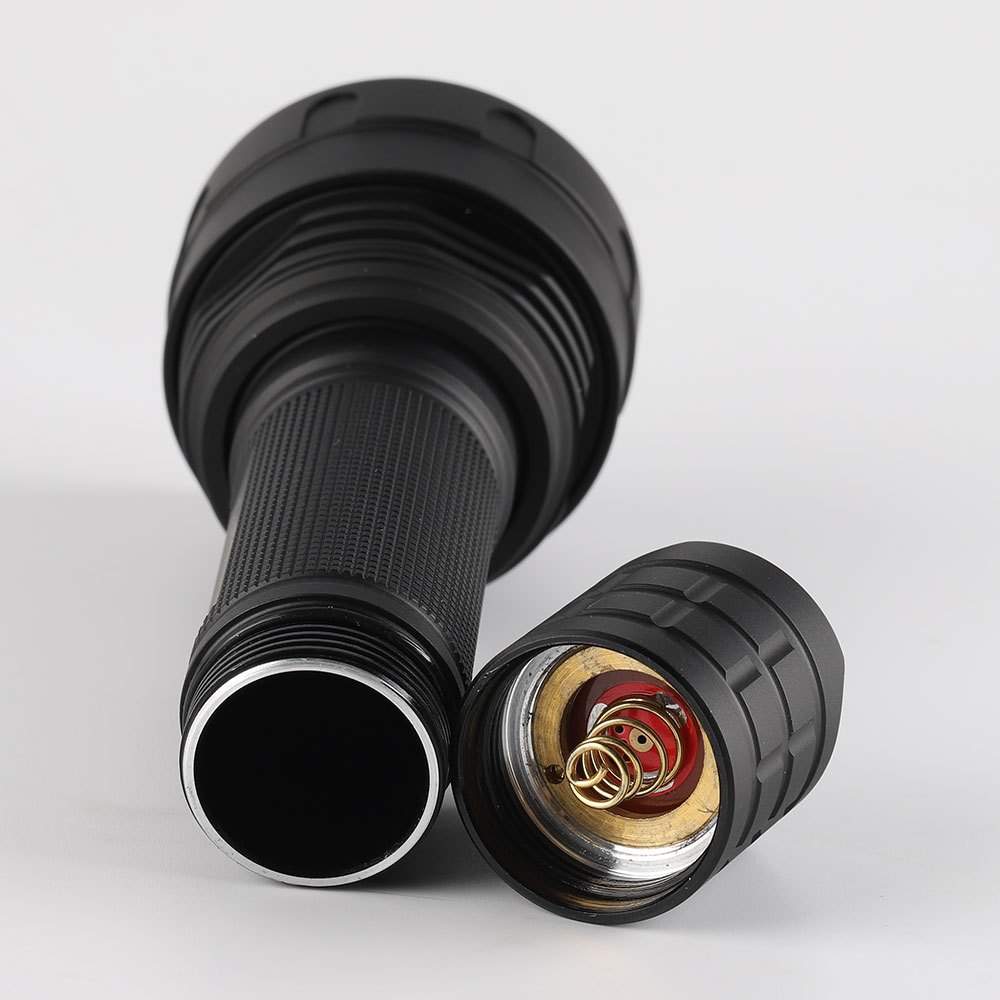

• Battery: 1 * 21700 (not included),The battery length is not more than 71mm

• Material: aluminum alloy

• Color : Black

• Switch type: reverse

• Lens : Convex lens (high borosilicate glass)

• Diameter: head 52mm /tail 28.2mm

• Length: 135.8mm(zoom in)/149.5mm(zoom out)

Driver (12groups):

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turnedon,tap the switch 20 times quicklyto enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1(normal-flash 1 time + buzz-flash):tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

Option 2(normal-flash 2 times + buzz-flash):tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
