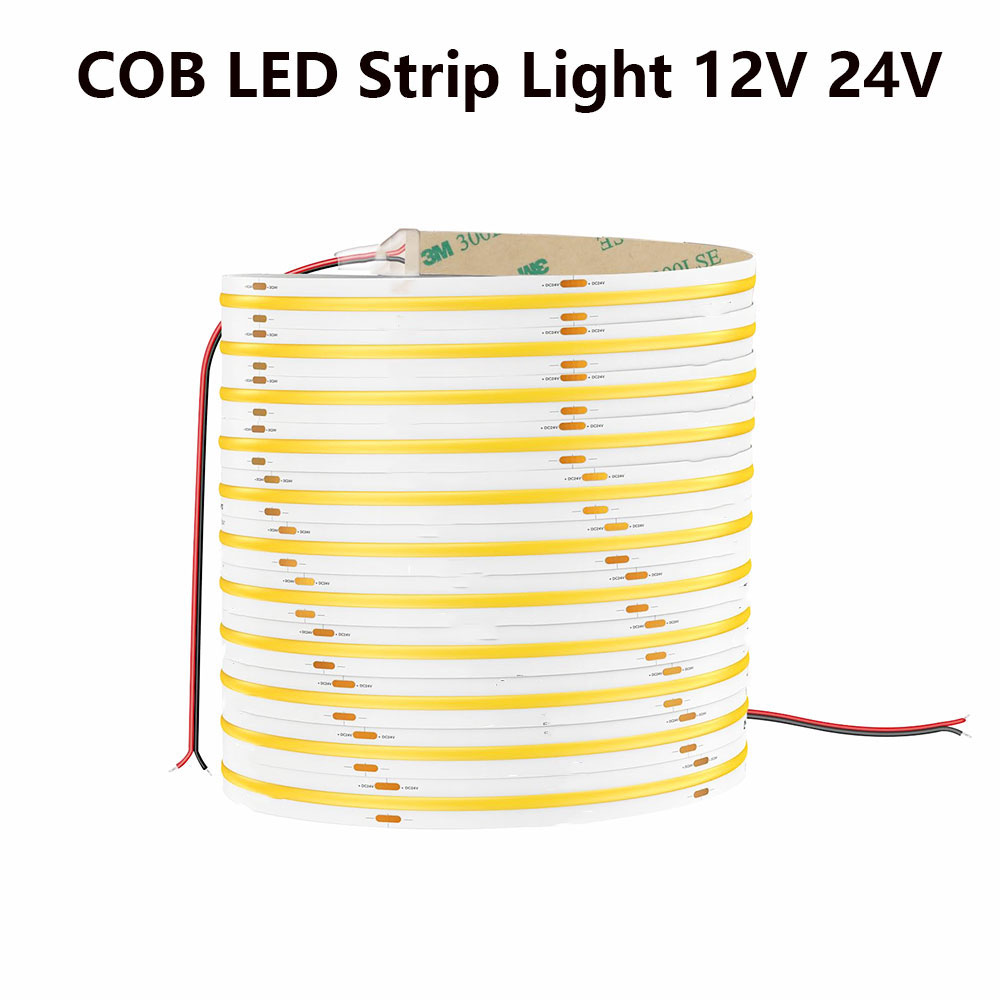

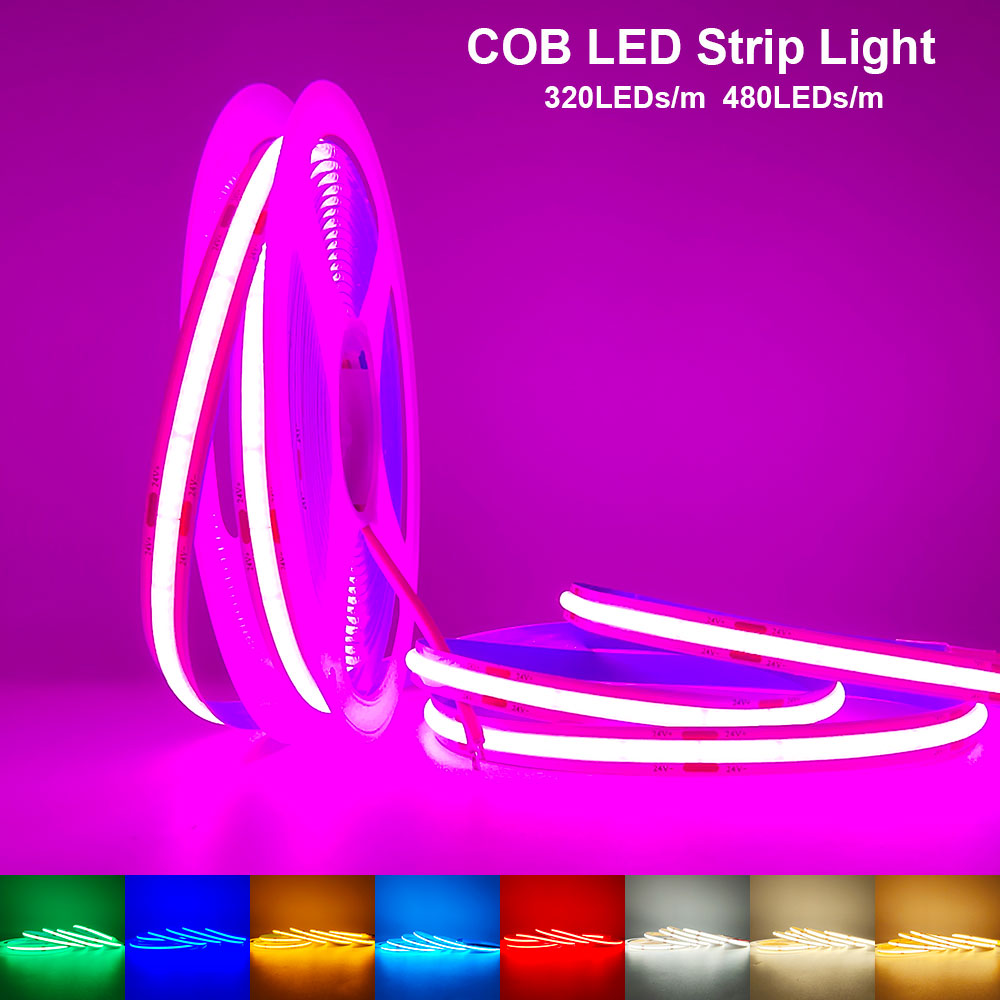

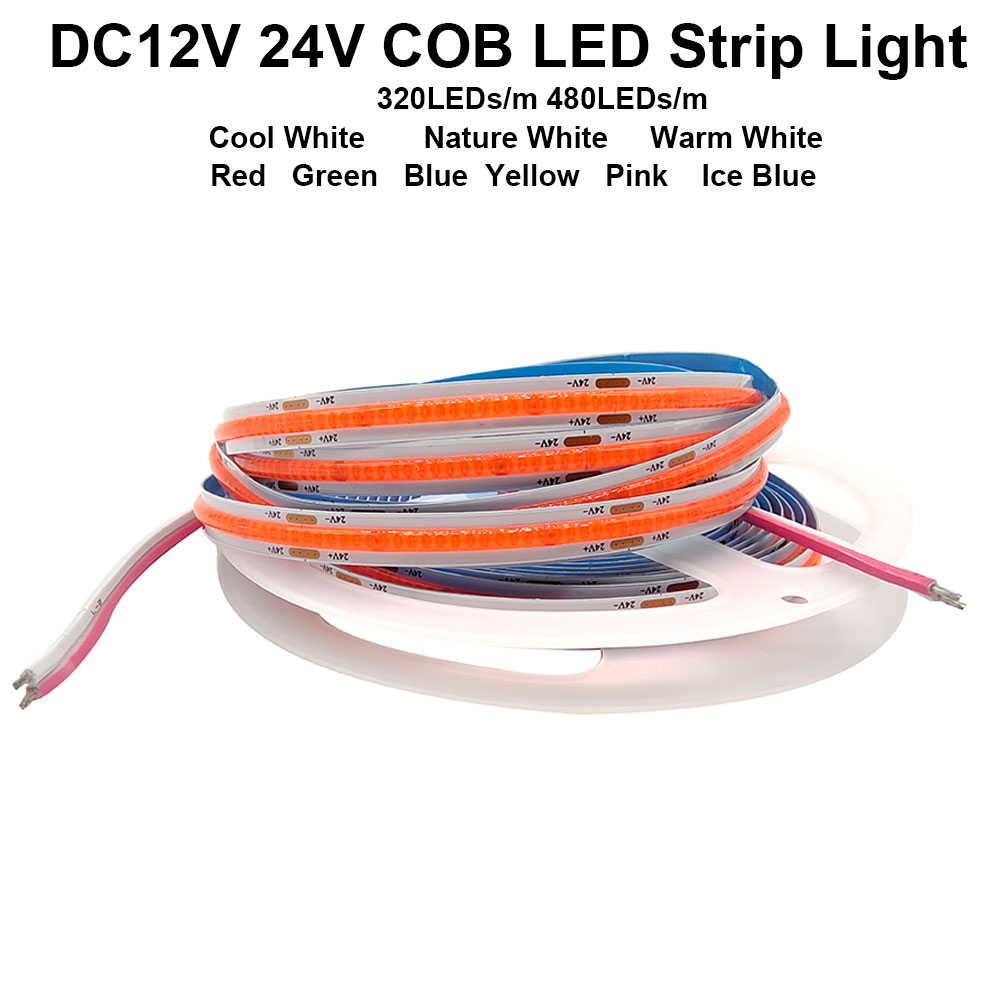

COB LED Strip Light 12V 24V 320/480LEDs/m High Density Flexible FOB Led Lights Tape Red/Green/Blue/Pink/Ice Blue/Yellow Lighting
-
Estimated Delivery:May 25 - May 29
-
Free Shipping & Returns: On all orders over $75
COB LED Strip Light 12V 24V 320/480LEDs/m High Density Flexible FOB Led Lights Tape Red/Green/Blue/Pink/Ice Blue/Yellow Lighting
Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and LED Controller and Connectors.
2. DC12V COB LED Strip Must Use DC12V LED Power Supply.
? ? DC24V COB LED Strip Must Use DC24V LED Power Supply.

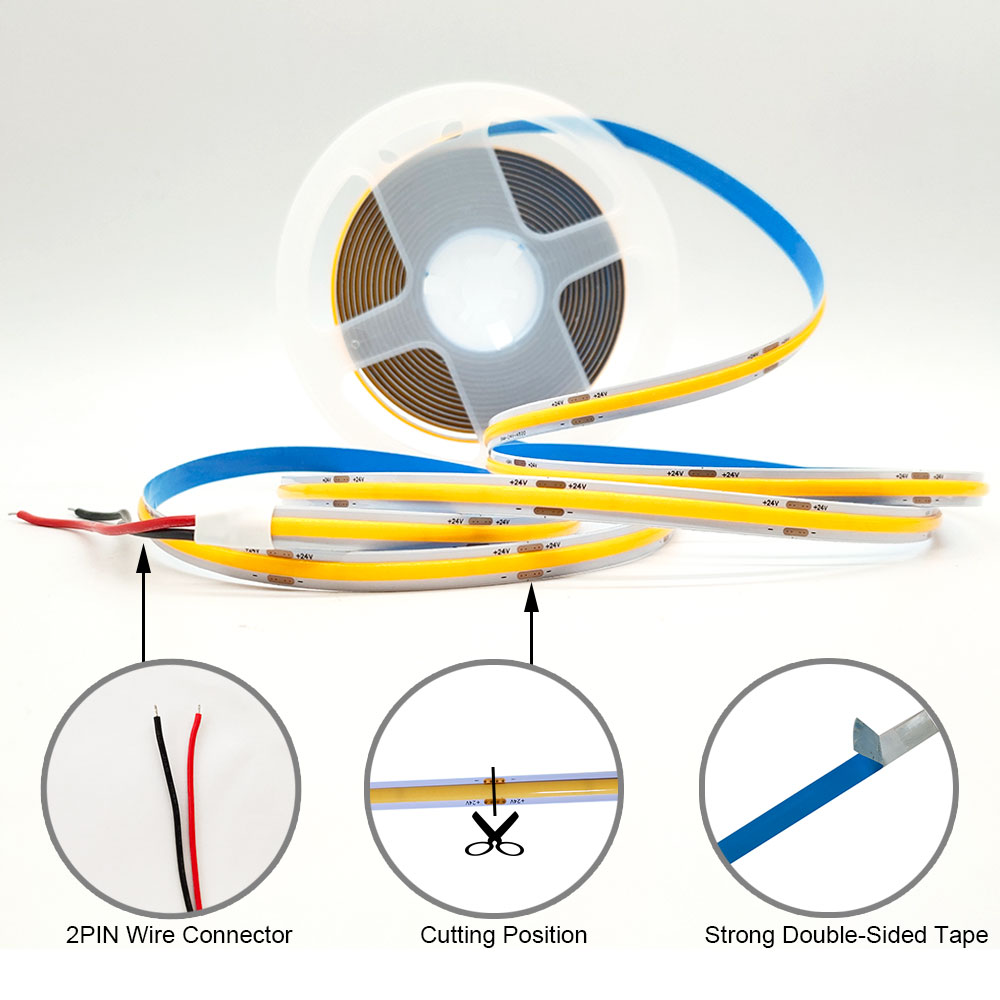

3.This COB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend ? ? LED Strip Sharply.

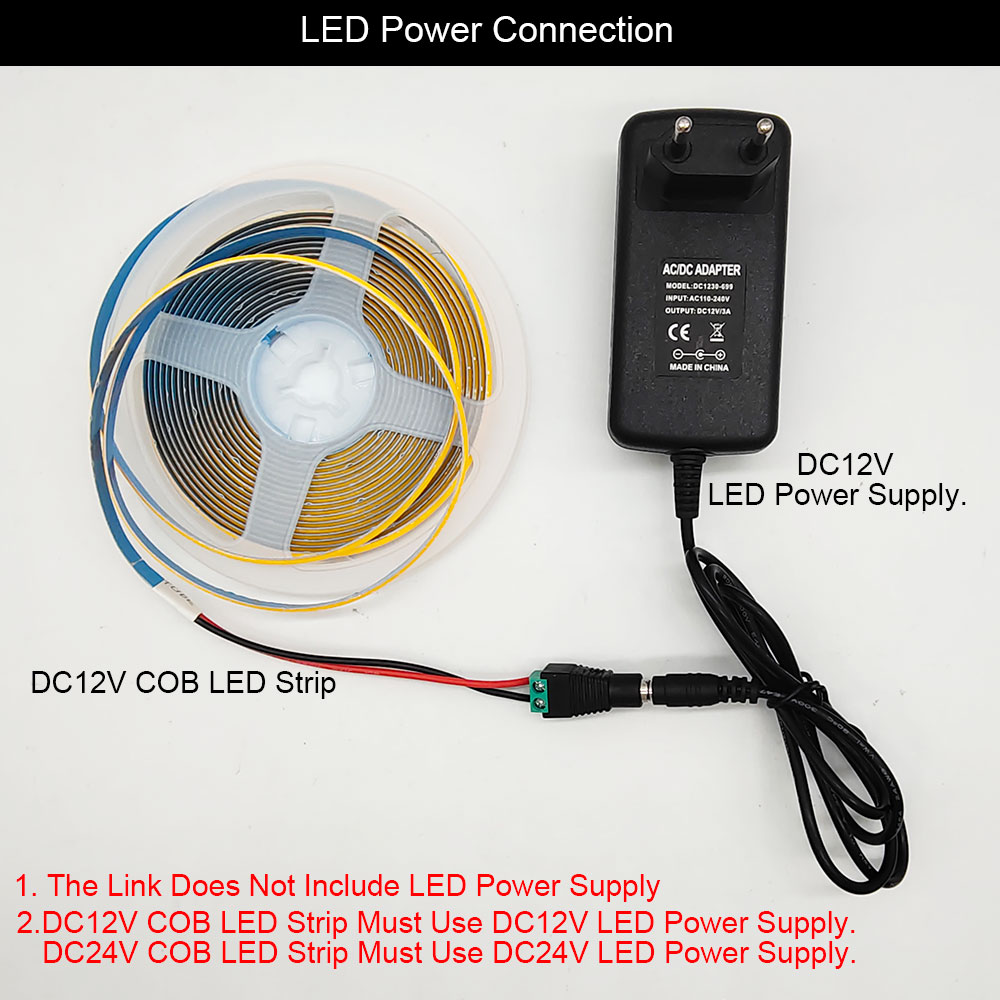

4.The 2Pin Wire Connectors of LED Strip Included: Red: V+, Black: V-. Connect the 2pin wire to the power supply is ok.
5. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
6. Longer LED Strip Runs, Please Add More Power to 2 Pin Wire of Both Ends To Reduce Voltage Drop.
7.Please do not Connect to 48V Or AC110-240V,It is Very dangerous.
8.This COB LED Strip Red Wire Connect to Power V+,Balck Wire Connect to Power V- , Please do not use led power and led controller 2in1,becuase 2in1 Power do not have V-,You can not light up the led strip.
How to Choose Power Supply?
First, Calculated The Whole LED Strip Lights Watts.
Theoretical Power, 320LEDs/m-10W/M, If You Buy 5m 320LEDs/m, So 10W/M*5m=50W.
Then, Choose the Right Power Supply.
If This LED Strip is Work with DC12V Power, So 50W / 12V = 4.2A ( At Least 5A or more ).
COB LED Strip 480leds/m :
Specification:
Input Voltage: DC12V /24V
Wattage: 480Leds/m-12W
FPCB width: 8mm
LED quantity: 480LEDs/M
Cutting length: DC12V LED Strip 480Leds/m- every 25mm
? ? ? ? ? ? ? ? ? ? ? ? ?DC24V LED Strip 480Leds/m- every 50mm

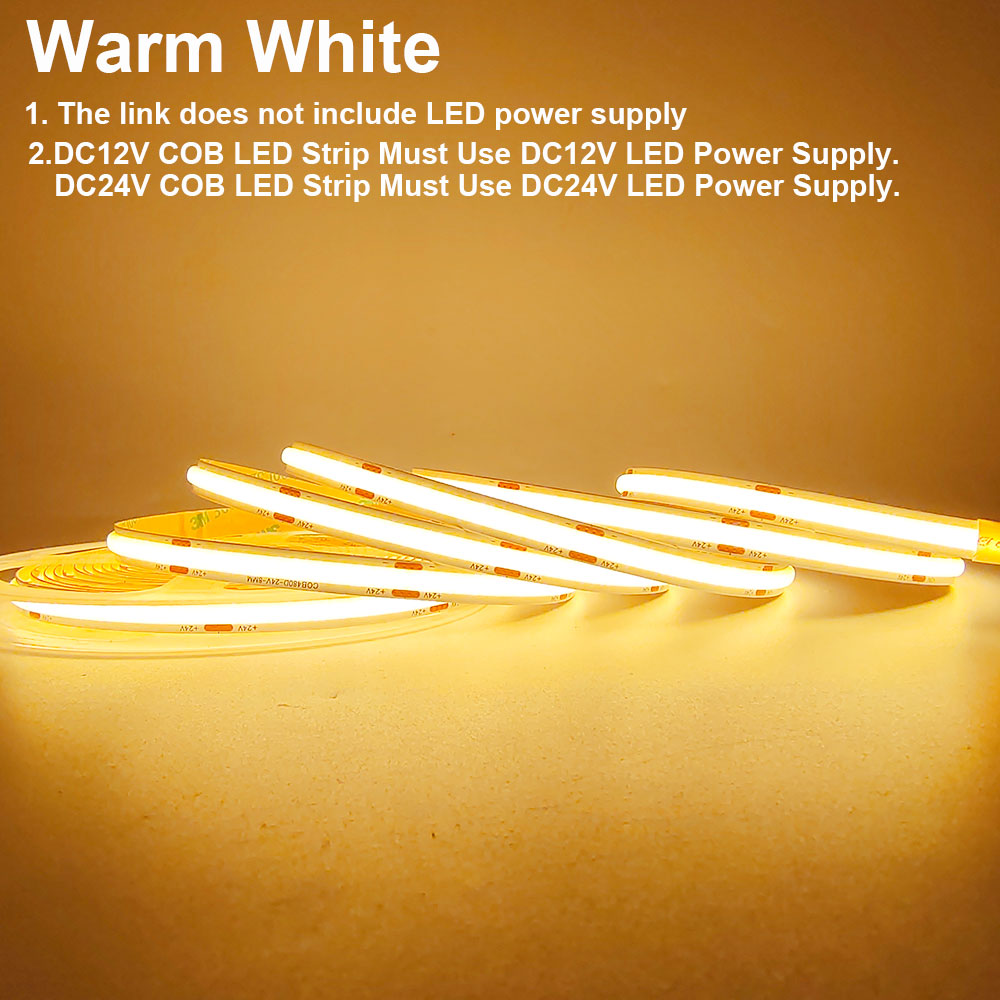

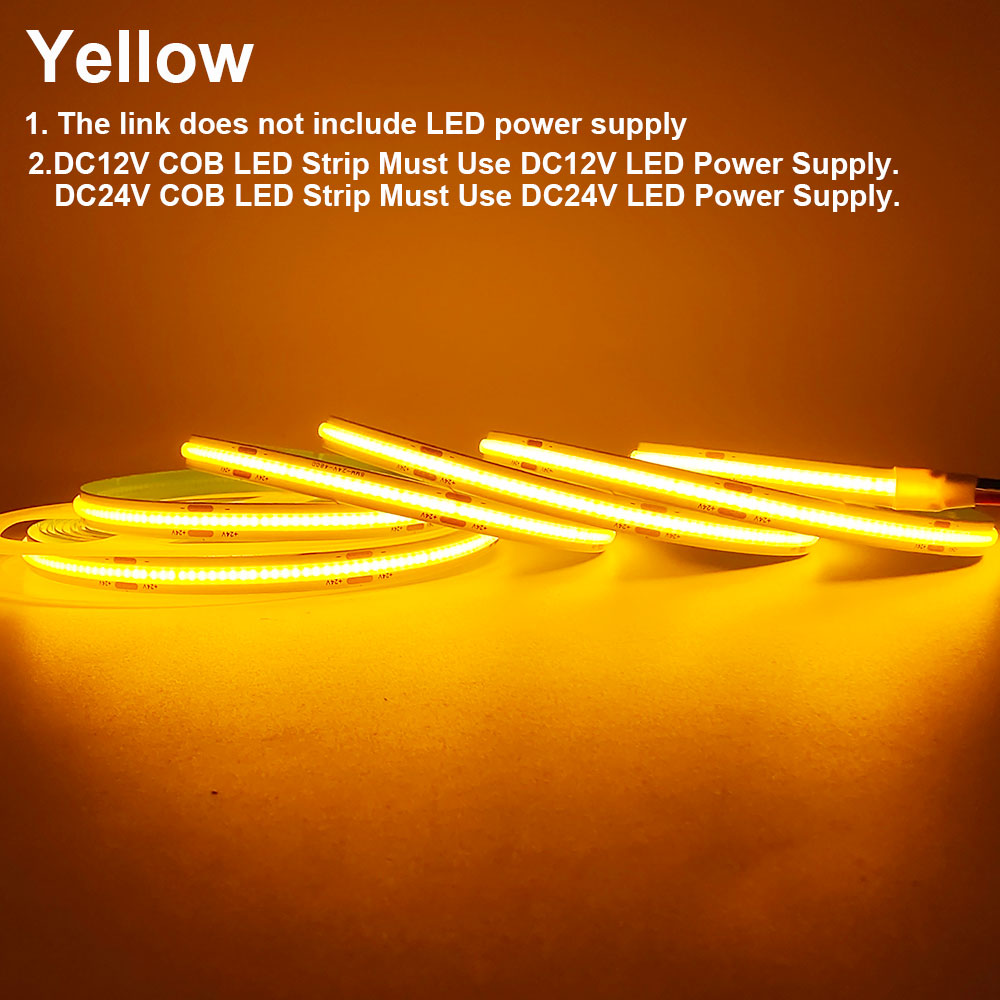

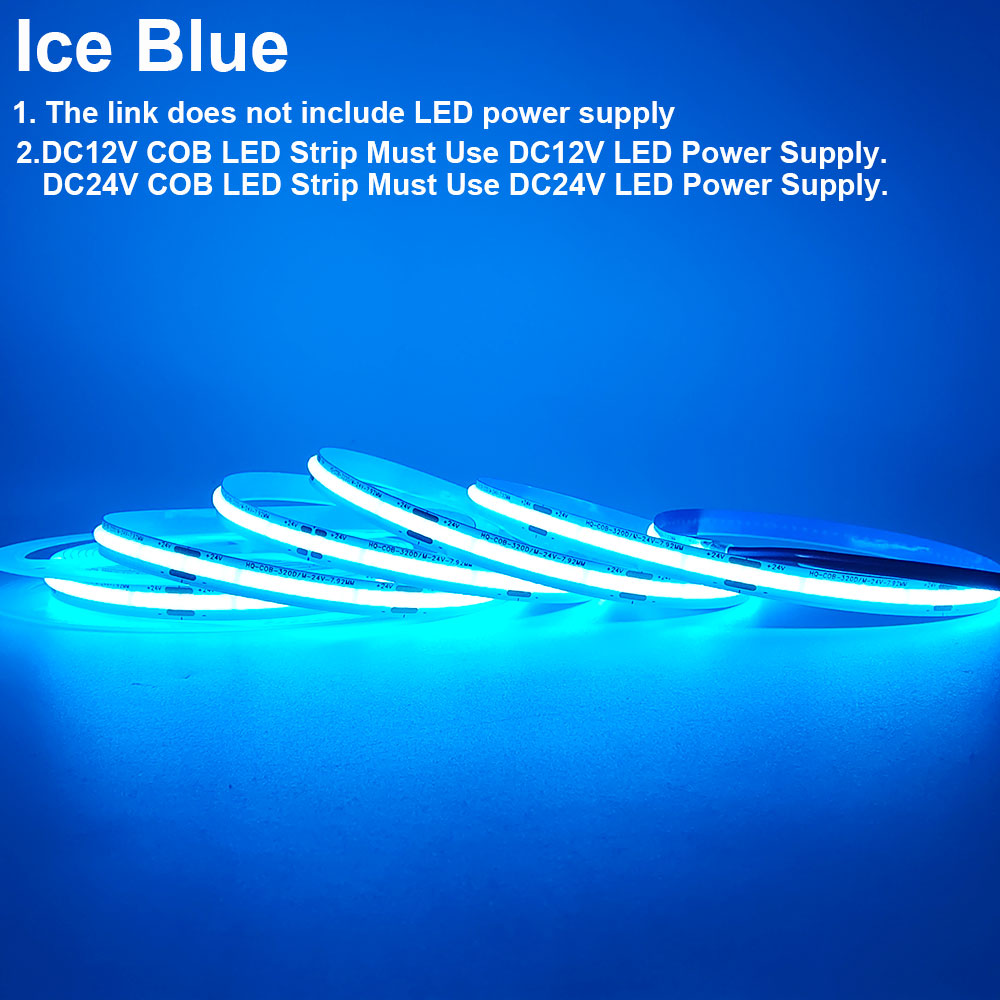

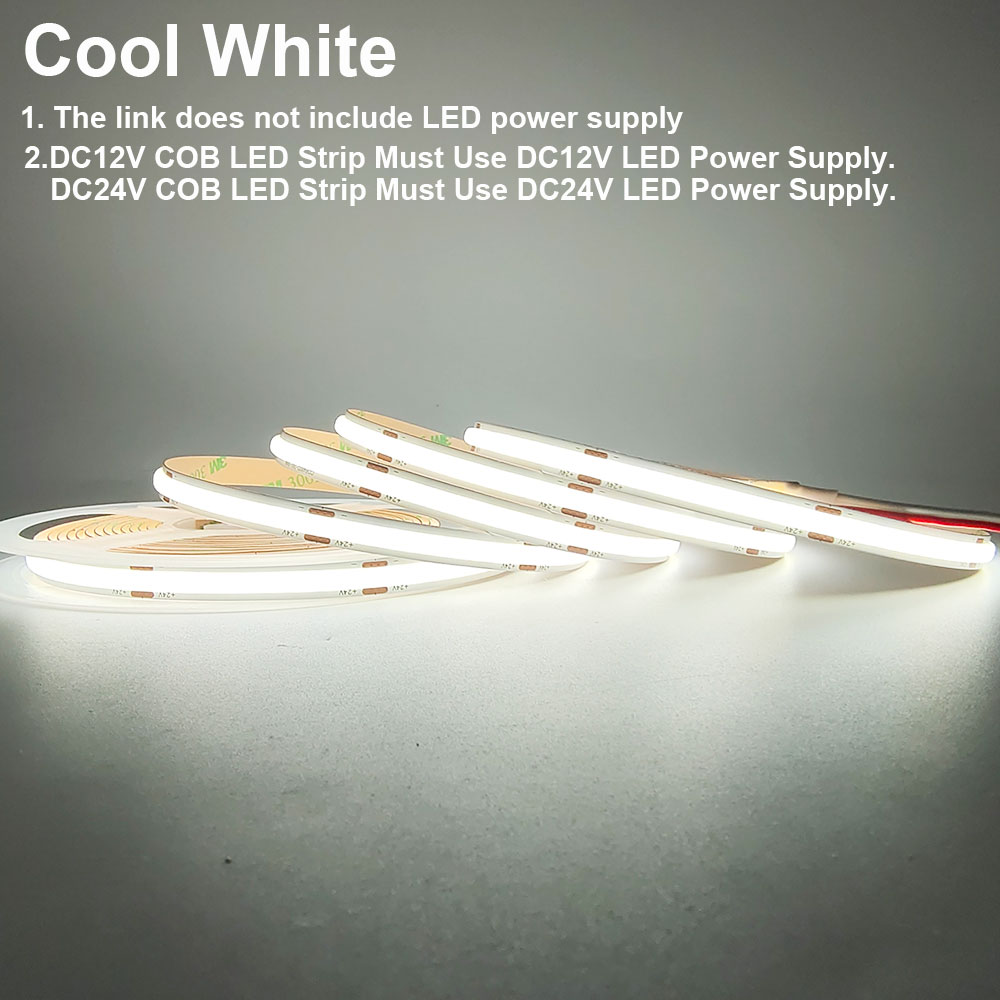

Color temperature:Yellow(2200-2400K),Warm White(3000-3200K), Nature White(4000-4200K), Cool White(6000-6500K),?Red, Green, Blue, Ice Blue, Pink,
Color Rendering Index: Ra��90
Operation temperature: -20��-+45��
Storage temperature: -20��-+60��
View angle: 180��
Package:
1�� FCOB LED strip��Power Supply is not included)
COB LED Strip 320leds/m :
Specification:
Input Voltage: DC12V /24V
Wattage: 320Leds/m-10W
FPCB width: 8mm
LED quantity: 320LEDs/M
Cutting length: DC12V LED Strip 320Leds/m- every 25mm
? ? ? ? ? ? ? ? ? ? ? ? ? DC24V LED Strip 320Leds/m- every 50mm

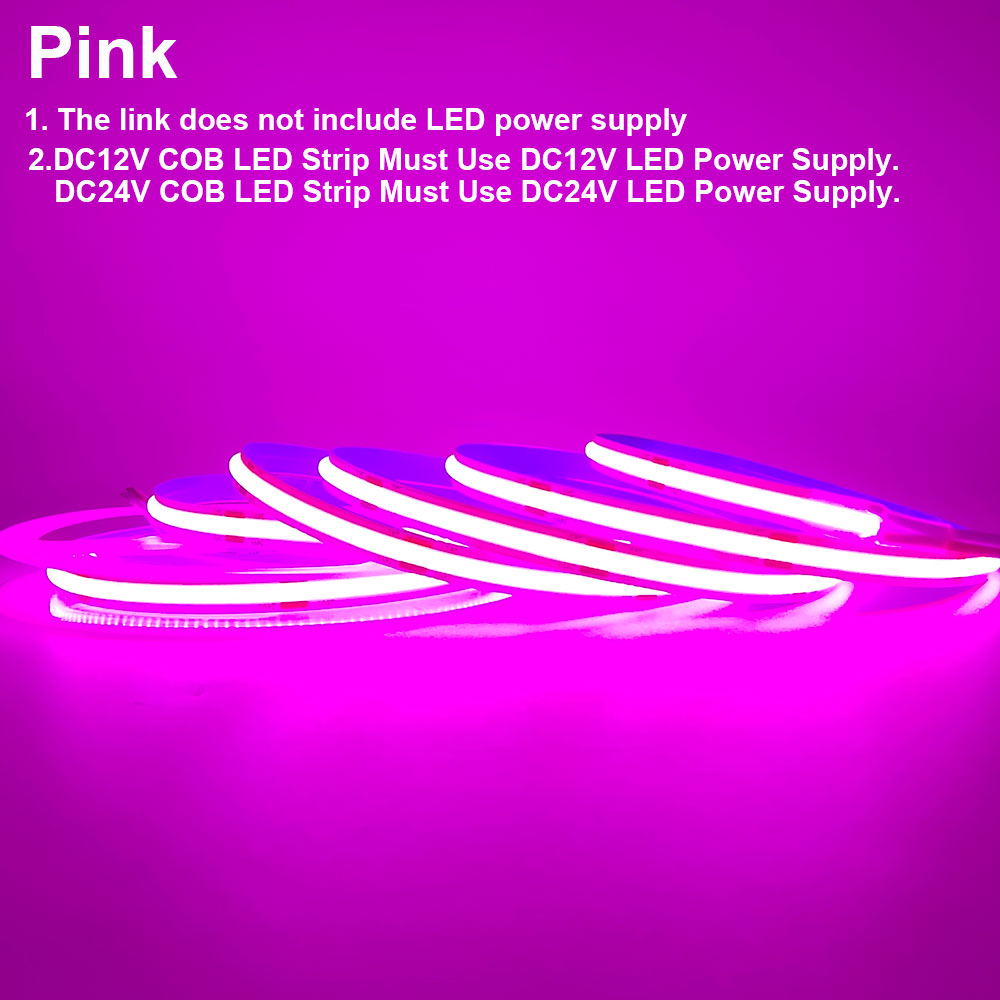

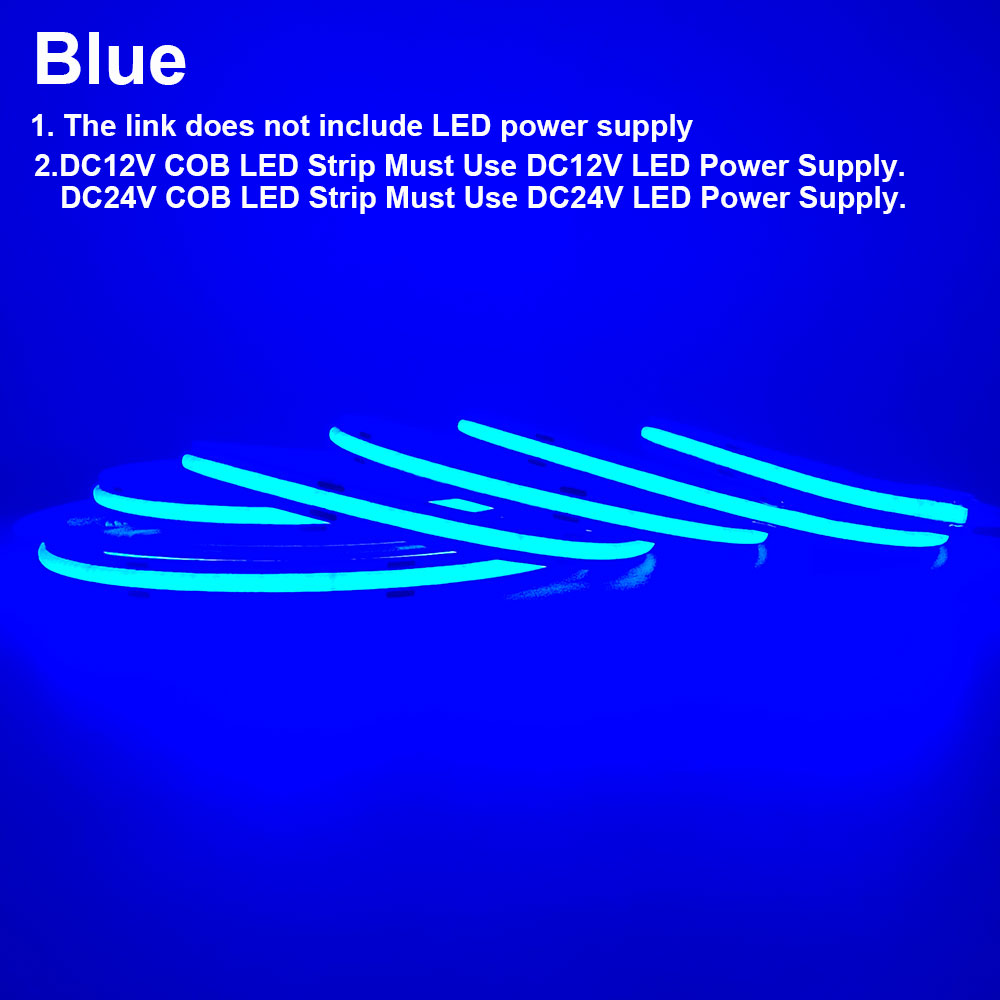

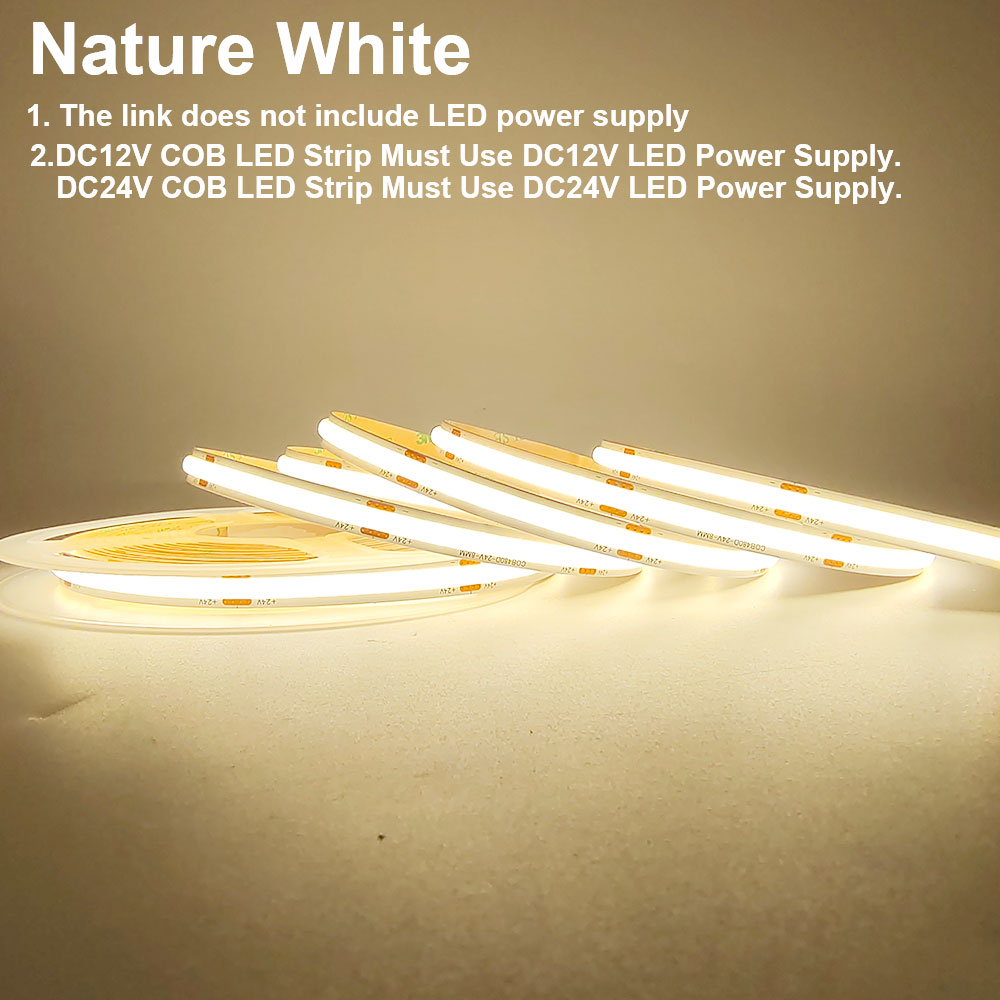

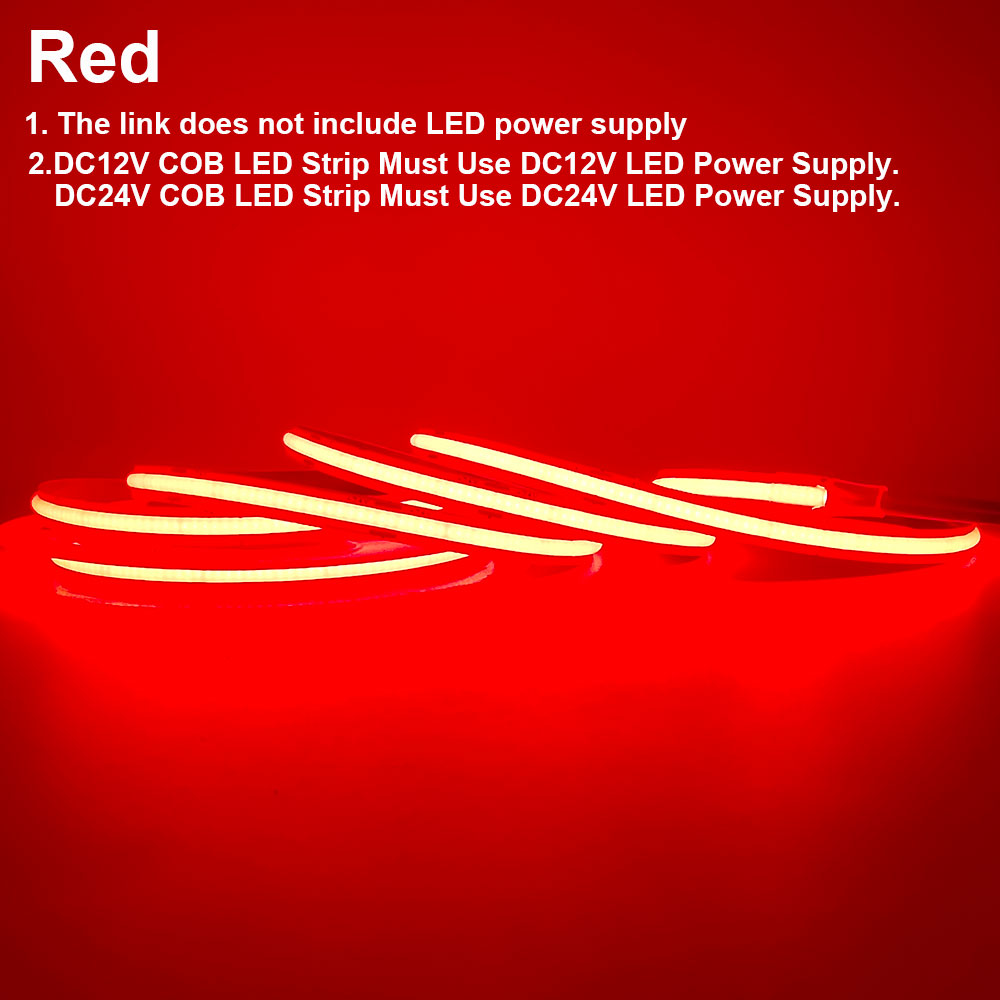

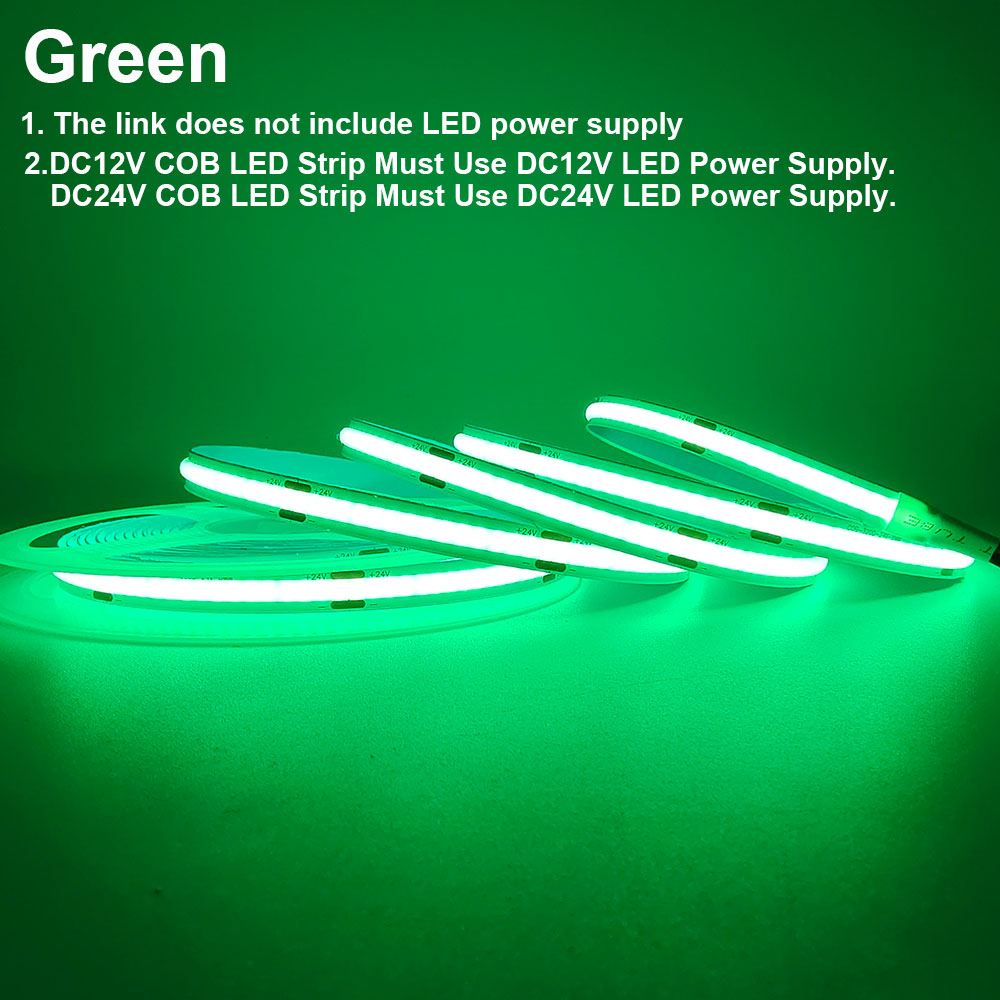

Color temperature:Yellow(2200-2400K),Warm White(3000-3200K), Nature White(4000-4200K), Cool White(6000-6500K),Red, Green, Blue, Ice Blue, Pink,
Color Rendering Index: Ra��90
Operation temperature: -20��-+45��
Storage temperature: -20��-+60��
View angle: 180��
Package:
1�� FCOB LED strip��Power Supply is not included)
