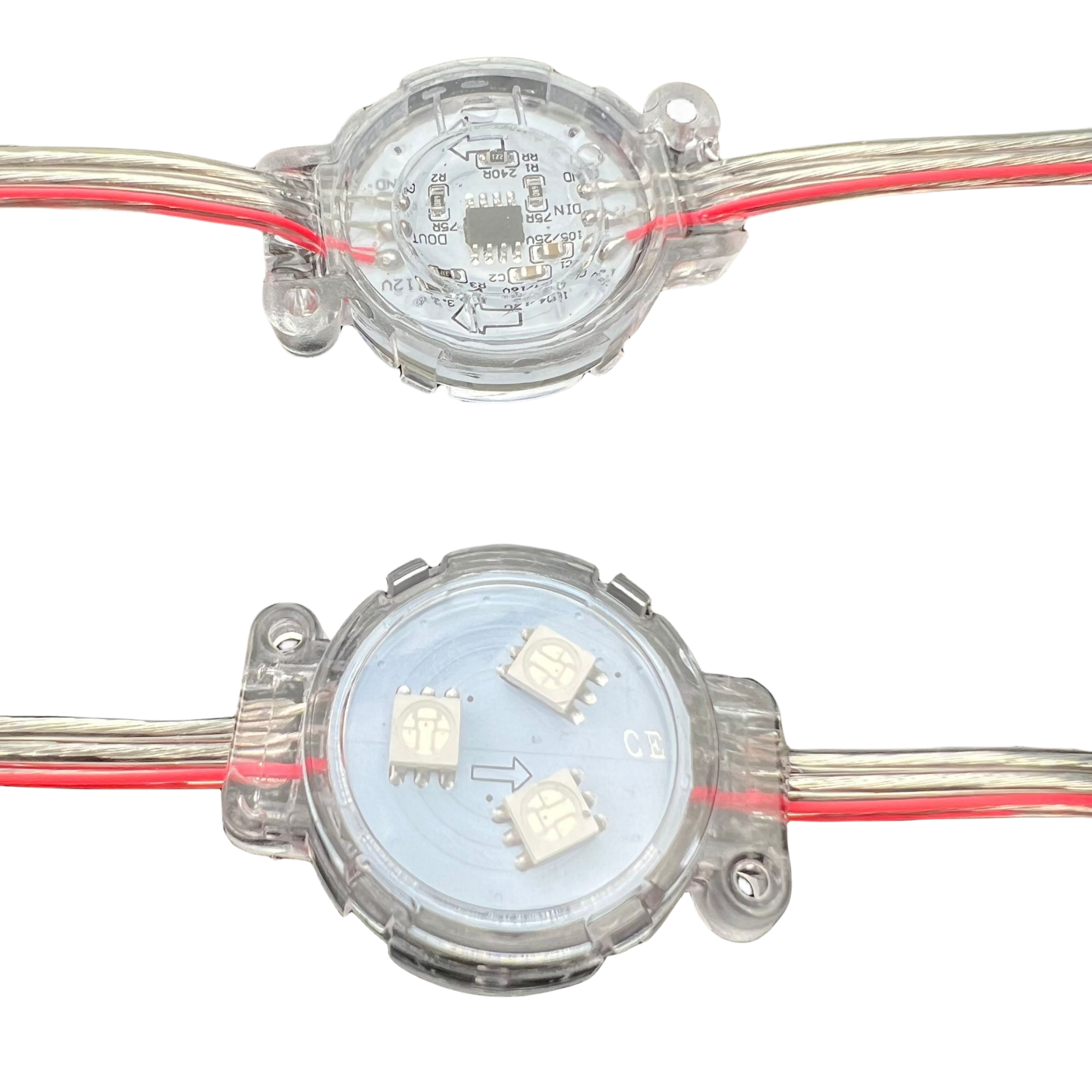

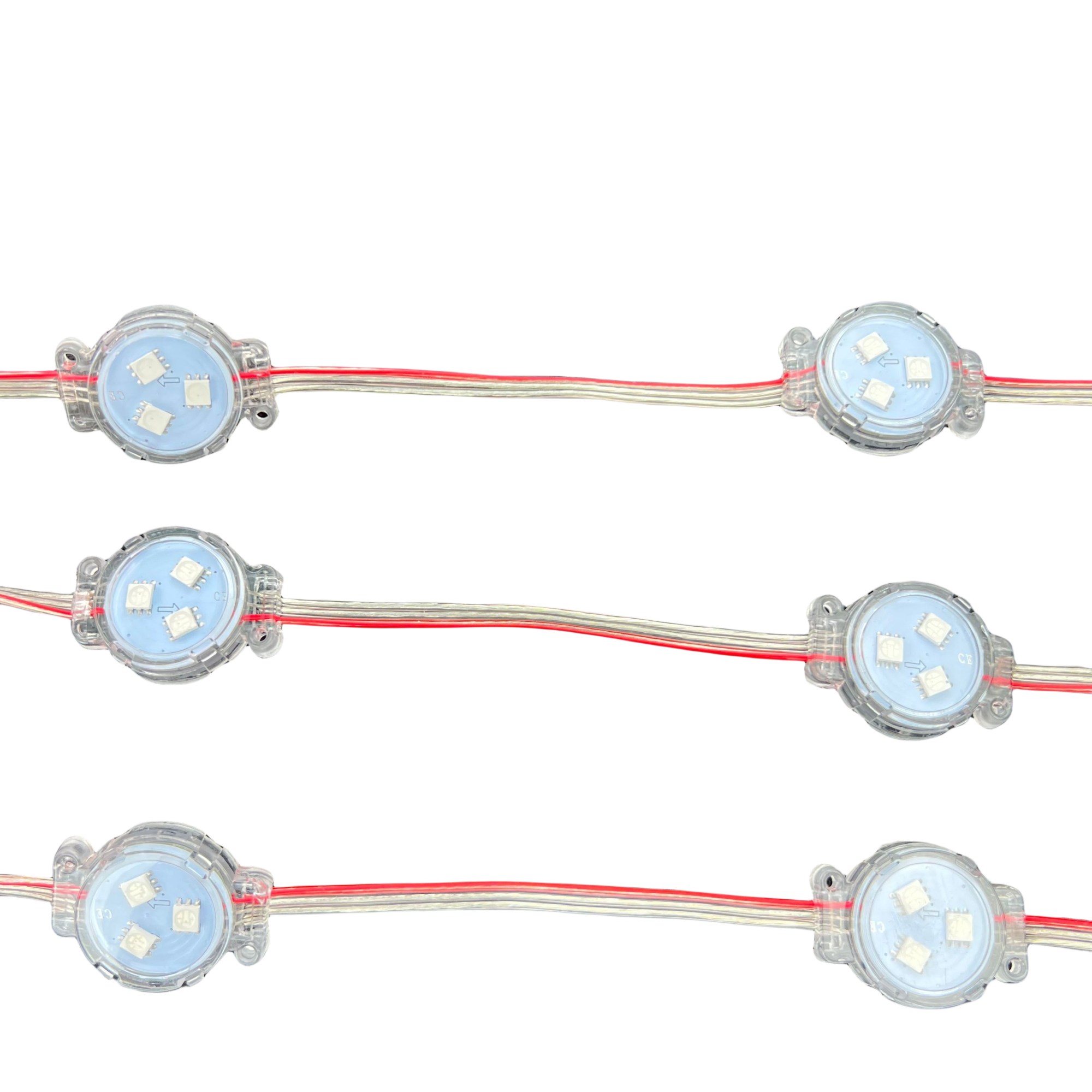

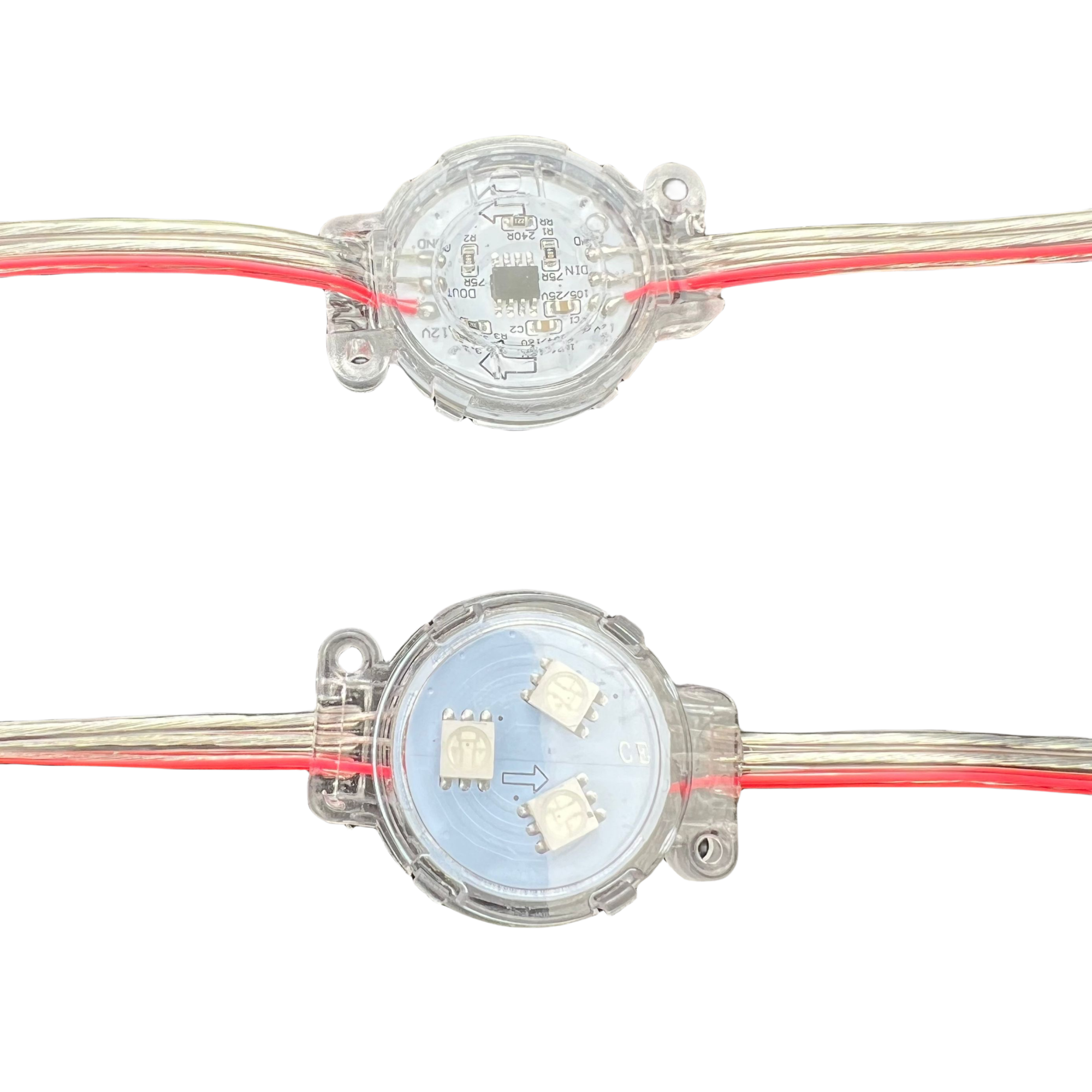

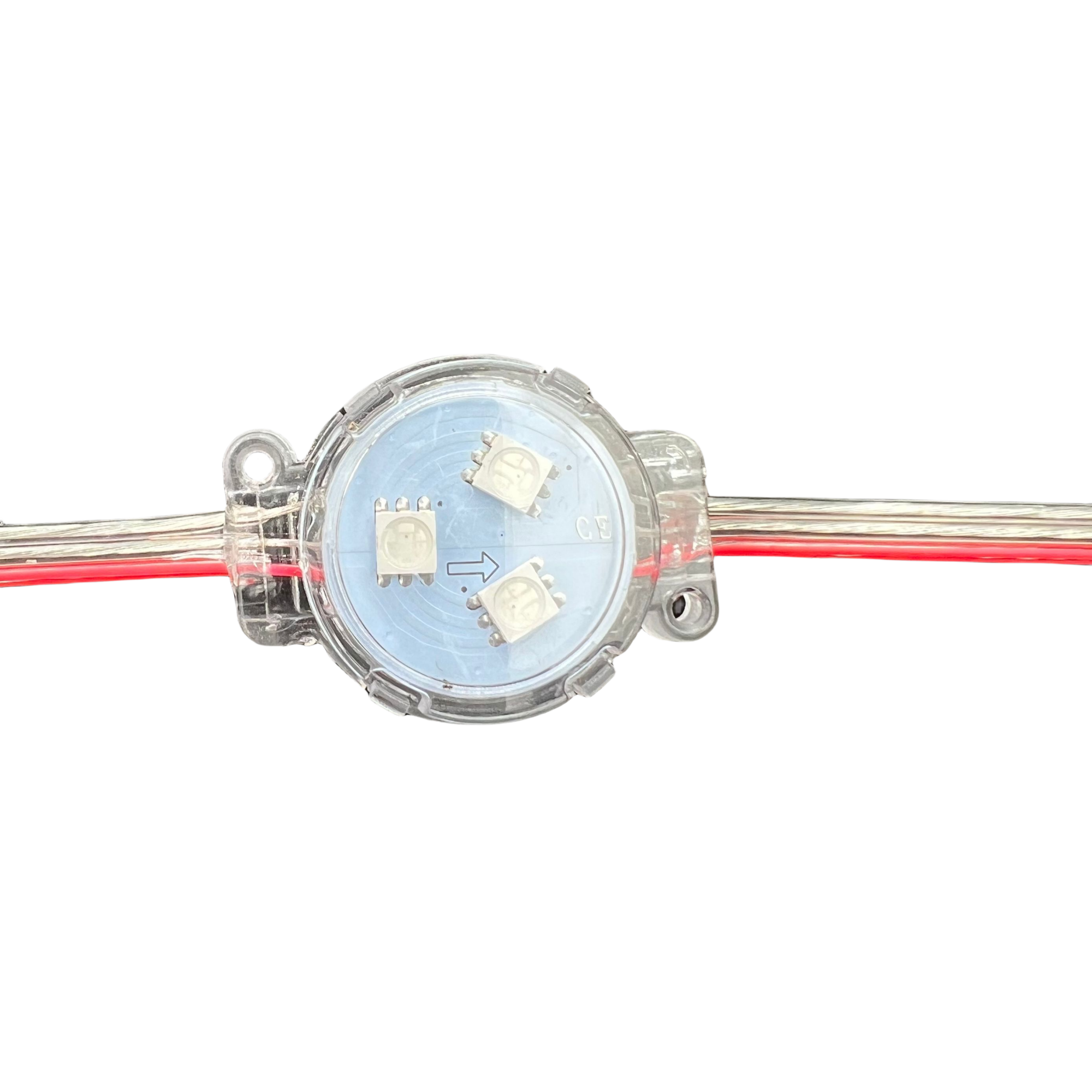

20 Pixels/String 30mm 12V WS2811 LED Addressable RGB Pixel Module IP68 Flat Clear Cover Clear Wire 0.72W/Pixel,10cm/15cm/20cm
-
Estimated Delivery:Oct 25 - Oct 29
-
Free Shipping & Returns: On all orders over $75
20 Pixels/String 30mm 12V WS2811 LED Addressable RGB Pixel Module IP68 Flat Clear Cover Clear Wire 0.72W/Pixel,10cm/15cm/20cm/30cm wire spacing
Specification:
Part No | LD-WS2811-30mm-3 LEDs-12V-RGB-C |

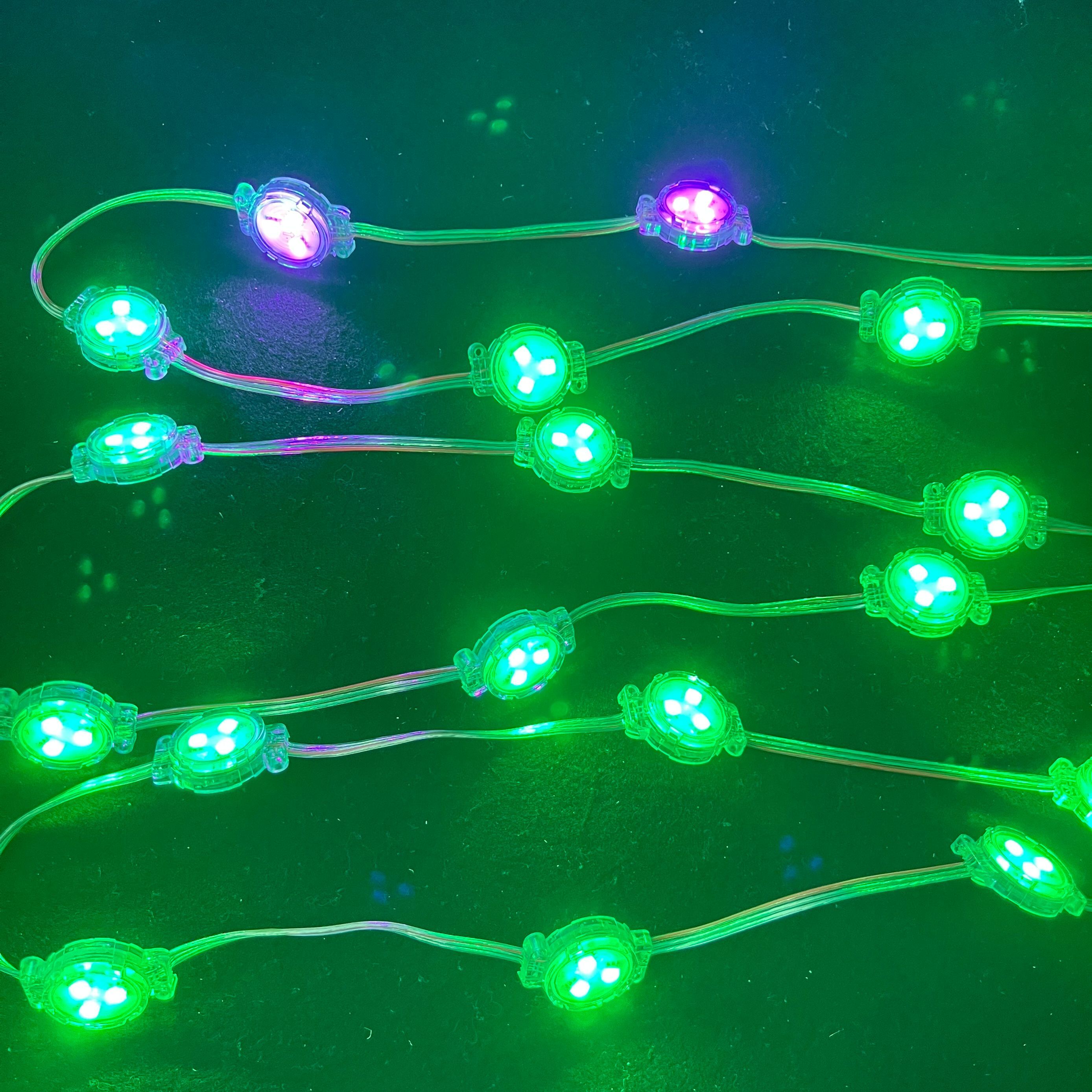

Color | RGB full color Addressable;each module as one pixel;takes 3 dmx channels |
LED Qty | 3pcs high bright 5050 SMD RGB LED |
Input Volt | DC12V |
Max current | 60MA |
Max Power | 0.72W |
Driver method | Constant current circuit |

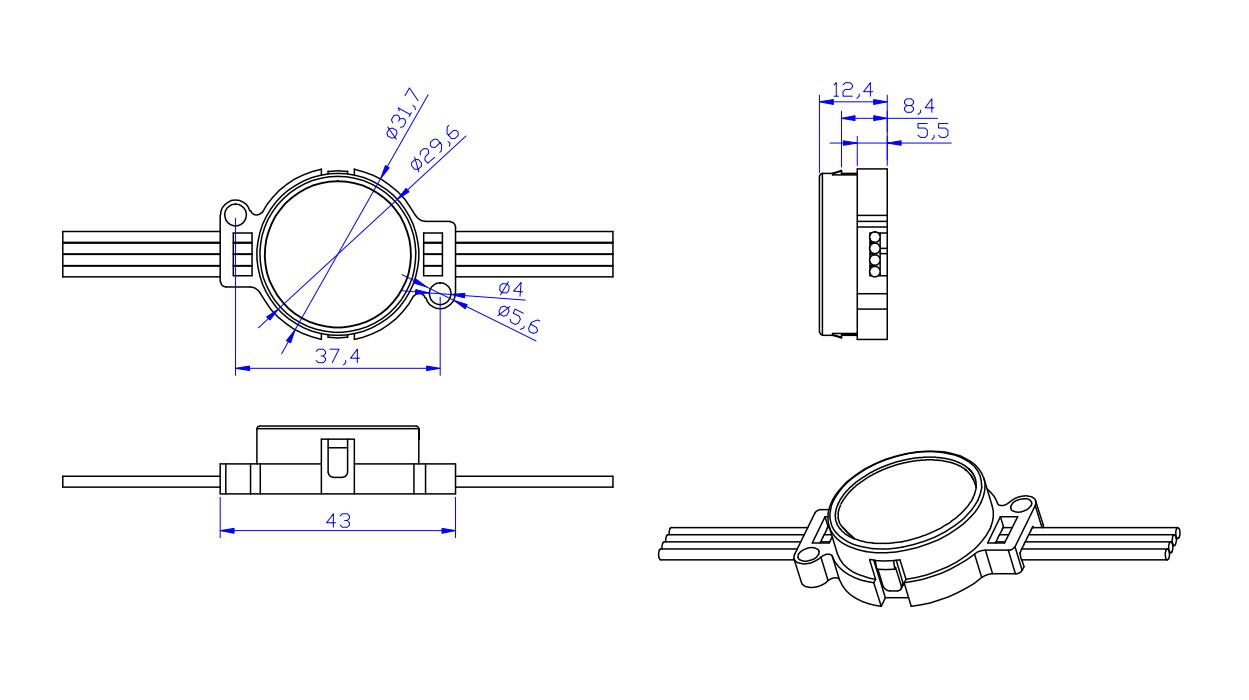

Dimension | 30mm diameter |
Viewing angle | 150-180degree |
Protection Level | IP68 waterproof;outdoor used |

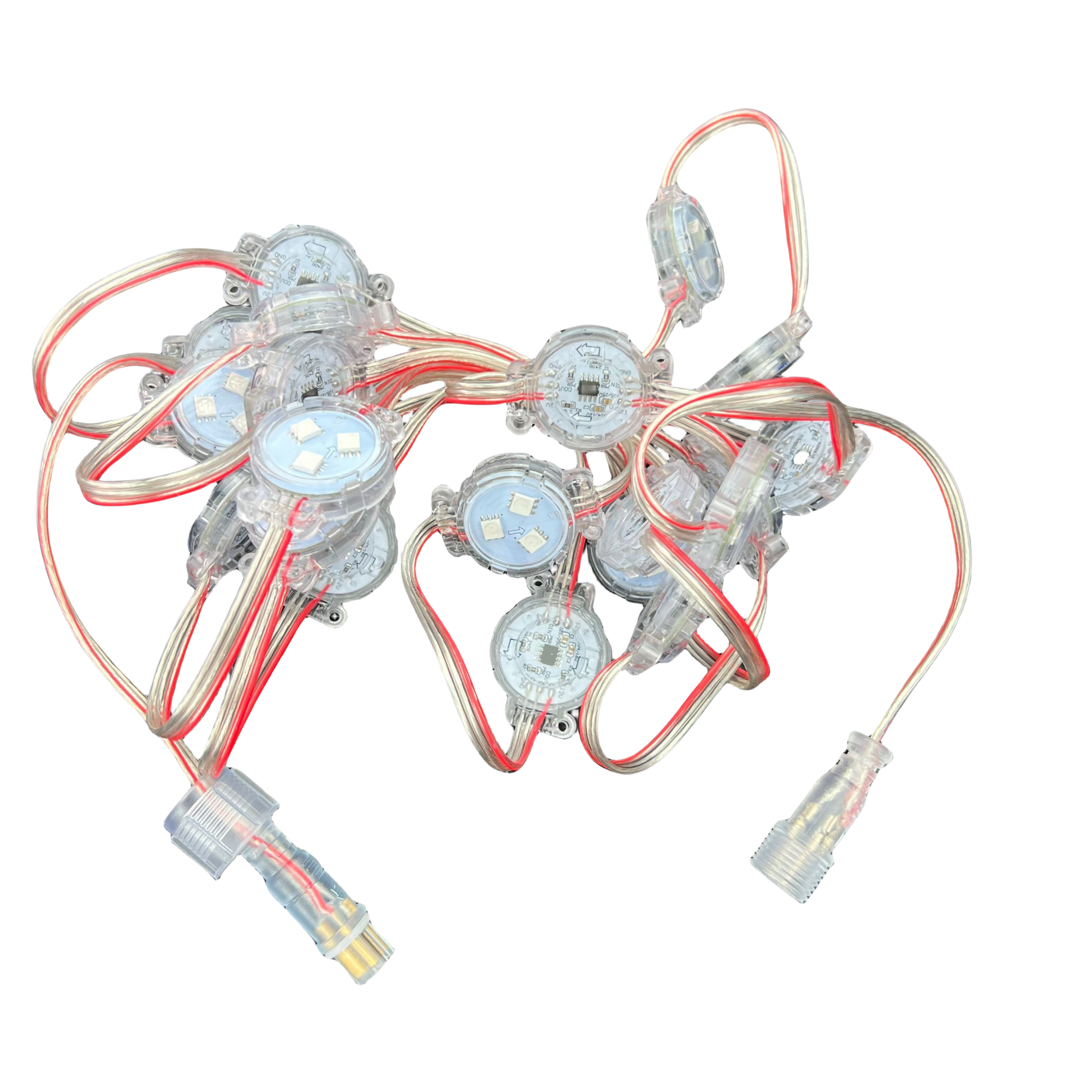

Quantity of each set | 20pcs LEDs together |

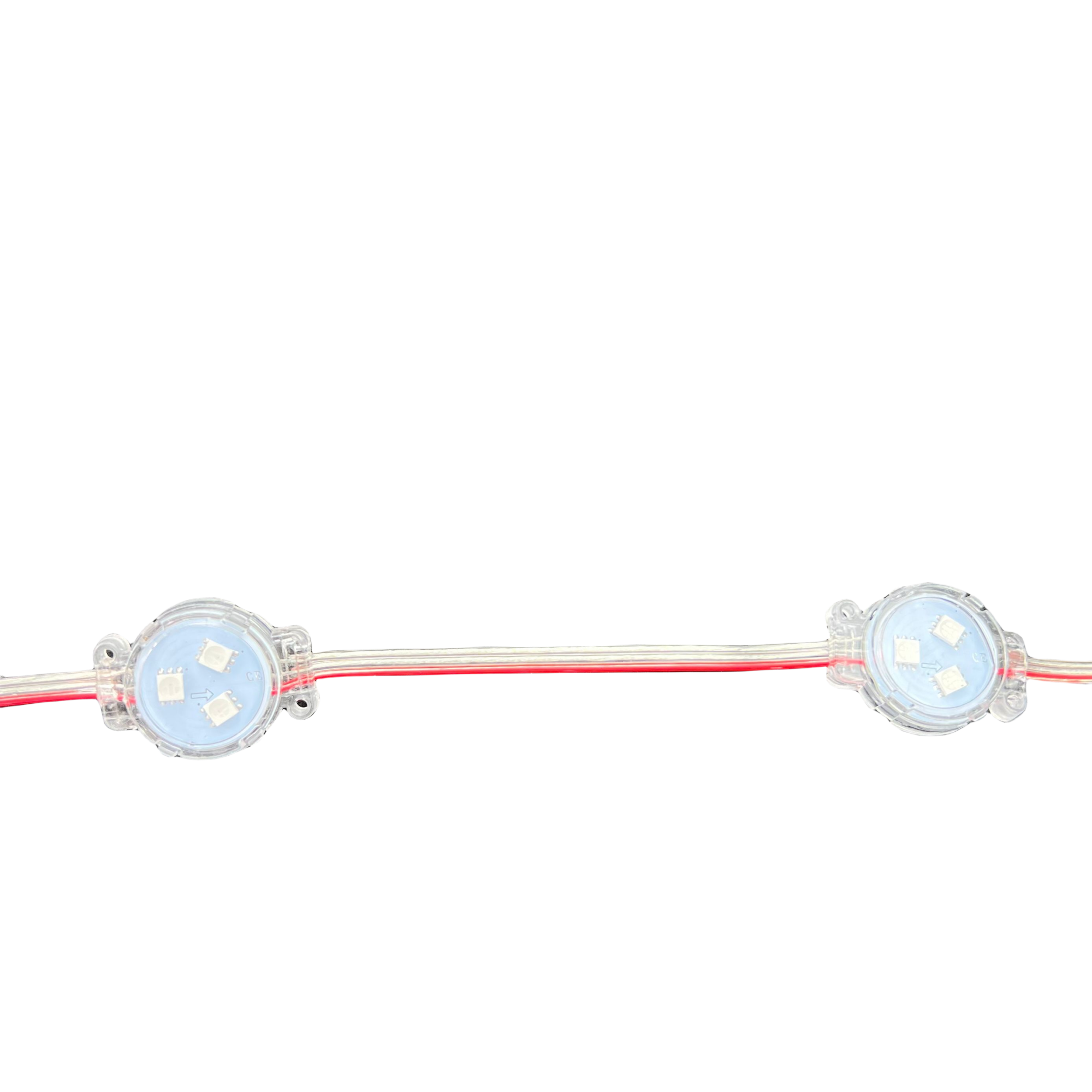

Standard wire length | 10cm/15cm/20cm/30cm wire spacing from side to side of the case 3Pin 18AWG Clear Wire |
Housing | flat clear PC case |
Fixed way | screw |
Lifespan | 35000 hours |
3 years | |
Operation temperature | -40-50 |
Store temperature | -50-60 |
standard pinout diagram for our pixel lights:
for pigtails:
Brown: 12V +
Yellow: data
Blue: GND
Input end: male connector(screw end with bare pin)
Output end: female connector(with hole)
Recommended Controllers:
APP bluetooth & WIFI/SD card/Artent SPI etc
