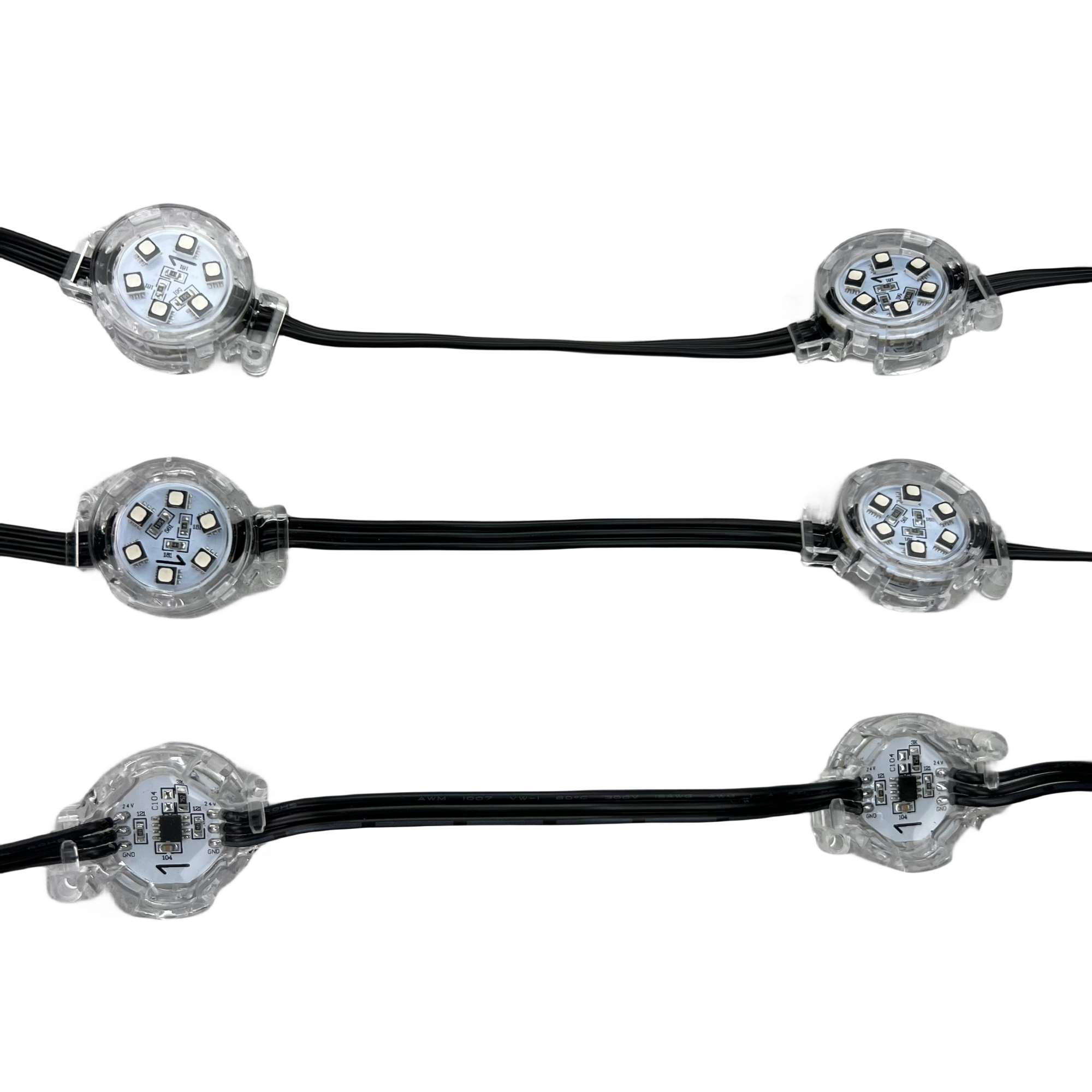

20 Pixels/String 30mm 24V WS2811 LED Addressable RGB Pixel Module IP68 Flat Clear Cover Clear Wire 1.44W/Pixel 13.5mm/xConnect
-
Estimated Delivery:Jul 20 - Jul 24
-
Free Shipping & Returns: On all orders over $75
20 Pixels/String 30mm 24V WS2811 LED Addressable RGB Pixel Module IP68 Flat Clear Cover Clear Wire 1.44W/Pixel 13.5mm/xConnect
Specification:
Part No | RA-WS2811-RGB-6LEDs-IP68-24V-B |
Color | RGB full color Addressable;each module as one pixel;takes 3 dmx channels |

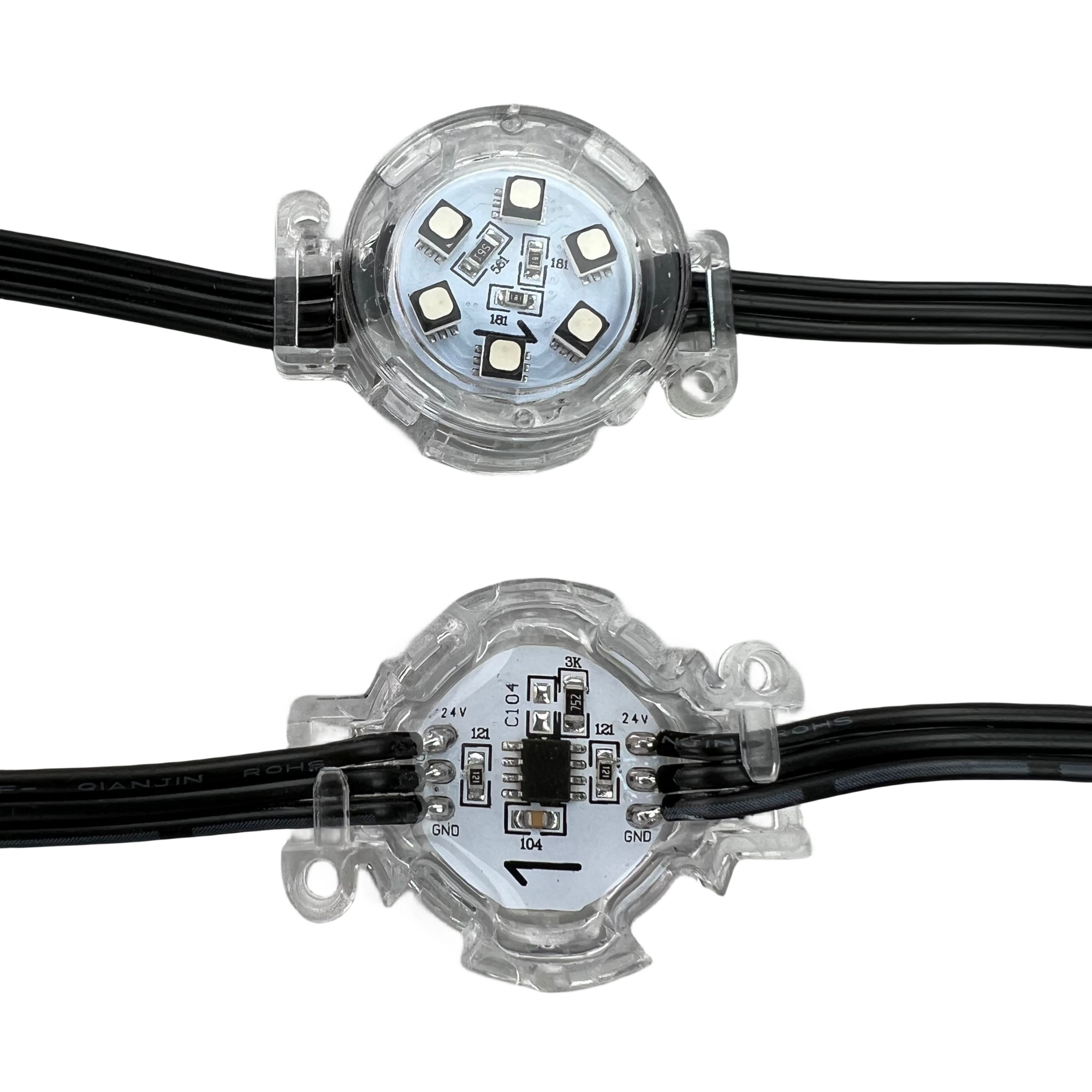

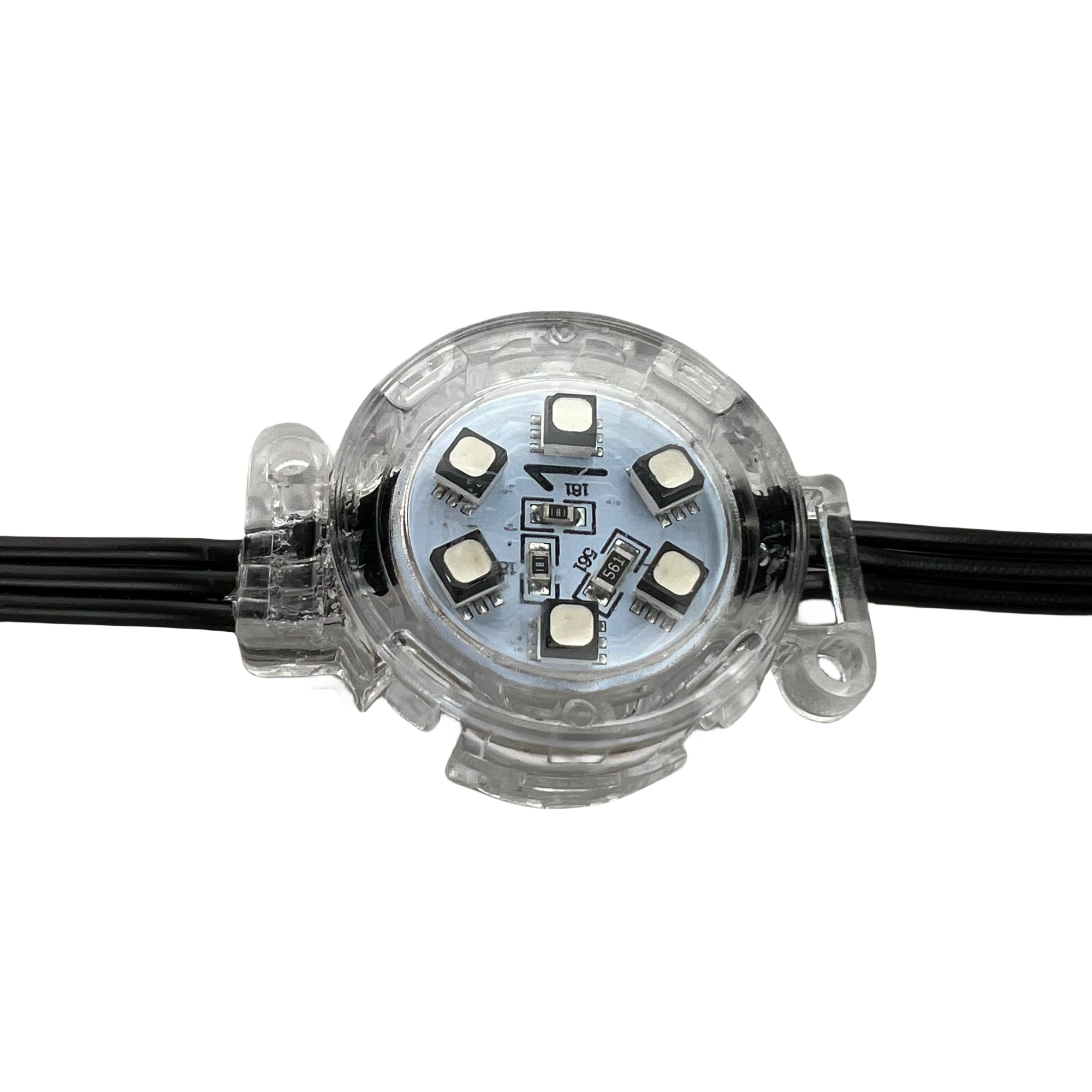

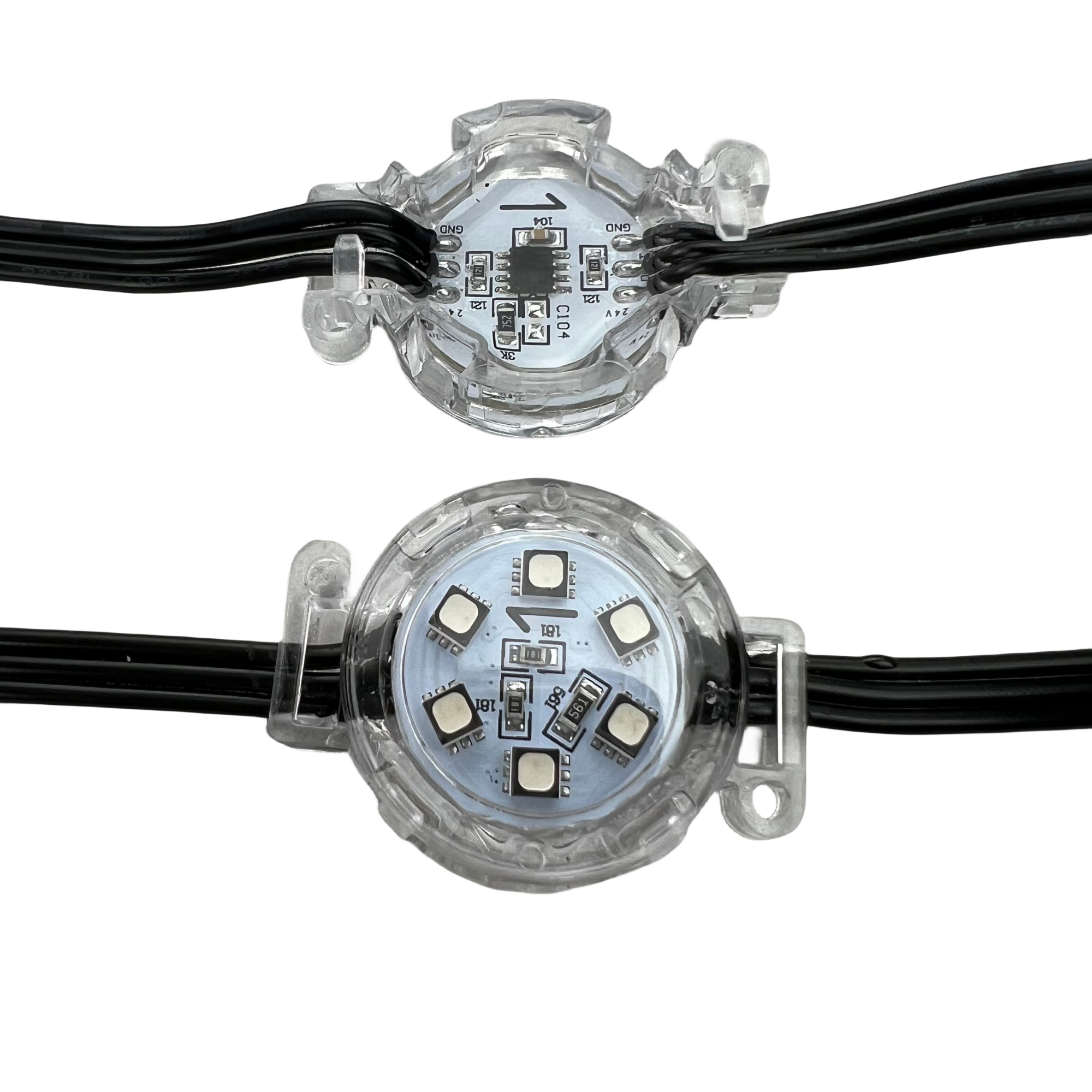

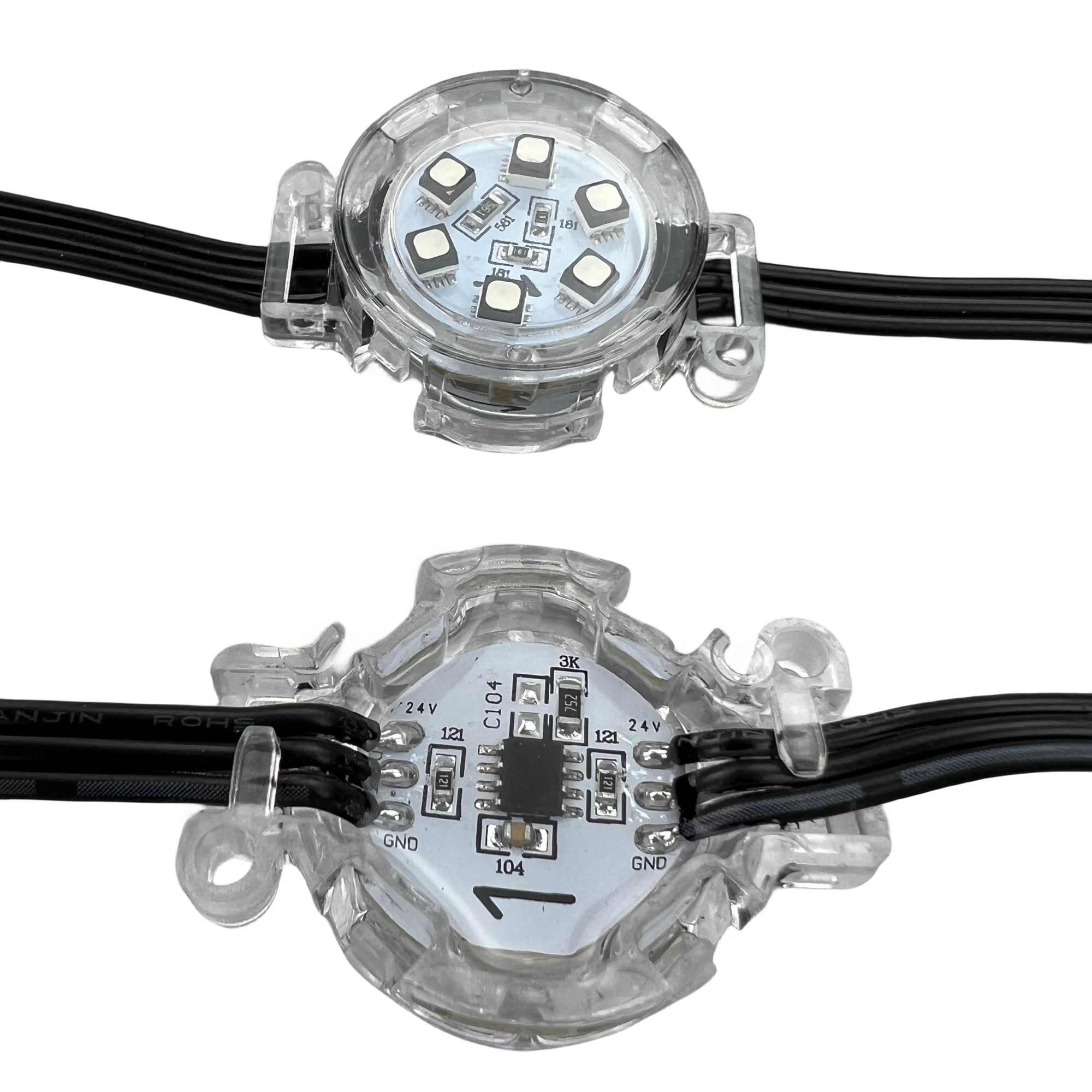

LED Qty | 6pcs high bright 3535 SMD RGB LED |
Input Volt | DC24V |
Max current | 60MA |
Max Power/Pixel | 1.44W/Pixel |
Driver method | Constant current circuit |

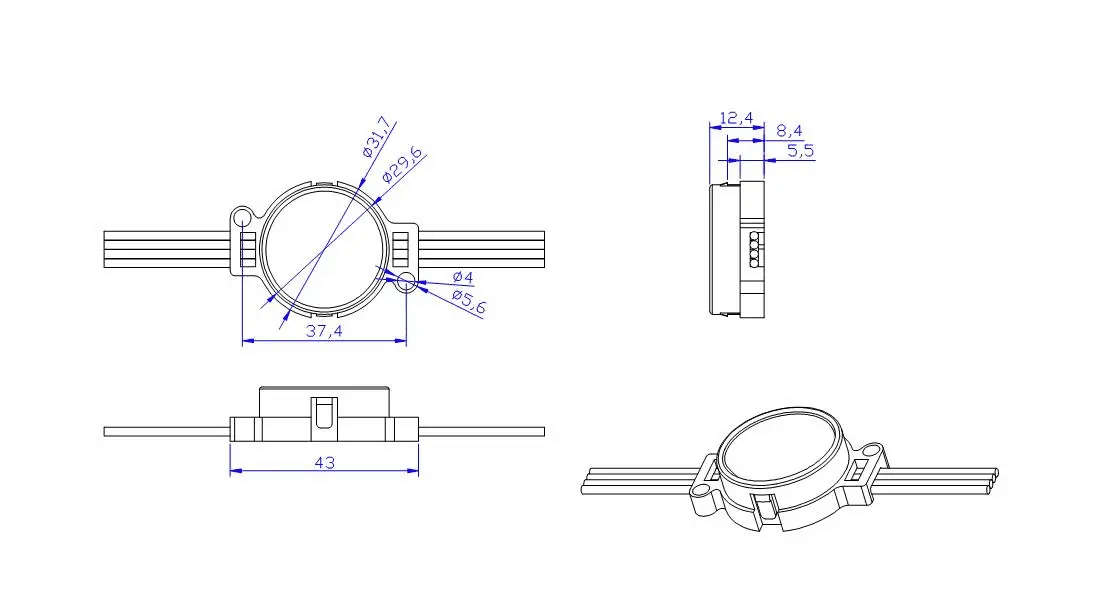

Dimension | 30mm diameter |
Viewing angle | 150-180degree |
Protection Level | IP68 waterproof;outdoor used |
Certification | CE and RoHS |
Quantity of each set | 20pcs Pixel Bubls per string |
Standard wire length | 10cm/15cm/20cm/30cm wire spacing from side to side of the case 3Pin 18AWG Black Wire |
Housing | flat clear PC case |
Fixed way | screw |
Lifespan | 35000 hours |
Warranty | 3 years |
Operation temperature | -40-50 |
Store temperature | -50-60 |

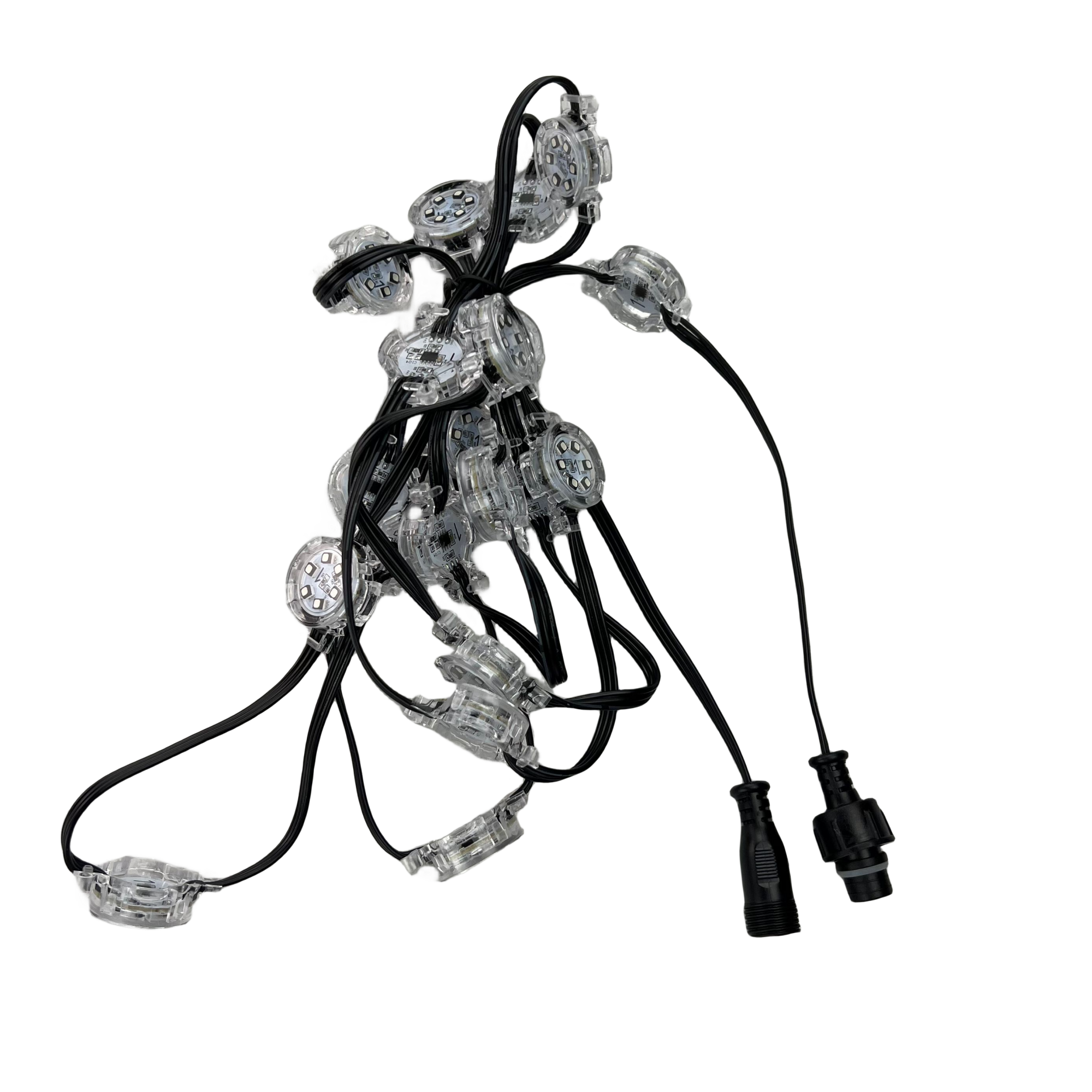

waterproof connector at the ends:
3 core xConnect pigtails 20cm long:
https://www.aliexpress.us/item/2251832869744835.html
3 core 13.5mm Raywu connector 20cm long:
https://www.aliexpress.us/item/2251832609894926.html
Permanent Track Aluminum Profile(channel) for 3cm pixel module;30mm open hole, 1m long
https://www.aliexpress.us/item/3256805458531056.html
standard pinout diagram for our pixel lights:
for pigtails:
Brown: 24V +
Yellow: data
Blue: GND
Input end: male connector(screw end with bare pin)
Output end: female connector(with hole)
Recommended Controllers:
APP bluetooth & WIFI/SD card/Artent SPI etc
