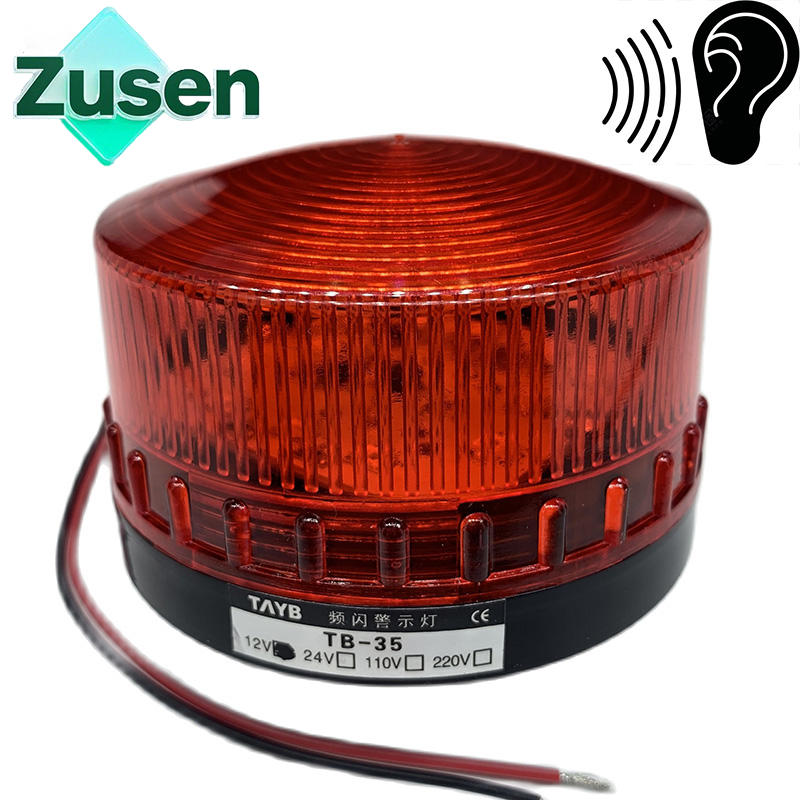

Zusen TB35-R-J with Buzzer 12v 24v 110v 220v Red Security Alarm Strobe Signal Light Warning LED Lamp Small Flashing Light

Overview

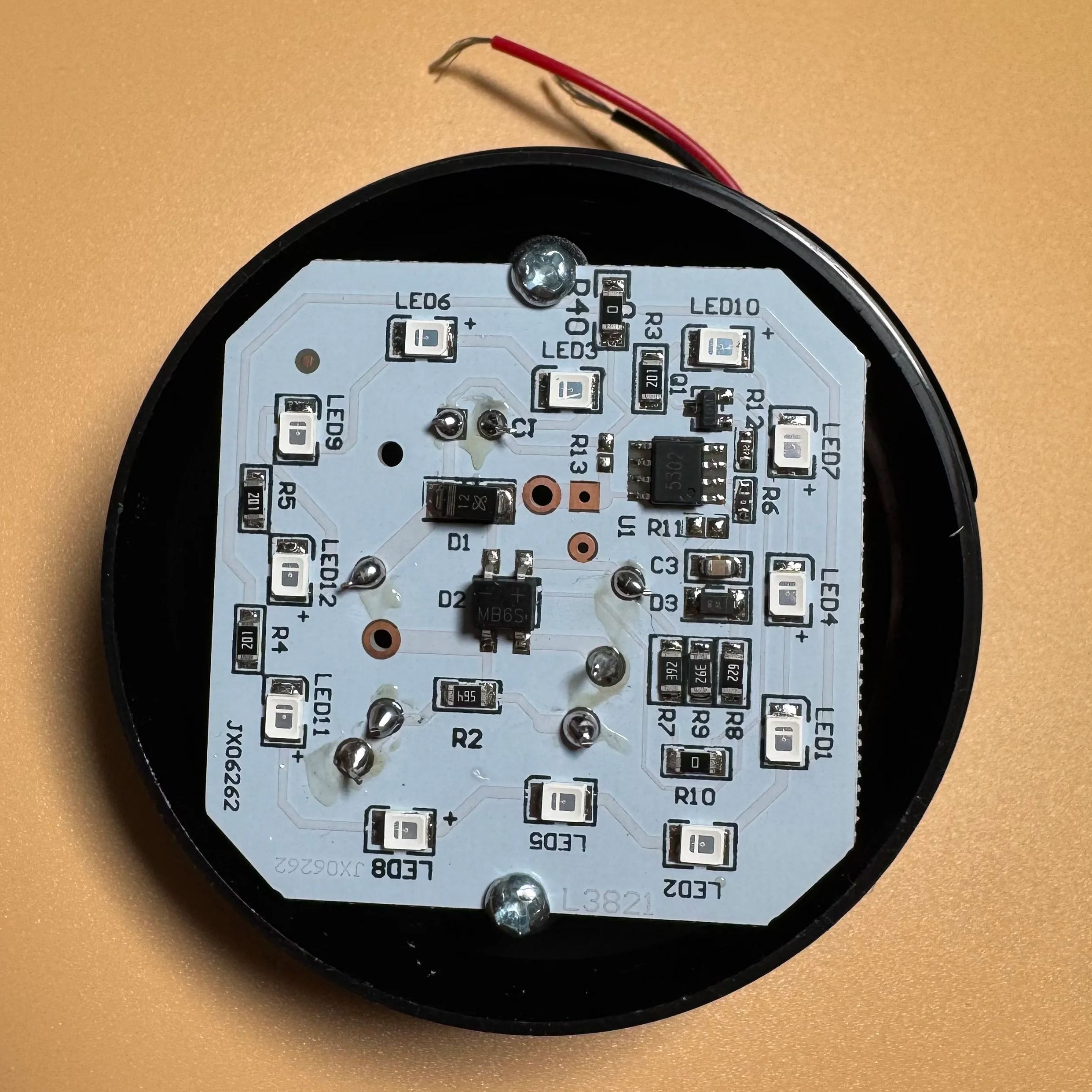

•It is for rated working voltage of AC/DC12V, AC/DC 24, AC220V and AC380V (AC frequency 50Hz), and it can issue warnings through sound and light signals. Other working voltage can be customized light source form LED lamp adopts high brightness LED lamp beads

•The optional work is formula: long bright ,strobe ,flash

•Flashing frequency: Strobe 20-30/Min burst 60-90/Min

•Material: Base - ABS; Dengjun-PC

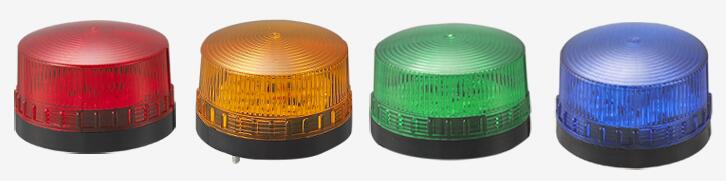

•Product color options: red, yellow, green, blue and white

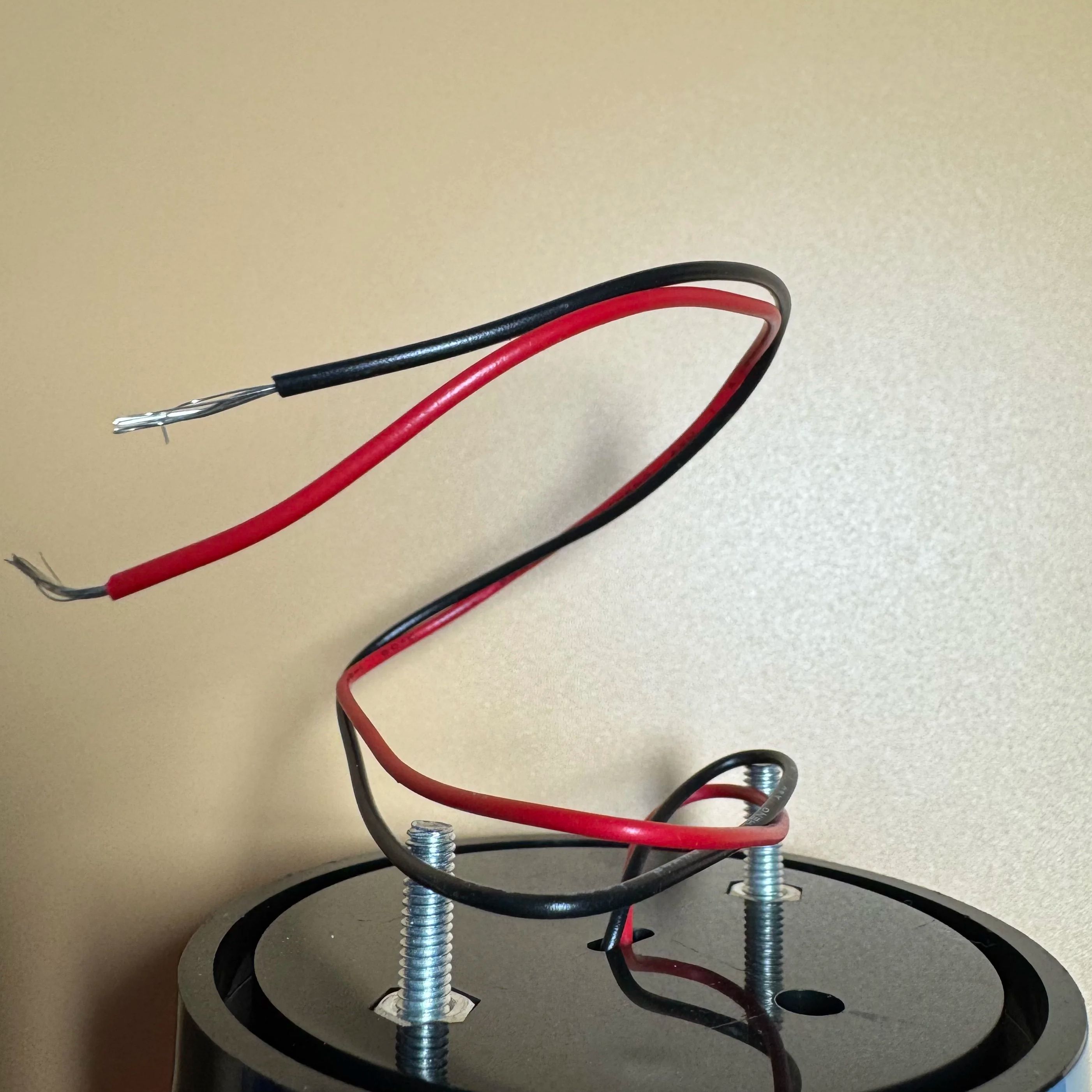

•The power is not divided into E and negative, it has nothing to do with the color of the wire

•Small equipment, automated assembly lines, outdoor public places, etc.

Normal working conditions and installation conditions

•Working environment temperature: the upper limit value does not exceed +55℃, the lower limit value does not exceed -25℃, and the daily average value does not exceed +35℃. The relative humidity of the air does not exceed 98%

•Installation site: The altitude does not exceed 2000 meters (install the product at a high place, due to the influence of external conditions, the life of the luminous body may be shortened)

•Pollution Degree: Level 3

•Installation category: Ill category

•Protection class: IP43

•Please avoid installing the product directly on mechanical equipment with strong vibration or on objects that exert strong vibration

Main technical parameters and performance

Voltage Ue (V): AC/DC 12V, AC/DC 24V, AC220V, AC380V

Corresponding to the power: 0.5W, 1W, 11W, 25W

Corresponding to the current: 35mA, 45mA, 50mA, 65mA

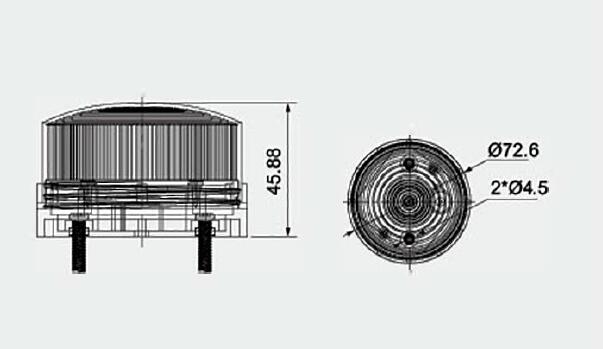

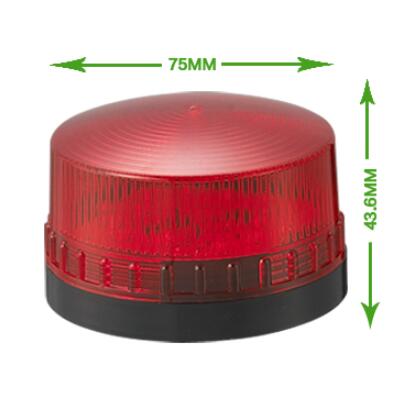

product dimension(mm)
