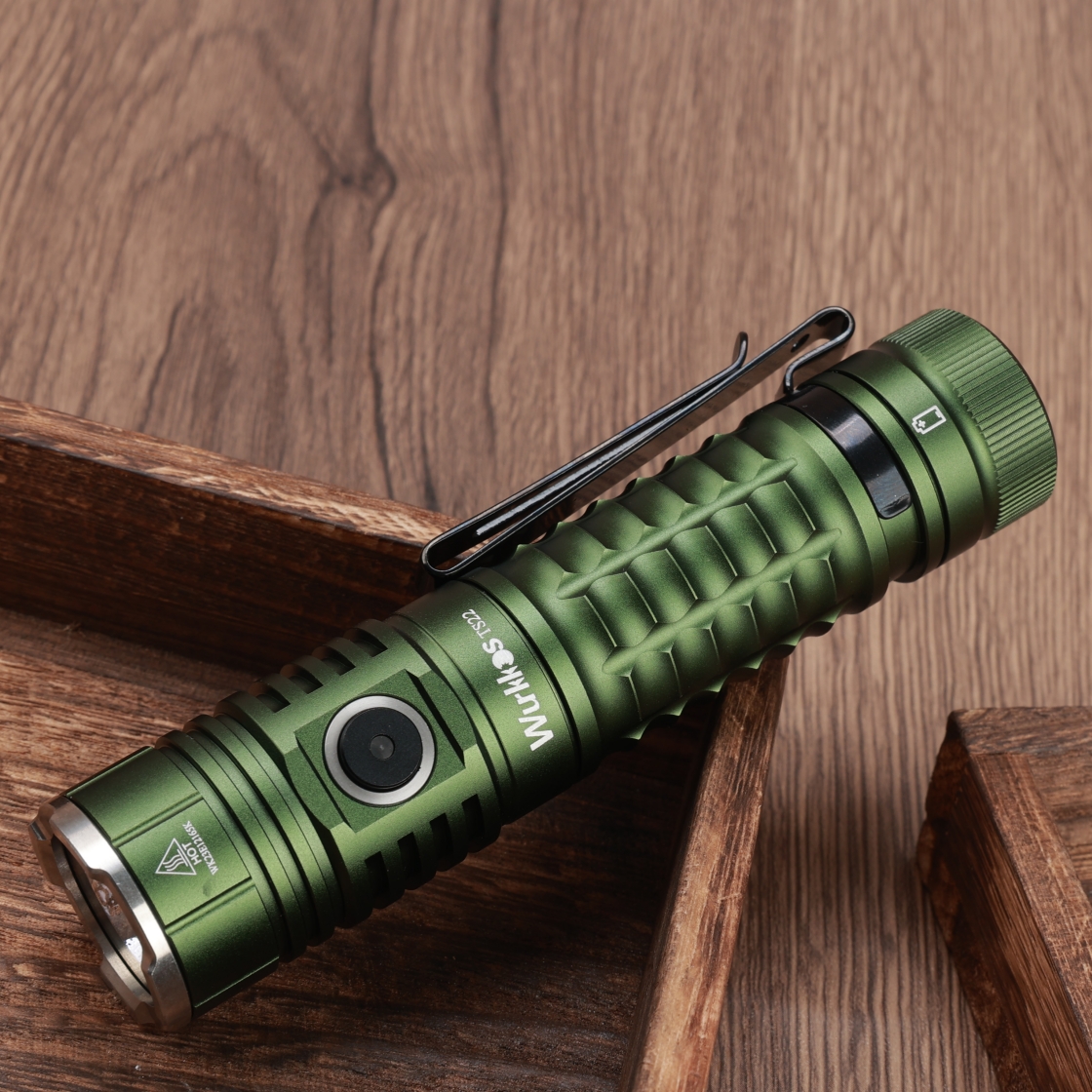

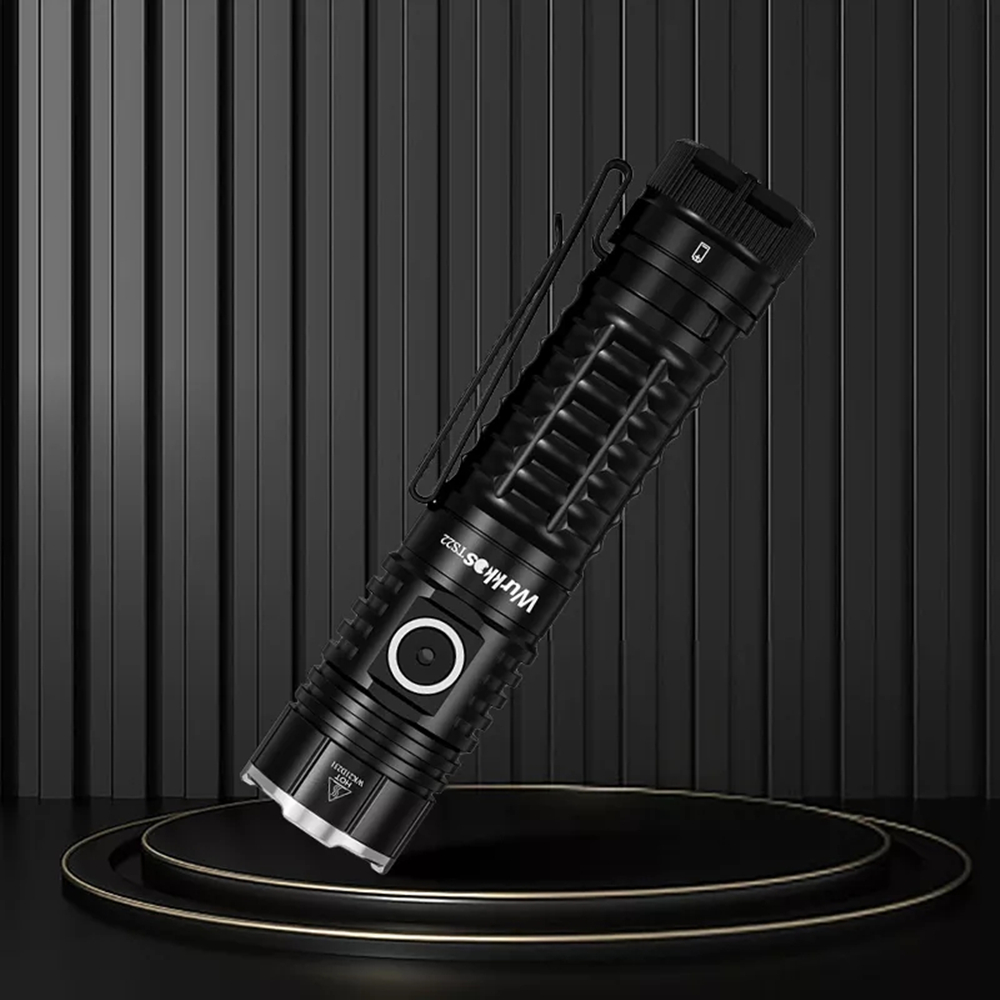

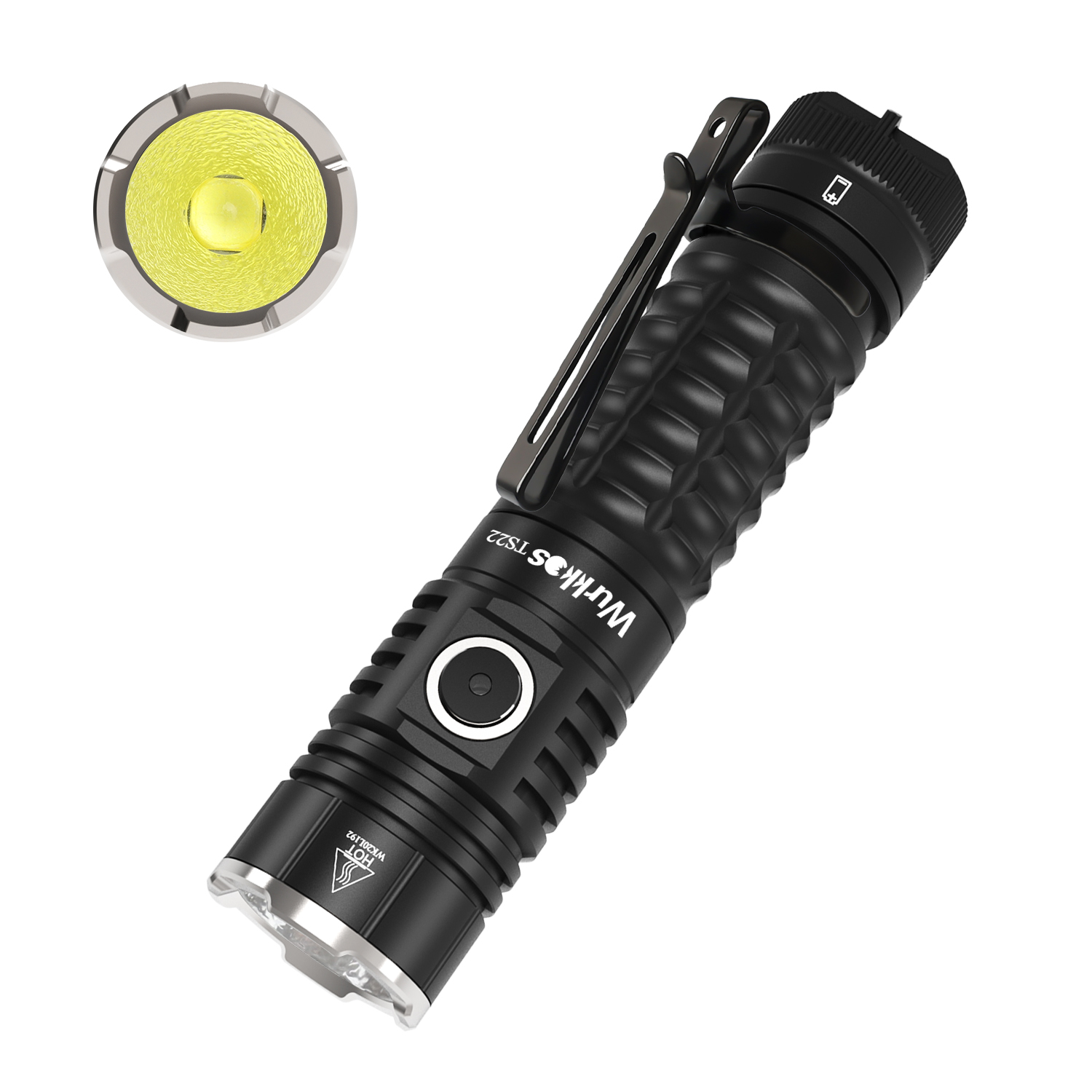

Wurkkos TS22

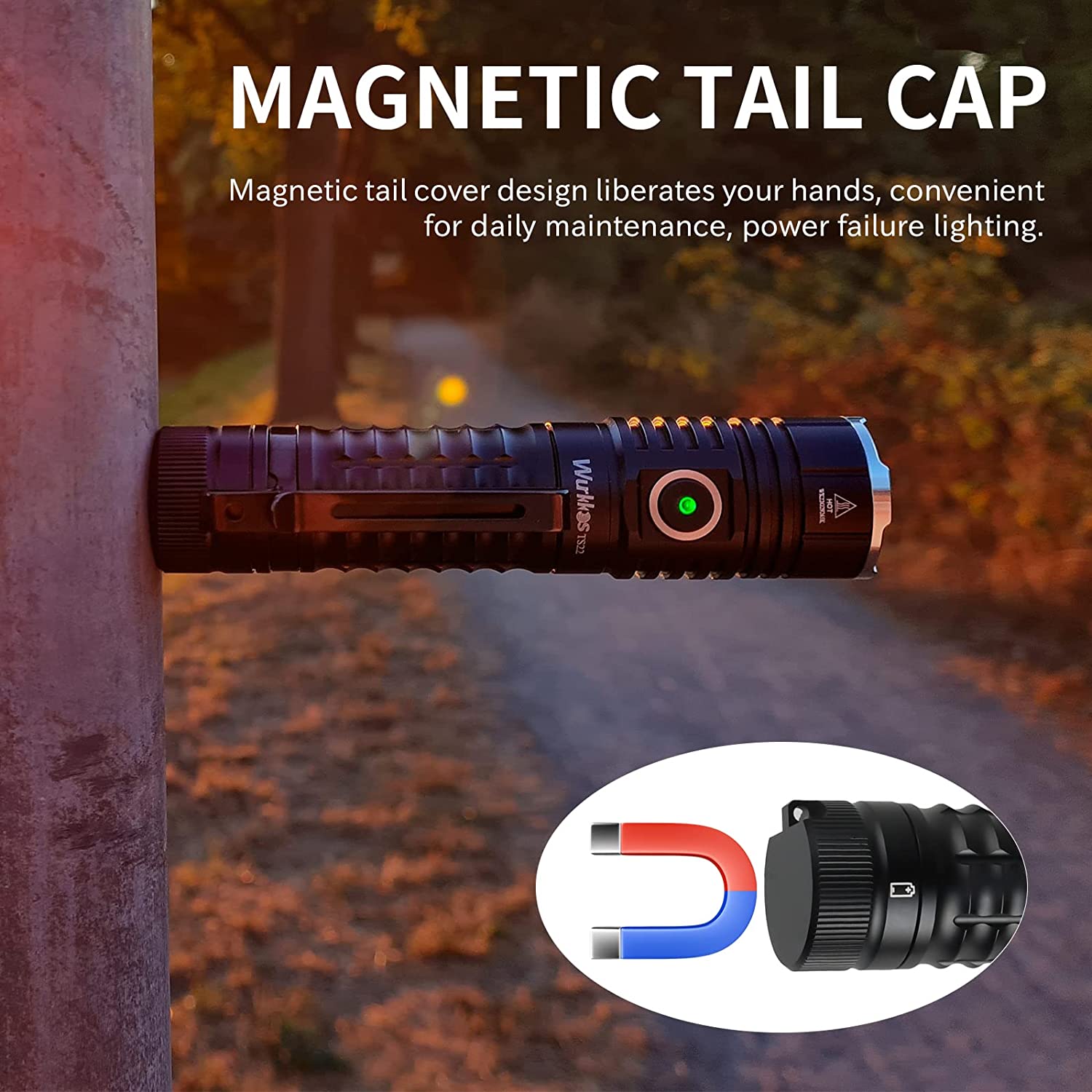

Wurkkos TS22 is a powerful, versatile EDC / outdoor flashlight, designed for home, EDC or outdoor activities . It is powered by a single 21700 Li-ion rechargeable battery, is rechargeable via USB-C and comes with a magnetic tailcap for flexible and convenient use. 5V 3A charging and reverse charging function, can be used as a power bank in emergency situations.
The flashlight features two mode groups: Group 1 with stepped modes and Group 2 with ramping mode

Através deste link: https://youtu.be/qLAYN6DYDOU você pode aprender sobre a experiência real do usuário e feedback.

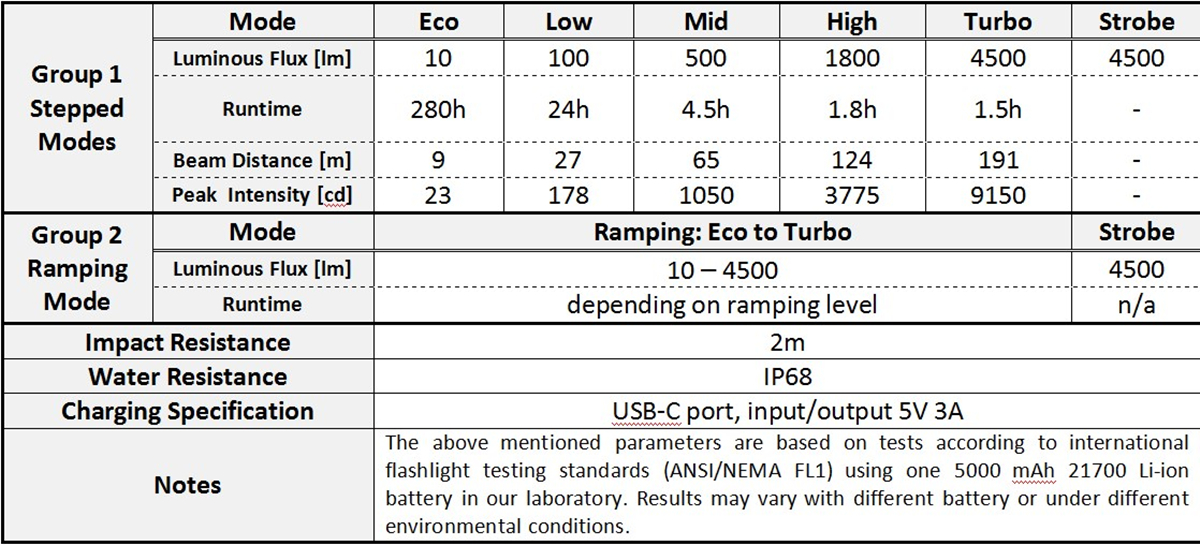

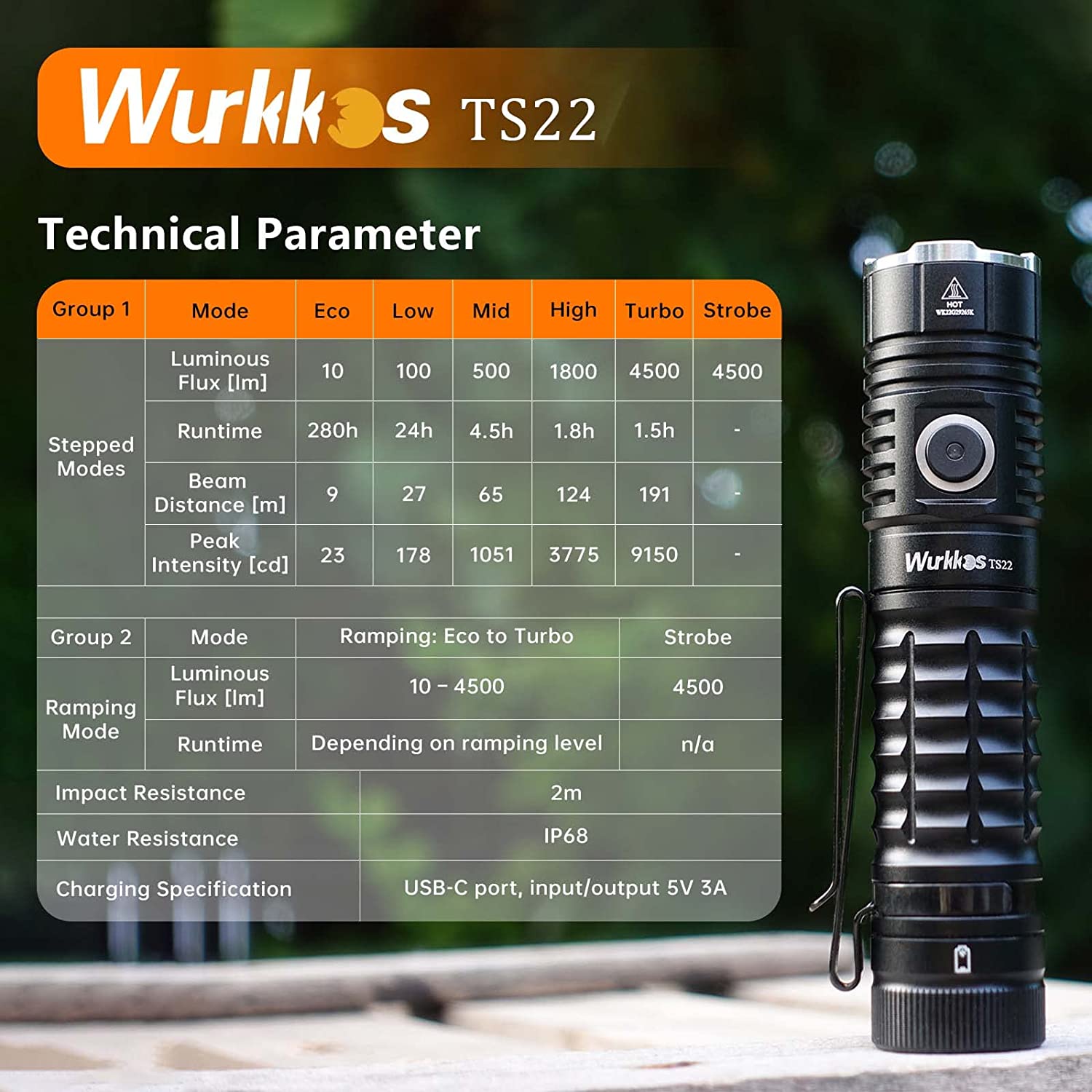

Specifications

Emitter: 1x XHP70.2 6000-6500K or 1x XHP70.2 5000K
Boost constant current circuit
Reflector: Orange Peel reflector
Beam angle:Flood 80°, Spot angle 30°
Operating voltage: 2.7V – 4.2V

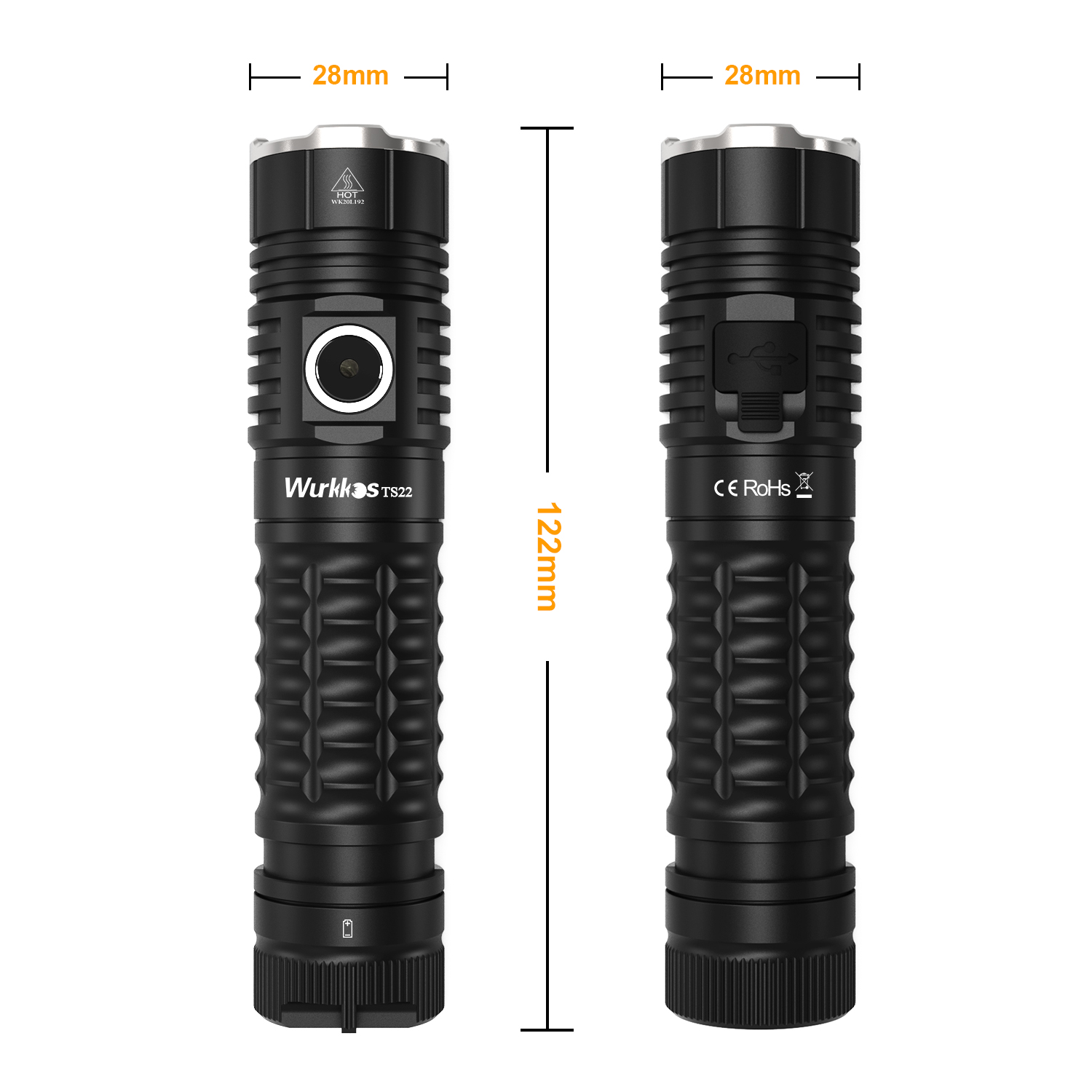

Dimension: 122mm (length) x 28mm (head diameter)
Weight:95 ±1 gram (without battery)
Flashlight body: Aerospace grade 6061 grade aluminum alloy
Toughened mineral glass lens
Water resistance i.a.w. IP68
Mode Memory: memorizes the last brightness level used in the general modes (except Strobe turbo)
Reverse polarity protection to protect against improper battery installation.
Advanced Temperature Regulation (ATR) technology:ATR will reduce the brightness level automatically when the driver temperature reaches 55℃ to prevent overheating

Operation Instructions

Group 1: Stepped modes (default)
From OFF single click to turn ON. Press and hold to cycle through stepped modes ( Low – Mid – High). Single click to turn OFF.
Double click to activate Turbo mode. Another double click to cycle Eco-Turbo, single click to return to the previously used mode.
From OFF, press 1 second to Eco,then keep press and hold to cycle through stepped modes.
Group 2: Ramping mode
From OFF single click to turn ON. Press and hold to change brightness steplessly (“ramp”). Ramping changes its direction when the button is being pressed again within 1.5 seconds. The light flashes once when it reaches the lower or upper end of the ramp. From ON single click to turn OFF again.
Double click to activate Turbo mode. Another double click to cycle Eco-Turbo, single click to return to the previously used mode.
From OFF, press 1 second to Eco, then keep press will adjust brightness
Toggle between Group 1 and Group 2
When ON 4 clicks to switch between both mode groups. Two flashes will confirm the mode group change.
Strobe Mode
Triple click to activate Strobe mode. While in Strobe mode, single click to return to the previously used standard mode.
Electronic Lockout
TS22 comes with a lockout function to prevent accidental activation, e.g. in one’s pocket or backpack.
From OFF quadruple click to active lockout. Another clicks(more than 2 clicks) to deactive lockout again and return to the previous mode setting. When the light is locked, the main LED only blinks two times to show the status of being locked.

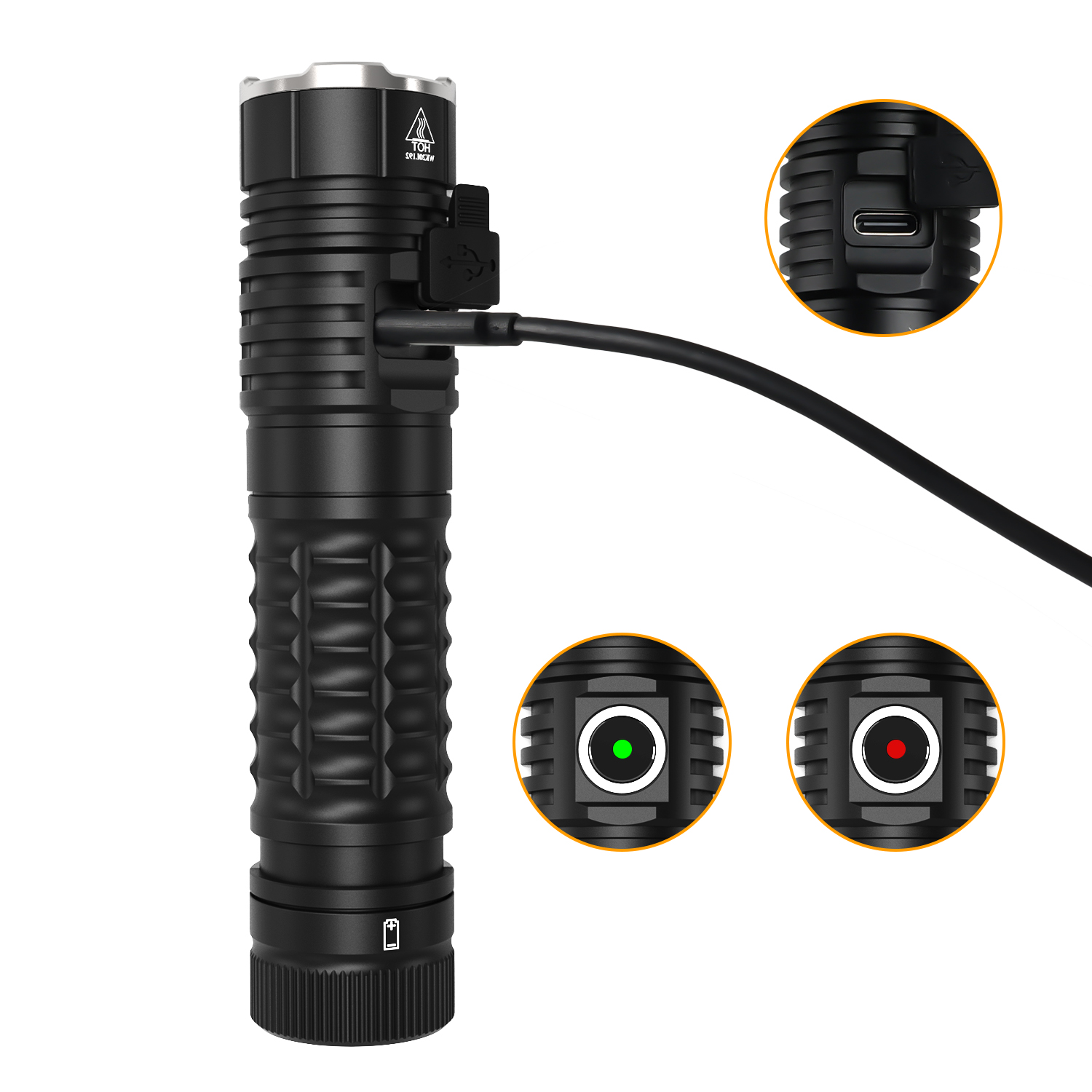

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning the TS22 on.
Green = remaining battery power is good (more than 30%).
Red = remaining battery power is poor (less than 30%).
Flashing Red = critical power, replace or recharge battery as soon as possible.

Low Voltage Protection: If the battery’s voltage is lower than 2.7V, it turns off automatically to avoid battery damage by over discharge.
