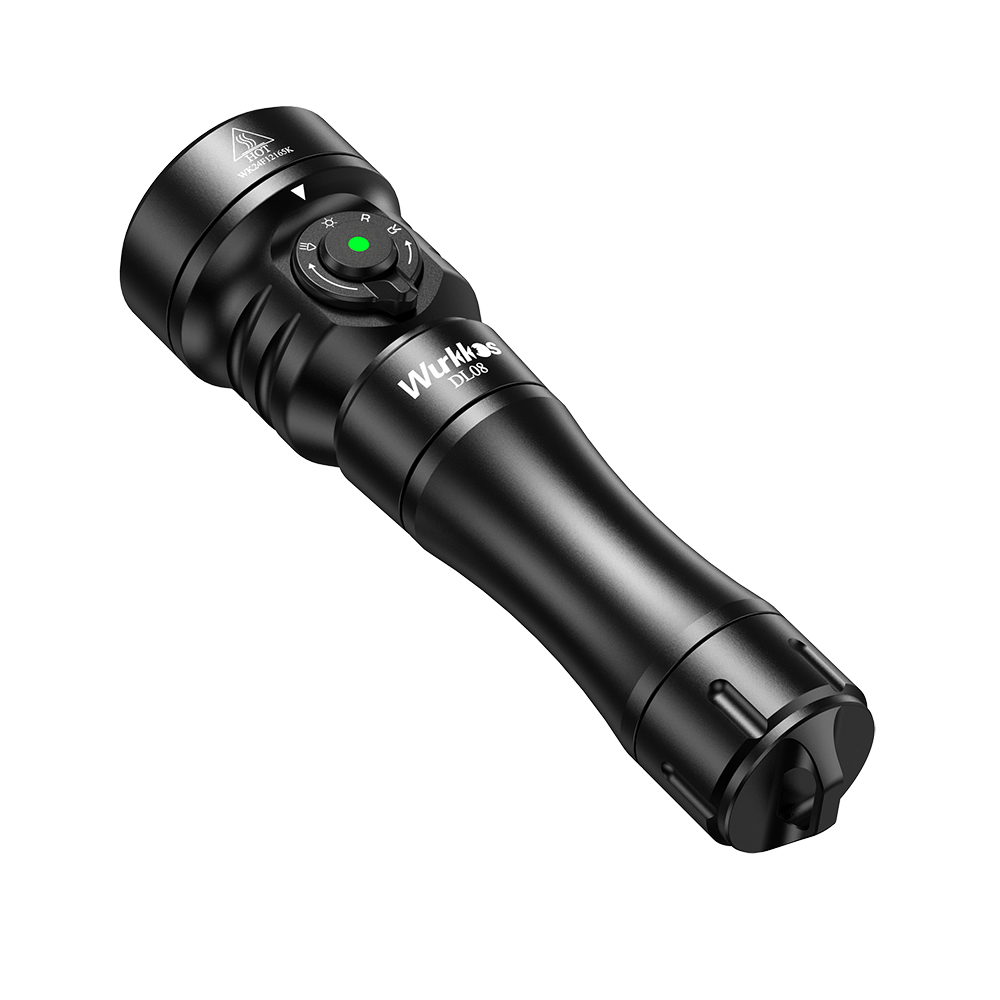

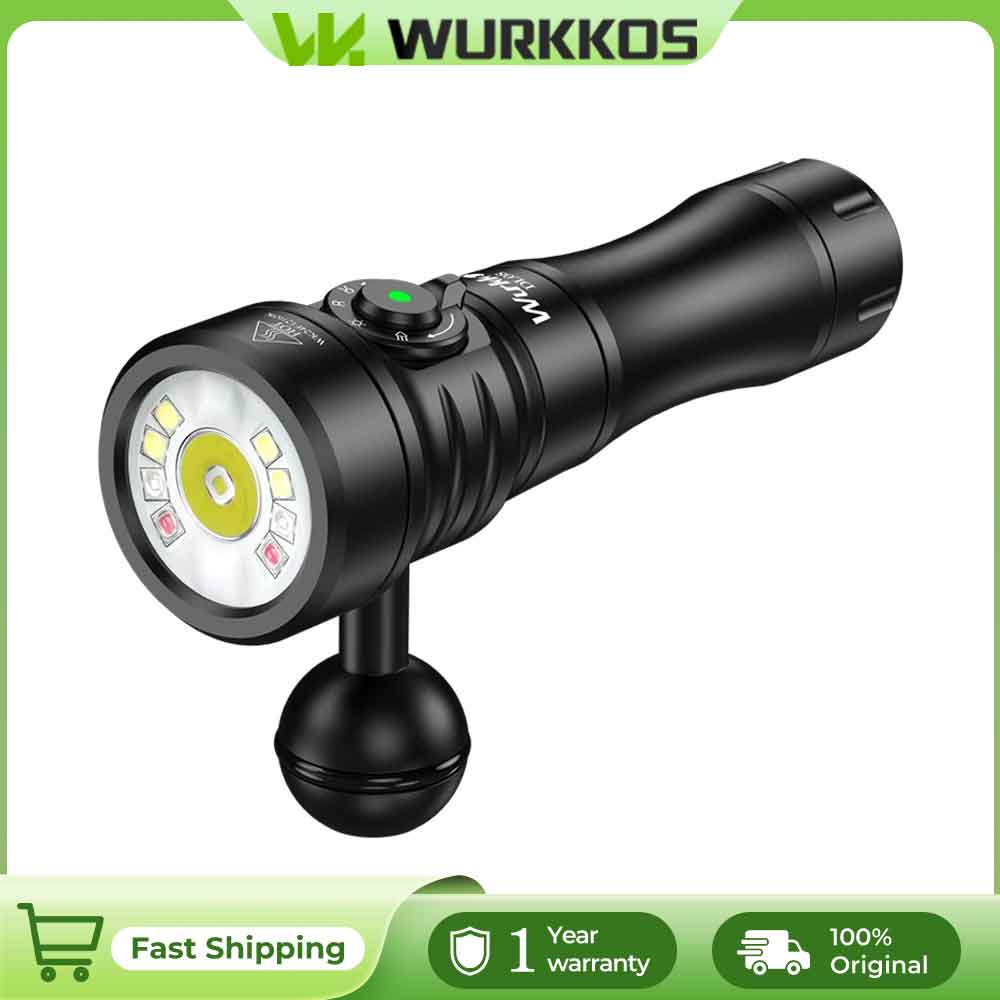

Wurkkos DL08 is a long range dive light, combination spotlight, floodlight, red, UV light with rotary magnetic inductive switch.

Specifications

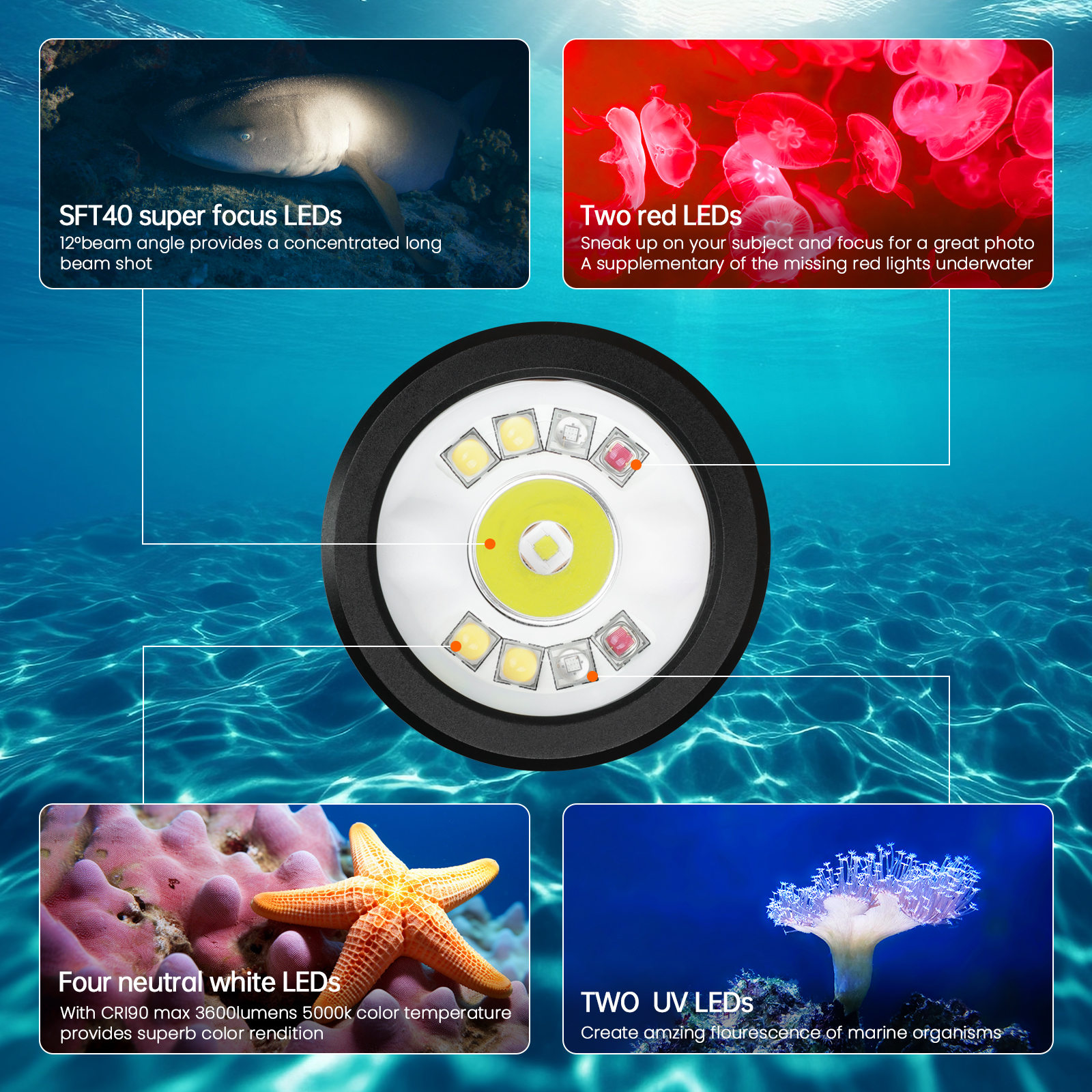

1. LED: High powerful LEDs

2. Operating voltage: 3.0V-4.2V

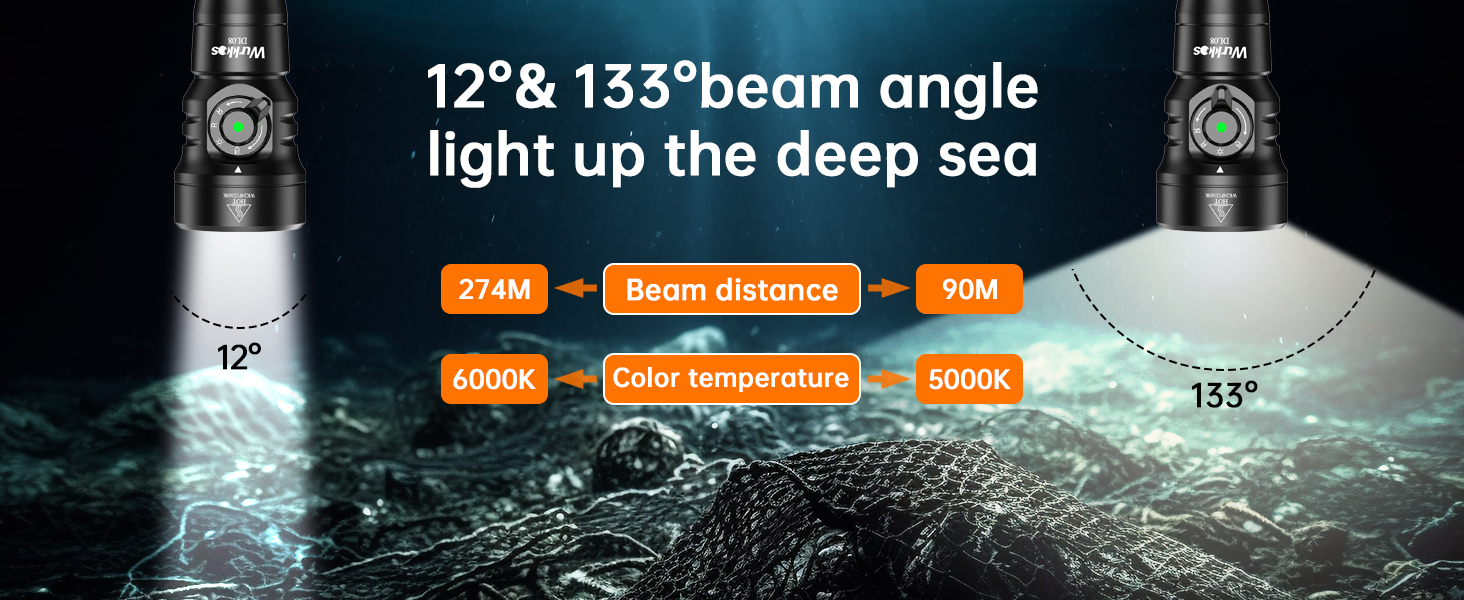

3. Beam Angle: Spot 12°; Flood 133°

4. Battery options: 1x 21700 Li-ion Battery

5. Dimension: 138.9mm (length)x 40mm (head diameter)

6. Weight: 149g / 0.33lb

7. Reflector: Smooth Reflector

8. Charging: USB-C charging and discharging

9. Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC machining to hard-anodized to military grade specification type III, anti-abrasive finish to get solid built body, anti-crash geometry and better heat exchange.

10. Water resistance i.a.w. IP68 (underwater 100 meters)

11. Reverse polarity protection to protect against improper battery installation.

12. Advanced Temperature Regulation (ATR) technology: ATR automatically reduces the brightness level when the driver temperature reaches 55°C to prevent overheating

13. Low voltage warning

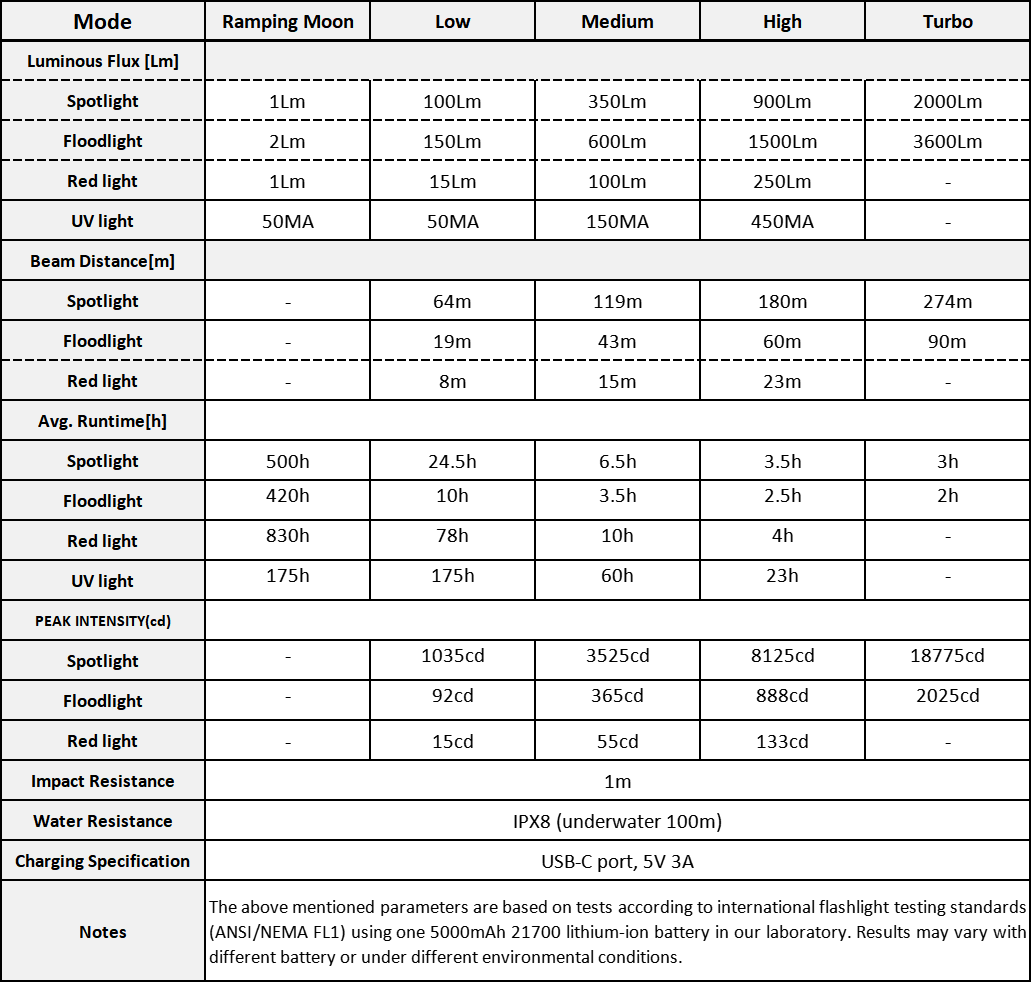

ANSI/NEMA FL1 Chart

Operation Instructions

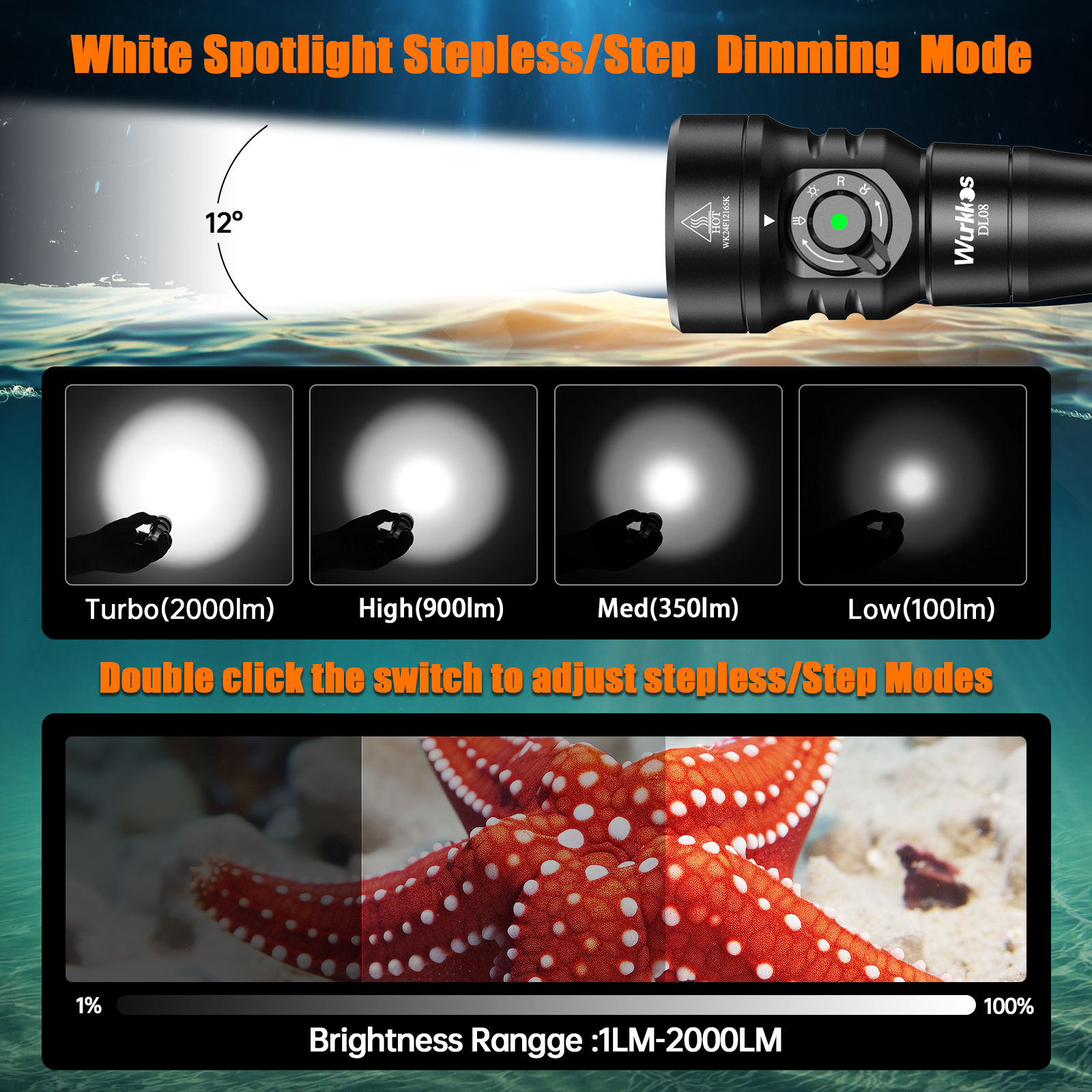

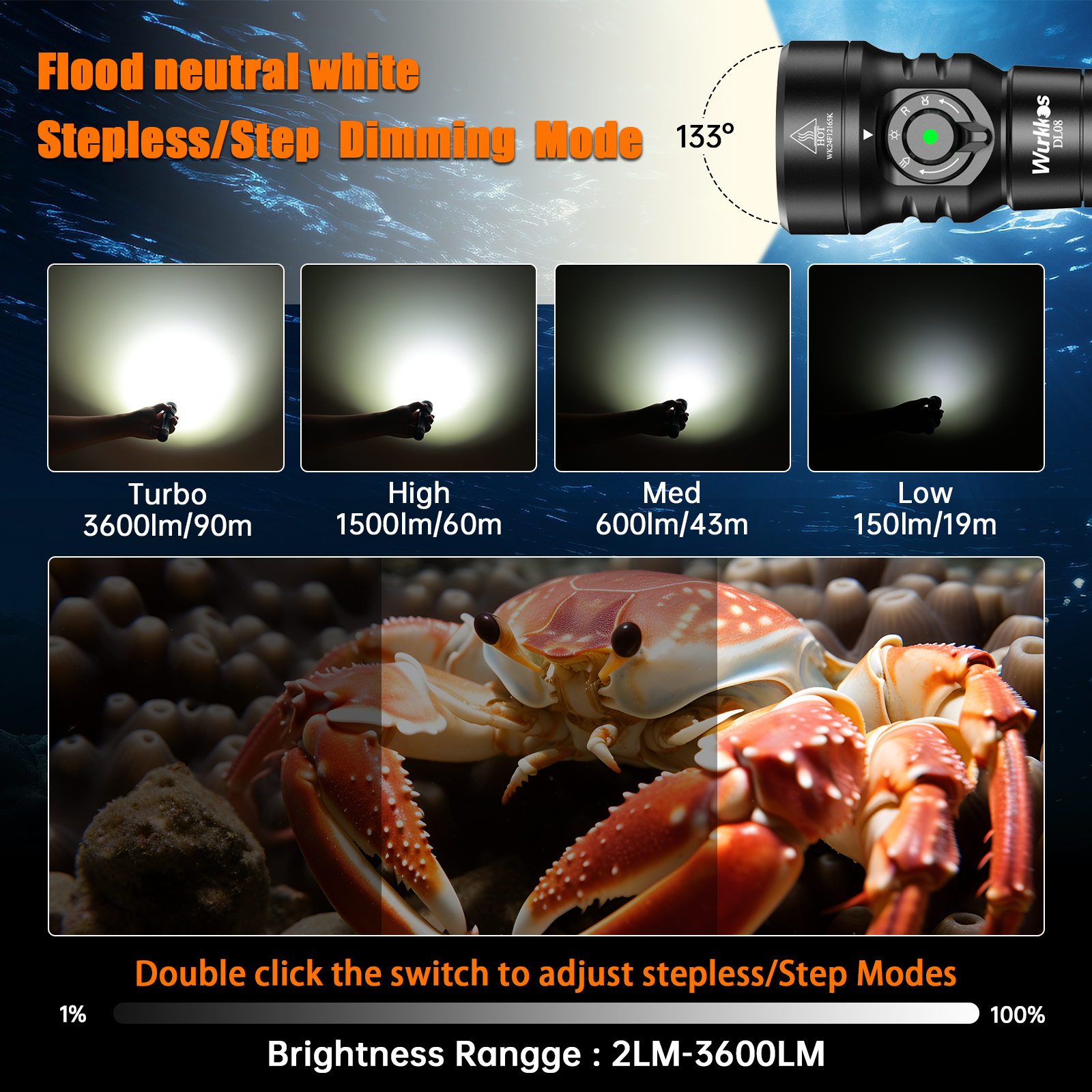

01-Quick switch between spot and flood

Switch Between Floodlight and Spotlight Modes to UNLOCK All Underwater Scenes.

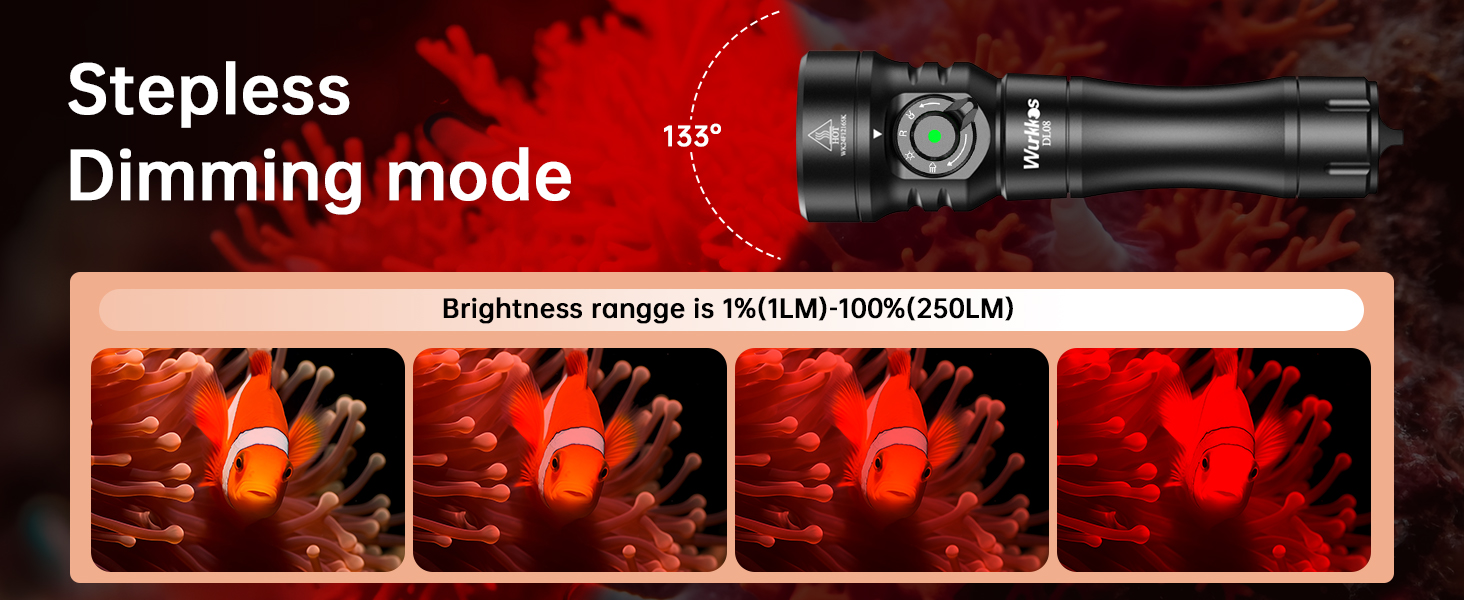

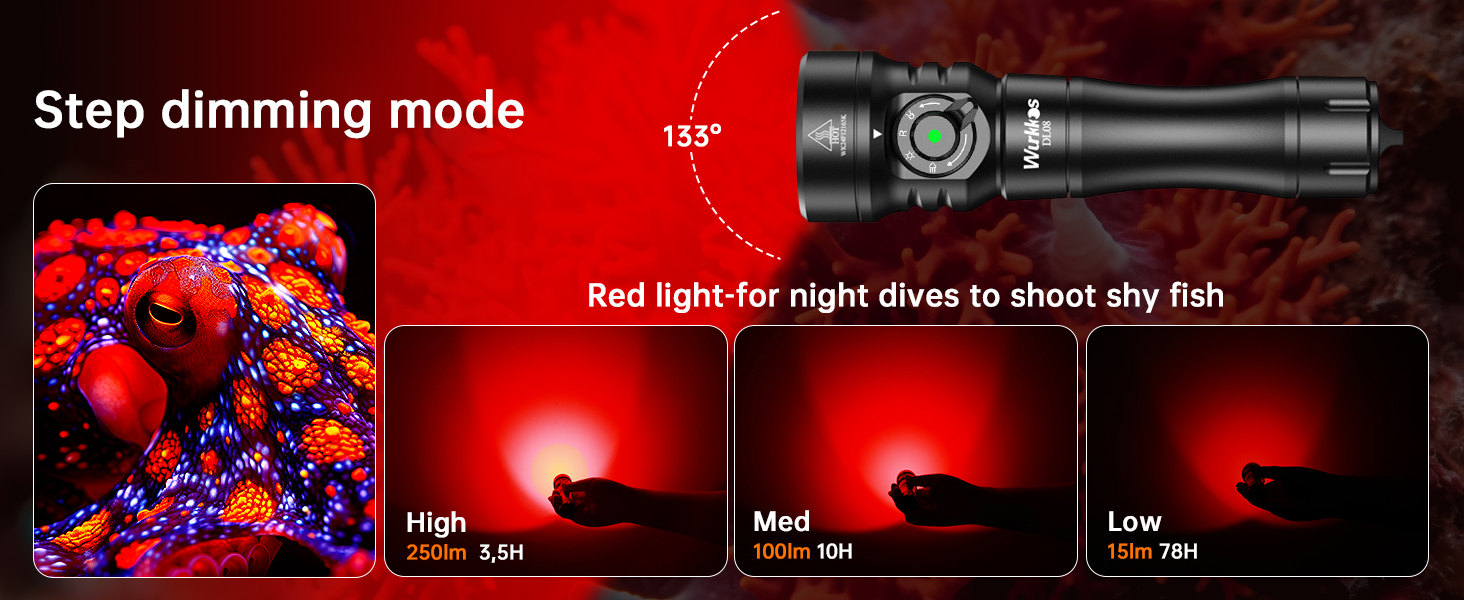

02-Red Light Mode

DL08 underwater photography light has a 1LM-250LM RED light setting. It’s your helper for capturing shy underwater creatures, allowing you to observe the rich underwater life together.

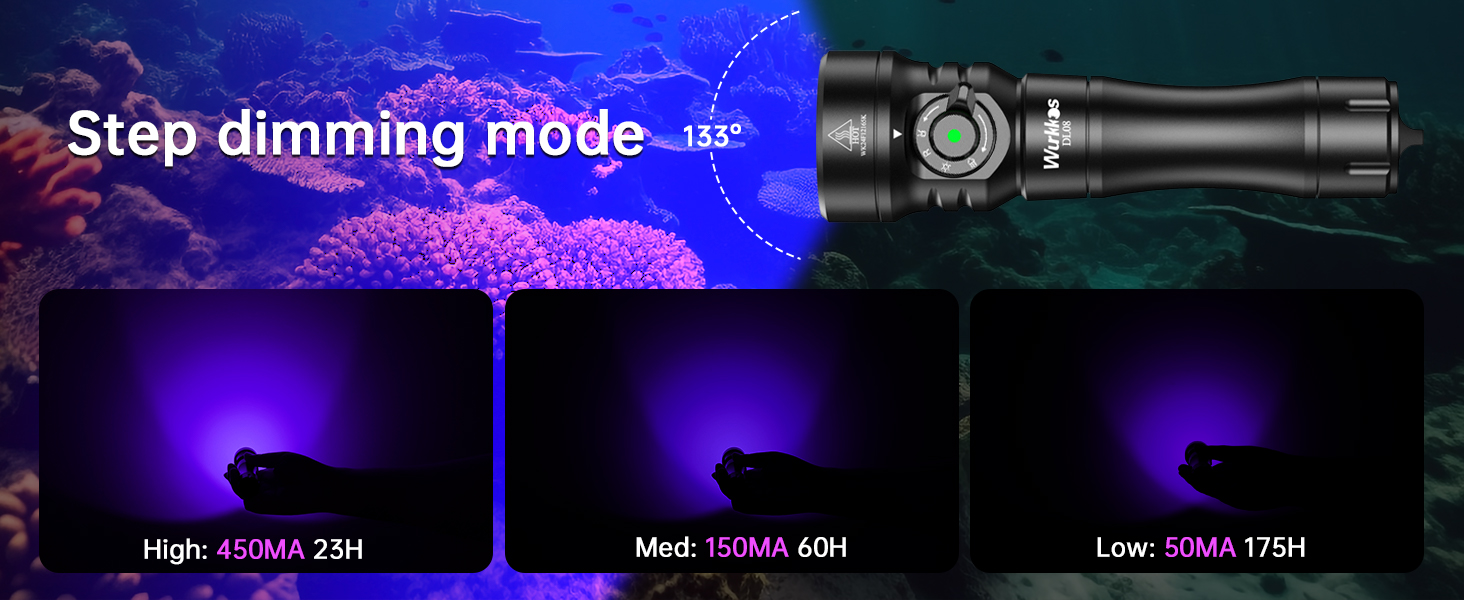

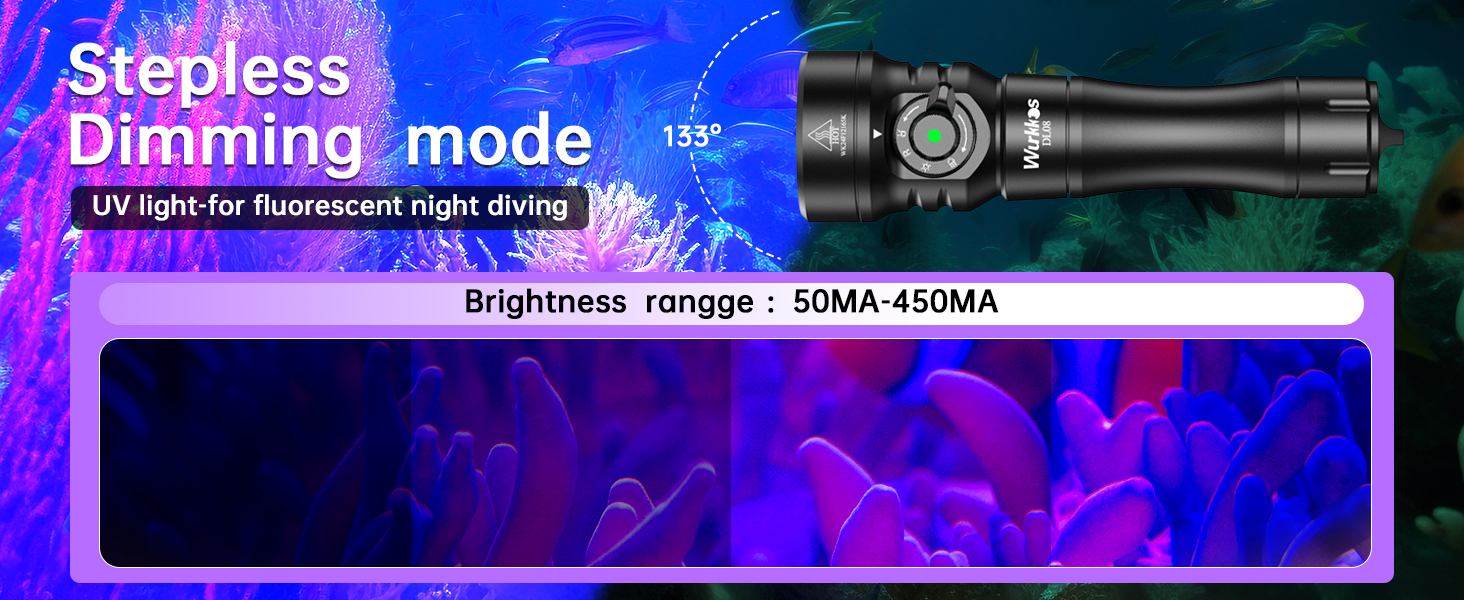

03-UV Mode

Revealing the Second Face of Underwater Fluorescent Creatures

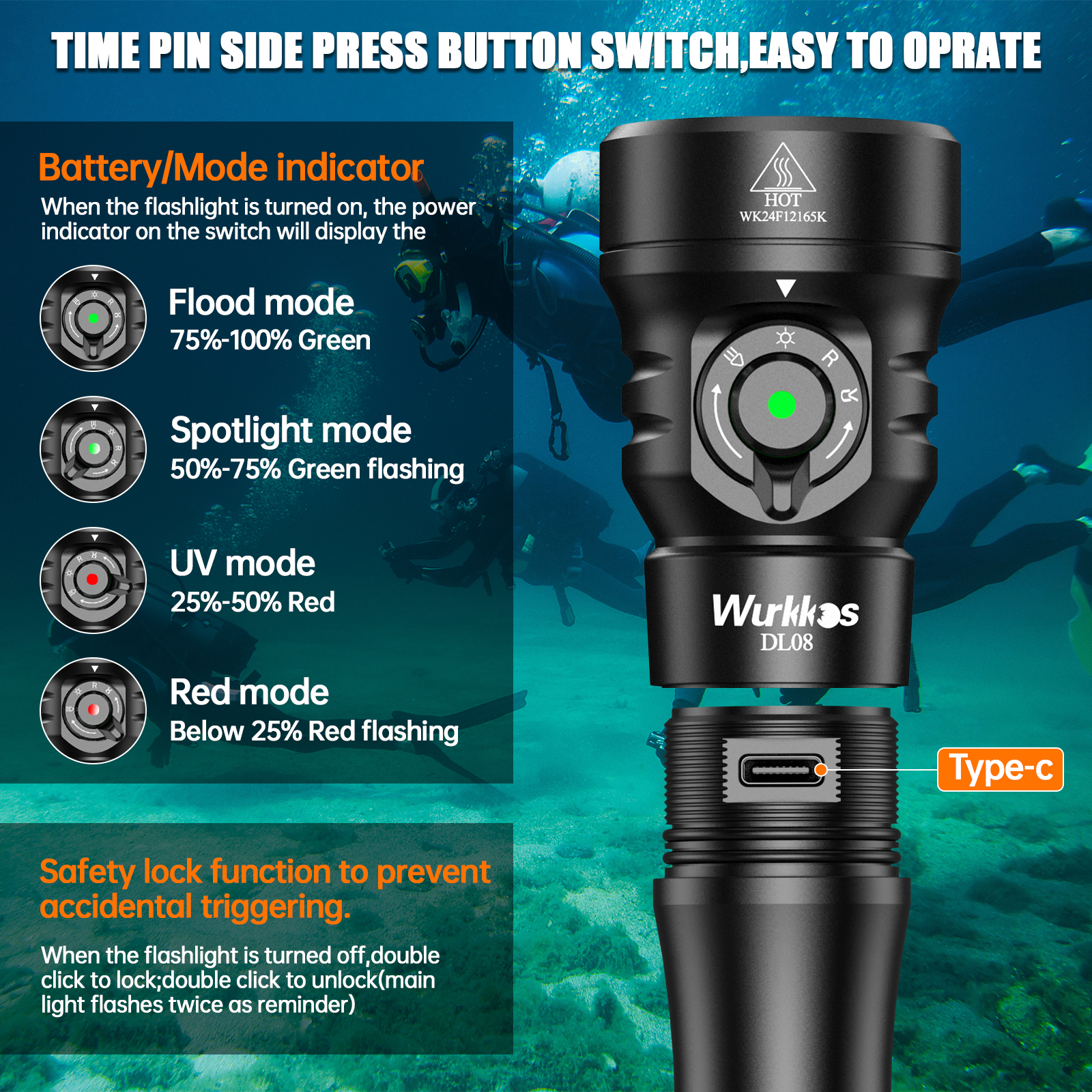

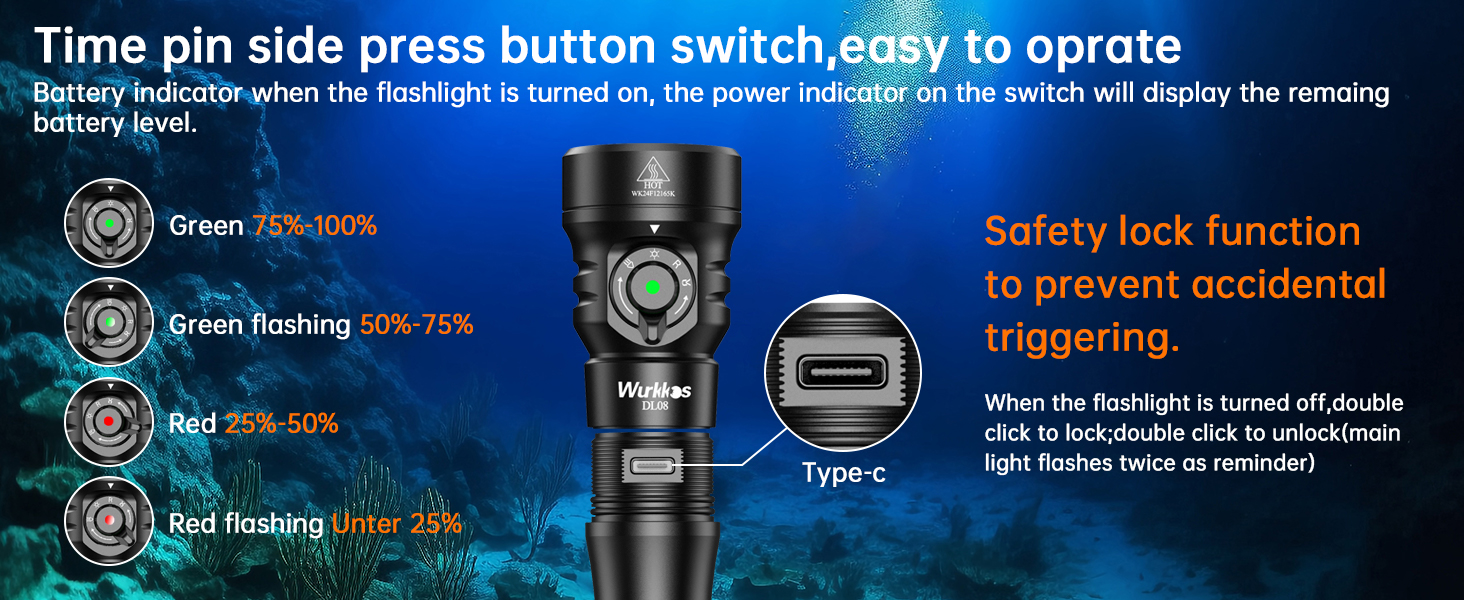

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning DL08 on.

Green = remaining battery power (75%-100%).

Flashing Green=remaining battery power (50%-75%)

Red = remaining battery power(25%-50%).

Flashing Red = critical power(<25%), will stay flashlight red.

Low Voltage Protection:If the battery’s voltage is lower than 2.8V, DL08 turns off automatically to avoid battery damage by overdischarge.

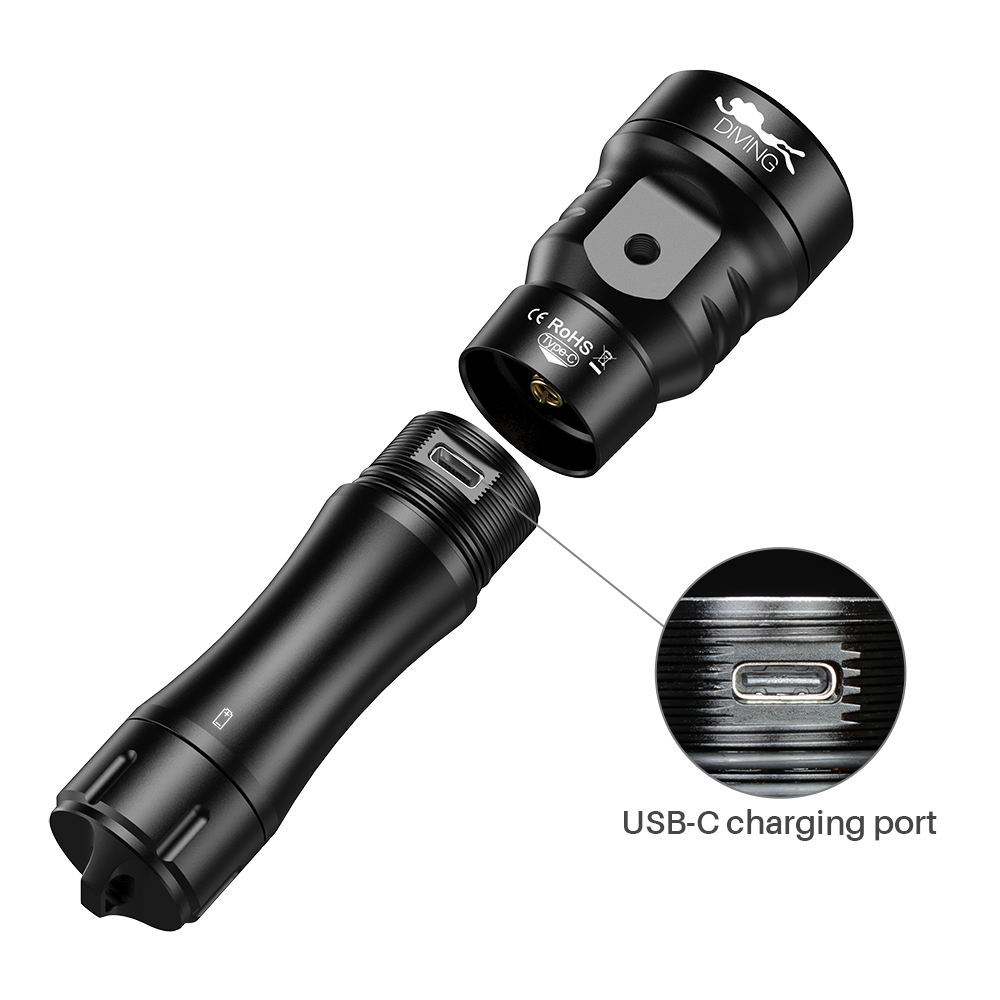

Recharging

Unscrew the body and you can charge the power part directly.

Chargingindicator= Flashing Green

Full charge indicator= Green

Regular dischargingindicator= Blue

Poor power indicator= Flashing Blue
