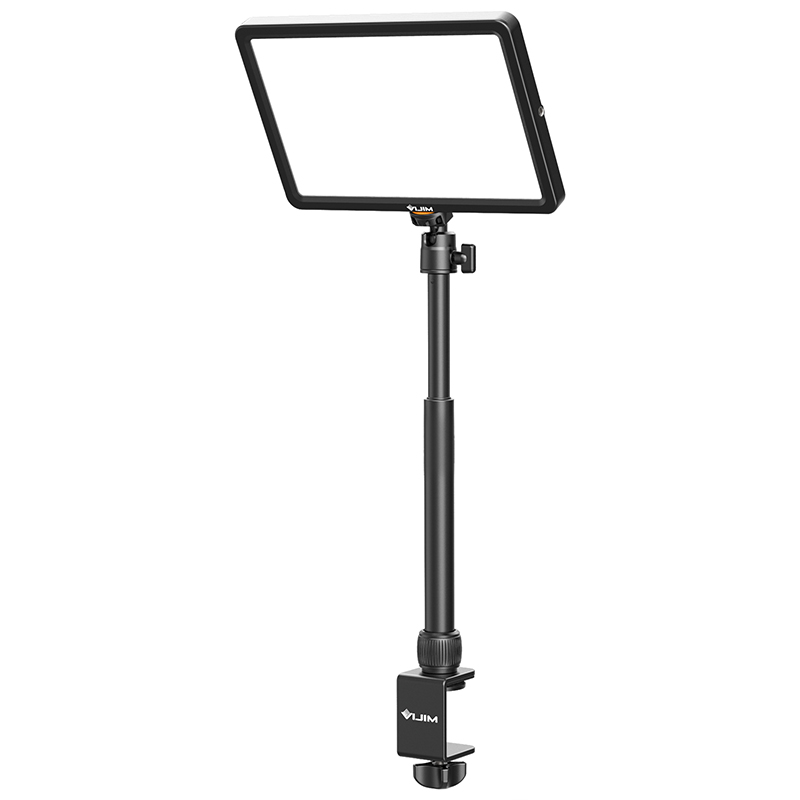

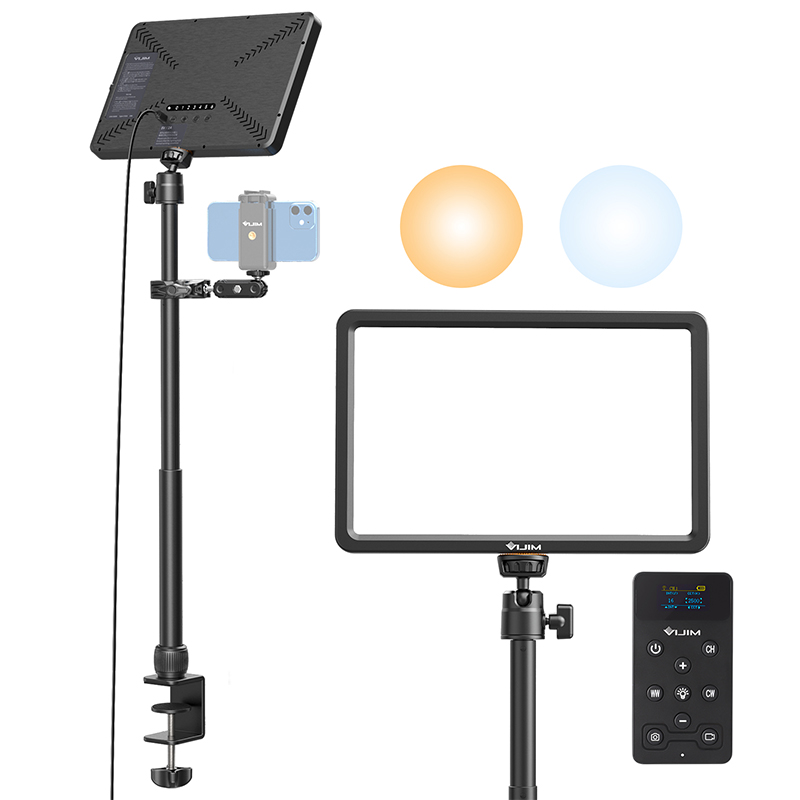

Ulanzi VIJIM K20 pro Desktop Led Panel Lights Photography Studio Lamp Fill light With Super Clamp Extend Stand for Live Stream

K20 LED Key Light

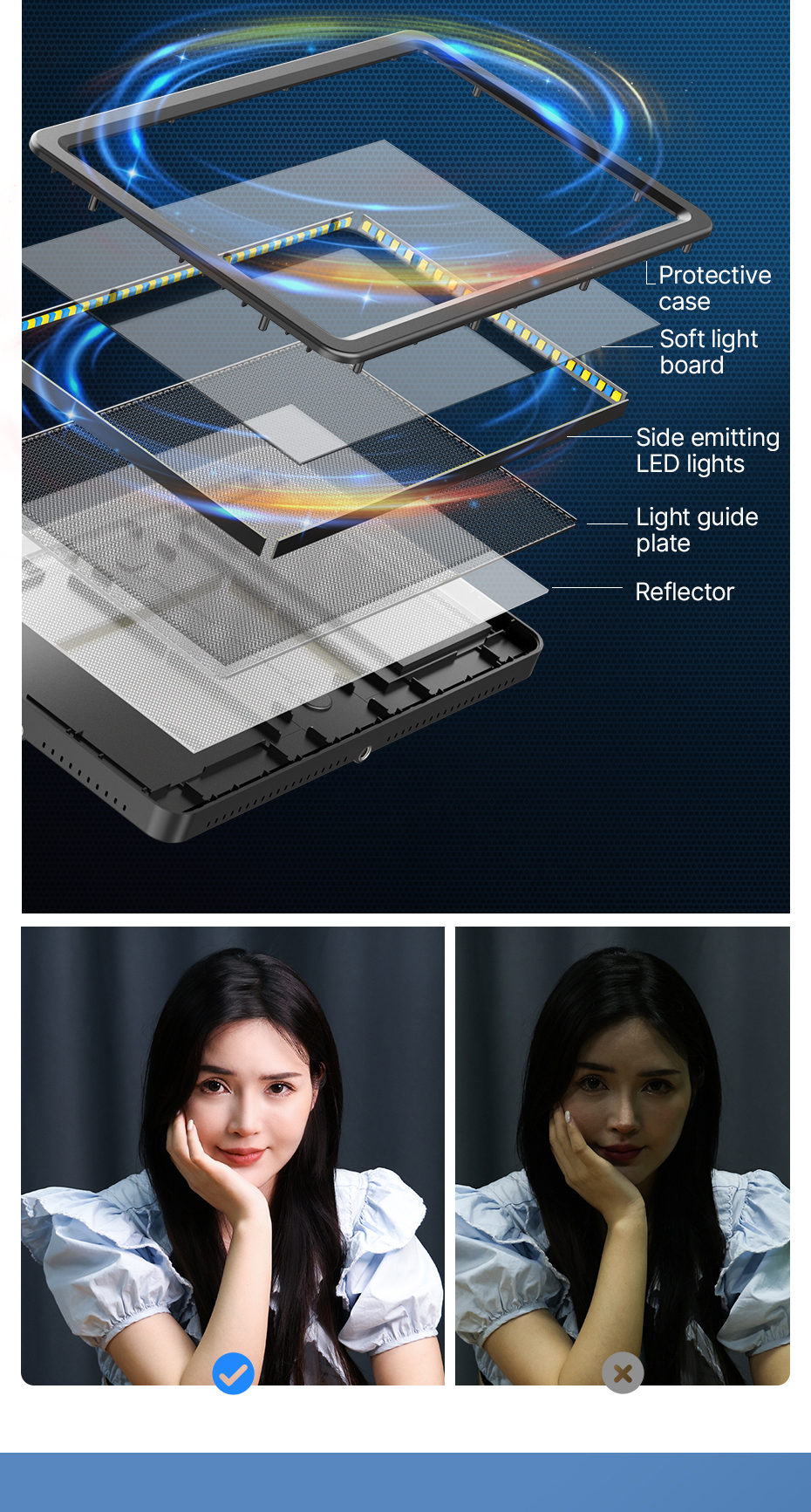

Edge-lit technology

Soft light and protect eyes

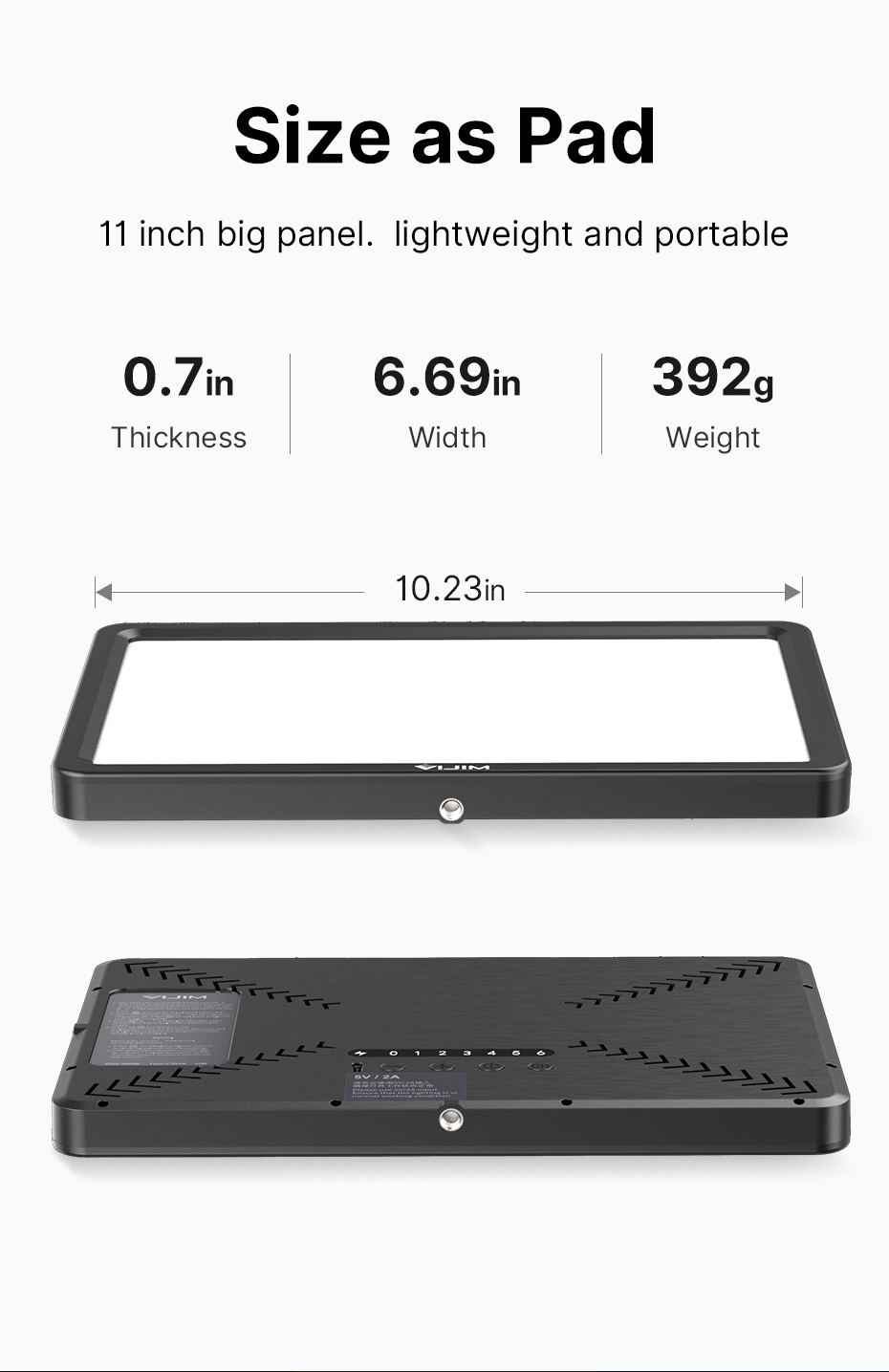

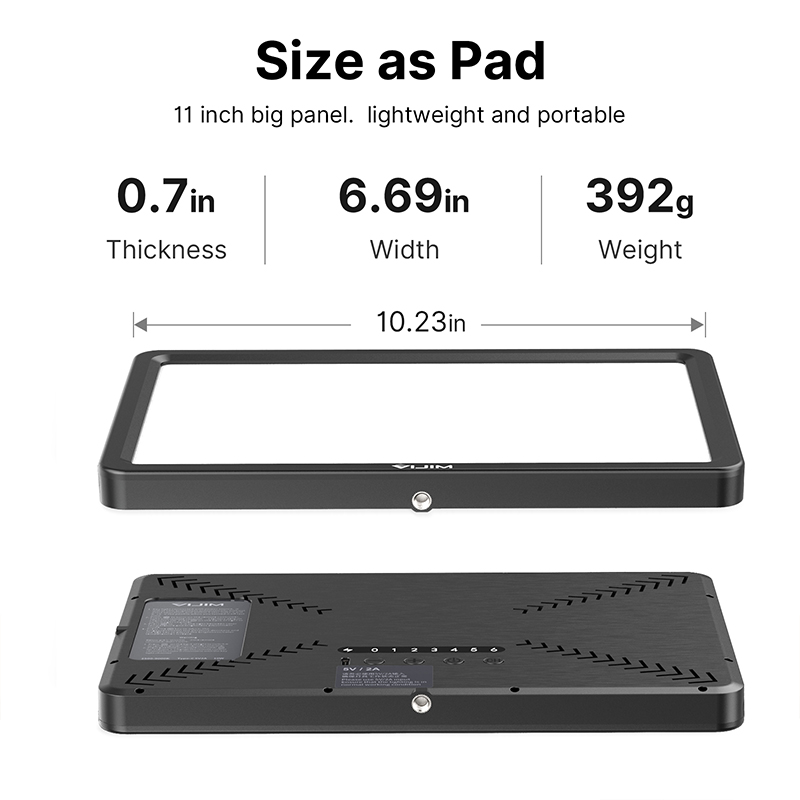

Size as Pad

11 inch big panel. lightweight and portable
Thickness：18mm
Weight：392g

Cold and Warm Color Temperature

2500K-9000K color temperature stepless adjustment

0-100% brightness stepless adjustment

Brighter fill light
192 high brightness light beads，high brightness fill light

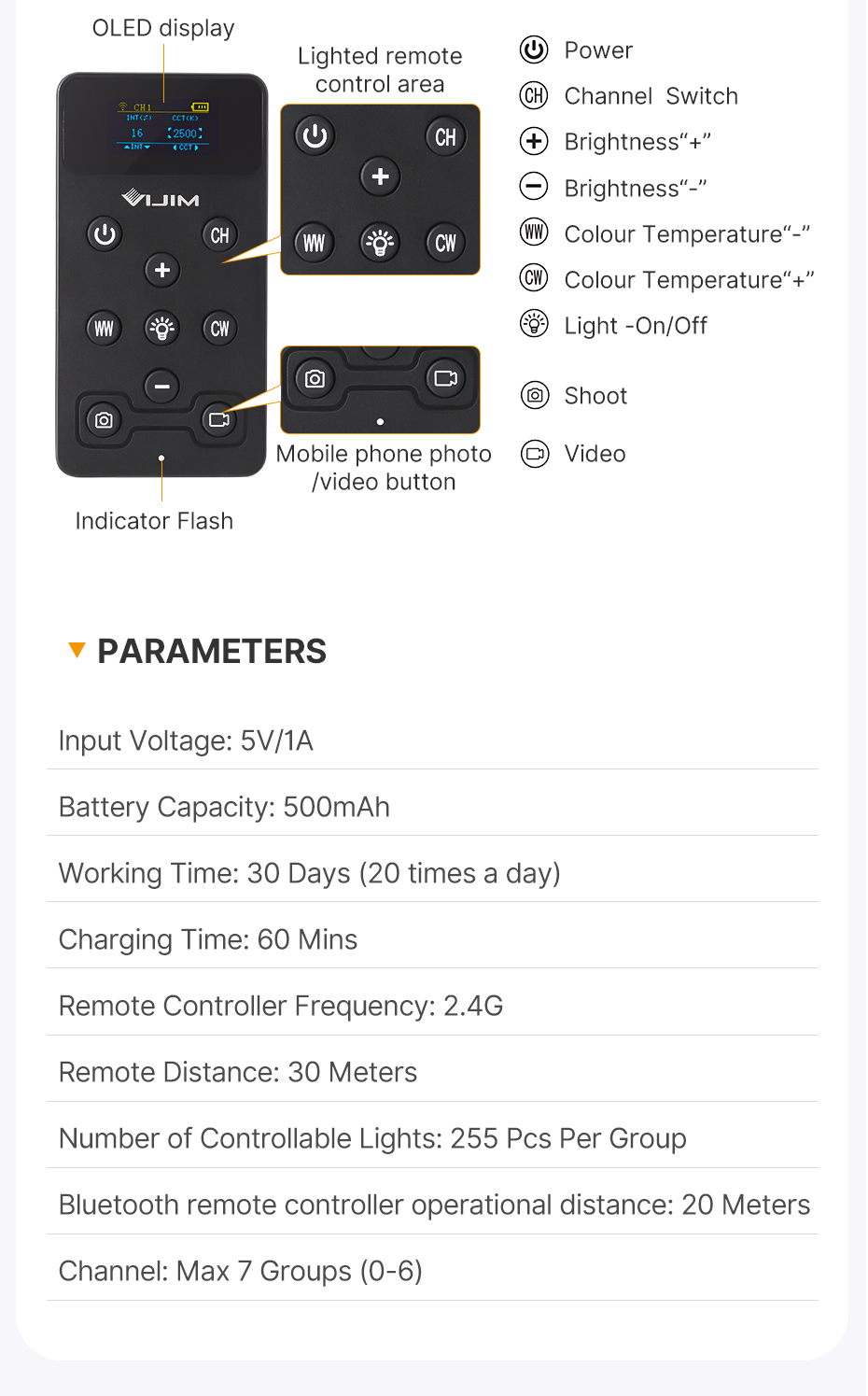

Smart Remote Control

Control distance up to 30 metres，easy adjustment of fill light, equipment

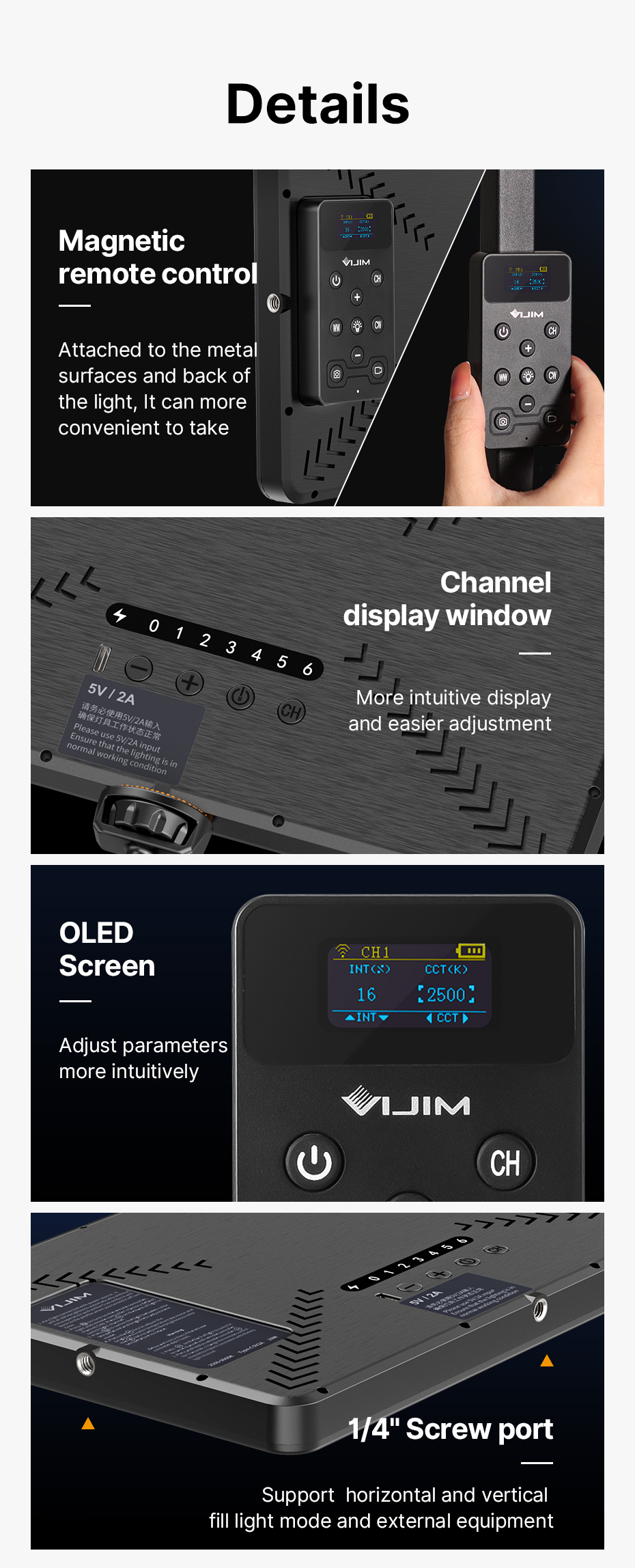

Details

Magnetic remote control：Attached to the metal surfaces and back of the light, It can more convenient to take
OLED Screen: Adjust parameters more intuitively
Channel display window: More intuitive display and easier adjustment
1/4" Screw port: Support horizontal and vertical fill light mode and external equipment

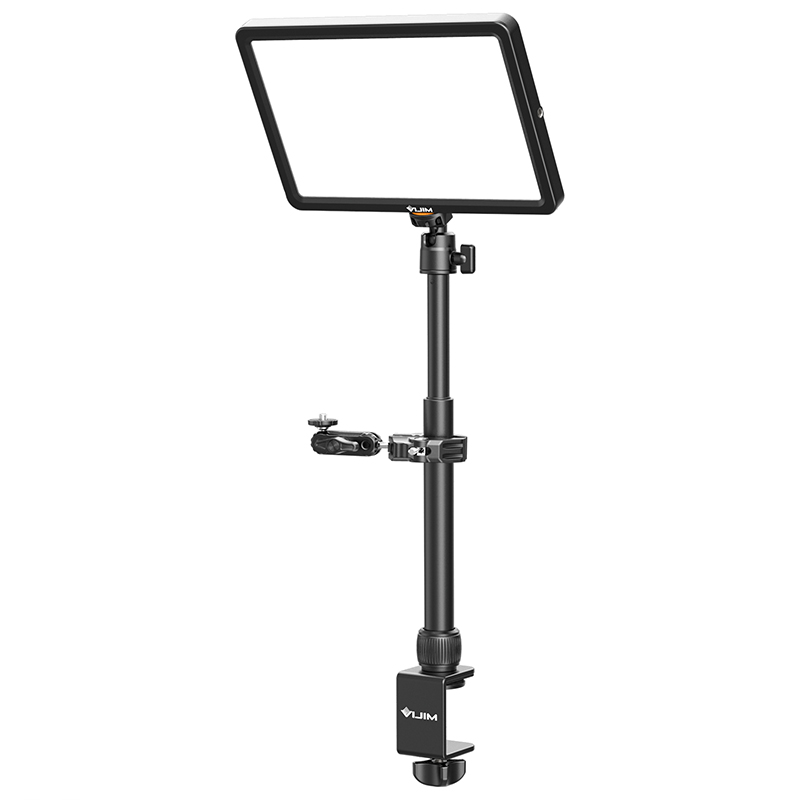

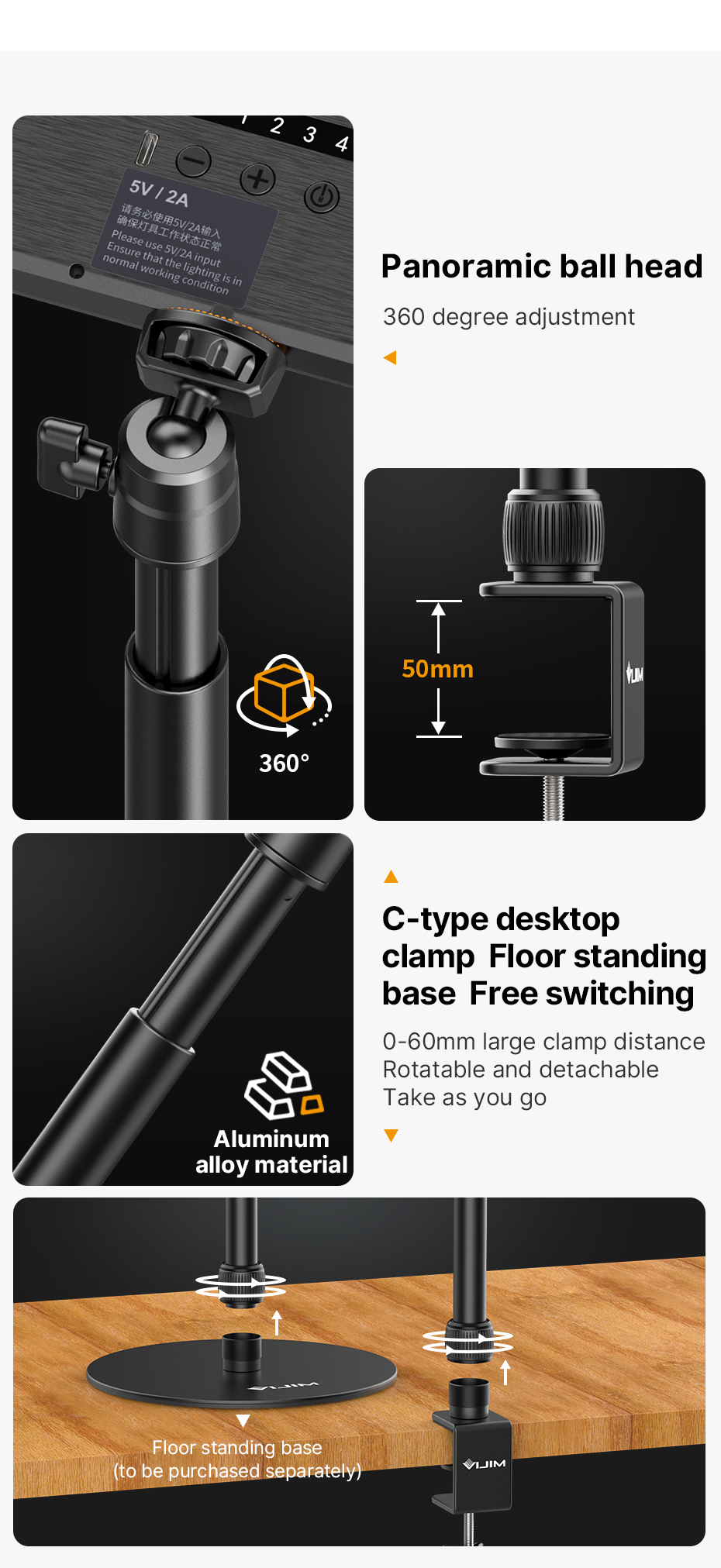

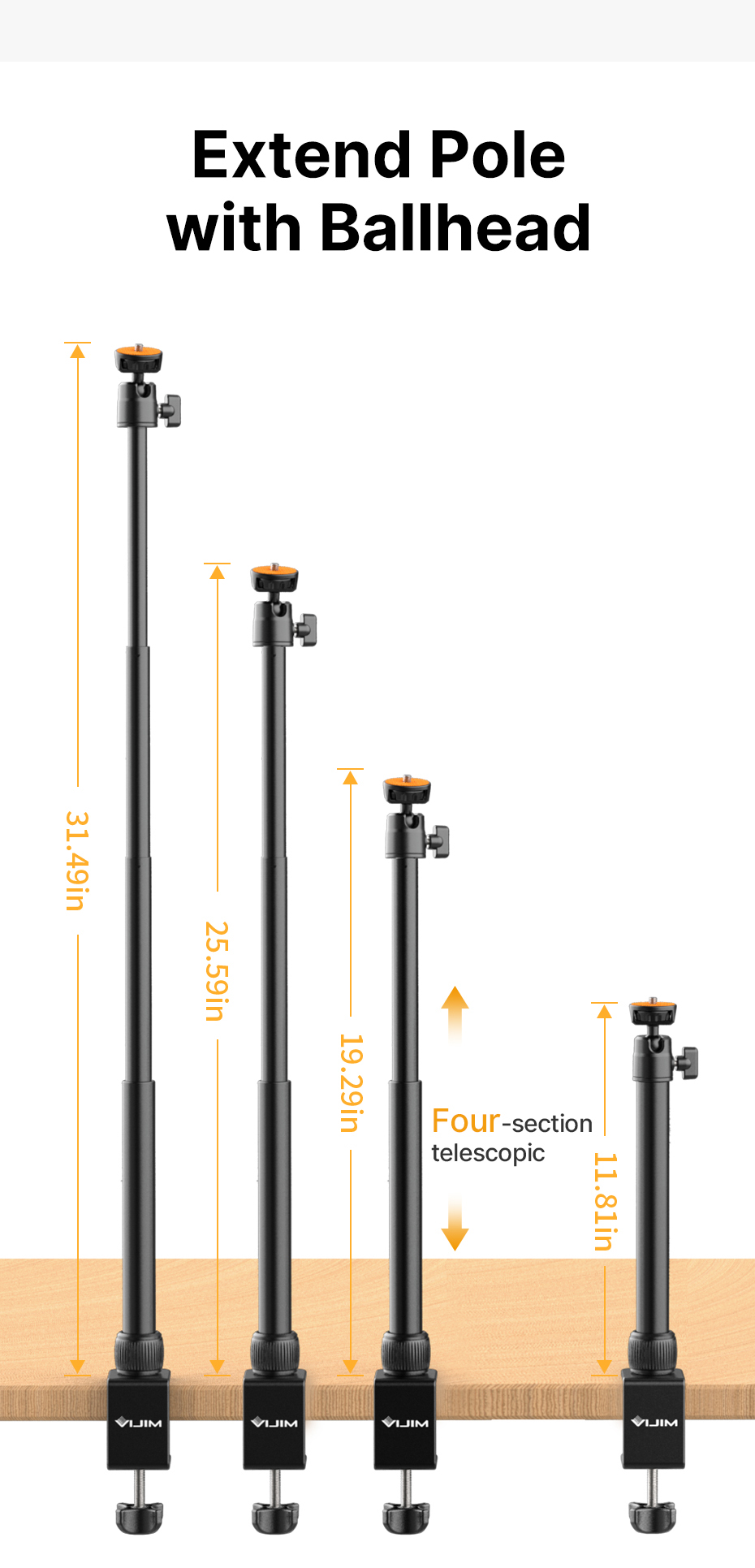

Extend Pole with Ballhead

Adjustable heights

Panoramic ball head: 360 degree adjustment
Detachable base: Rotatable and detachable, Take as you go
C-type desktop clamp: 0-60mm large clamp distance
Aluminum alloy material
Floor standing base（to be purchased separately）

C-type desktop clamp Floor standing base Free switching

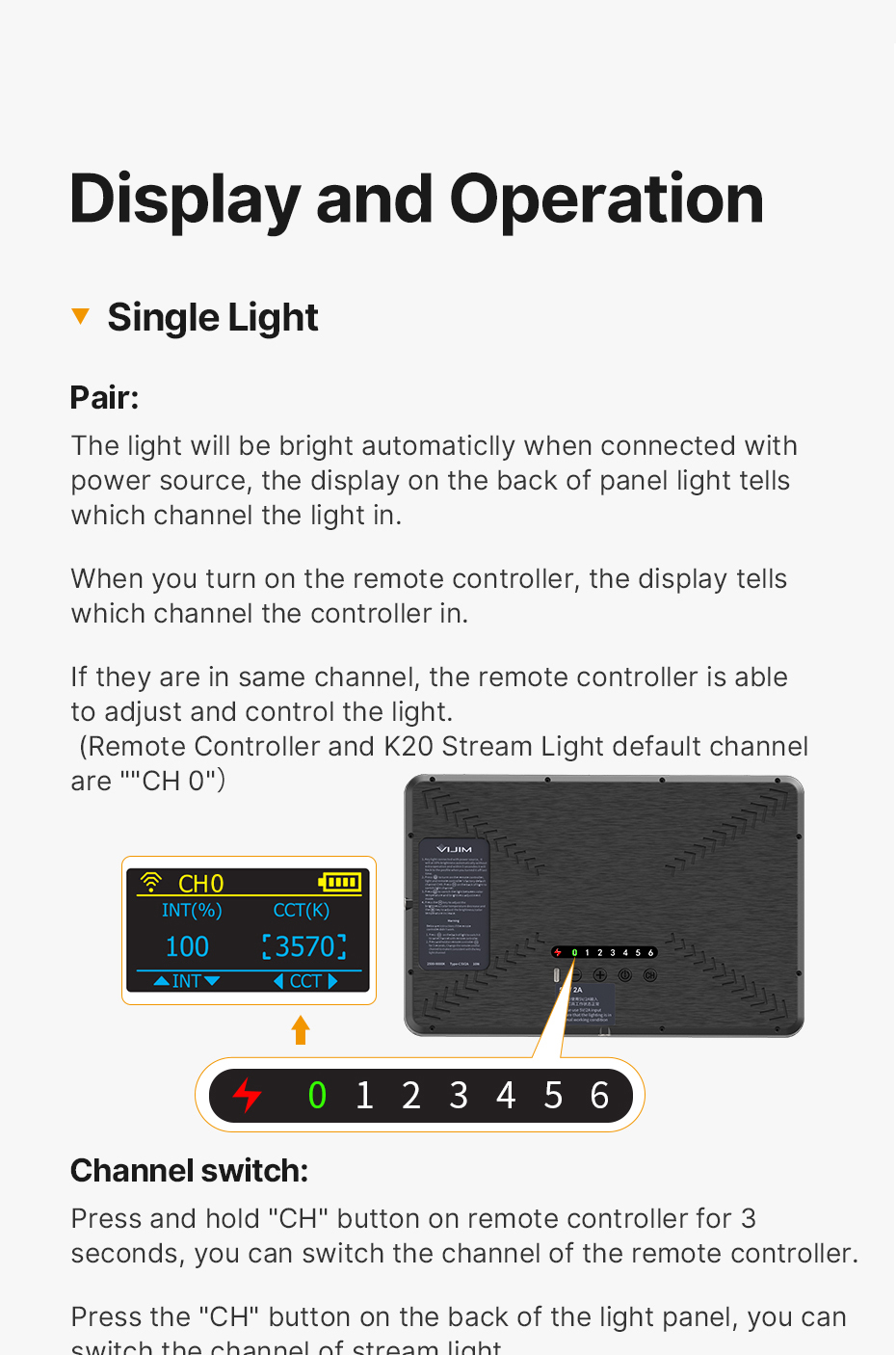

Display and Operation

Pair：
The light will be bright automaticlly
when connected with power source,
the display on the back of panel light
tells which channel the light in.

When you turn on the remote
controller, the display tells which
channel the controller in.

If they are in same channel, the
remote controller is able to adjust and
control the light.
(Remote Controller and K20 Stream
Light default channel are "CH 0".

Channel Switch：
Press and hold "CH" button on
remote controller for 3 seconds, you
can switch the channel of the remote
controller.
Press the "CH" button on the back of
the light panel, you can switch the
channel of stream light
Only the light and remote controller
in same channel, the remote
controller is able to control the light,
otherwise the controller will not work.

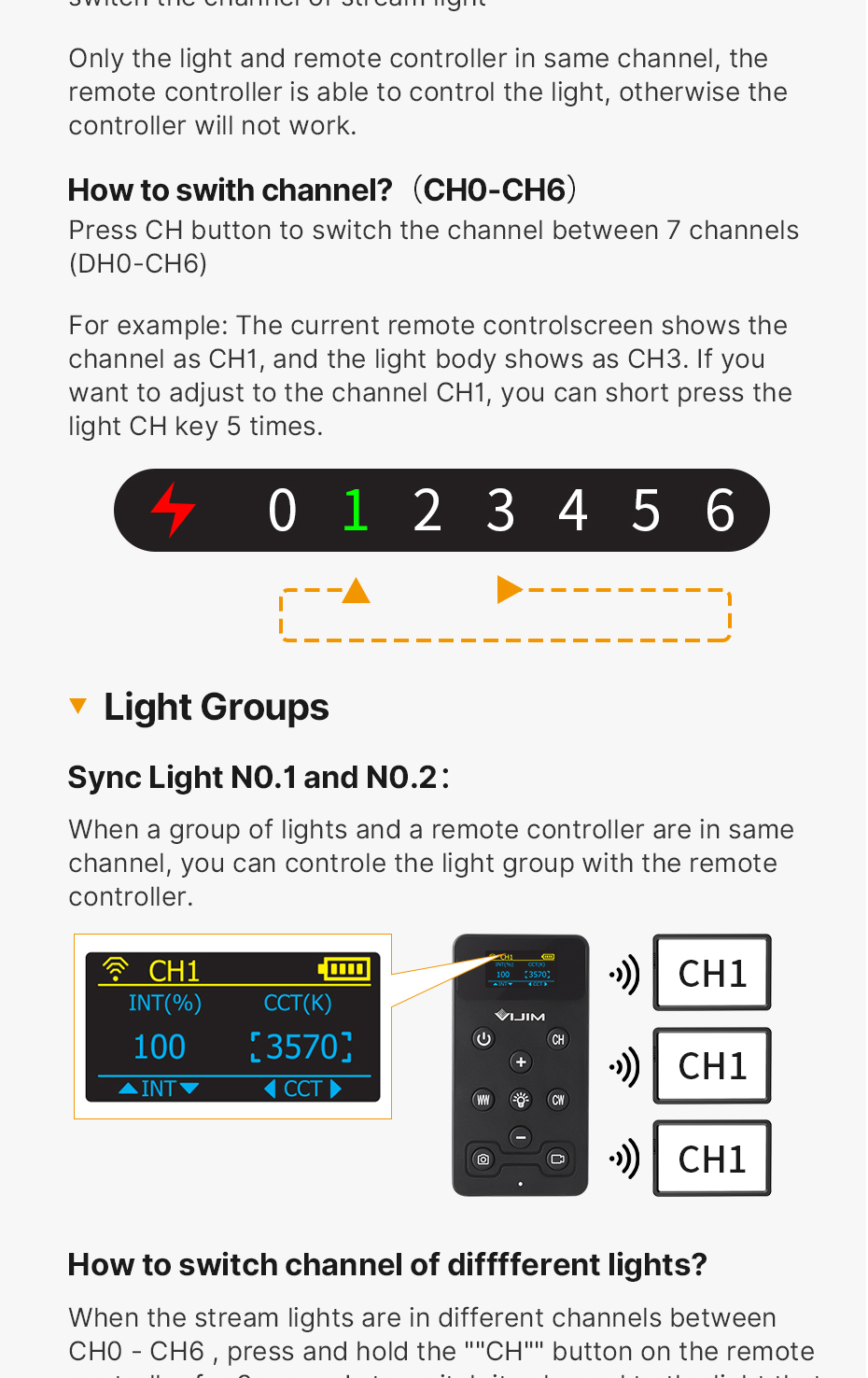

How to swith channel?（CH0-CH6）
Press CH button to switch the channel
between 7 channels (DH0-CH6）
For example: The current remote control
screen shows the channel as CH1, and the
light body shows as CH3. If you want to
adjust to the channel CH1, you can short
press the light CH key 5 times.

2.Light Groups
Sync Light N0.1 and N0.2：
When a group of lights and a remote controller are in same channel, you can
controle the light group with the remote controller.

How to switch channel of different lights?
When the stream lights are in different channels between CH0 - CH6 , press and
hold the "CH" button on the remote controller for 3 seconds to switch its
channel to the light that you want to control in.

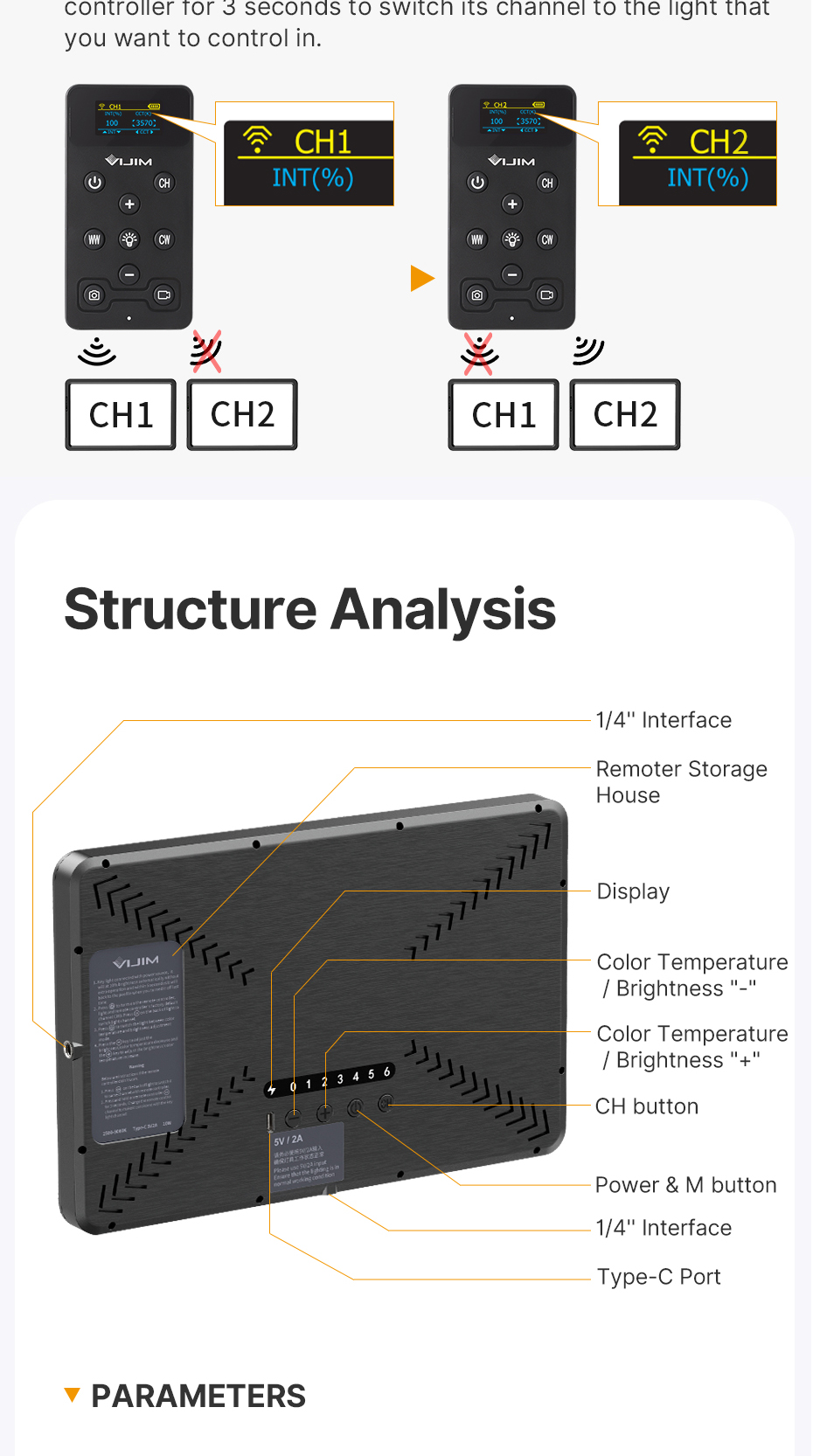

1/4'' Interface
Remoter Storage House
Display
Color Temperature / Brightness "-"
Color Temperature / Brightness "+"
Power & M button
CH button
Type-C Port

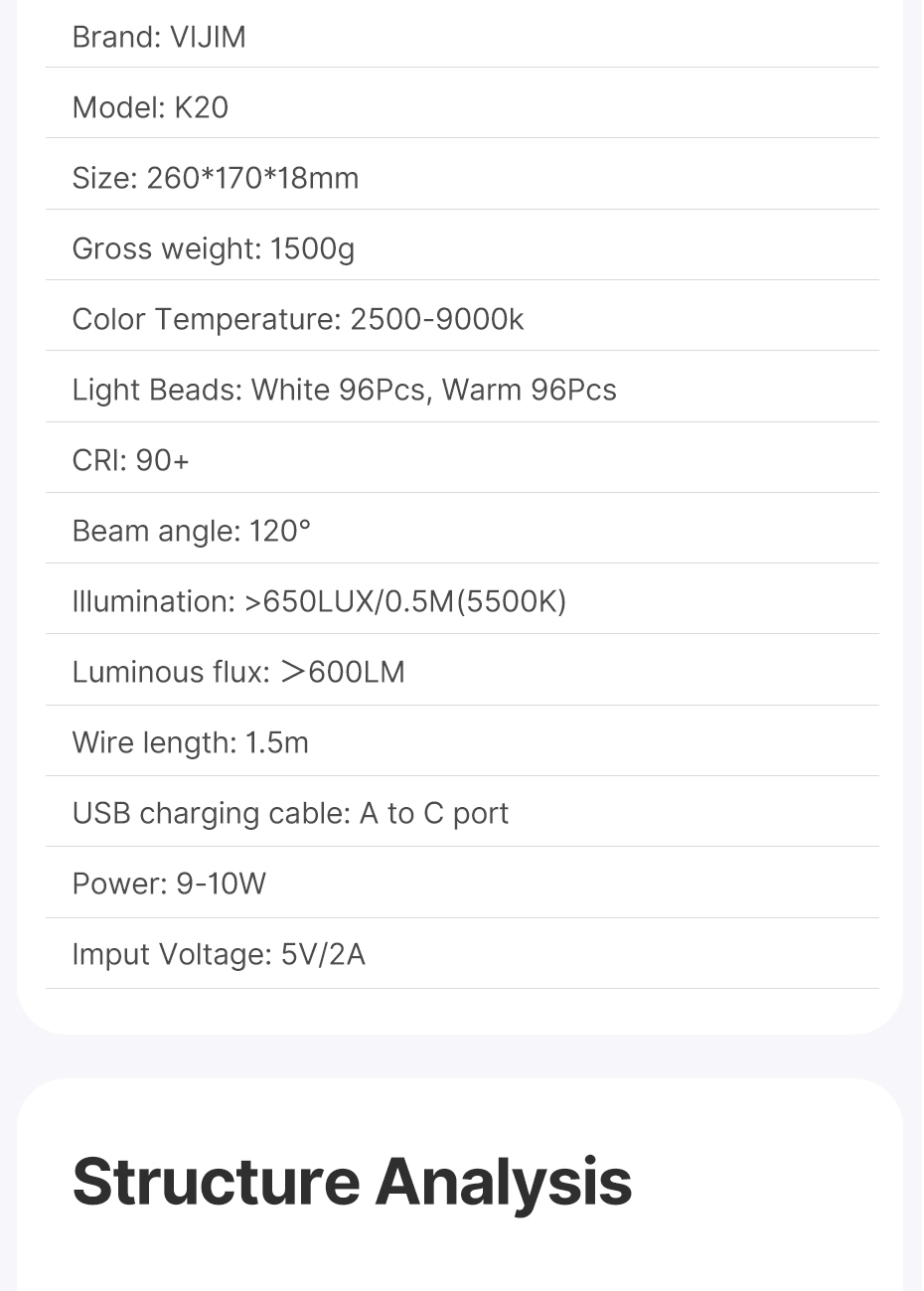

Brand：VIJIM
Model：K20

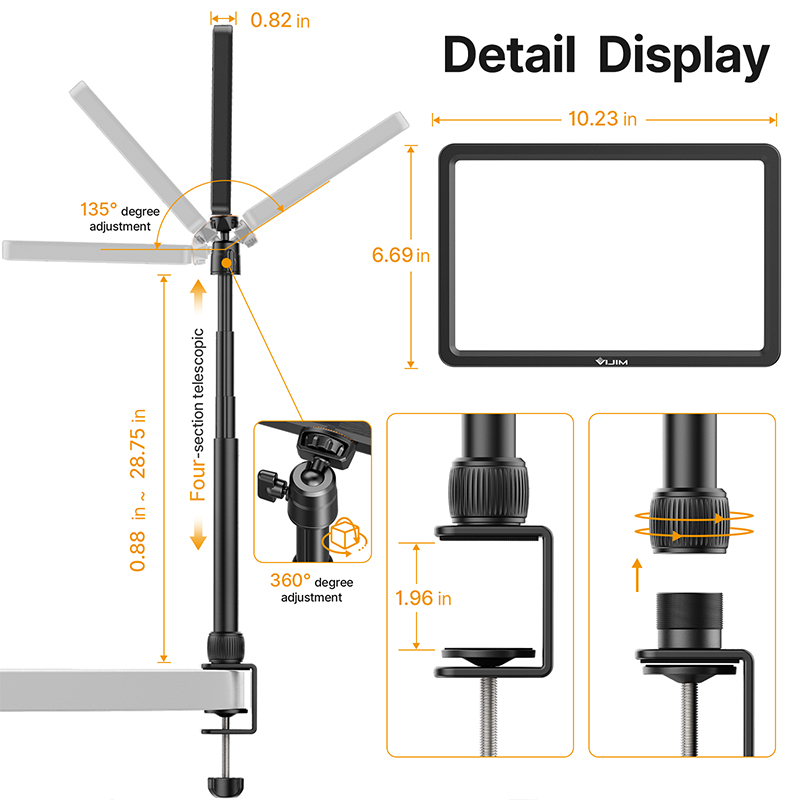

Size：260*170*18mm
Gross weight：1500g
Color Temperature：2500-9000k
Light Beads：White 96Pcs Warm 96Pcs
CRI：90+
Beam angle：120°
Illumination：> 650LUX/0.5M（5000K）
Luminous flux：＞600LM
Wire length：1.5m
USB charging cable：A to C port
Power：9-10W
Imput Voltage：5V/2A
