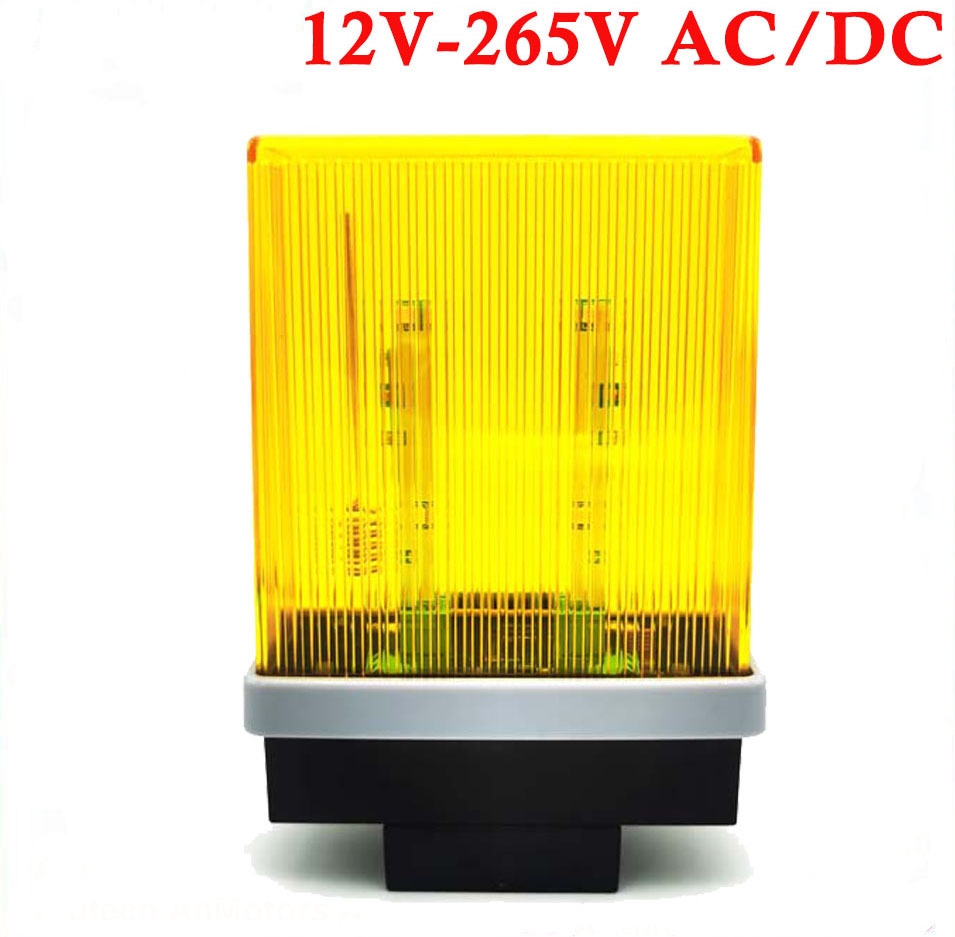

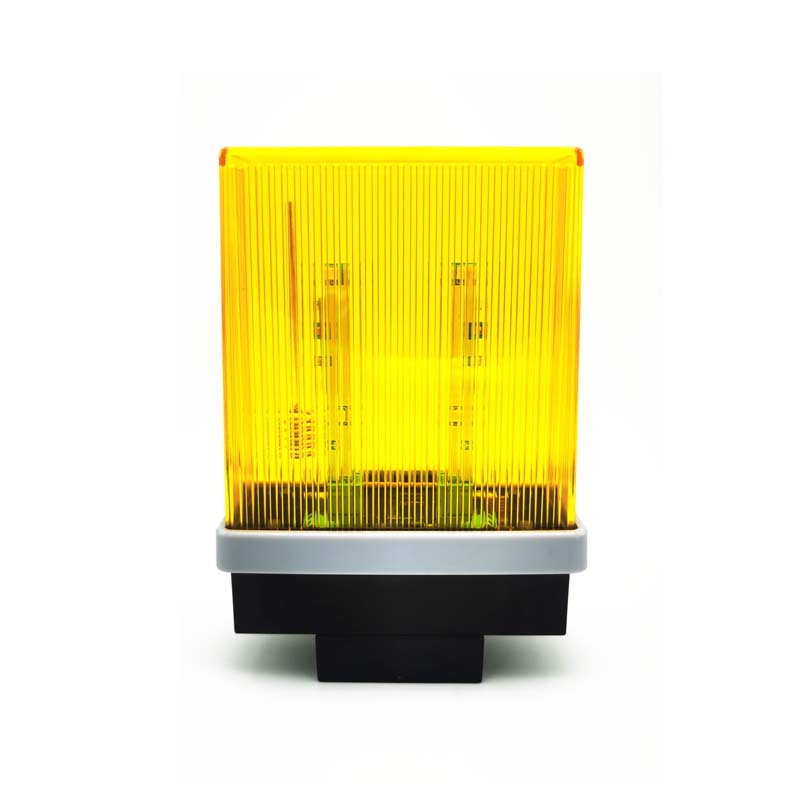

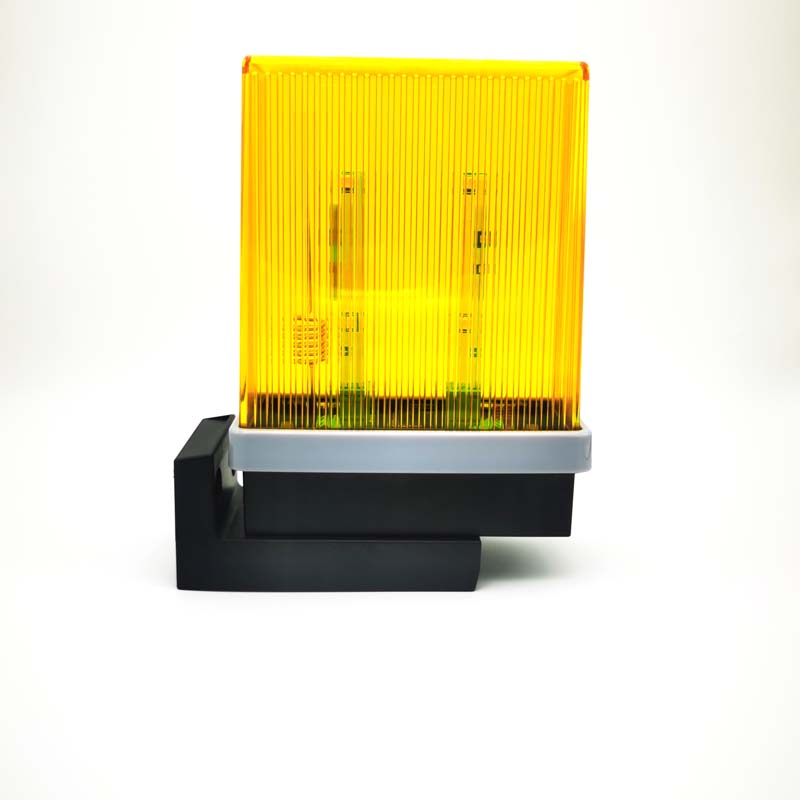

Security Protection Flashing Light Flashing For Gate Light Alarm 12V-265V AC/DC

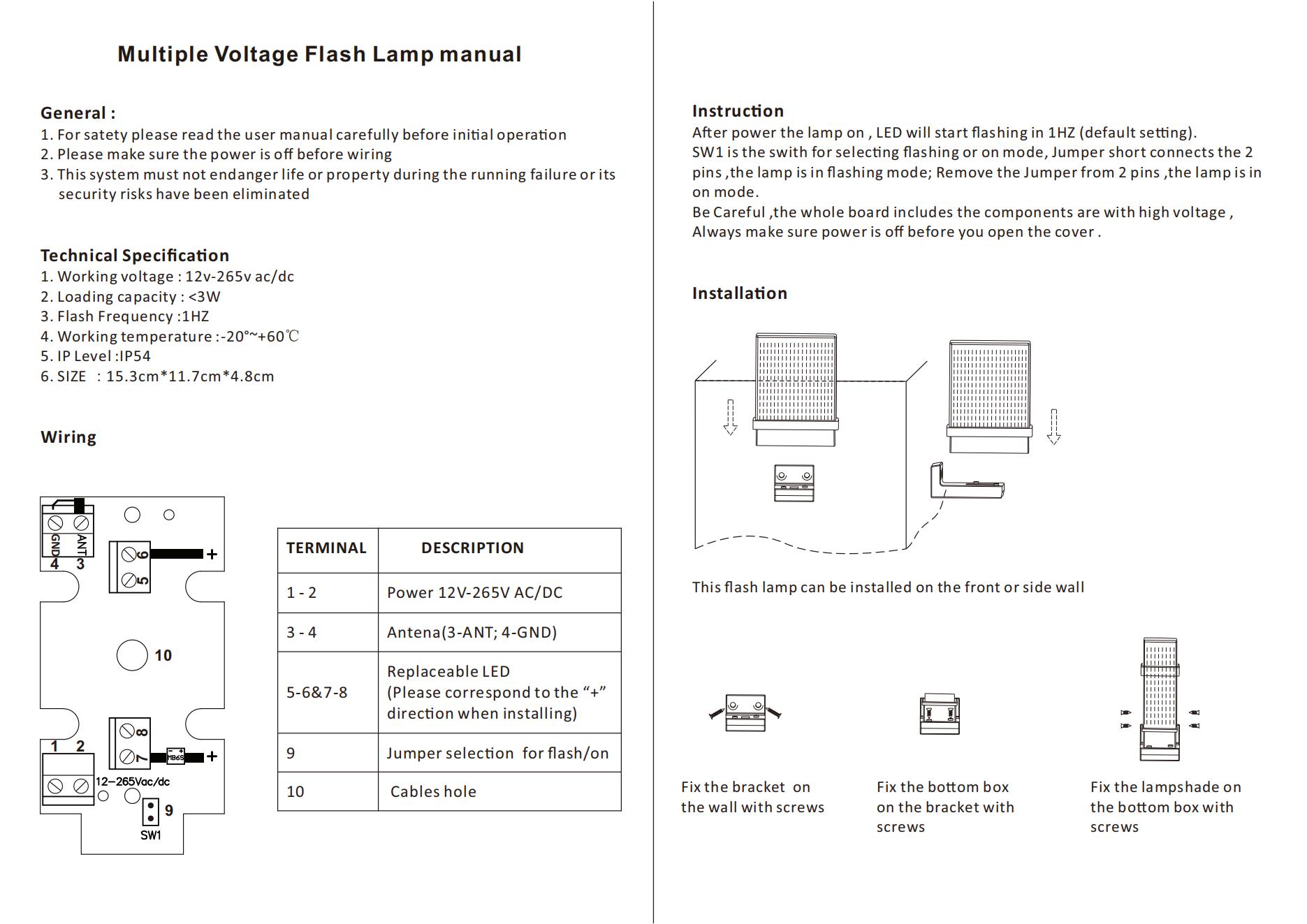

General :
1. For satety please read the user manual carefully before iniƟ al operaƟ on
2. Please make sure the power is off before wiring
3. This system must not endanger life or property during the running failure or its
security risks have been eliminated
Technical SpecificaƟ on
1. Working voltage : 12v-265v ac/dc
2. Loading capacity : <3W
3. Flash Frequency :1HZ
4. Working temperature :-20°~+60℃
5. IP Level :IP54
6. SIZE : 15.3cm*11.7cm*4.8cm
Instruction
After power the lamp on , LED will start flashing in 1HZ (default seƫ ng).
SW1 is the swith for selecƟ ng flashing or on mode, Jumper short connects the 2
pins ,the lamp is in flashing mode; Remove the Jumper from 2 pins ,the lamp is in
on mode.

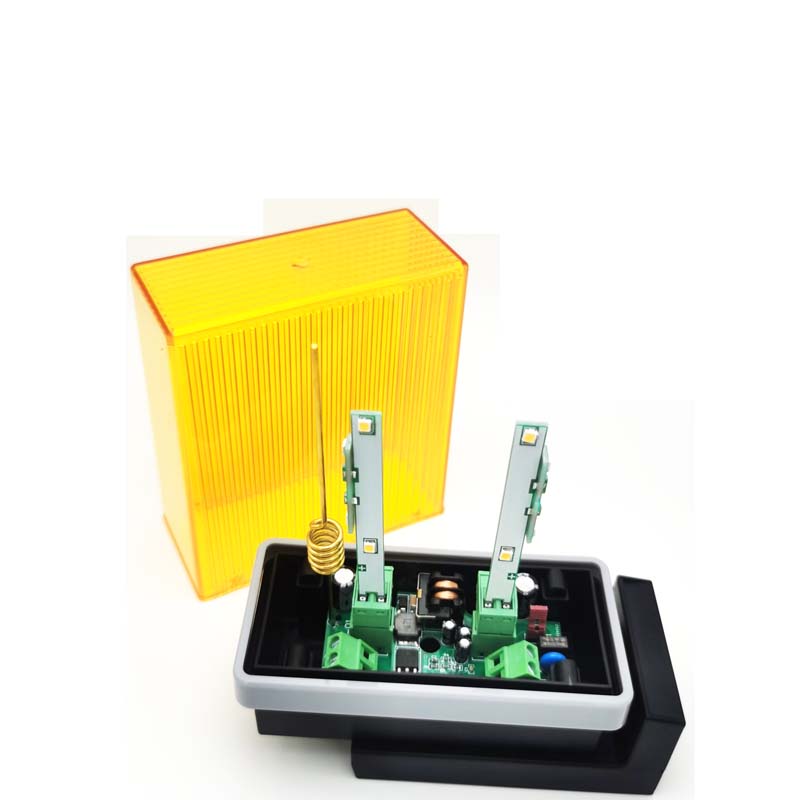

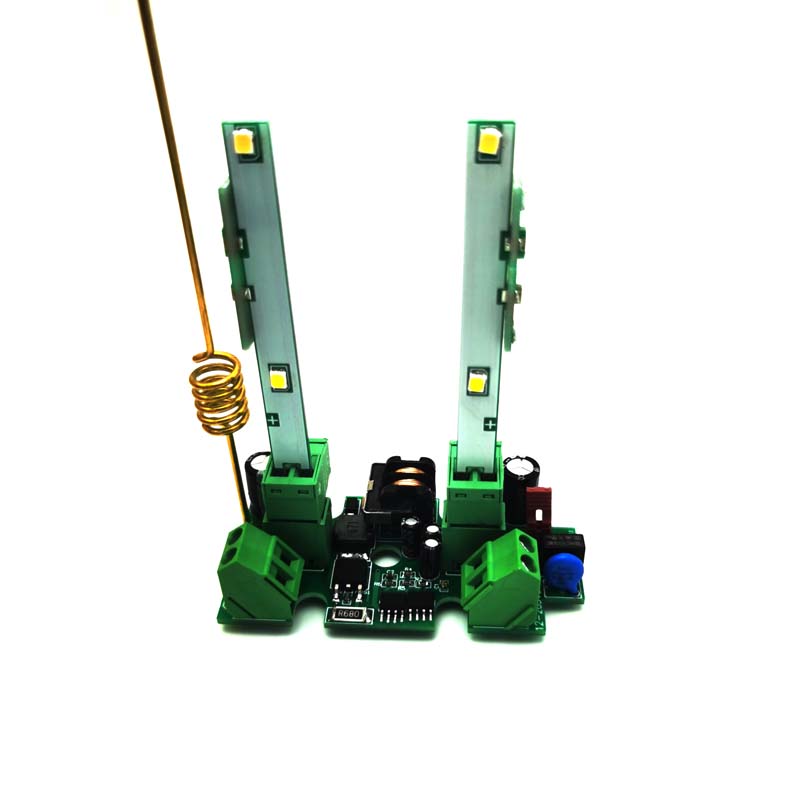

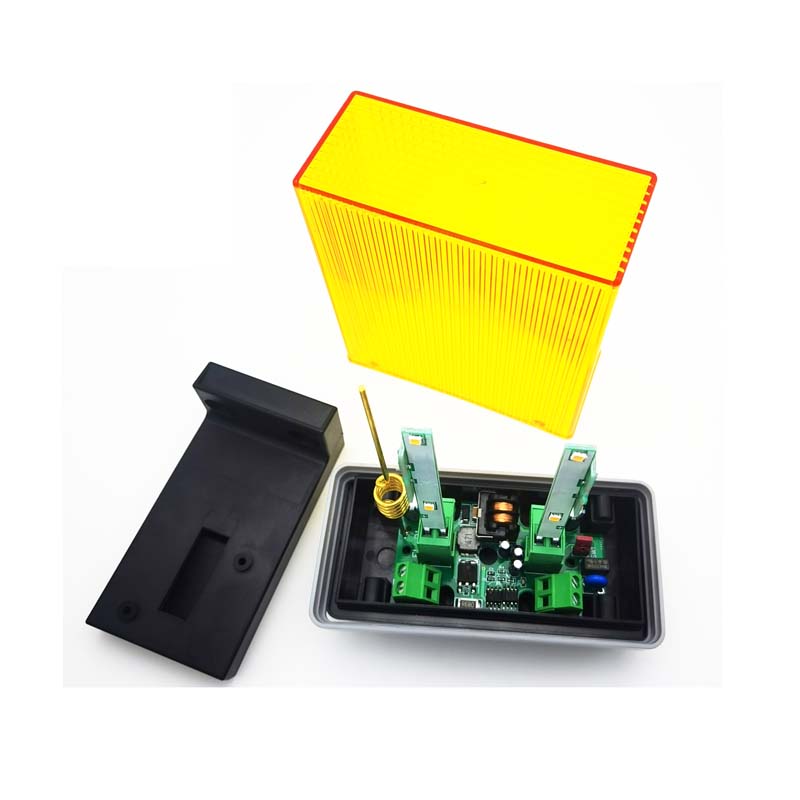

Be Careful ,the whole board includes the components are with high voltage ,
Always make sure power is off before you open the cover .
