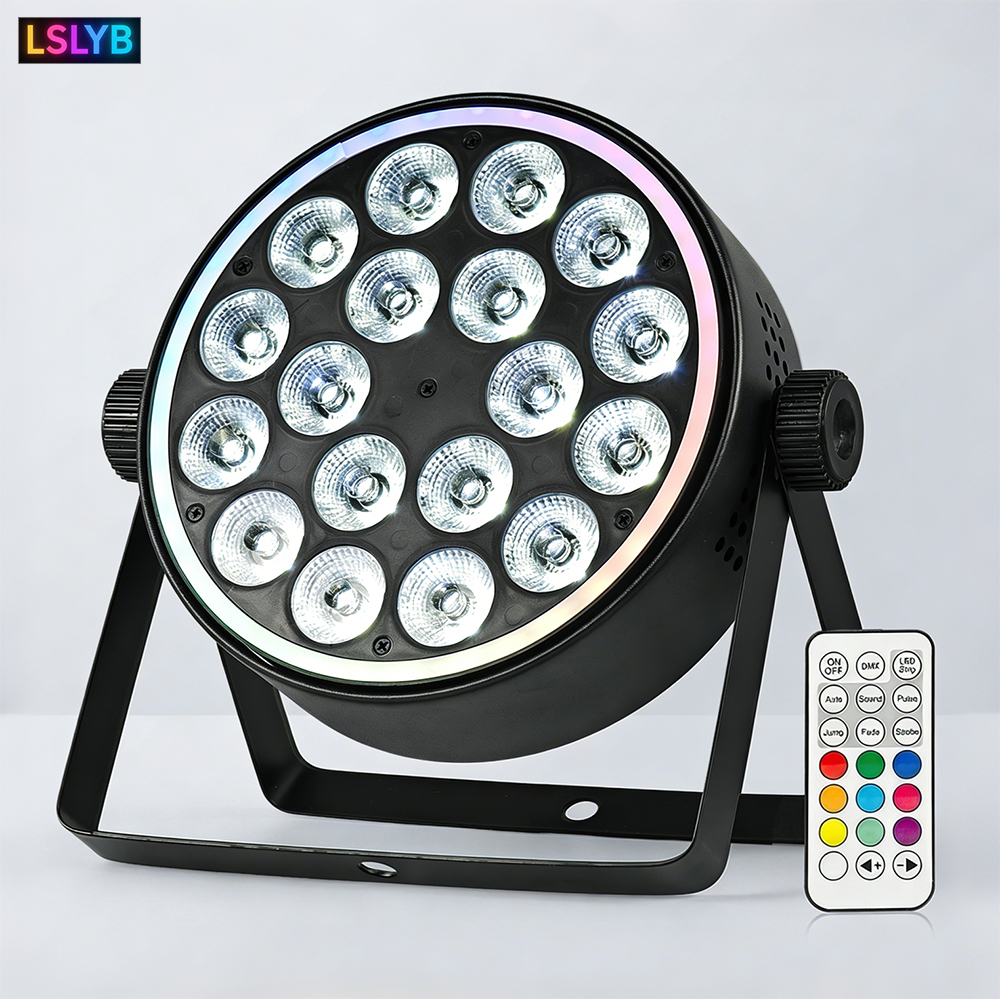

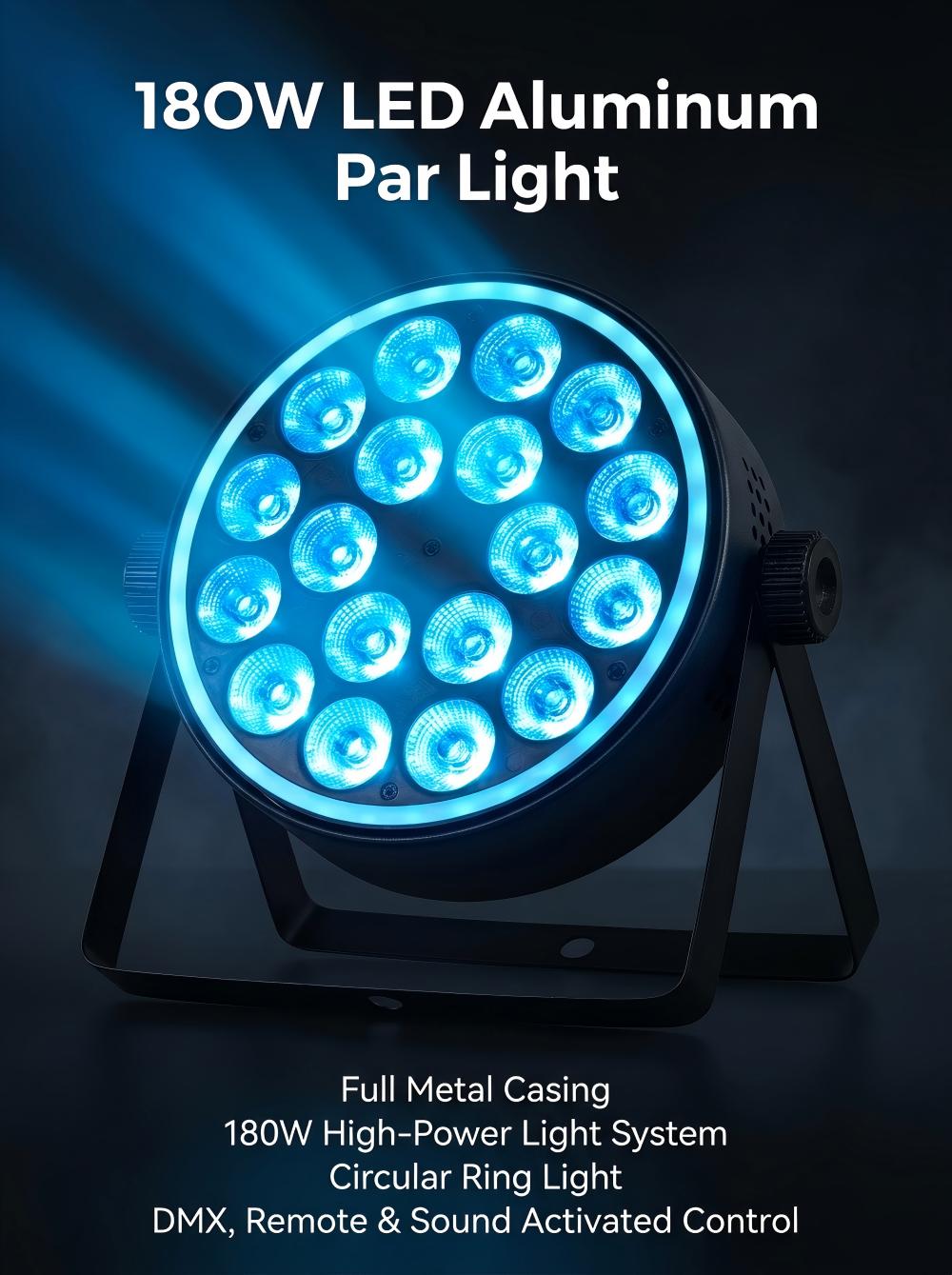

Metal Shell 180w LED Par Light RGBW+RGB Light strip 5IN1 Flat Par Suitable For Dj Disco Stage Show Wedding Bar Party

180W LED PAR 5IN1 EFFECT WITH REMOTE

Voltage：100V ~ 240V / 50~60 Hz
LEDs：18 x 10-Watts LED Par + 35 x 0.5-Watts Ring Effects
Working Position：Any safe working position
Power Draw：180W

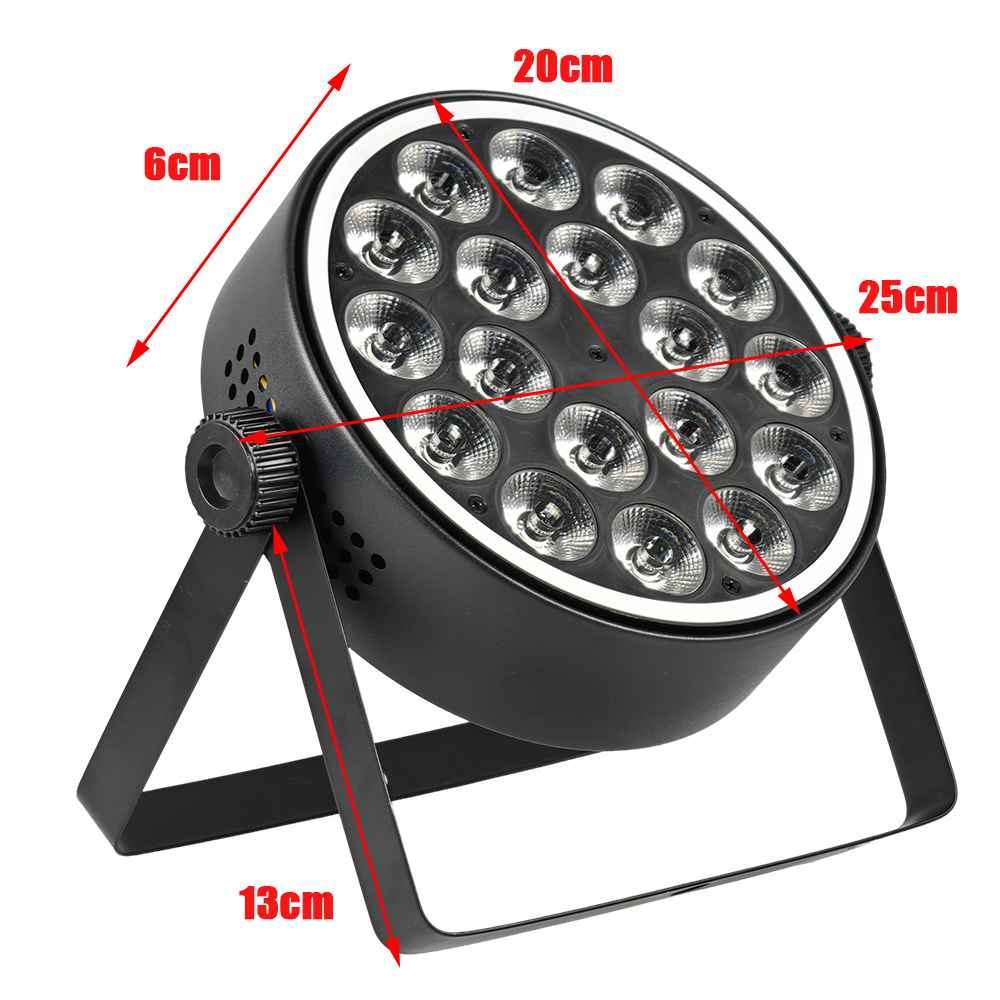

Dimensions：8.96.99.1 in / 22.517.523 cm

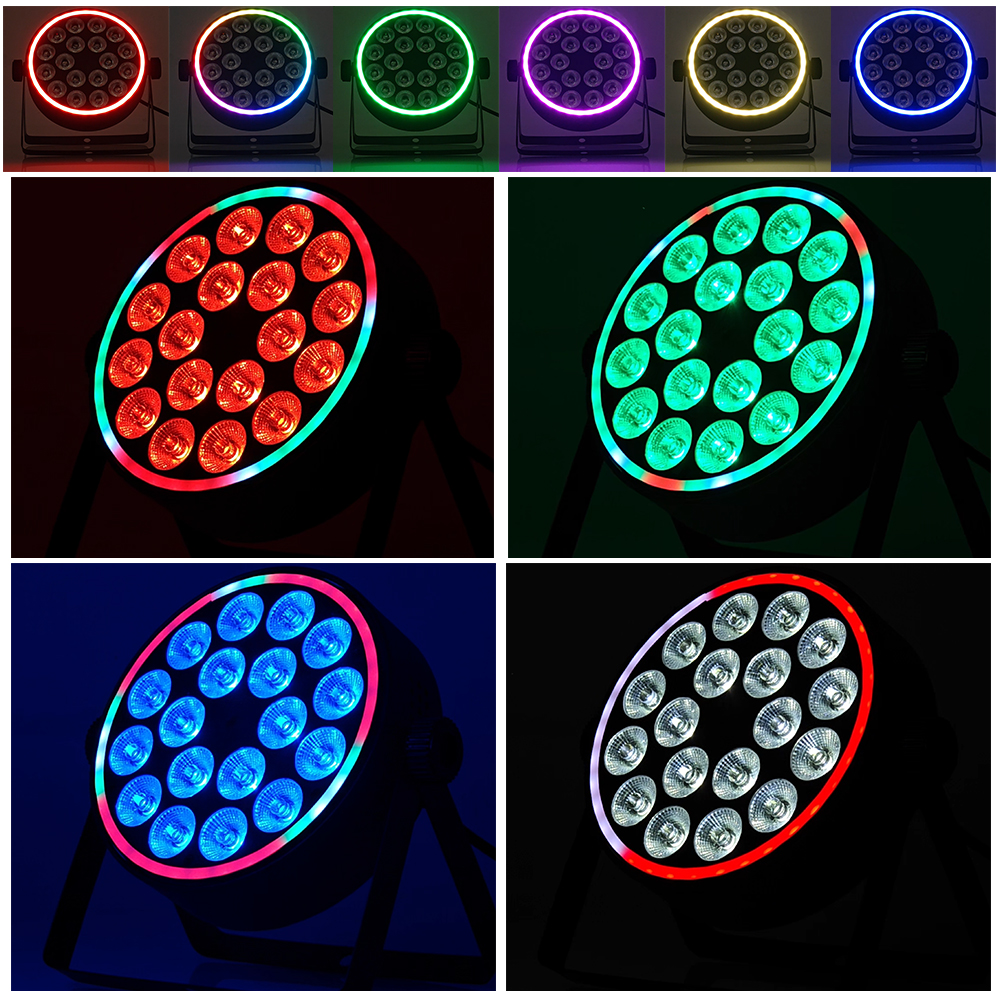

Colors：RGBW 4IN1 Color Mixing & Surrounded Ring Effects
DMX Channels：6/10 Channel DMX Mode
Warranty ：1 Year (365 Days)
Control：DMX / Remote / Push Button

Easy Installation

Self-contained design makes installation a breeze, saving time and effort for quick setup at events.

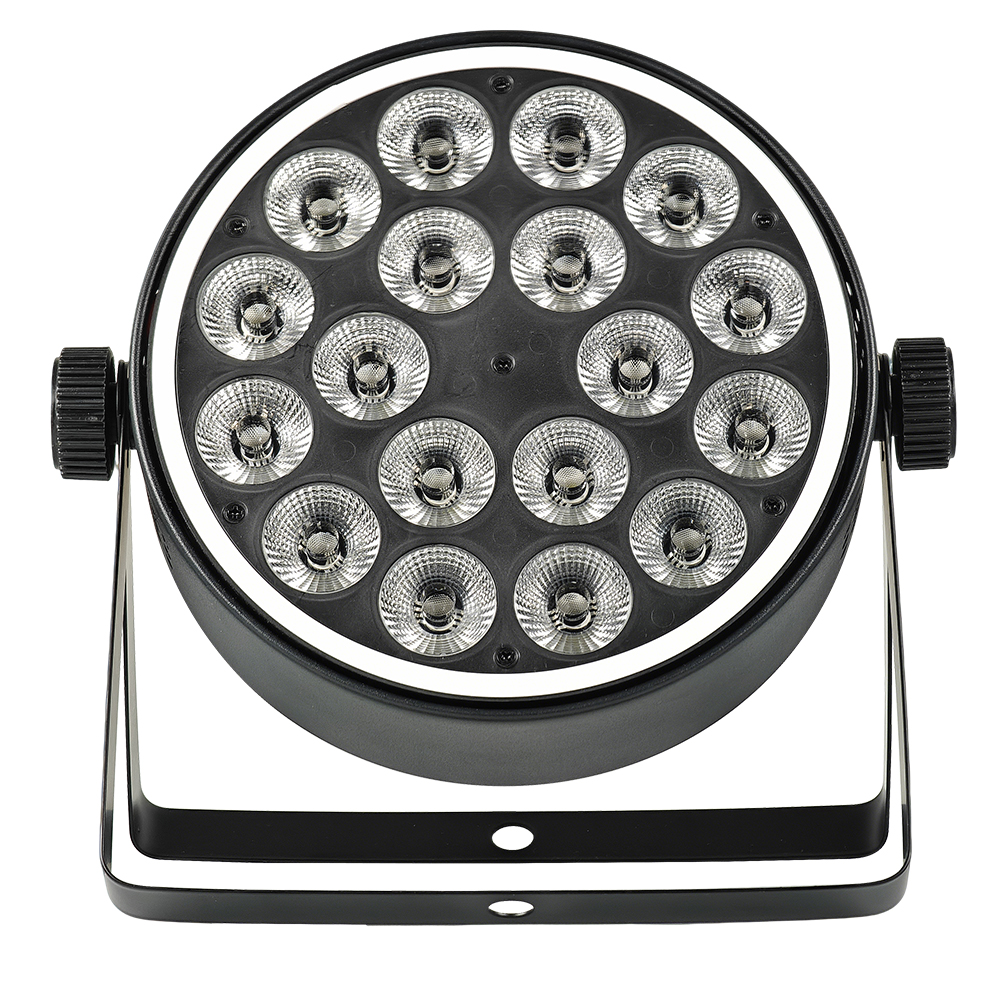

High Power LED

Equipped with a powerful 180W LED, this light ensures bright and vibrant colors, perfect for enhancing any stage performance.

Versatile Lighting

Featuring RGBW+RGB color mixing, this light offers a wide spectrum of hues, making it ideal for various events and settings.

Wide Voltage Range

Operates efficiently on a broad voltage range of 90-240V, ensuring compatibility with different electrical systems worldwide.

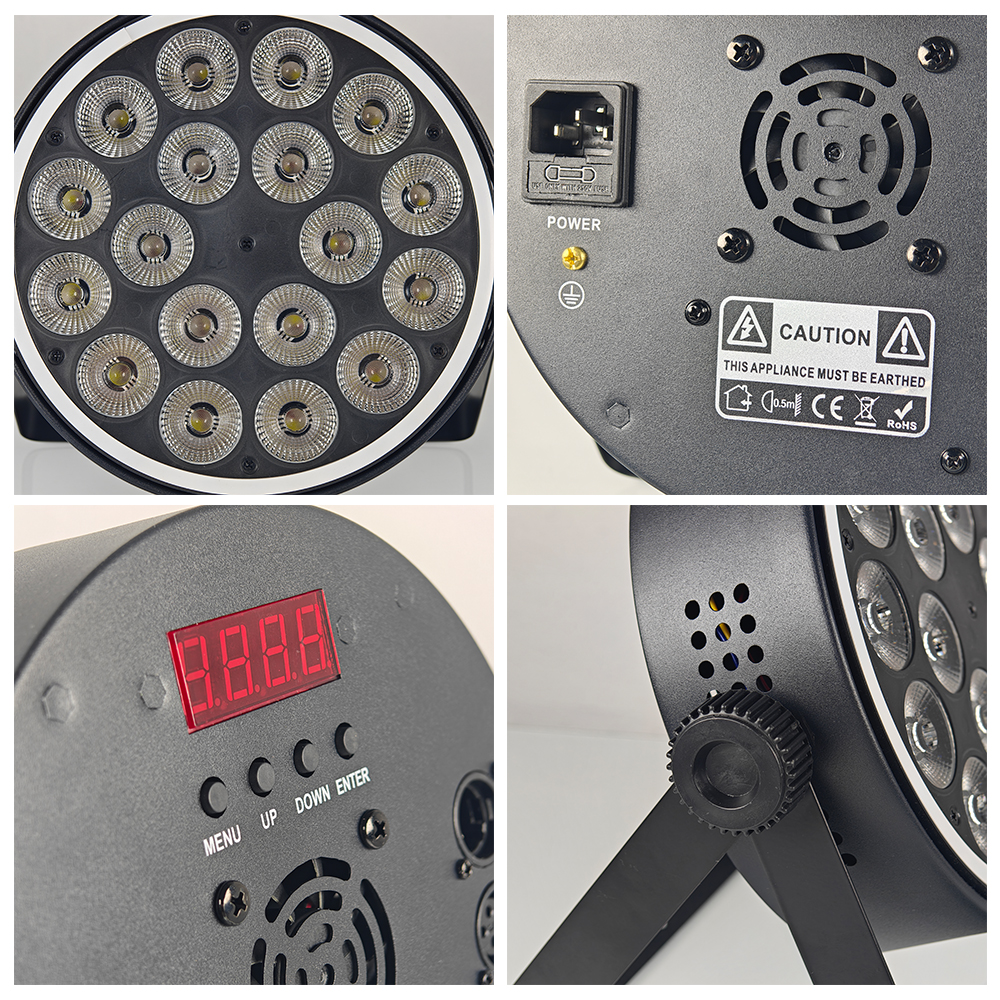

Robust Metal Shell

The durable metal shell provides a sturdy structure, ensuring long-lasting durability and reliability for professional use.

- Multi-Colors RGBW Color Mixing
- Eight Operating Modes: Static, Auto, Sound, Built-in effects, Strobe, Jump, Fade and Pulse Mode
- Built-in Microphone
- Built-in Cooling fan
- DMX-512 protocol
- DMX Mode: 6/10 Channel Mode.

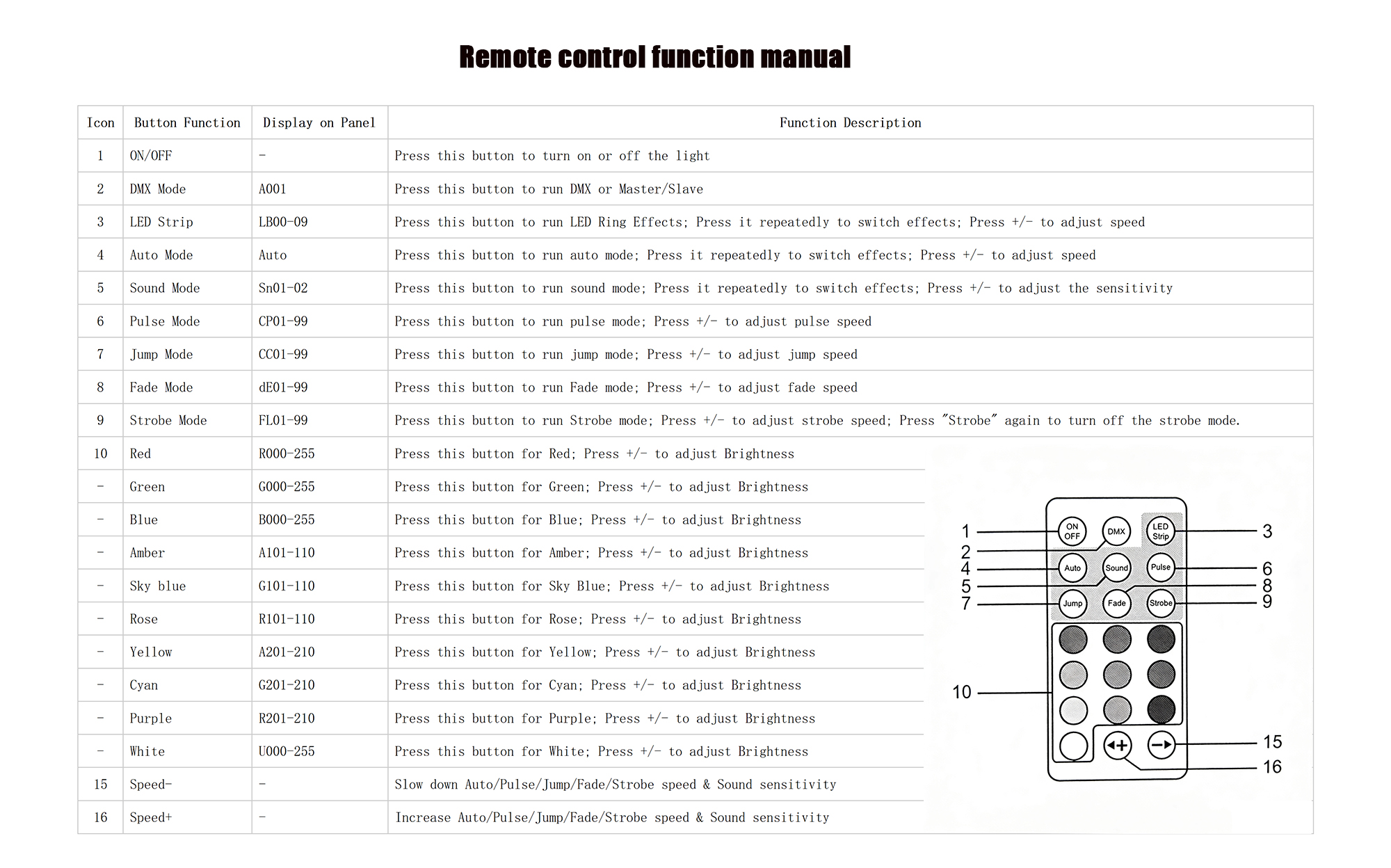

- Remote controller
WARRANTY REGISTRATION
The 18LEDs par light carries a 1 year limited warranty. You may contact our customer support team on our customer support number and email.
INSTALLATION
The unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slippage while operating. Always ensure that the structure to which you are attaching the unit is secure. The equipment must be installed by a professional, and it must be installed in a place where it is out of the reach of people's grasp mail.
SAFETY PRECAUTIONS
- To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
- Do not spill water or other liquids into or on to your unit.
- Do not attempt to operate this unit if the power cord has been frayed or broken.
- Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
- Disconnect from main power before making any type of connection.
- Do not remove the cover for any reason. There are no user serviceable parts inside.
- Never operate this unit with the cover removed.
- Never plug this unit in to a dimmer pack.
- Always be sure to mount this unit in an area that will allow proper ventilation.
- Do not attempt to operate this unit if it has been damaged in any way.
- This unit is intended for indoor use only. Use of this product outdoors voids all warranties.
- During long periods of non-use, disconnect the unit's main power.
- Always mount this unit in a safe and stable matter.
- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point at which they exit from the unit.
- Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the Cleaning section of this manual for details.
- Heat - The appliance should be situated away from heat sources, such as radiators, heat registers, stoves, or other appliances (including amplifiers) such as that produce heat.
- The fixture should be serviced by qualified service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
SET UP

Power Supply: The 18LEDs par light supports wide voltage, which voltage range of 100 to 240 VAC, 50/60 Hz, no need to worry about the correct power voltage, and this unit can be plugged in anywhere.

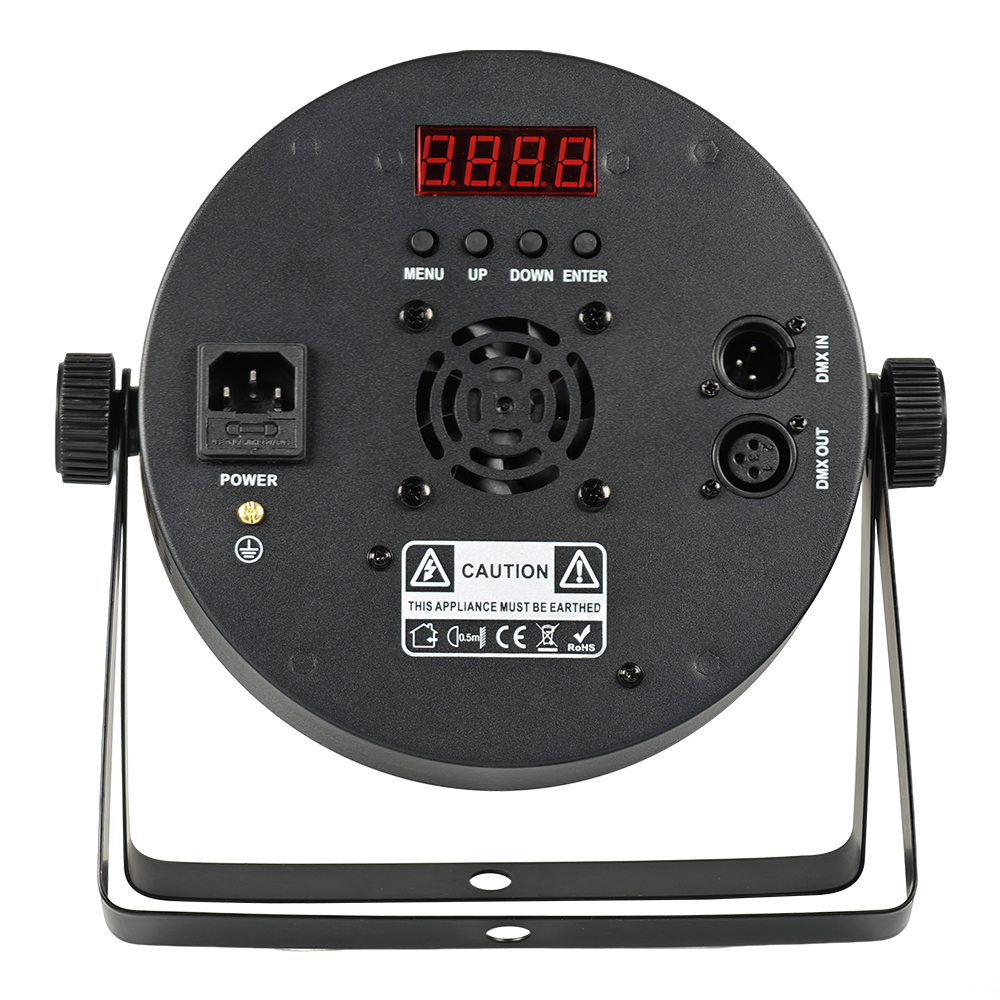

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures.

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):
The 18LEDs par light can be controlled via DMX protocol. The 18LEDs par light has 6 /10 DMX channel. Your unit and your DMX controller can accept either a standard 3-pin XLR connector for data input and data output. Be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male XLR connector at one end of the cable and a female XLR connector at the other.
