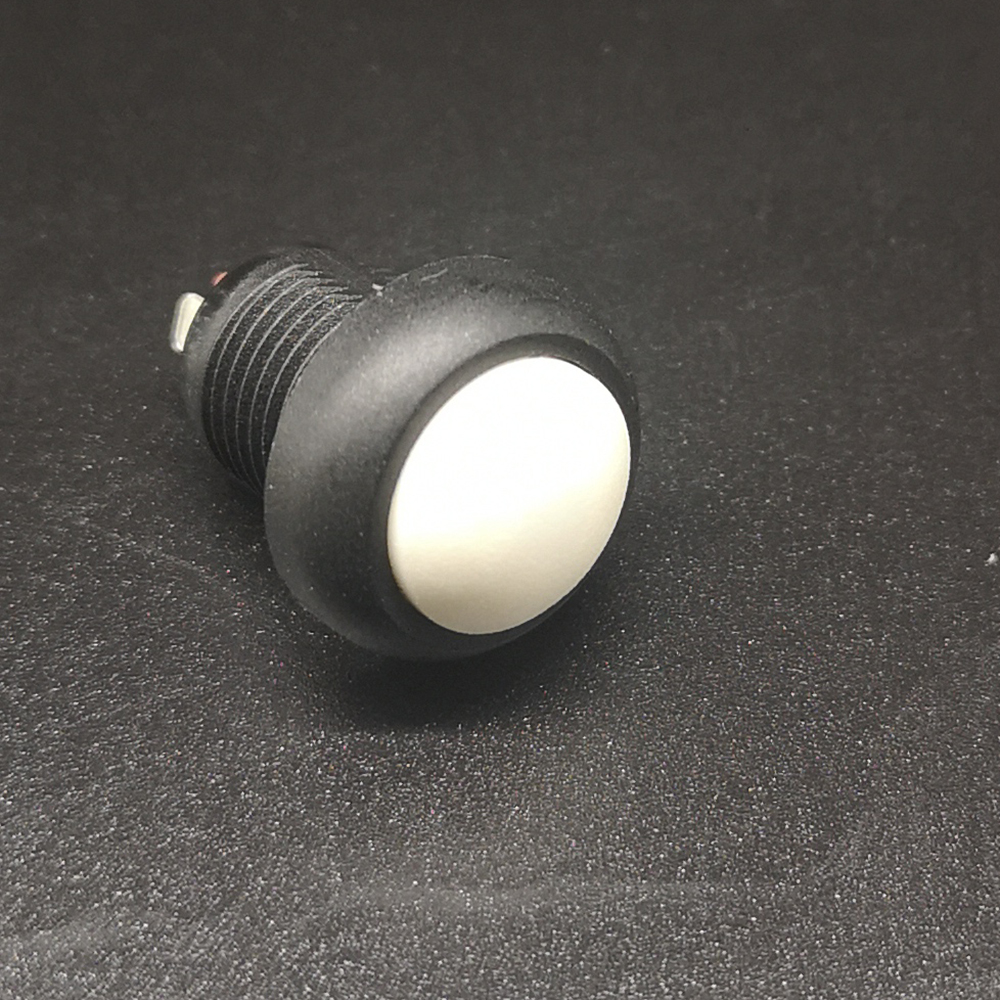

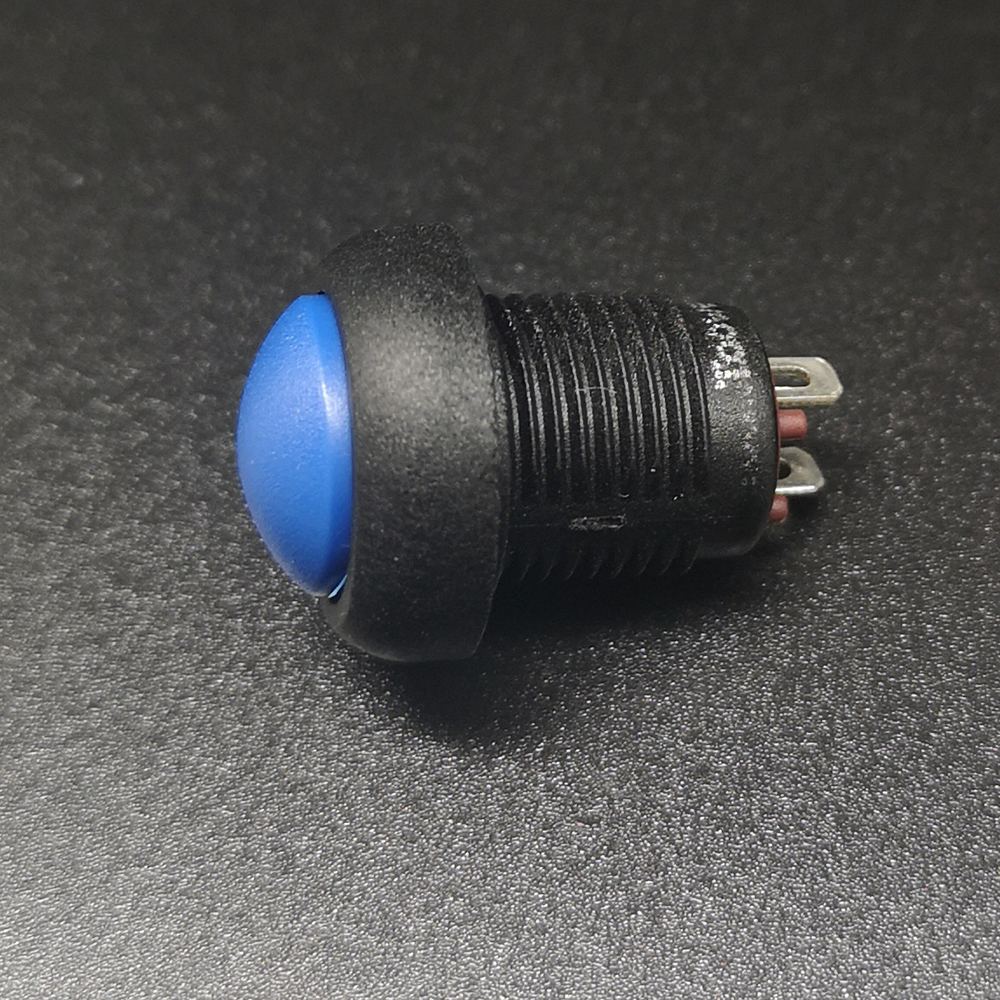

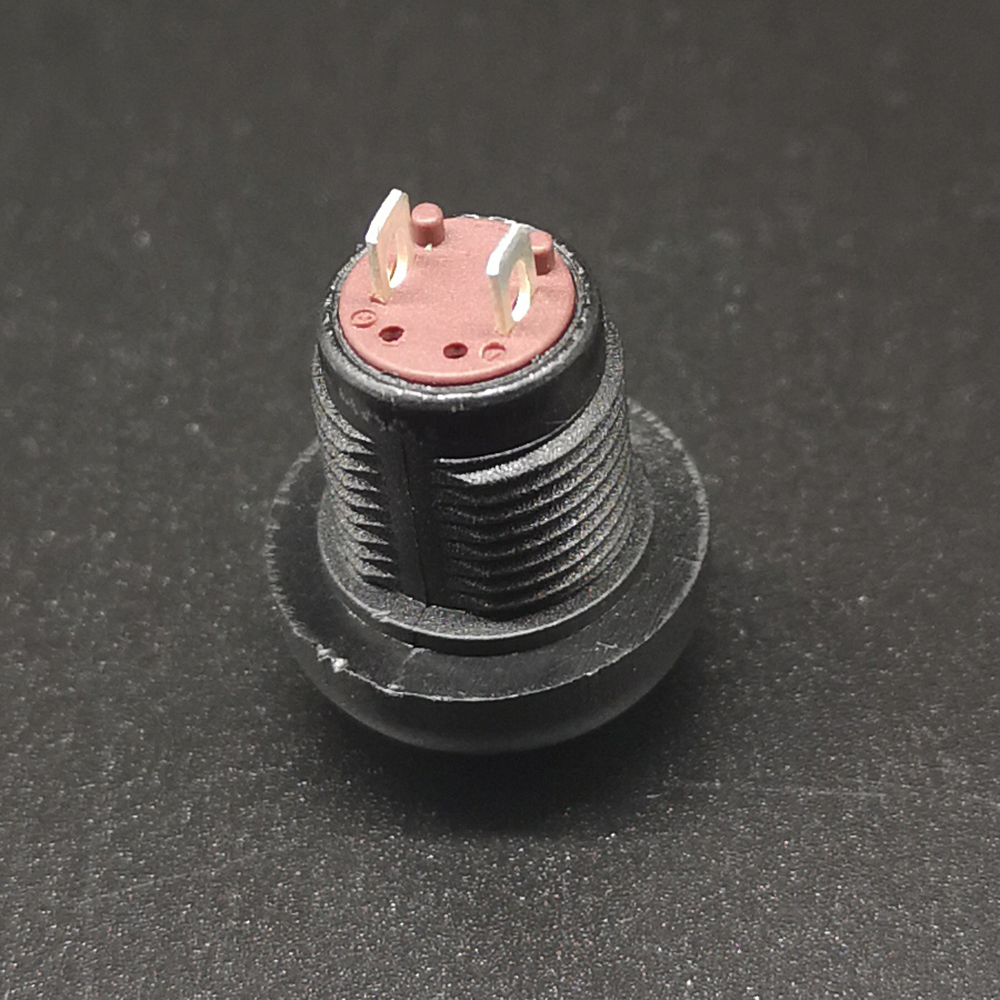

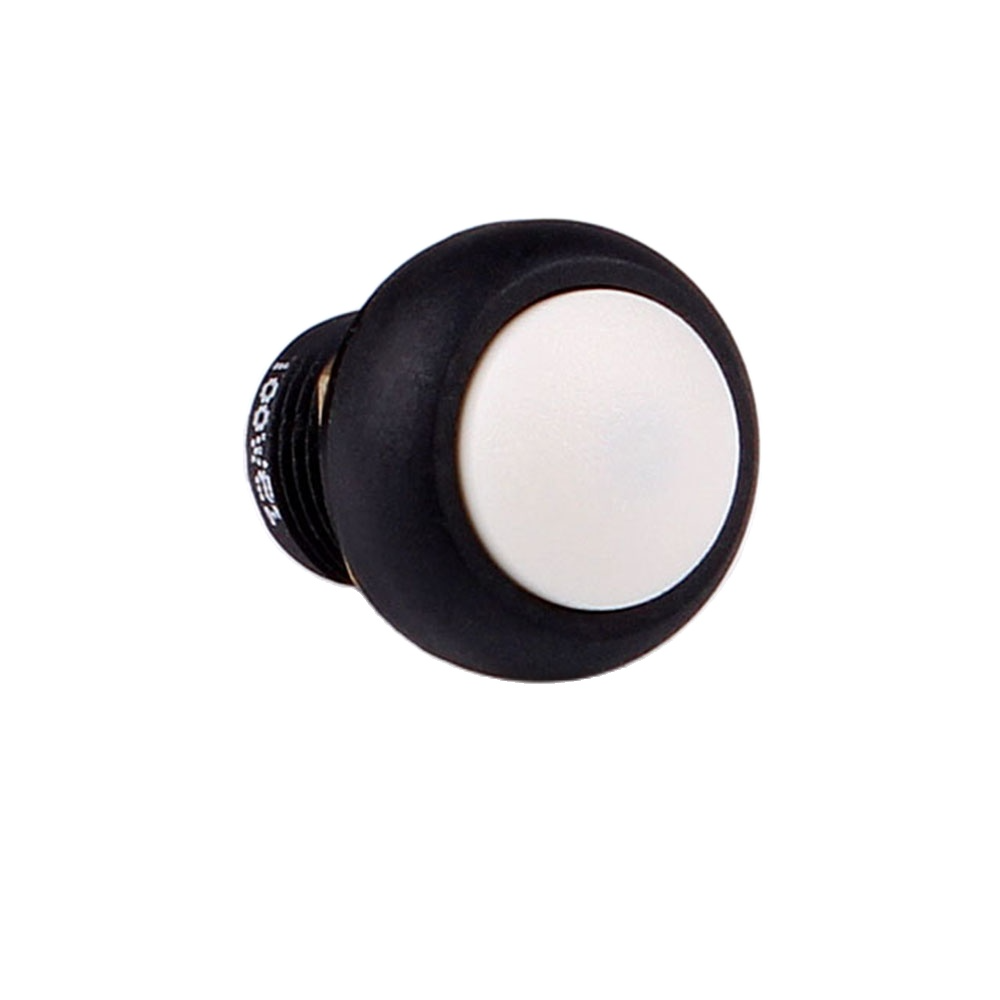

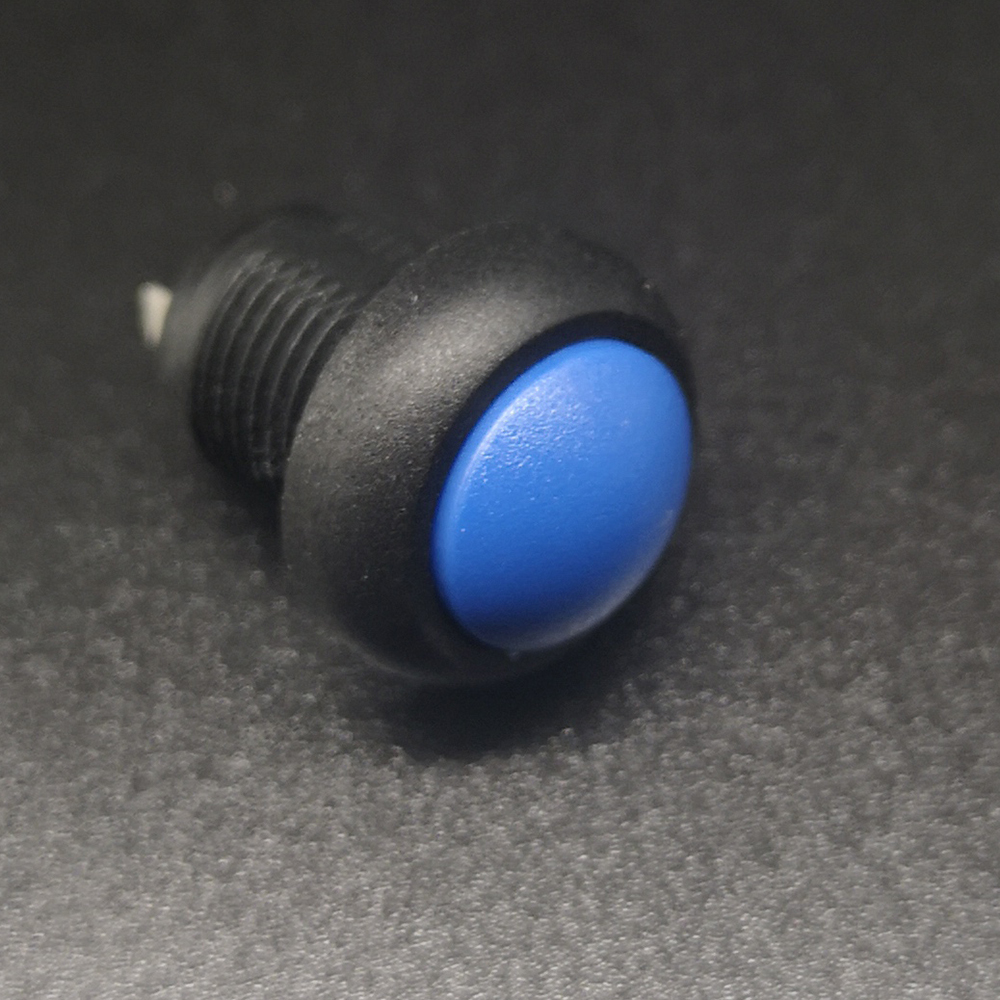

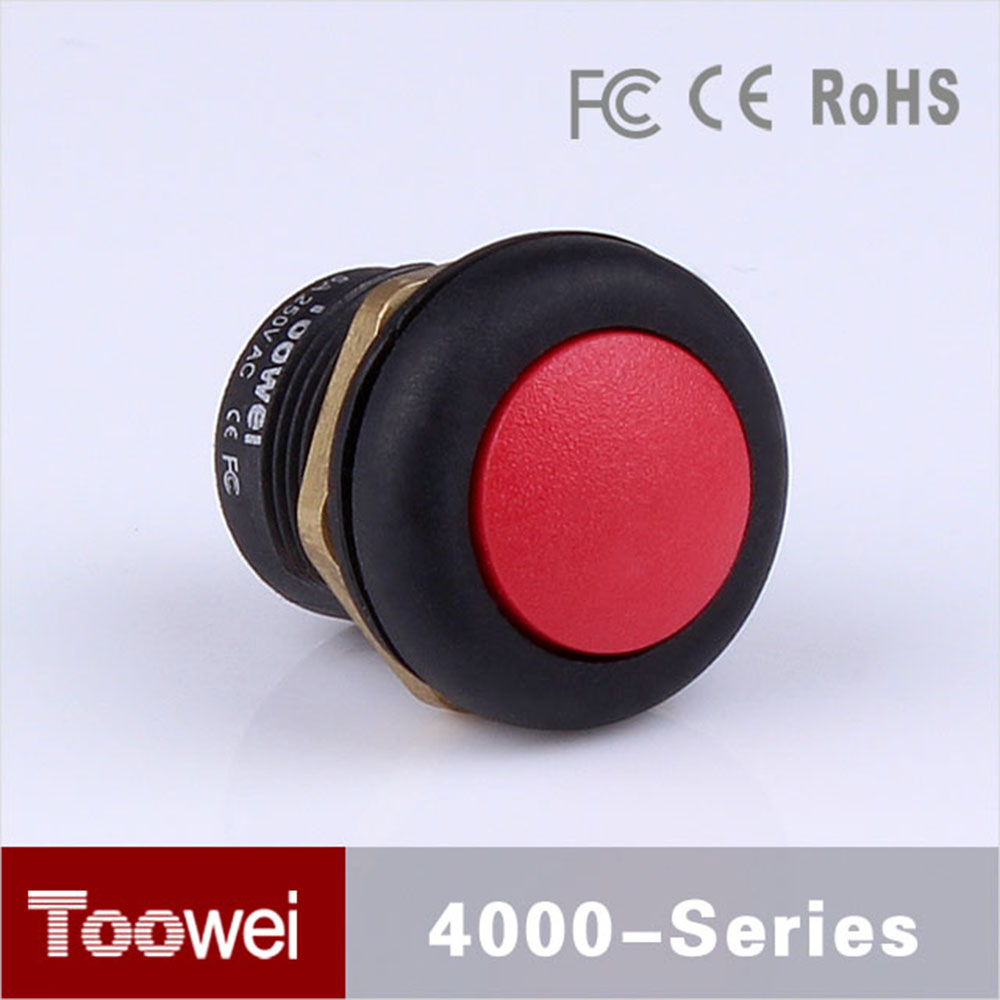

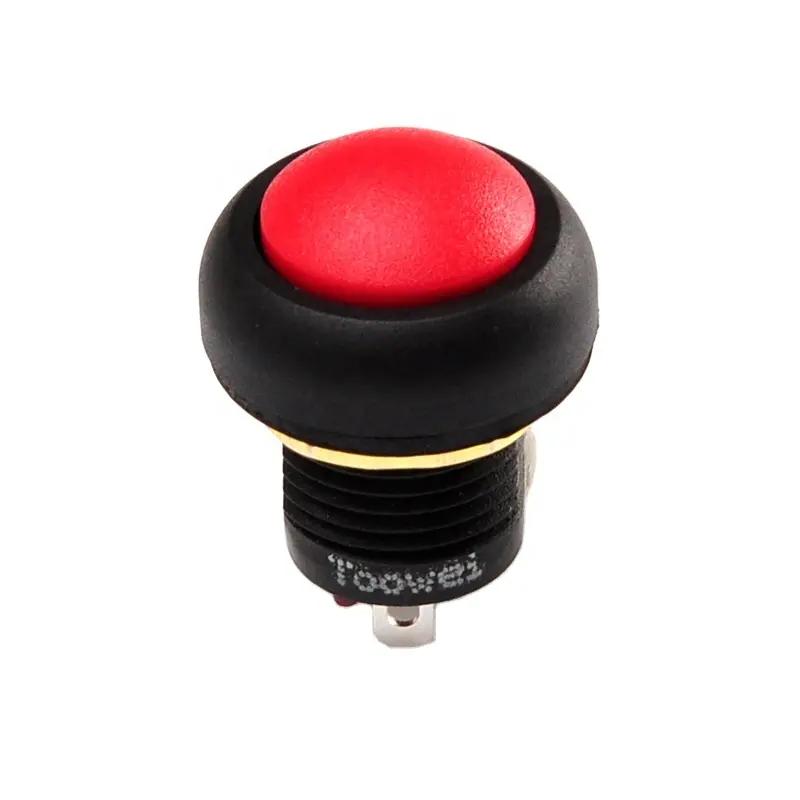

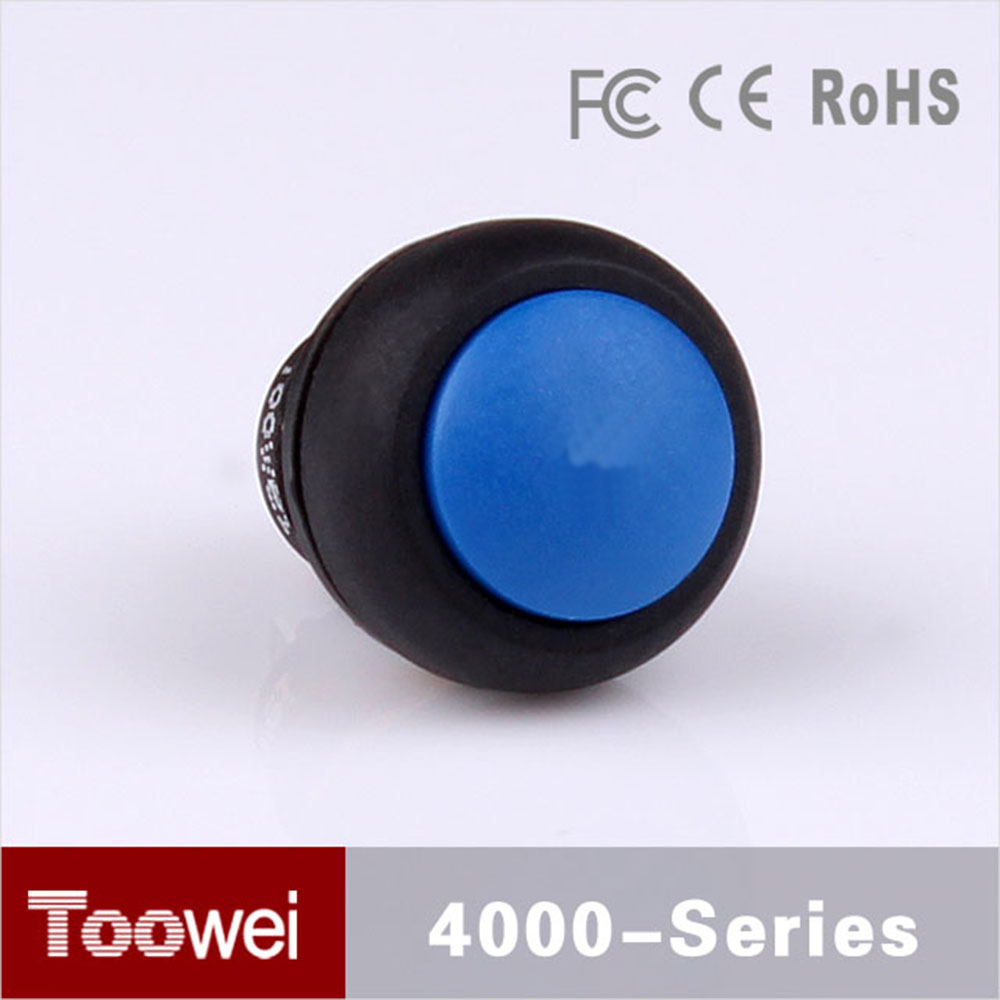

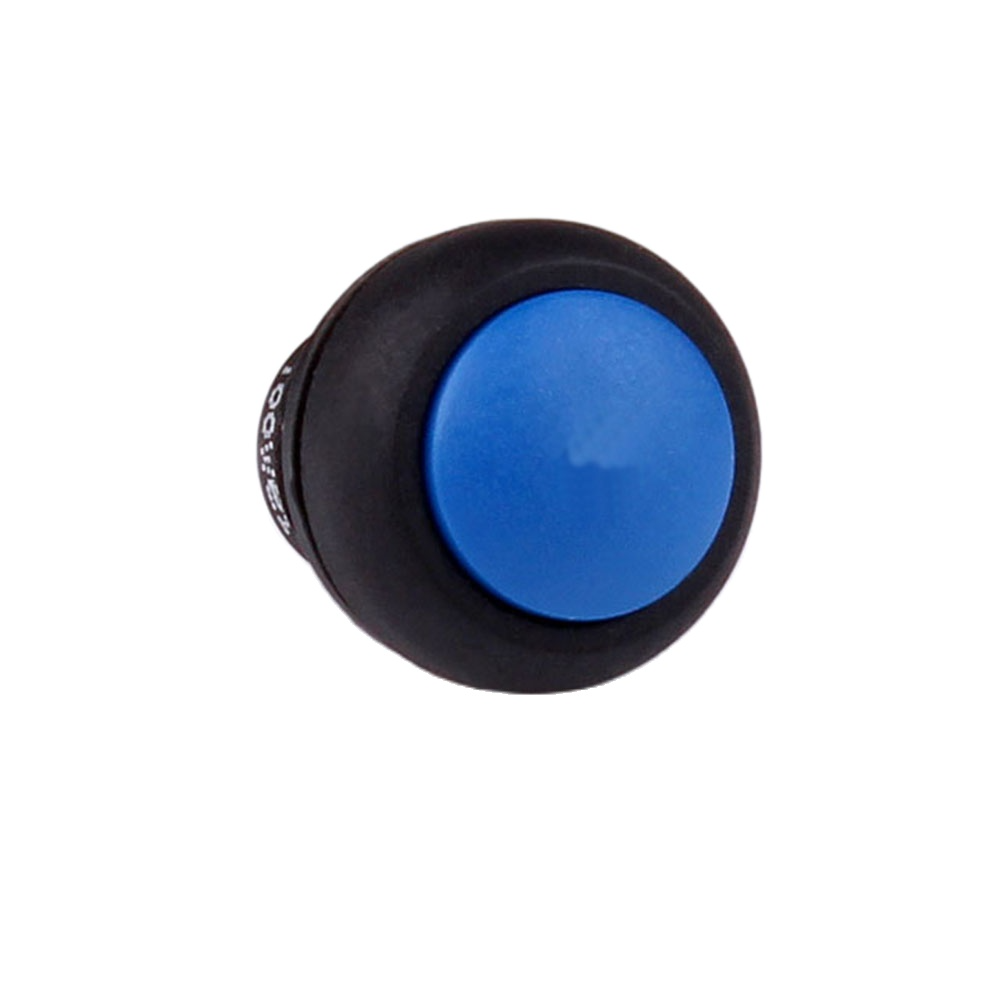

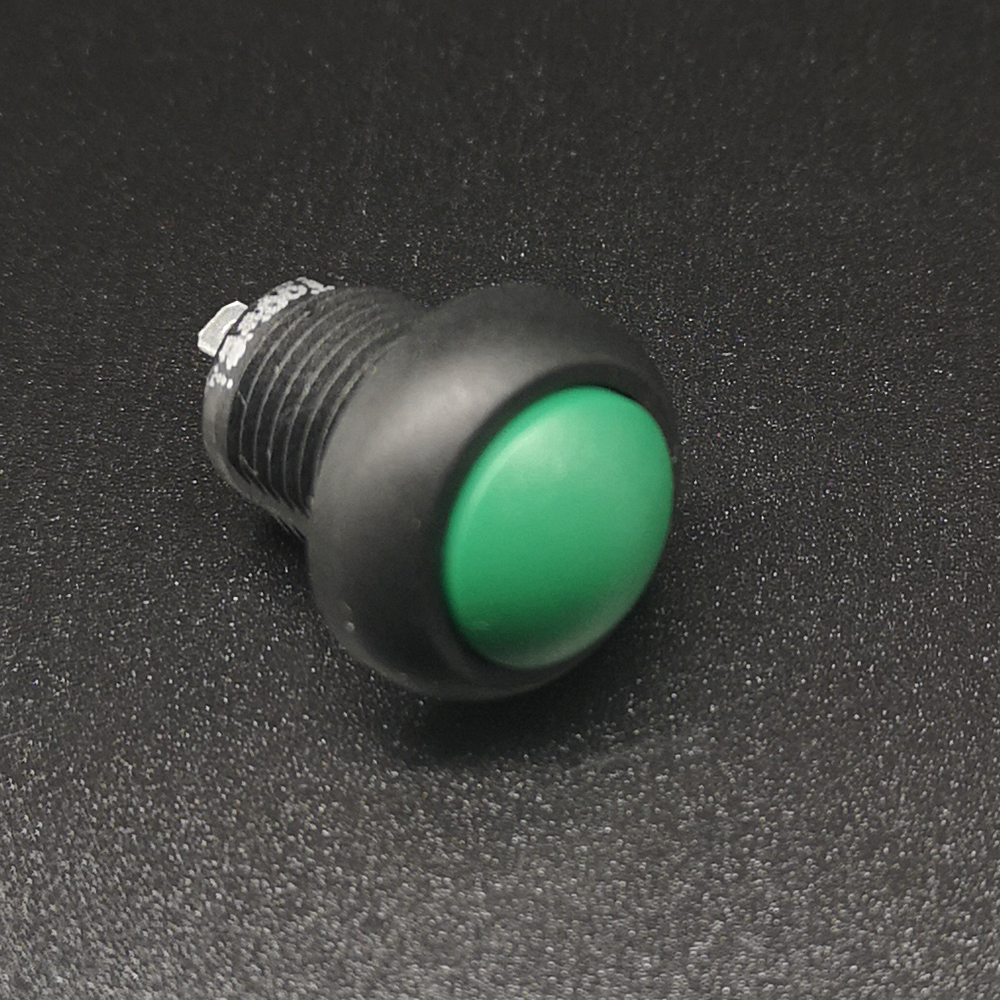

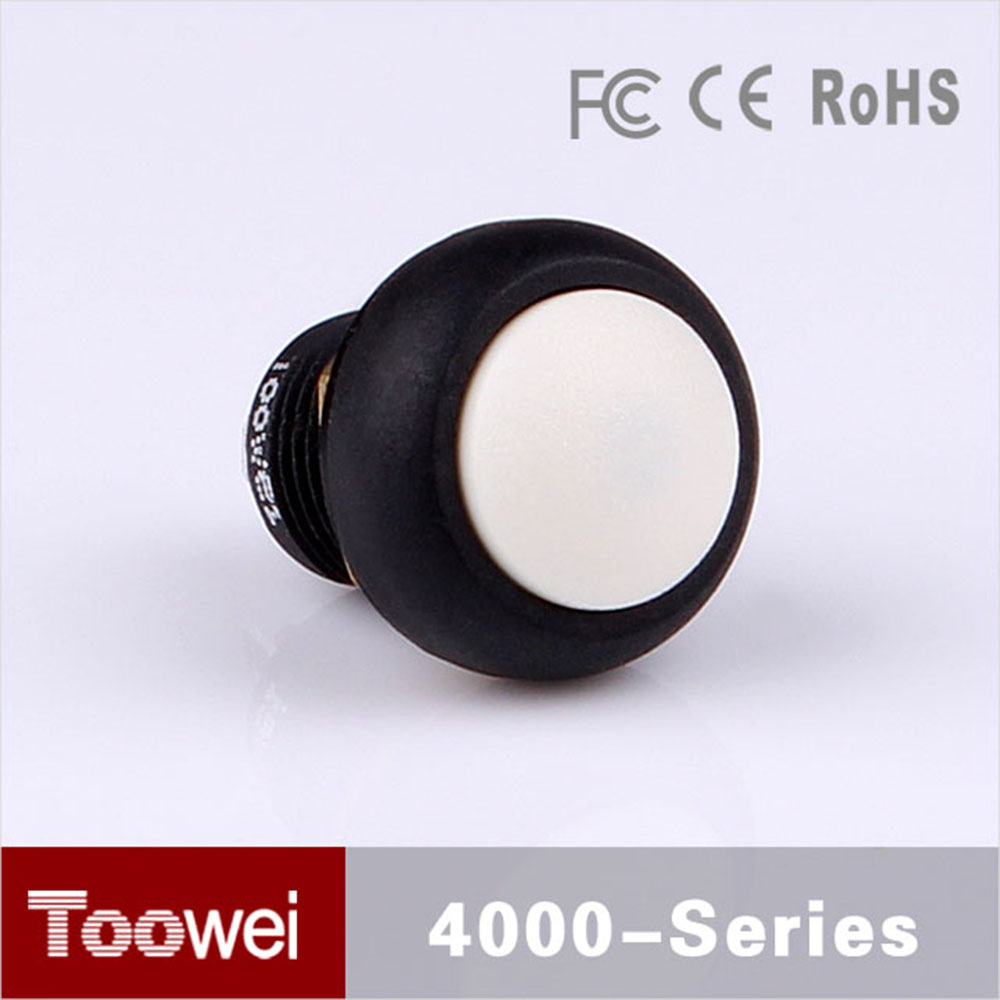

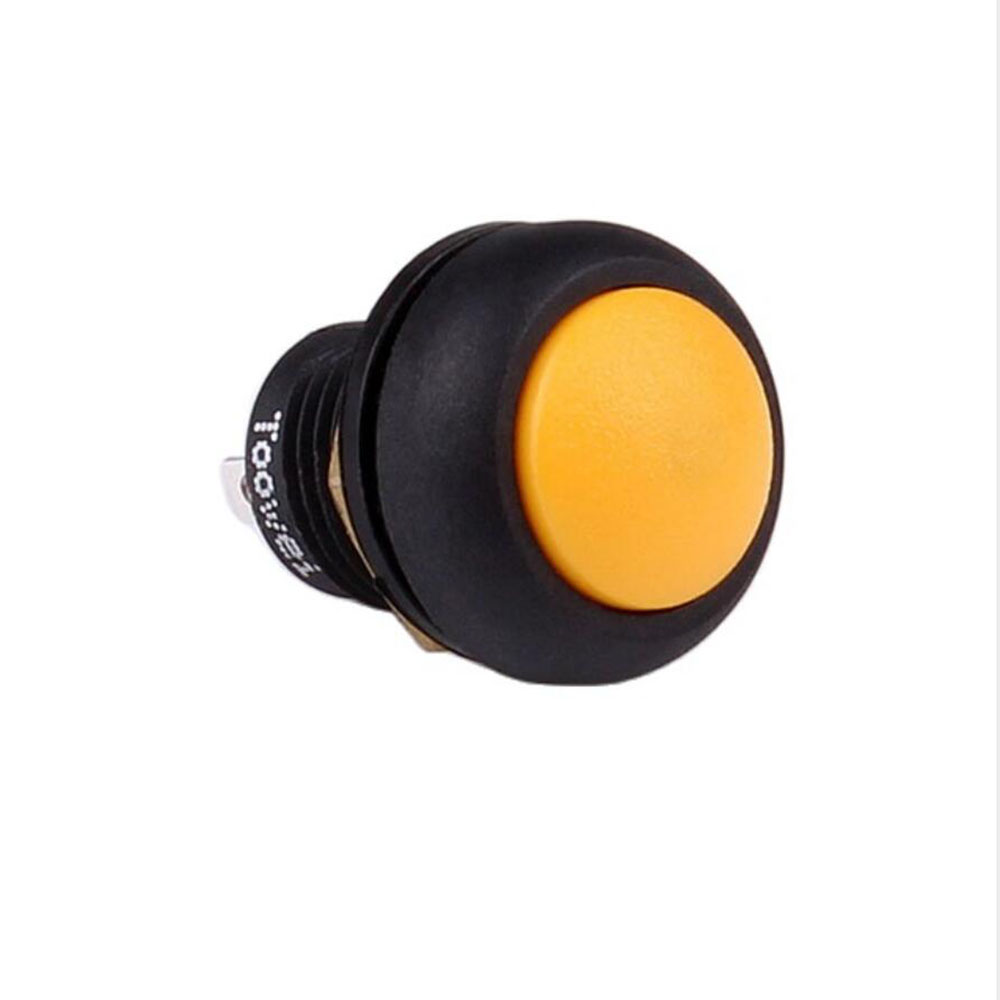

Toowei Waterproof Push Button Micro Switch 12mm Mini White Pushbutton Switch for Electrical Control System

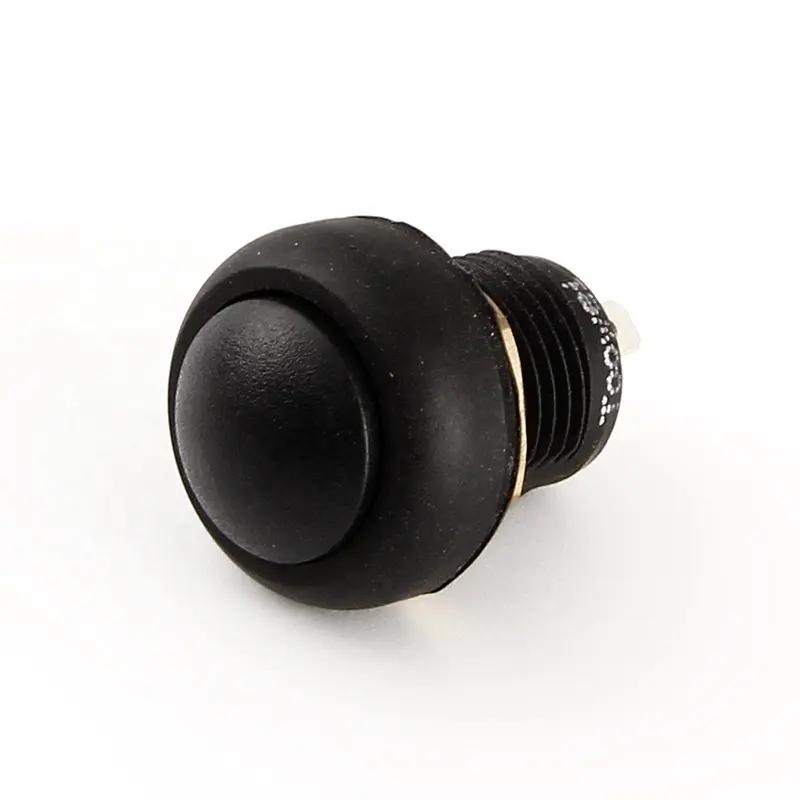

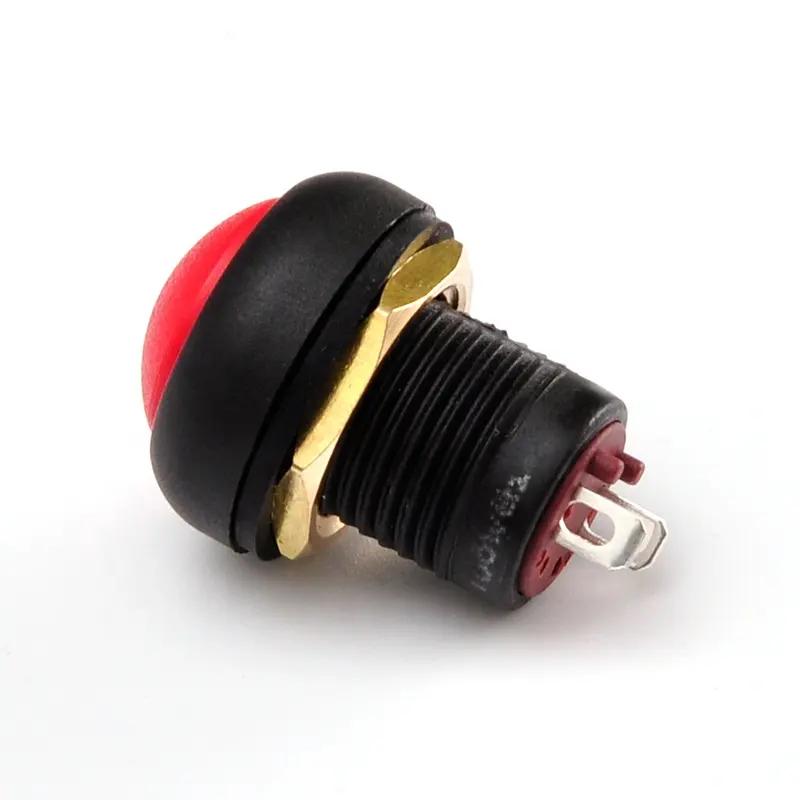

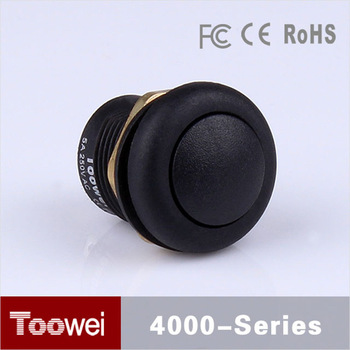

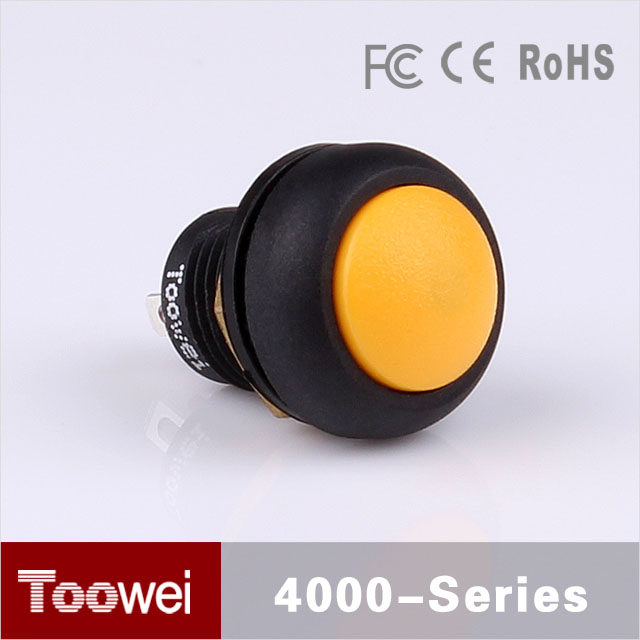

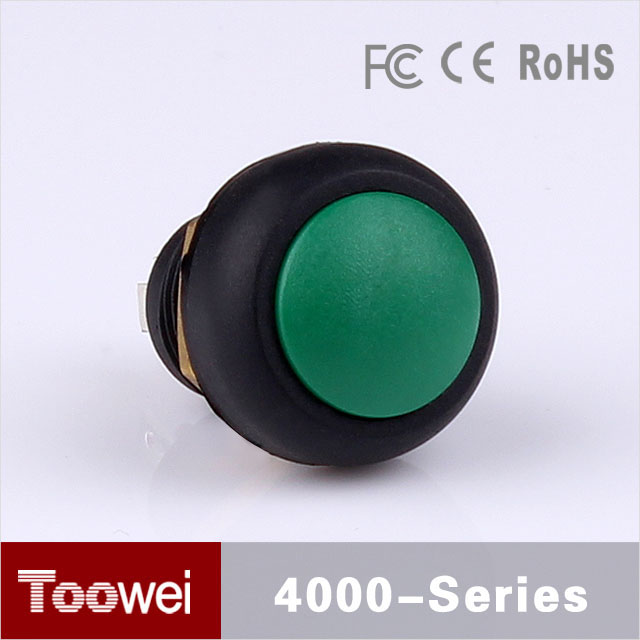

A4126 series waterproof push button switch , protection degree reach IP67 ,installation size is 12mm. According to the material , it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two different kinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment , small yacht, lamps, medical equipment , military communication intelligent network equipment and the other instruments .
Function
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position. Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
Technical Paremeters

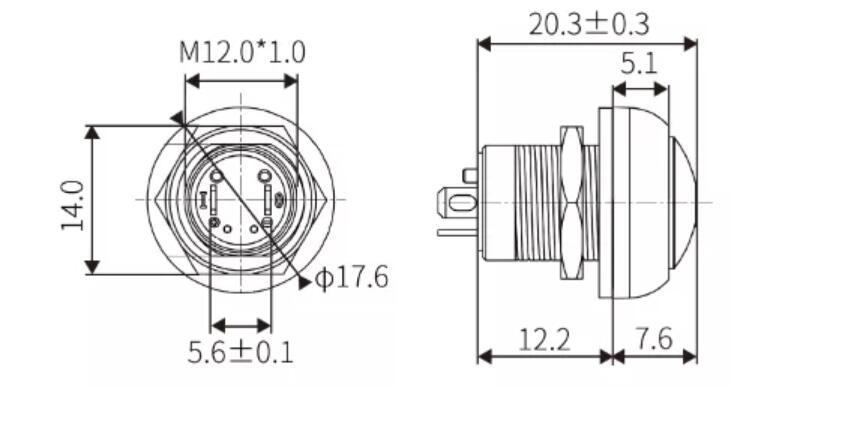

1. Operating force ≤6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf 2. Contact resistance ≤50m Ω 3. Rated current 3A , rated voltage 250VAC 4. Insulation resistance ≥100m Ω/min 5. Withstand voltage: AC 1000V(50~60hz)/min 6. Solderability: soldering iron 340°±5°/1-2s 7. Solder resistance: soldering iron 340°±5°/3-5s 8. Durability : Electrical life 50000 times, Mechanical life 100000 times 9. Protection degree: IP67 10 Material: Dupont Nylon PA66+20% glass fiber 11. Installation size: 12mm
