Emergency Lamp Large Emergency Tube Light Recharging Downlight Human Sensor Control Round Indoor Led Lamp Ac200-240v 6 Inches

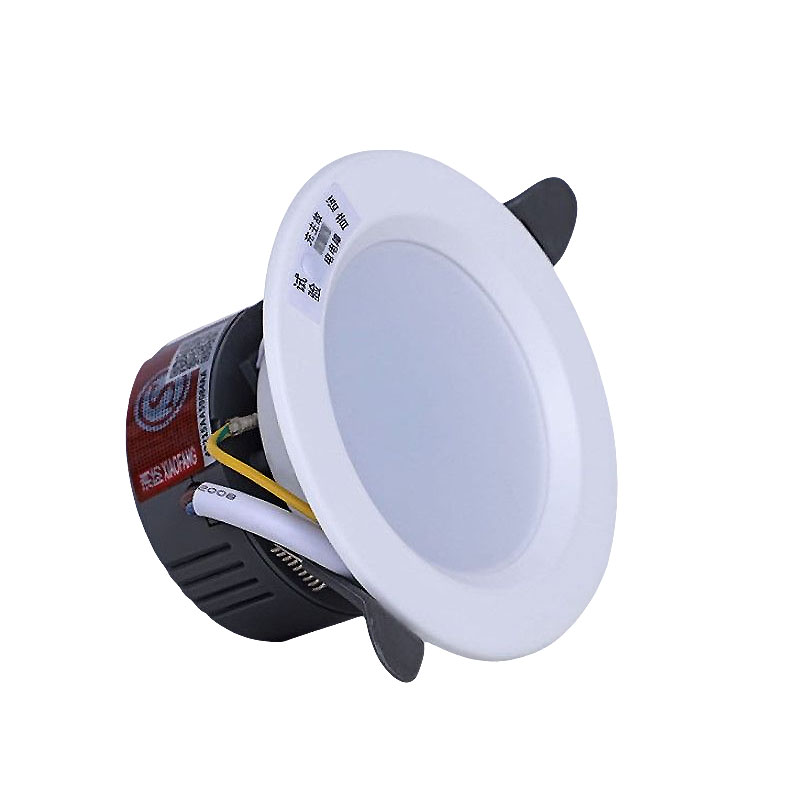

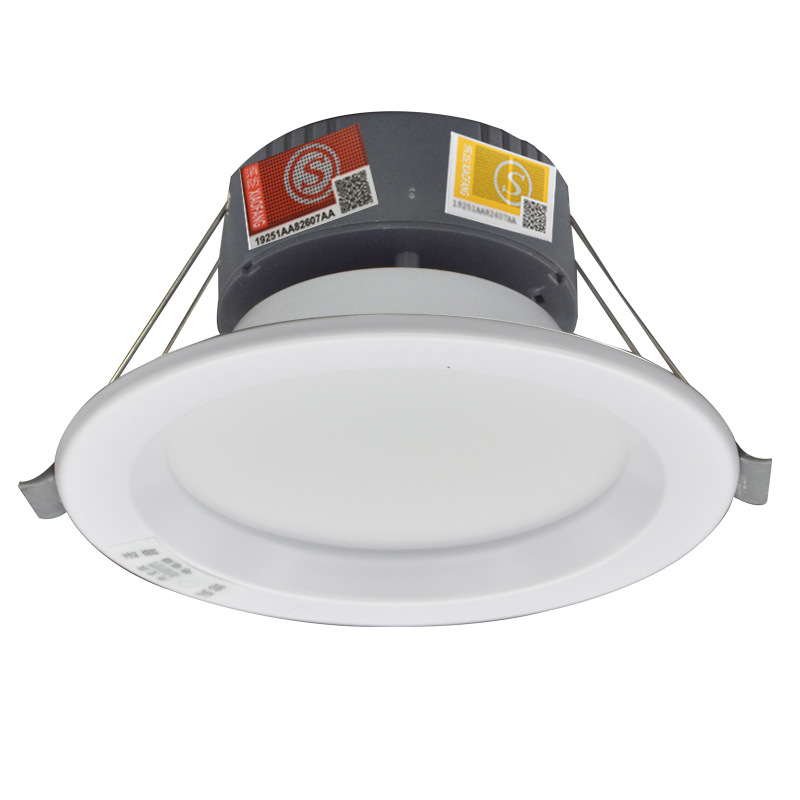

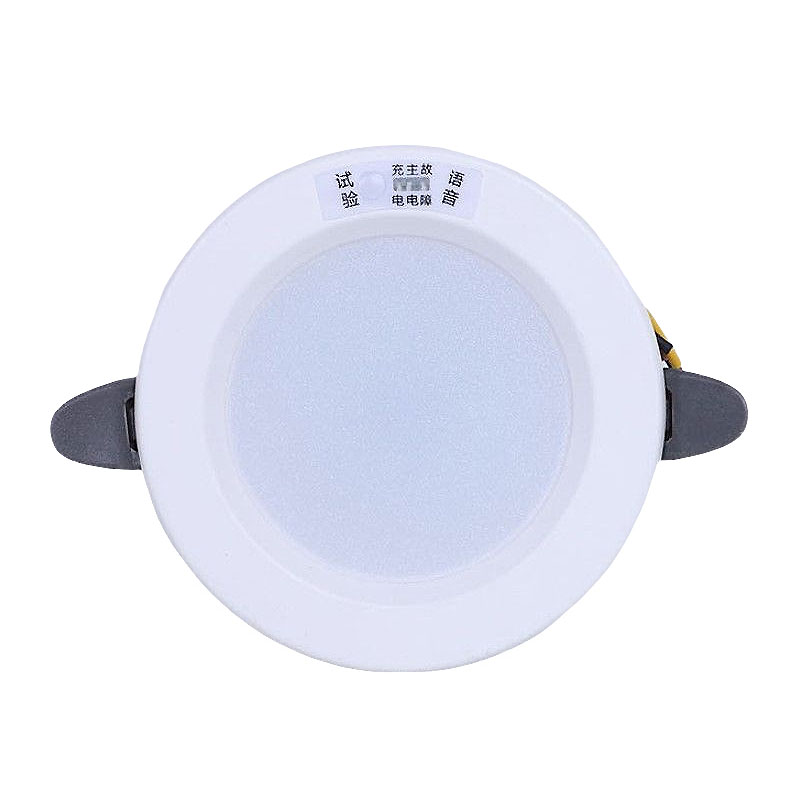

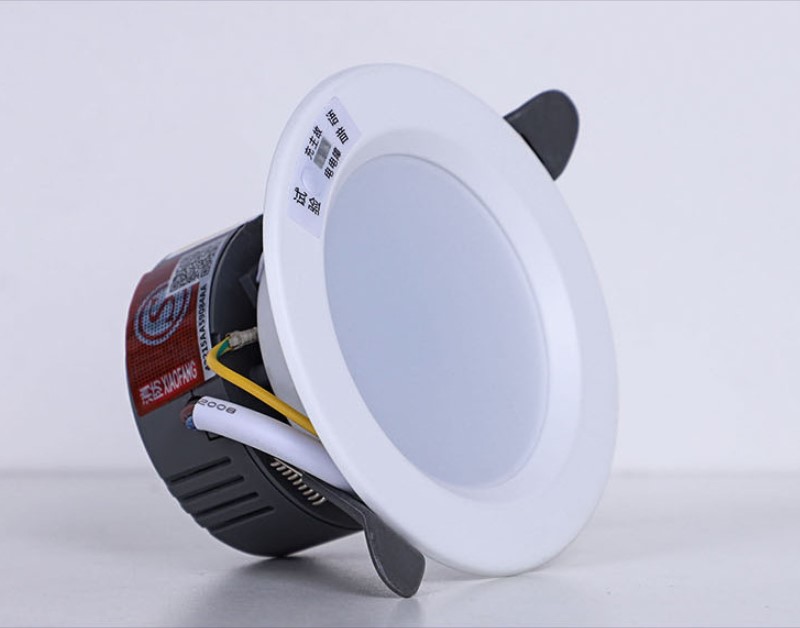

Product Name: 6000K Cool White LED Emergency Downlight

Model: SK-00233

Light Source: LED 2835SMD

Voltage:  AC200-240Vac

Colr Temperature: White Color 6000K-6500K

Charging Time:24h

Emergency Time: 90min

IP Rating: IP30

Application: emergency lights ceiling recessed mounted for power loss

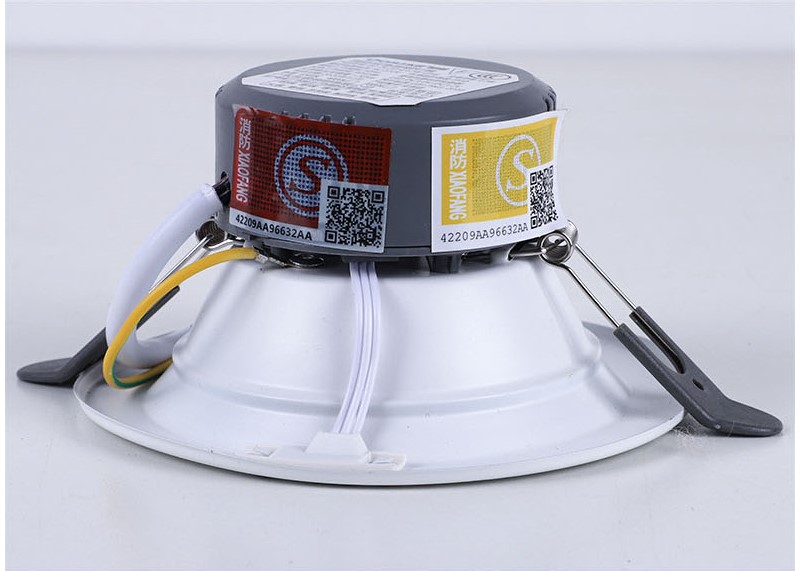

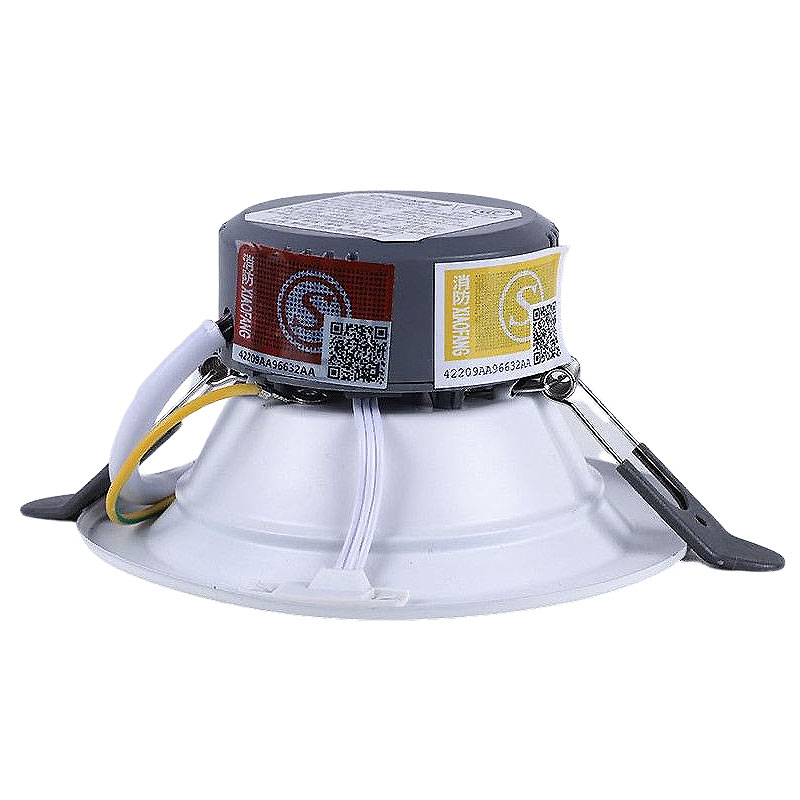

Yellow green grounding wire (if not available, it can be left unconnected without affecting its function)

Yellow switch wire (controlled by the switch to keep the light on during daily use)

Brown live wire (power grid live wire)

Blue neutral wire (grid neutral wire)

Black is the mandatory starting fire wire (connected to fire wire system, which is generally not required for household use)

Connecting the live and neutral lines can achieve emergency functions (usually not lit up, automatically lit up when power is cut off, and automatically turned off when power is restored)

Connecting the live wire, neutral wire, and switch wire can achieve emergency and constant light functions

Two functions of parameters (Light On Emergency)

1. Conventional downlight (controlled by switch)

2. Emergency downlight (internal lithium battery intervention automatically lights up when power is cut off)

Two functions of parameters (Humen Emergency)

1. Human body induction downlight (The Human body induction switch controls the light to turn on)

2. Emergency downlight (internal lithium battery intervention automatically lights up when power is cut off)

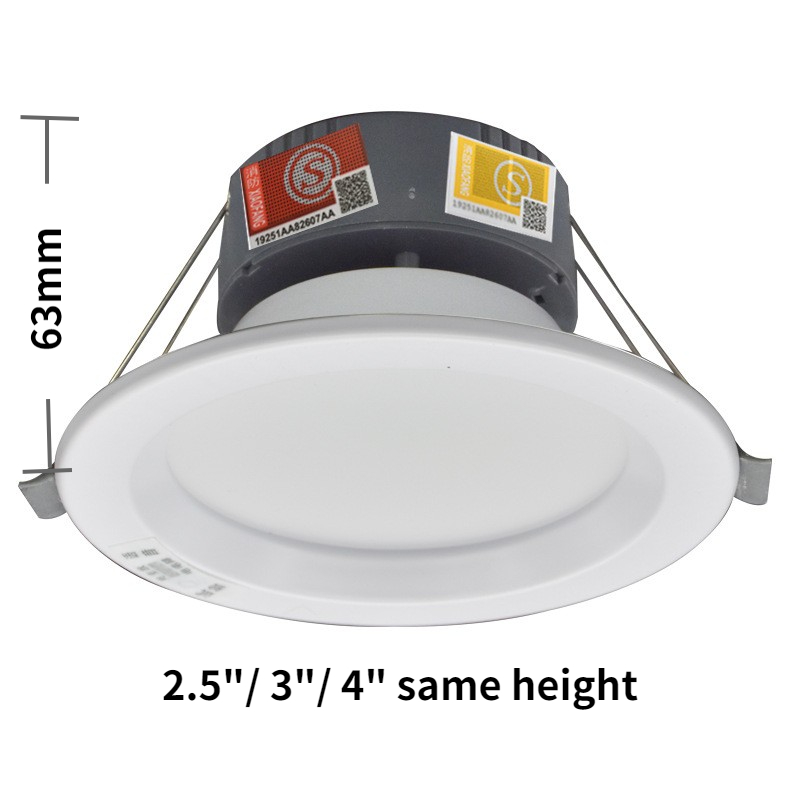

2.5inch Emergency Light:

Rated Power: 5W

Surface Diameter:100mm

Hole Size:80mm

................................................................................................
3inch Emergency Light:

Power: 8W

Panel size:115mm

Hole Size:90~105mm

.............................................................................................

4inch Emergency Light:

Power: 10W

Panel size: 145mm

Hole Size:110~120mm

................................................................................................

6inch Emergency Light:

Power:12W

Panel size:175mm

Hole Size:150~160mm

..................................................................................................

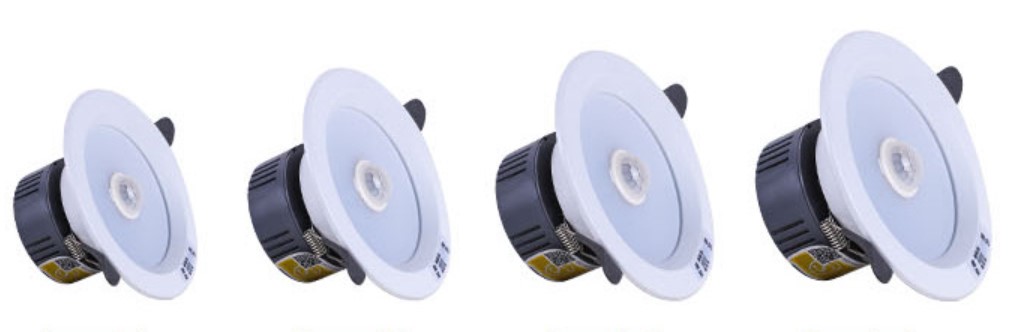

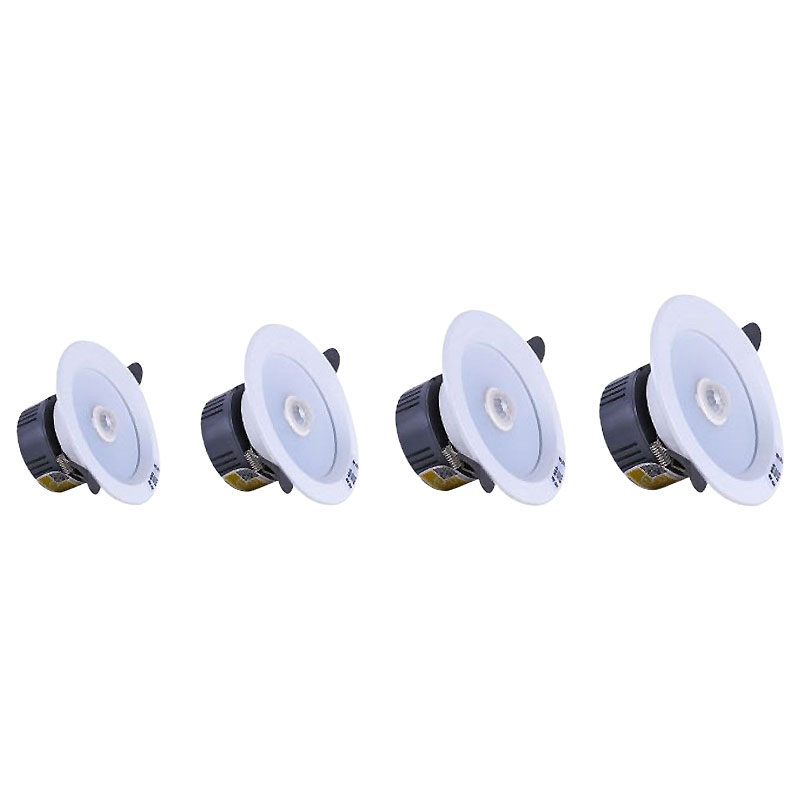

2.5 Inch                                3 Inch                             4 Inch                                       6Inch

1X Emergency Downlight

1X Installation Instruction Manuel

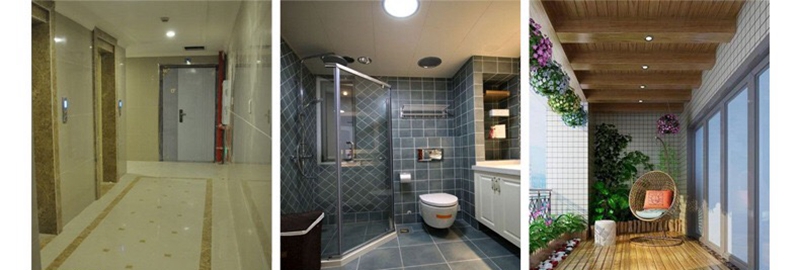

Used instairway, aisle ,garage ,loo ,balcony, school ,market etc.

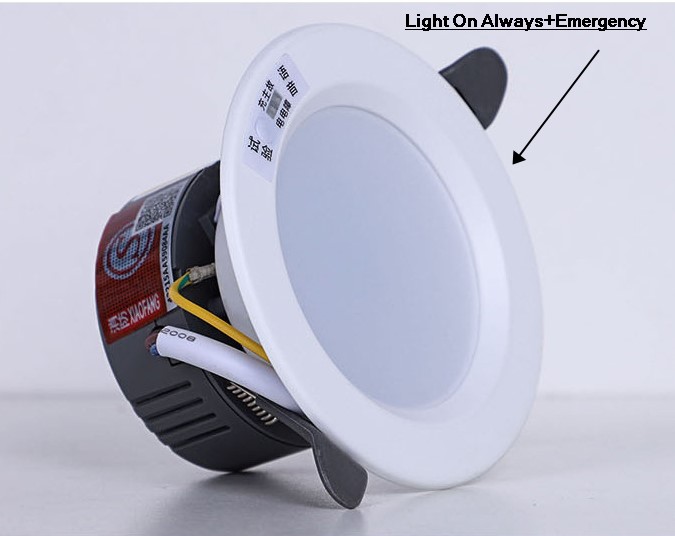

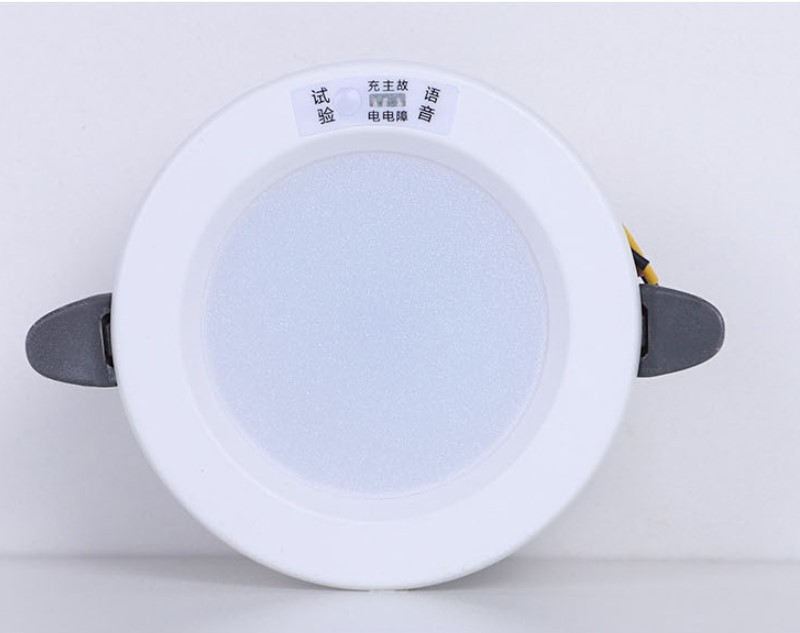

  Light On Always + Emergency

It means this light will be light on when you switch on all the time.

   And, when power is off suddently, the light still keep on powered by  battery  Automaticly.

  Picture as following:

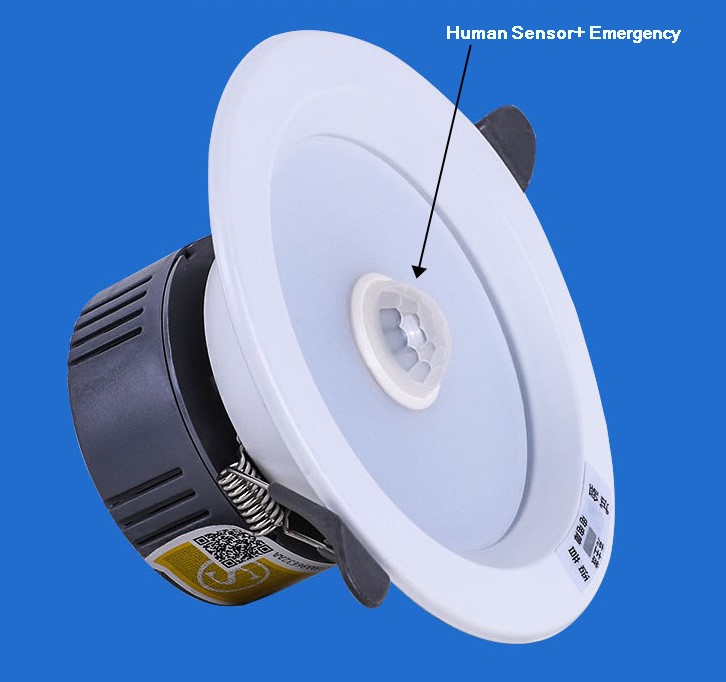

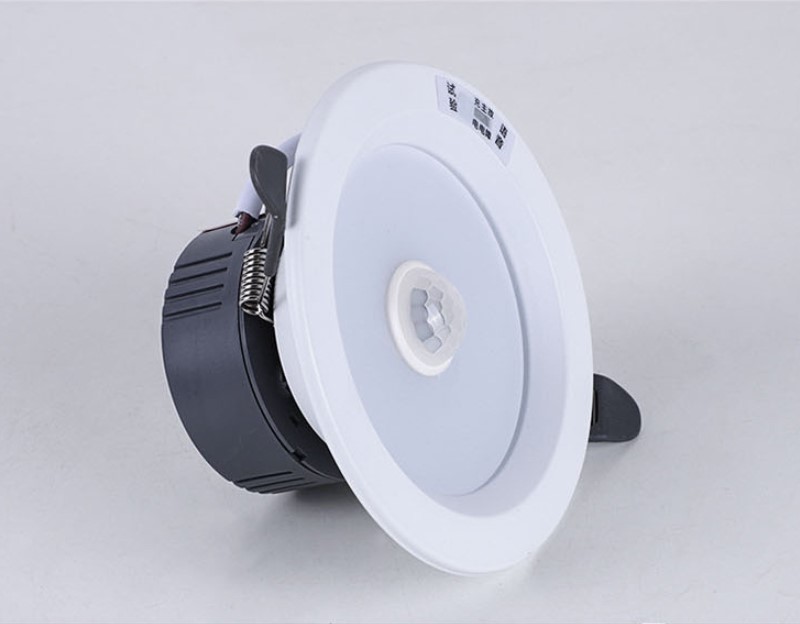

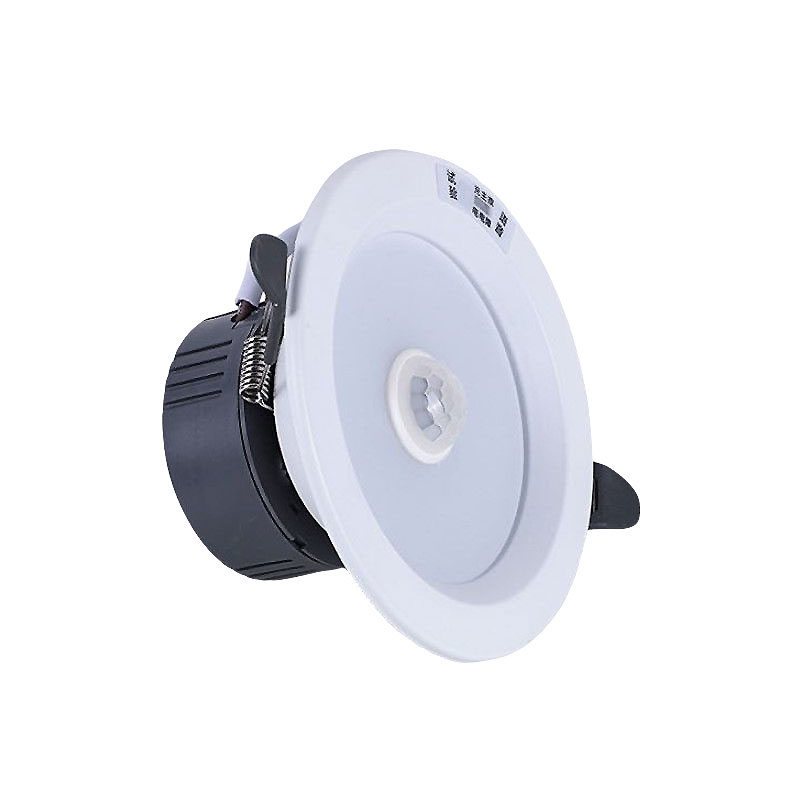

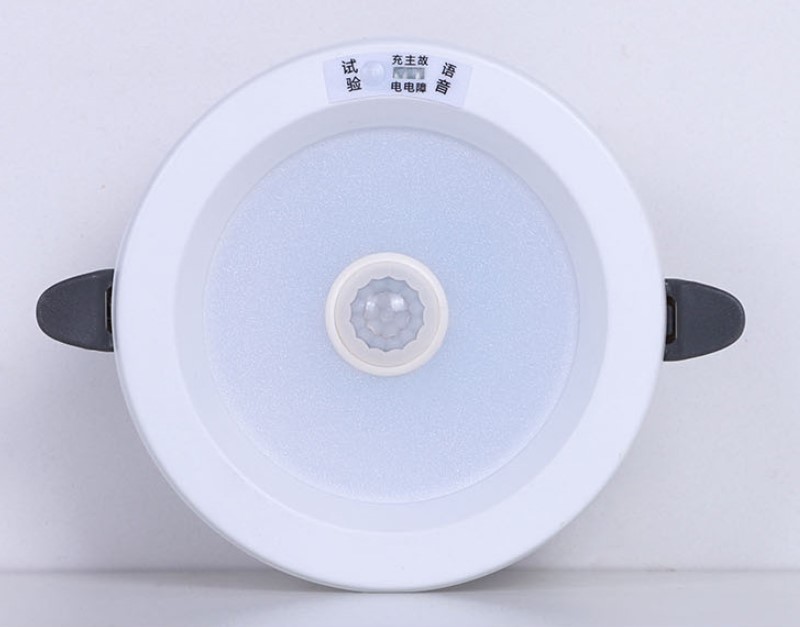

  Human Sensor + Emergency

It means this light will be light on when there is anybody passing.

   And, when power is off suddently, the light still keep on powered by  battery  Automaticly.

  Picture as following:

Please make sure your choice is suitable for your ceiling and function demand.
