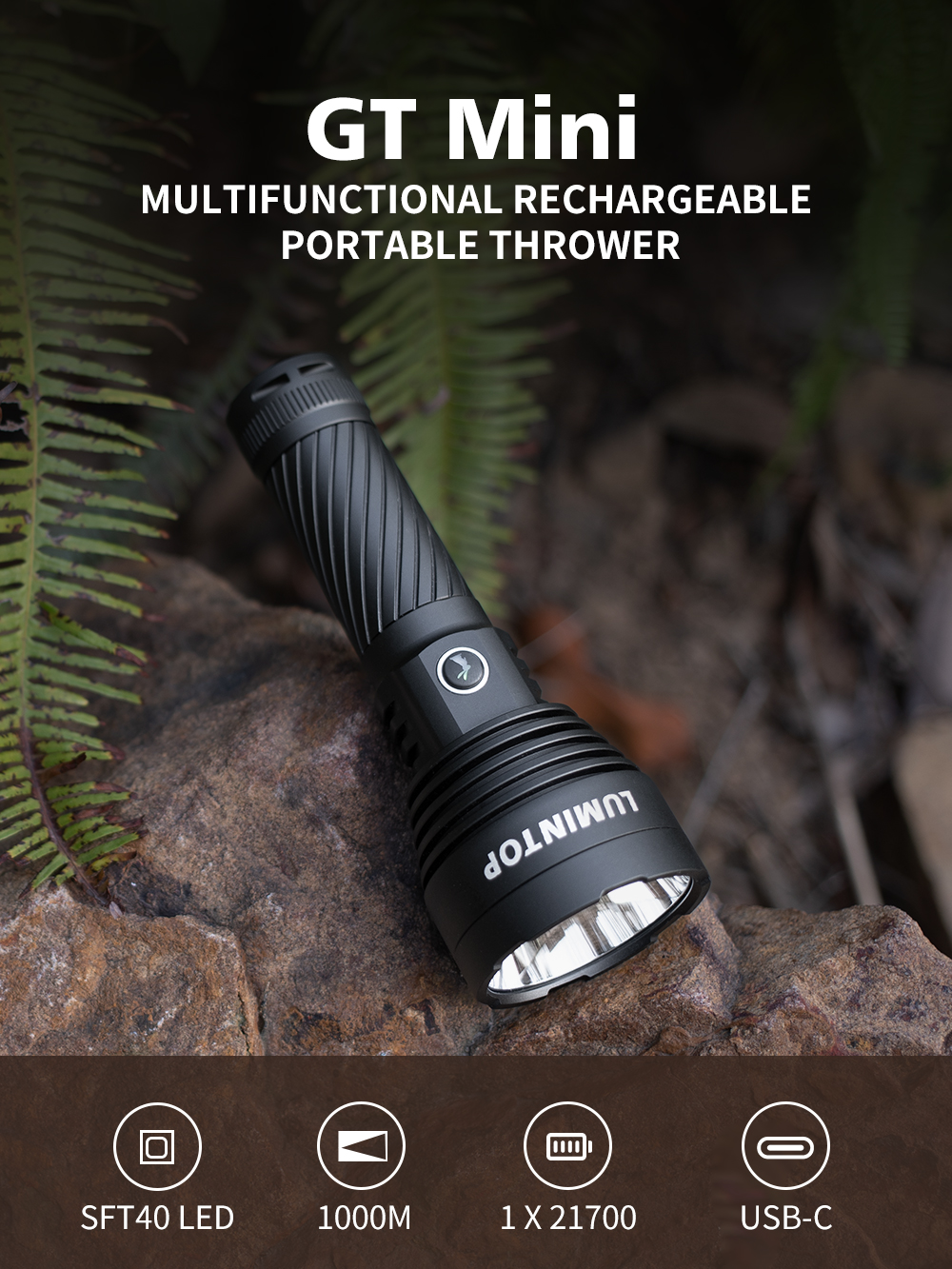

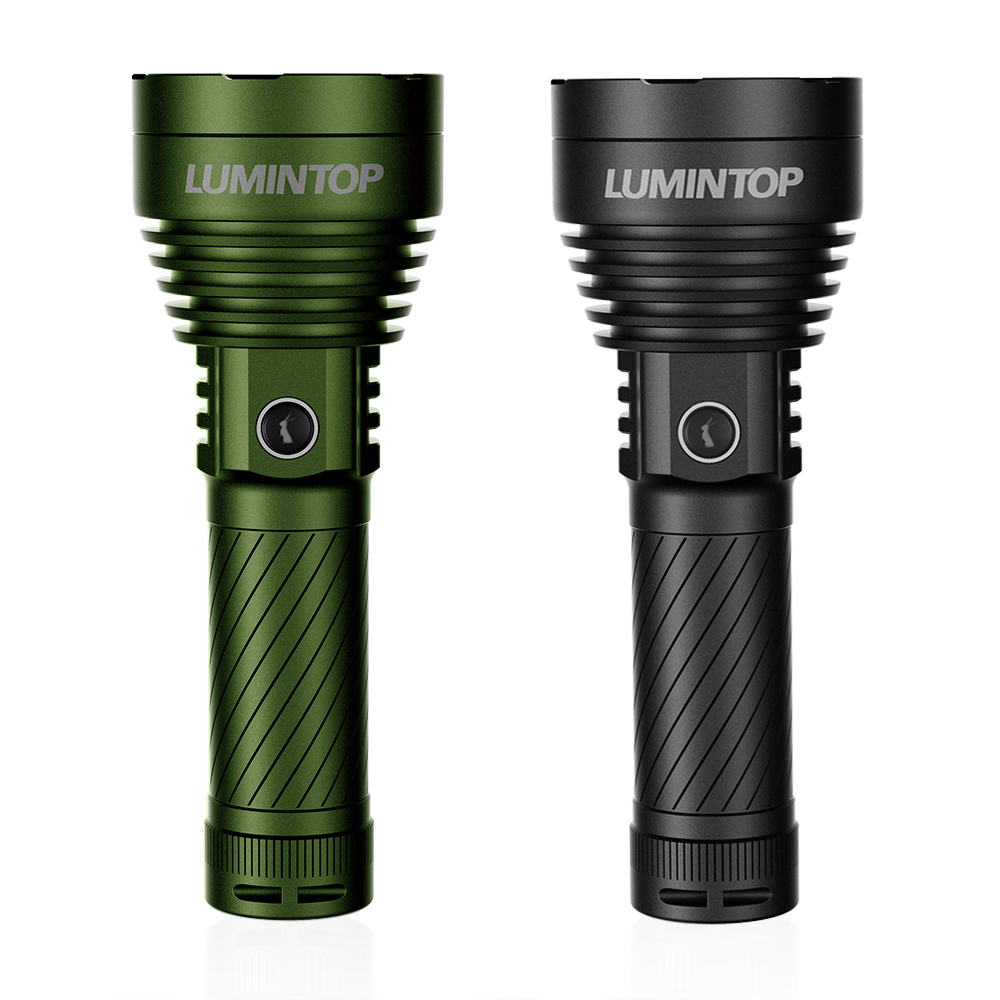

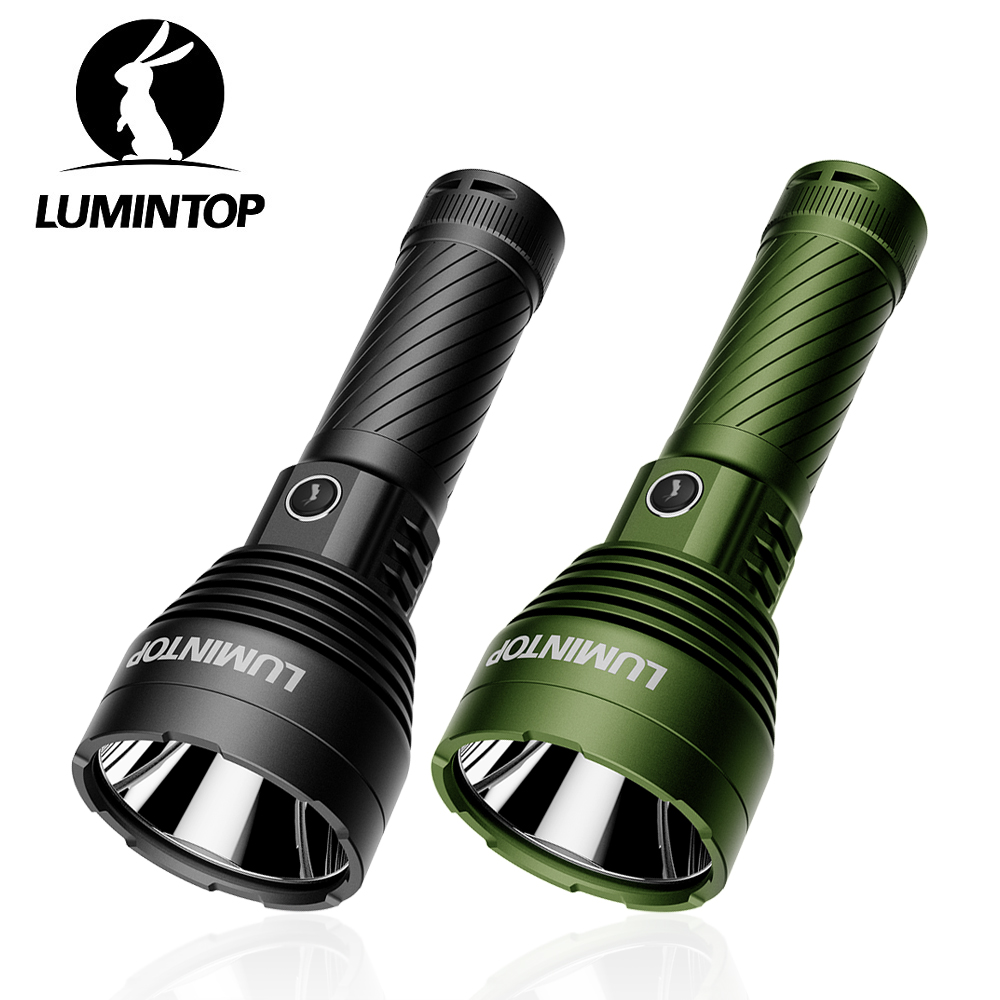

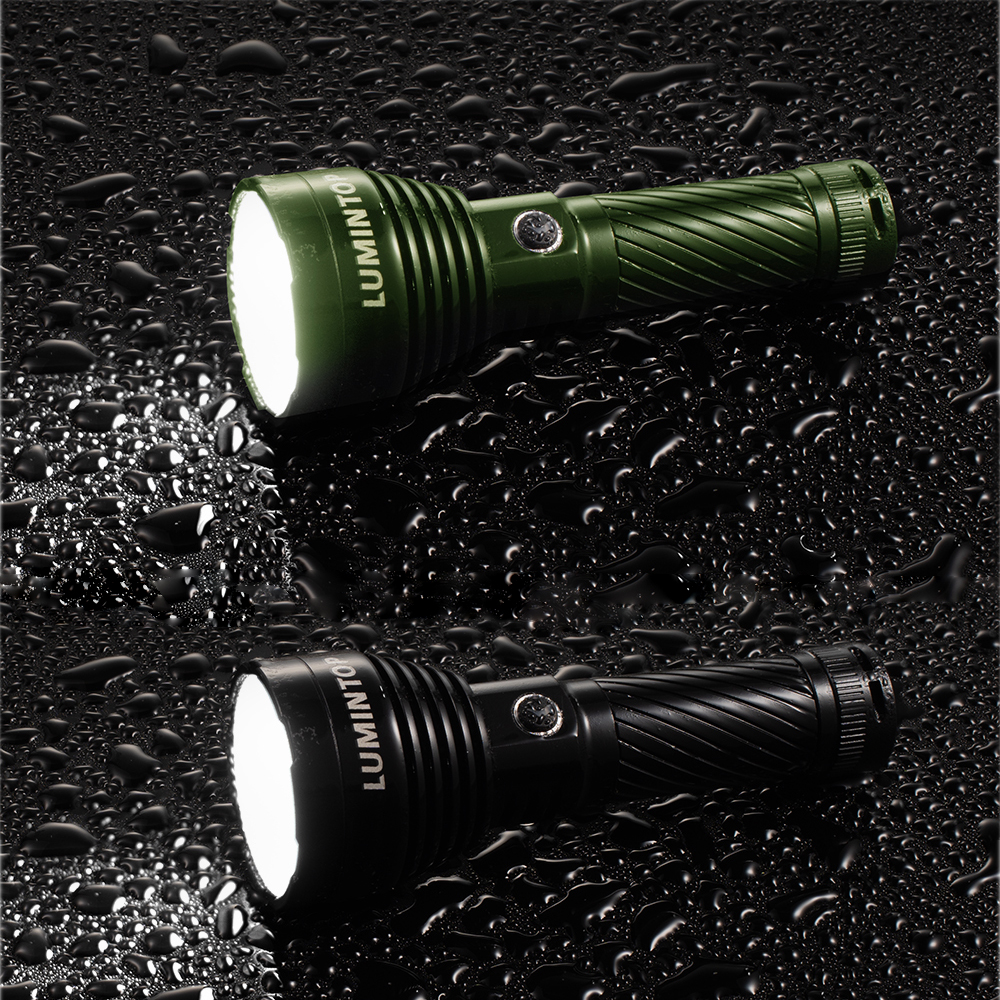

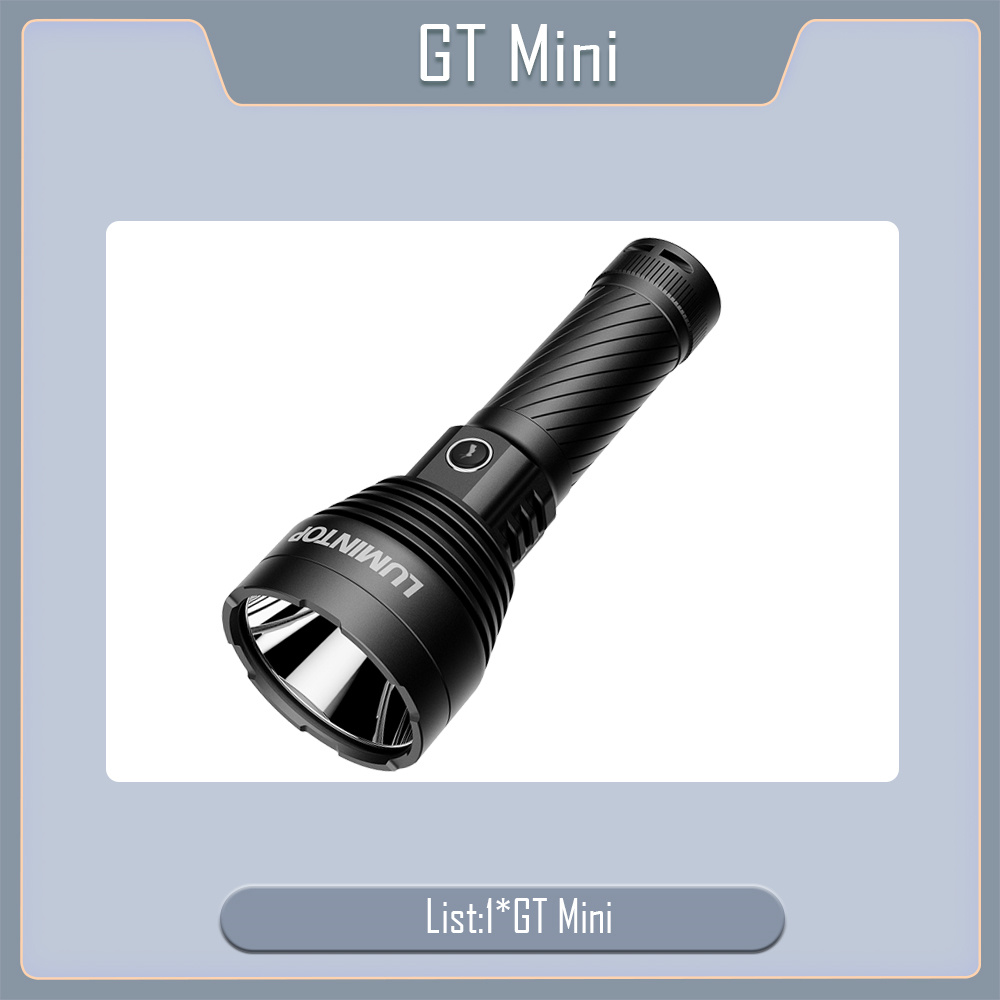

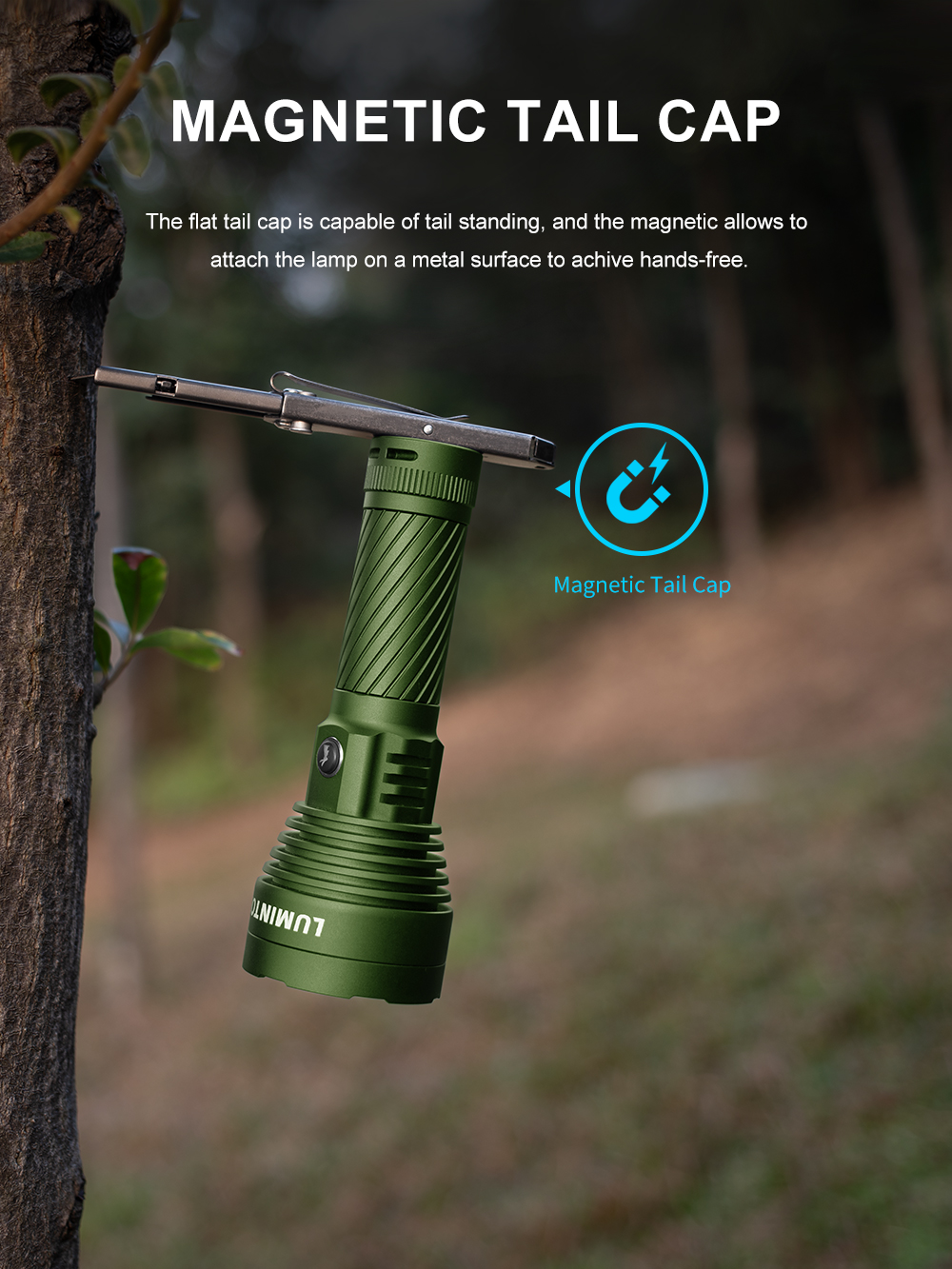

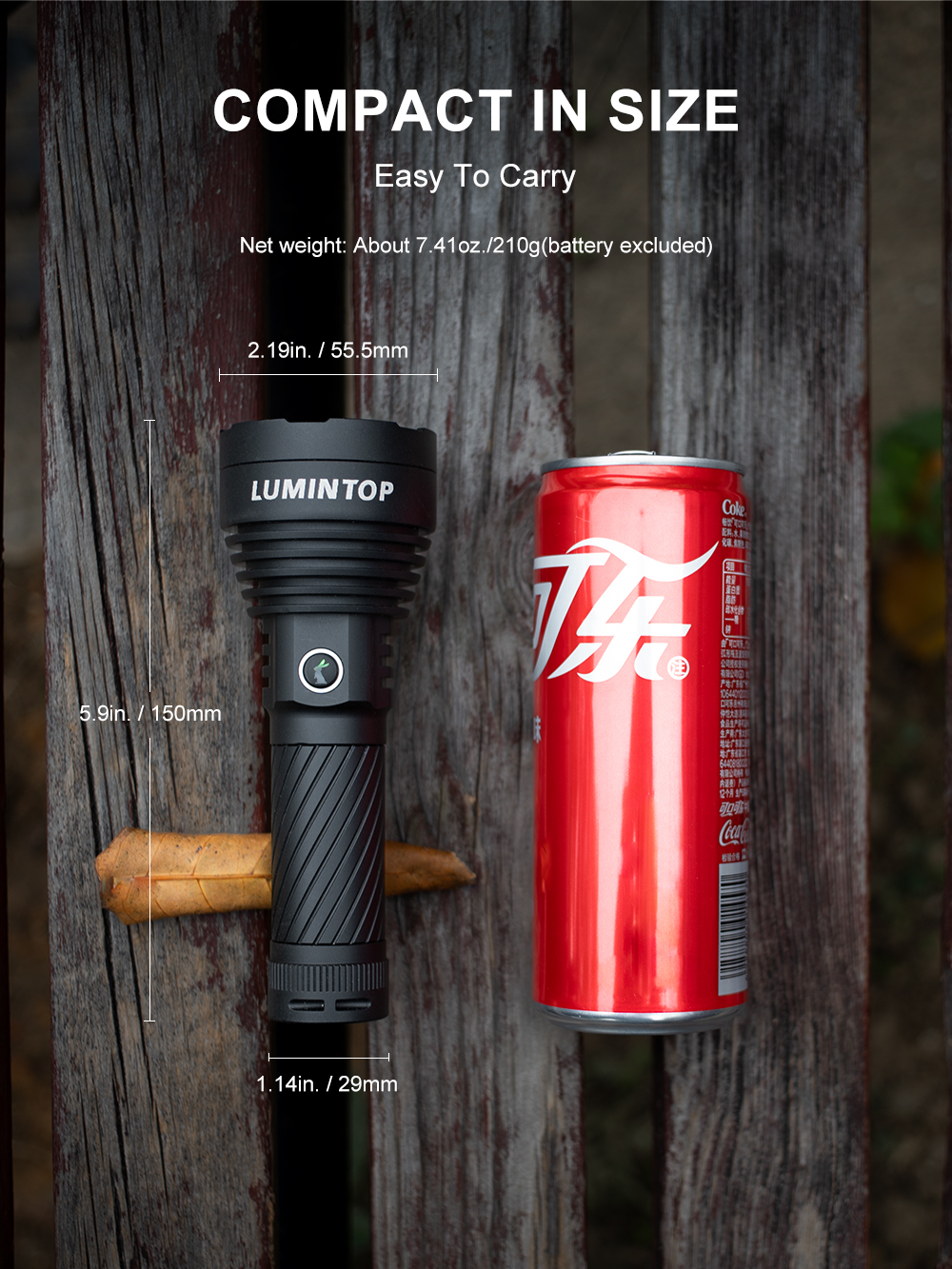

EDC Outdoor Flashlight Camping Lantern Powerful LED Lighting USB C Rechargeable Lamp Magnetic Tail 1000M Distance Torch GT Mini

Operation Instruction

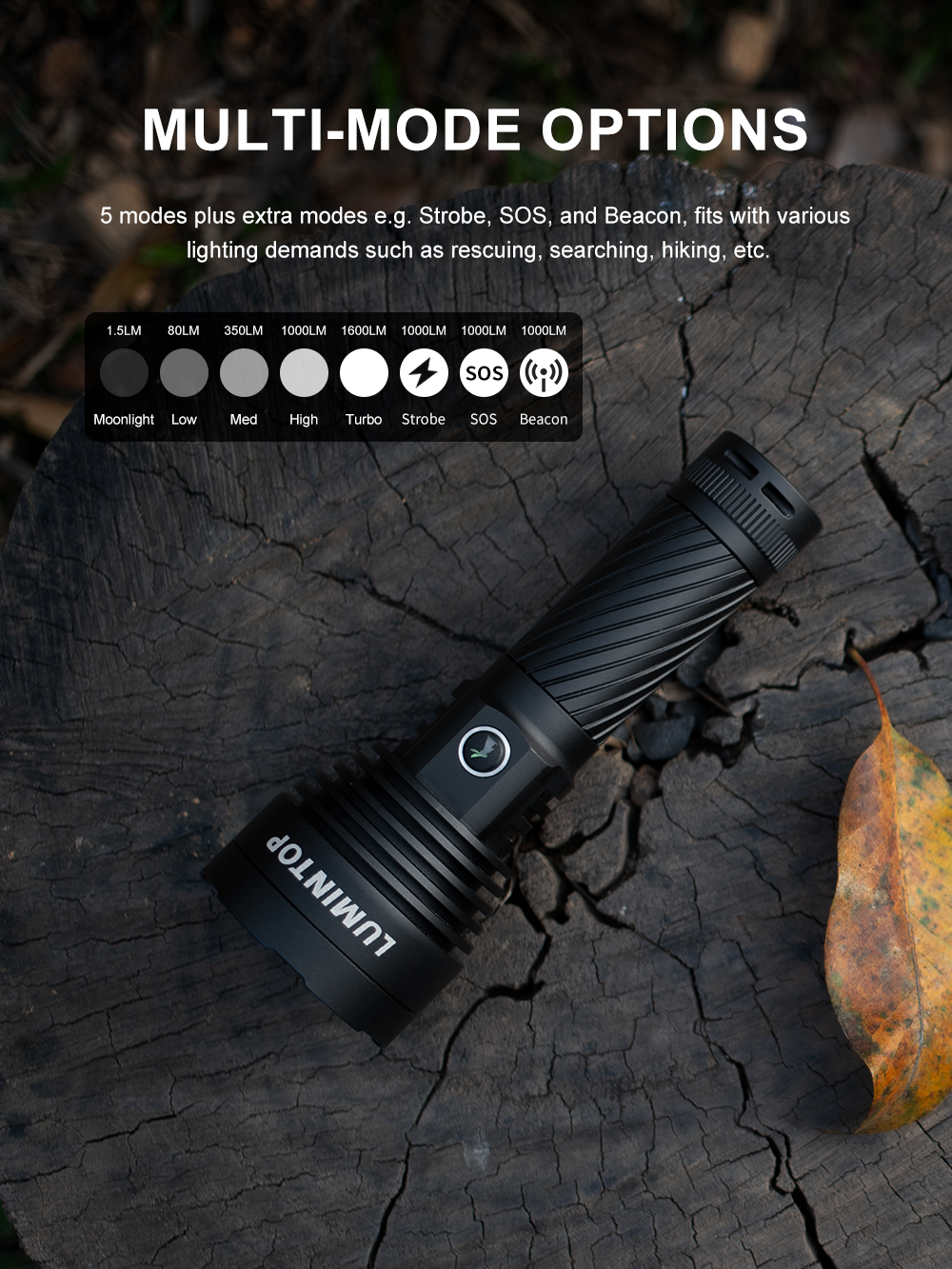

General mode: Low, Med, High (with mode memory function)

Hidden mode: Moonlight, Turbo, Strobe, SOS, Beacon

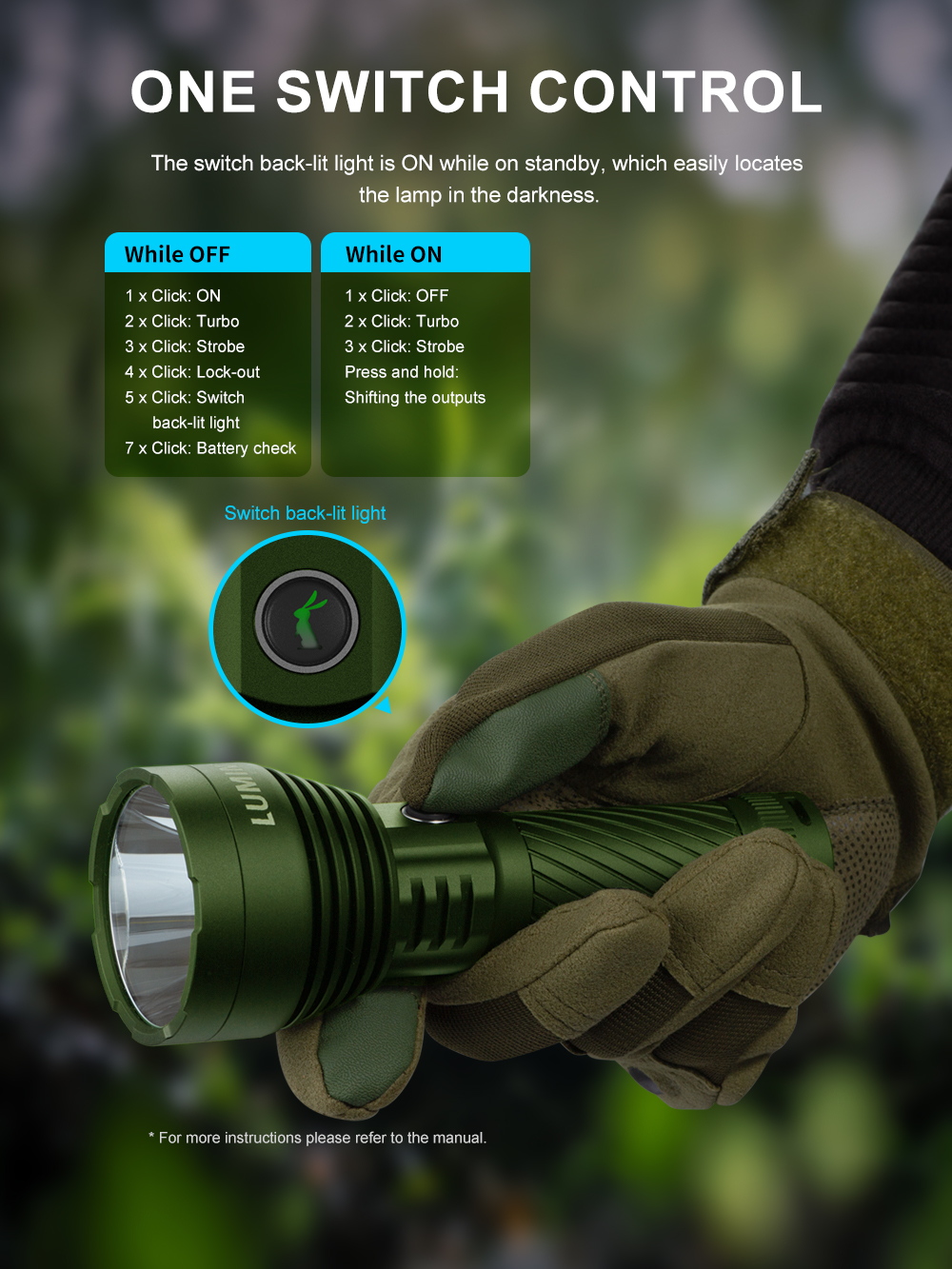

1.ON/ OFF: One click of the switch.

2.Output change: From ON, press and hold the switch to ramp the outputs, and release the button to select the output.
3.Turbo: 2 quick clicks of the switch.

4.Strobe/SOS/Beacon: 3 clicks the switch to enter Strobe, and another 3 clicks to change the blinking modes (Strobe- SOS-Beacon).
5.Moonlight: Press and hold the switch from OFF.

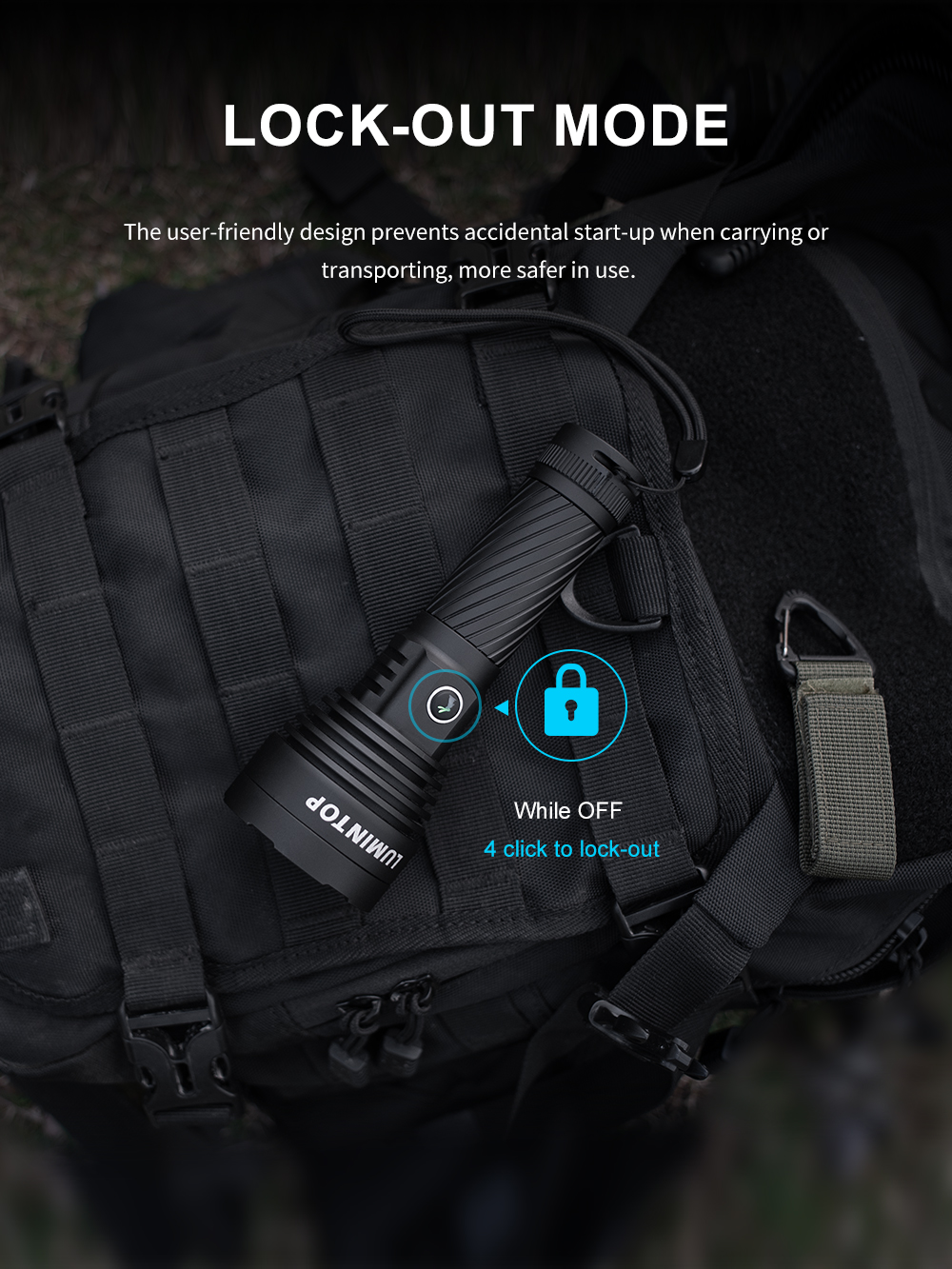

6.Lock-out/ Unlock: 4 clicks the switch from OFF. Momentary Low is available when pressing the switch. Another 4 clicks or loosen the threads and cut off the electricity to unlock the flashlight.
7.Switch back-lit light ON/ OF: 5 clicks the switch from OFF.

8.Battery check: Continuously 7 clicks from OFF. E.g., 3.8V is indicated as the flashlight blinking 3 times, then another 8 blinks, etc.

Mode Memory

The flashlight will memorize the last use general output level when turning off and will recall it the next time when you turn on the lamp. The mode memory function does not cover the hidden modes.

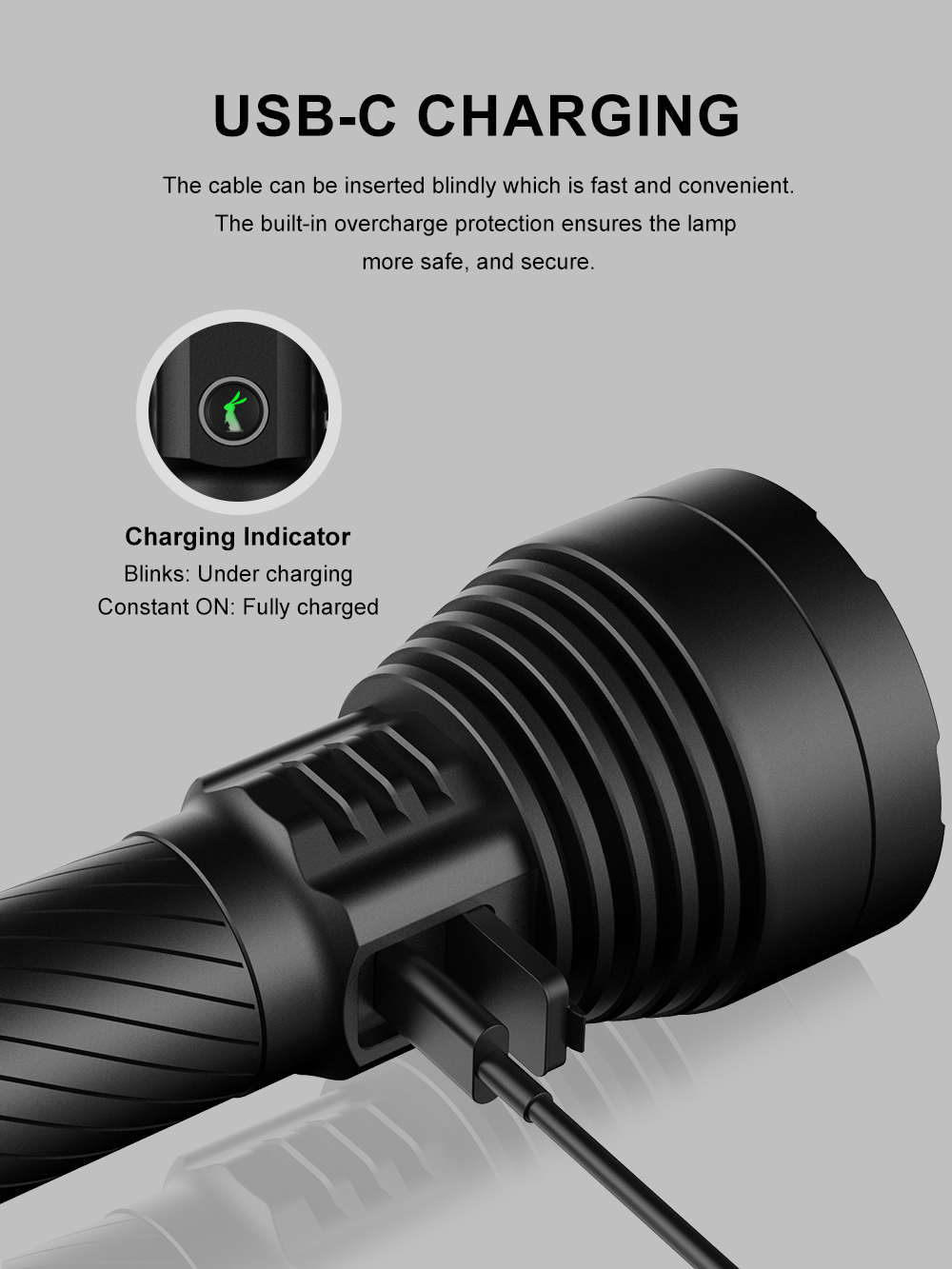

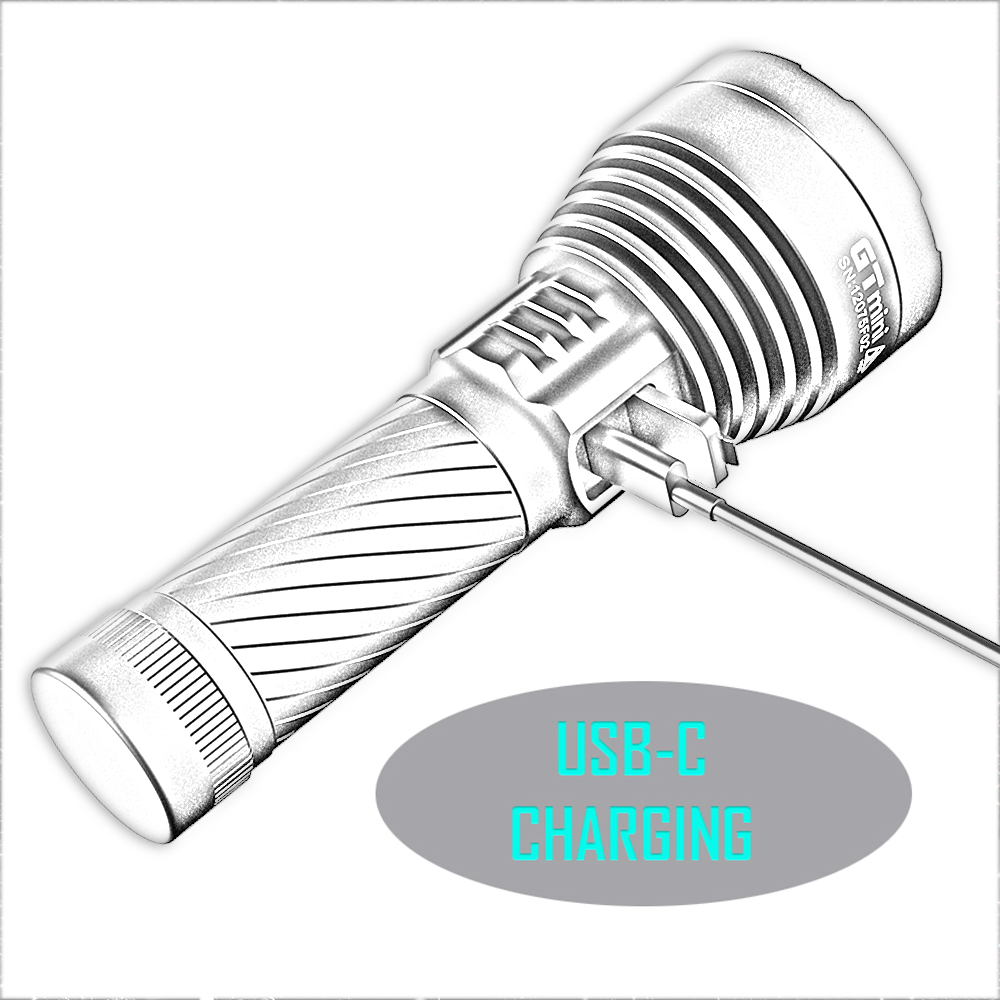

USB Type-C Rechargeable

1) Built-in USB-C charging with a max current 2.1A.
2) When the flashlight is undercharging, the indicator blinks and turns constantly on when it’s fully charged.
3) Built-in over-charge and over-discharge protections.

Anti-reverse Protection

Built-in anti-reverse protection, guards against the flashlight from improper battery installations.

Low-voltage Protection

The flashlight will automatically downshift the outputs until shut down when the battery voltage is dropped thus preventing battery damage from over-discharge.

Over-heat Protection

The flashlight will accumulate lots of heat when running on High or Turbo for a long time. To ensure a comfortable user experience, the flashlight will downshift the outputs automatically when the temperature reaches the protection values.

Battery Use

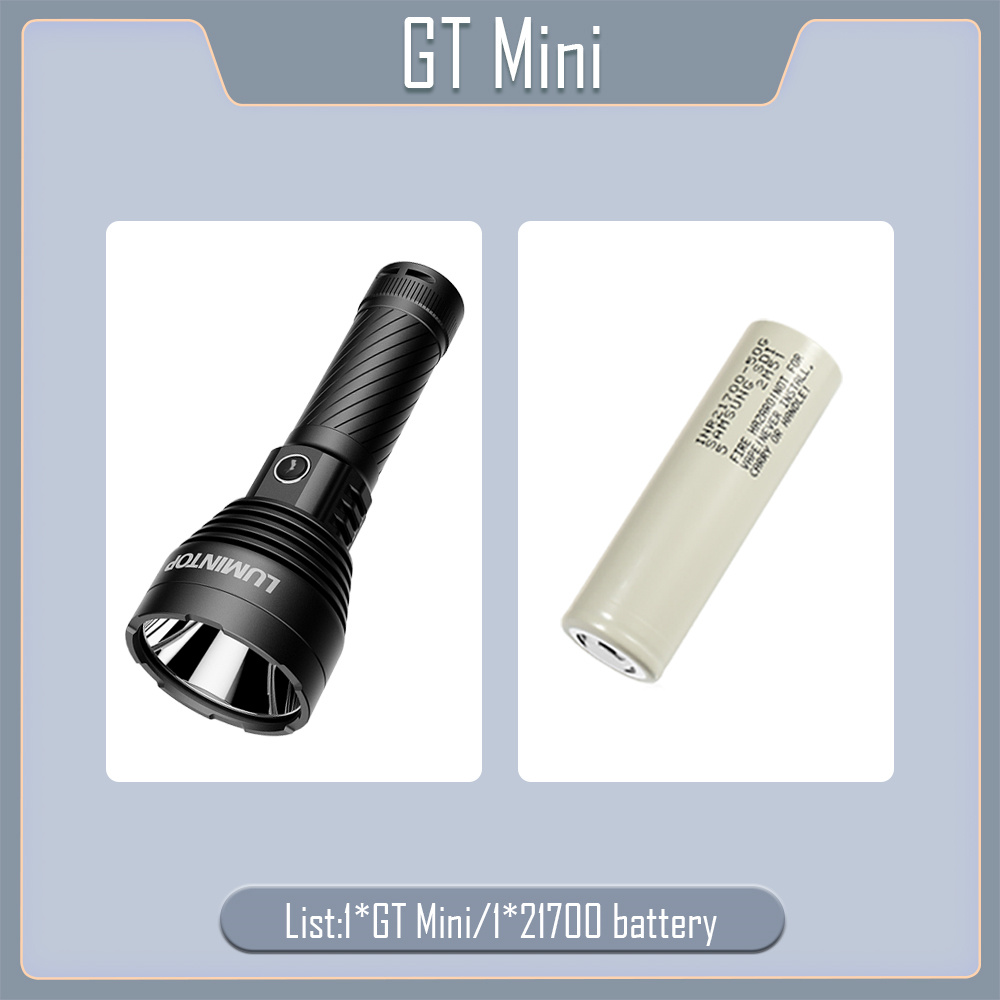

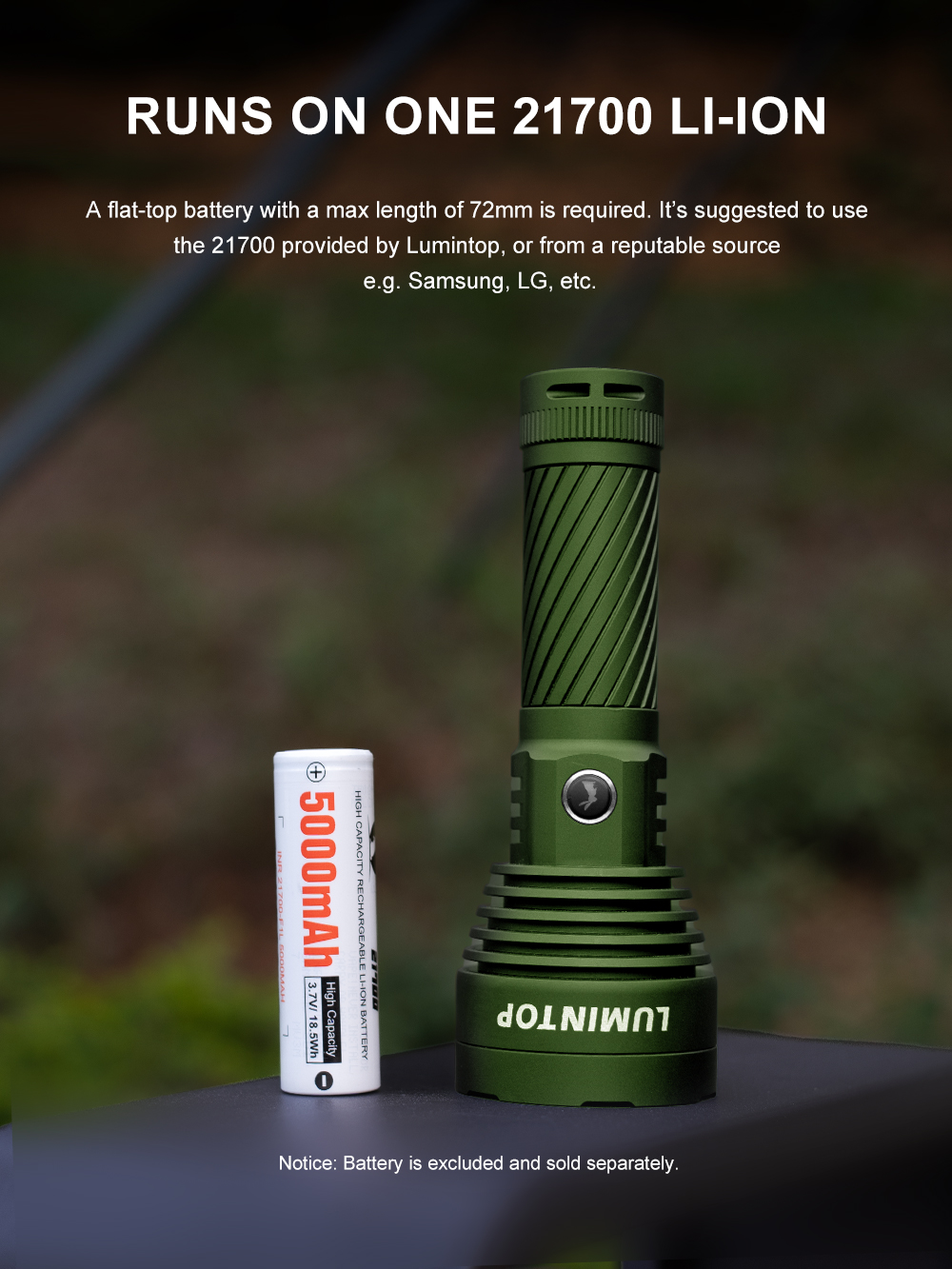

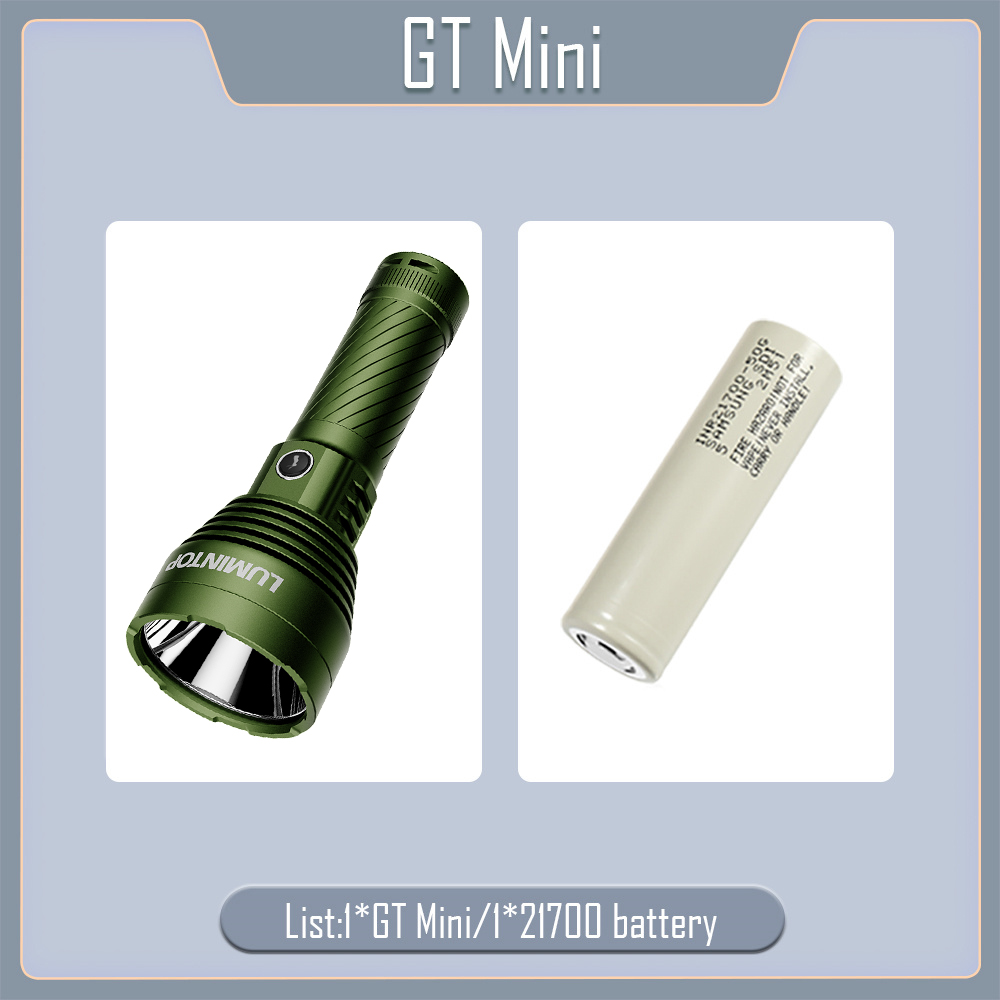

1. Use a 21700 Lithium Ion battery only with a max battery length of 72mm. It’s recommended to use the battery provided by Lumintop or from reputed sources i.e. Samsung, IG, etc.
2. To charge or replace the battery in time when the battery is low in power.
3. When replacing the battery, please use the corresponding battery with the positive pole facing the light head.

Warnings

1) Keep away from children.
2) Do not shine or point directly at a person, animal, moving vehicle, or flammable materials.
3) Do not throw into the fire in case of an explosion.
4) If long time not use the flashlight, it's suggested to loose the threads and cut off the electricity, or remove the battery and charge it every three months at a time.
5) To avoid accidental activation when in transportation or carrying in a pocket e.g., it’s suggested to loose the threads to cut off the electricity or to set the flashlight to Lock-out mode.
