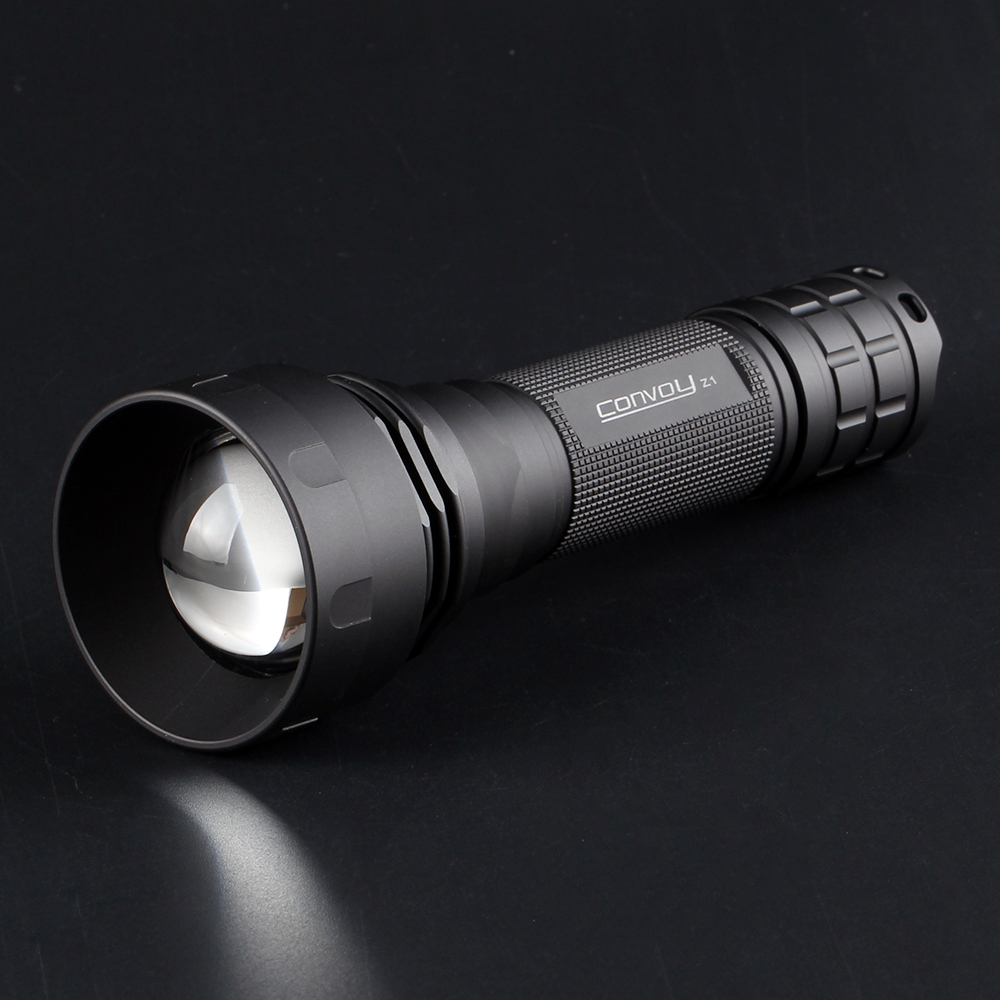

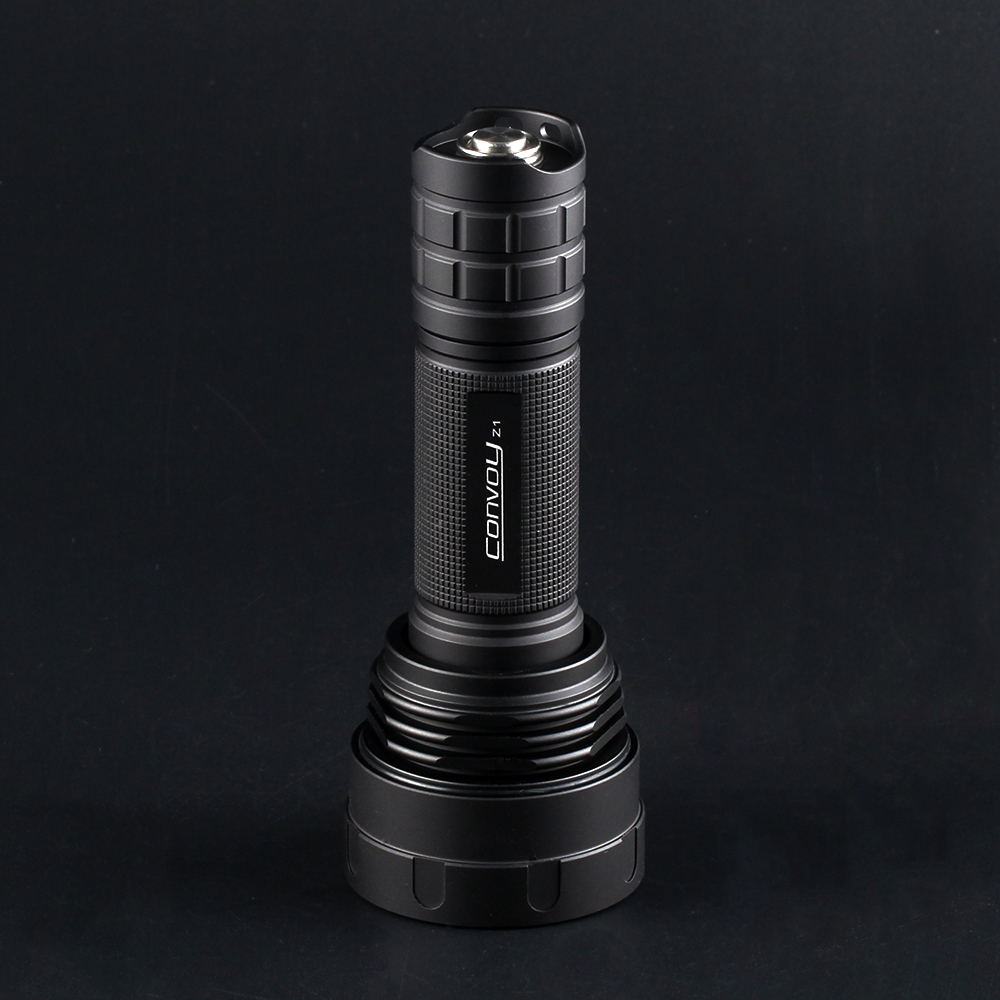

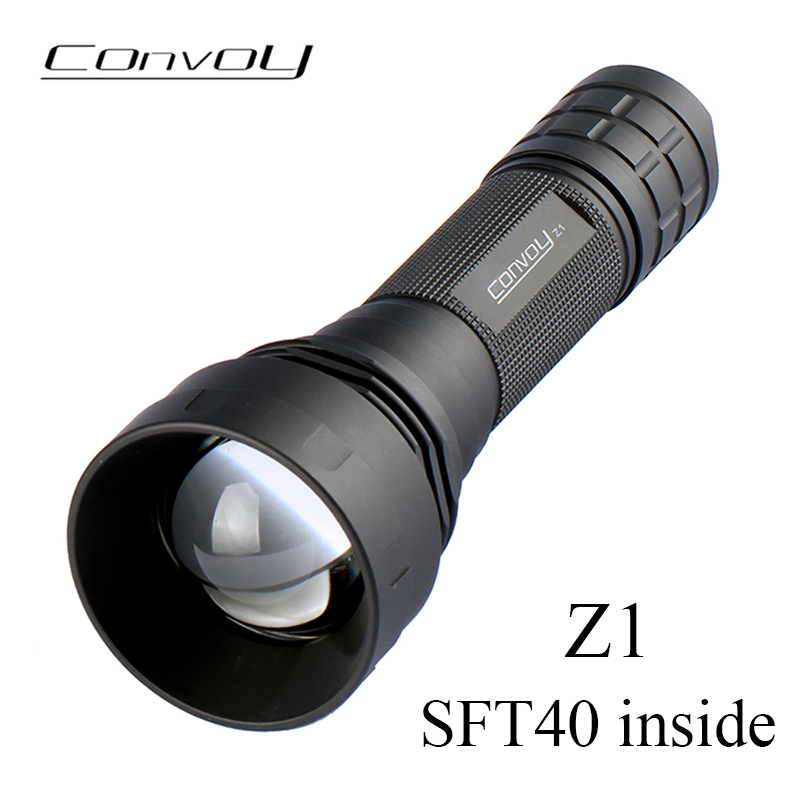

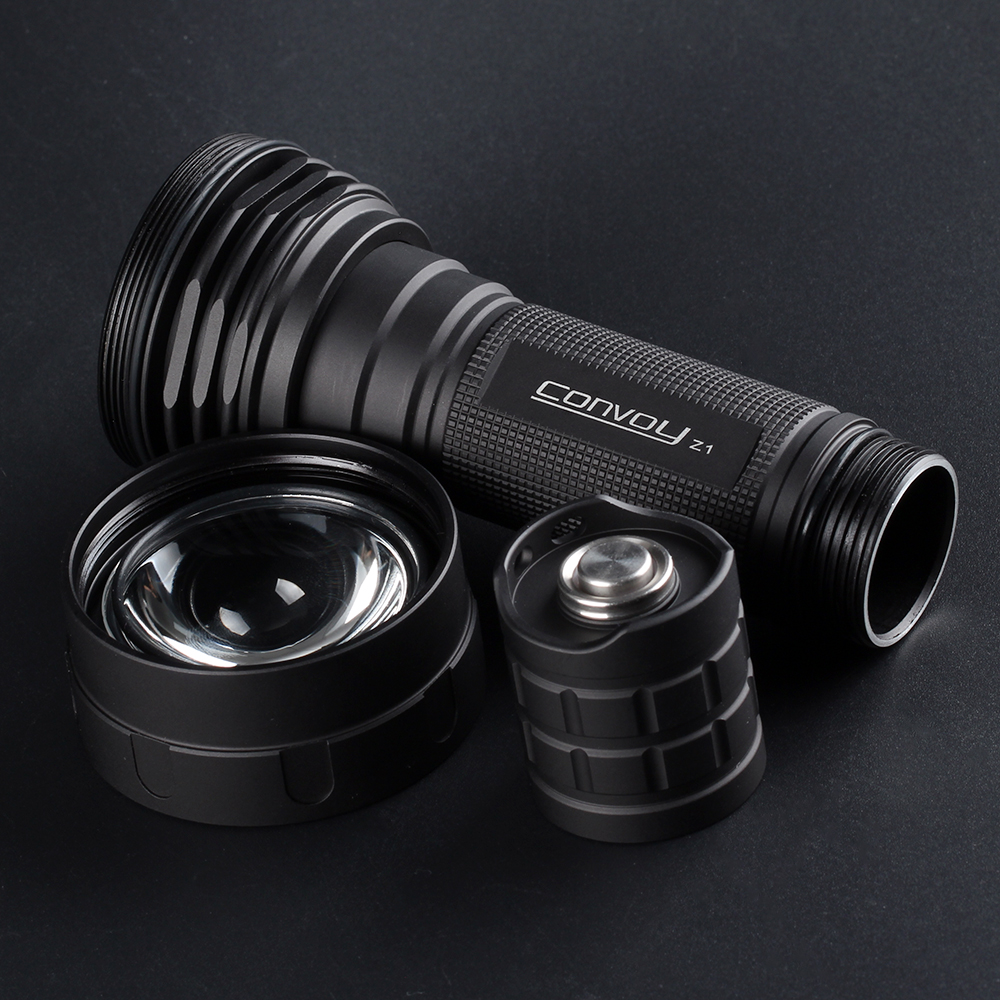

Convoy Z1 with SFT40 Led Flashlight High Power Zoomable 12 Groups 8A Linterna Hand Flash Light Zoom Lamp 21700 Lantern Fishing

Parameter:

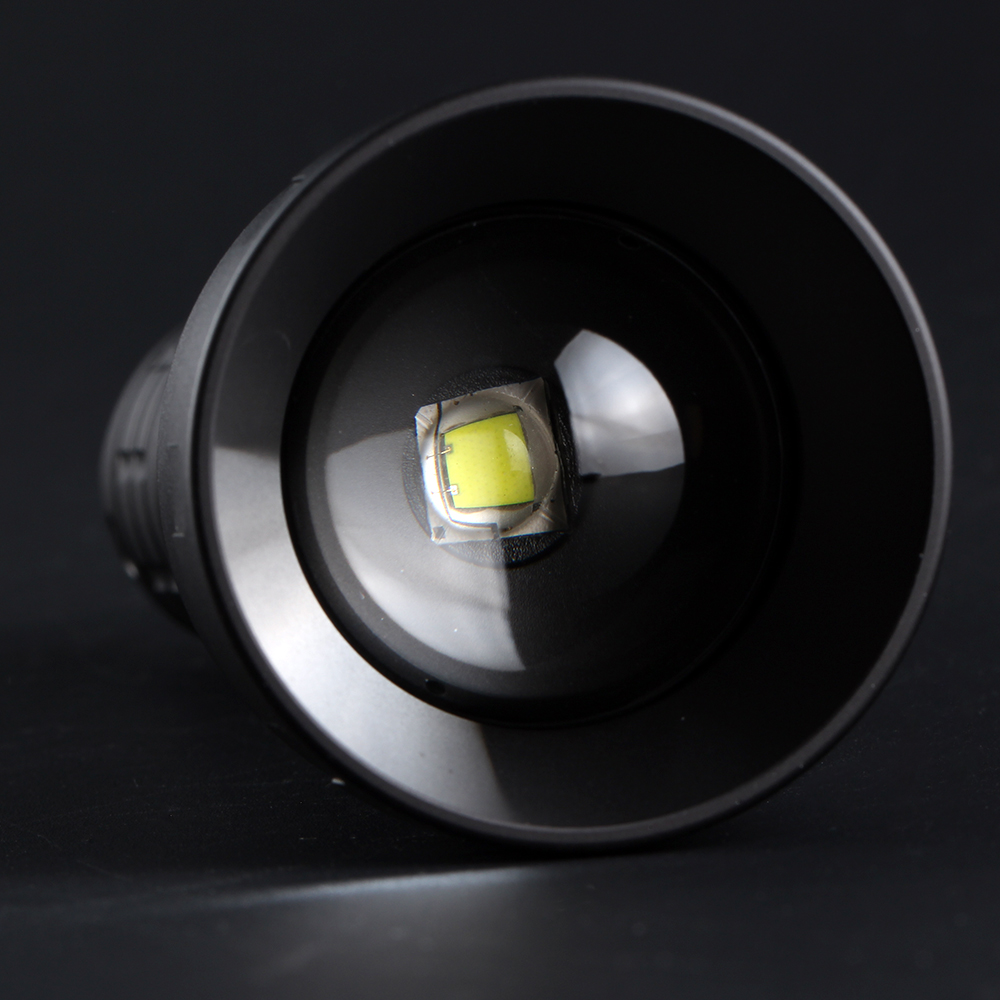

LED: SFT40
Mode: 12groups
Mode memory: Yes
Battery: Need 1 * 21700 battery
Material: Aluminum alloy
Color: Black
Switch type: Reverse

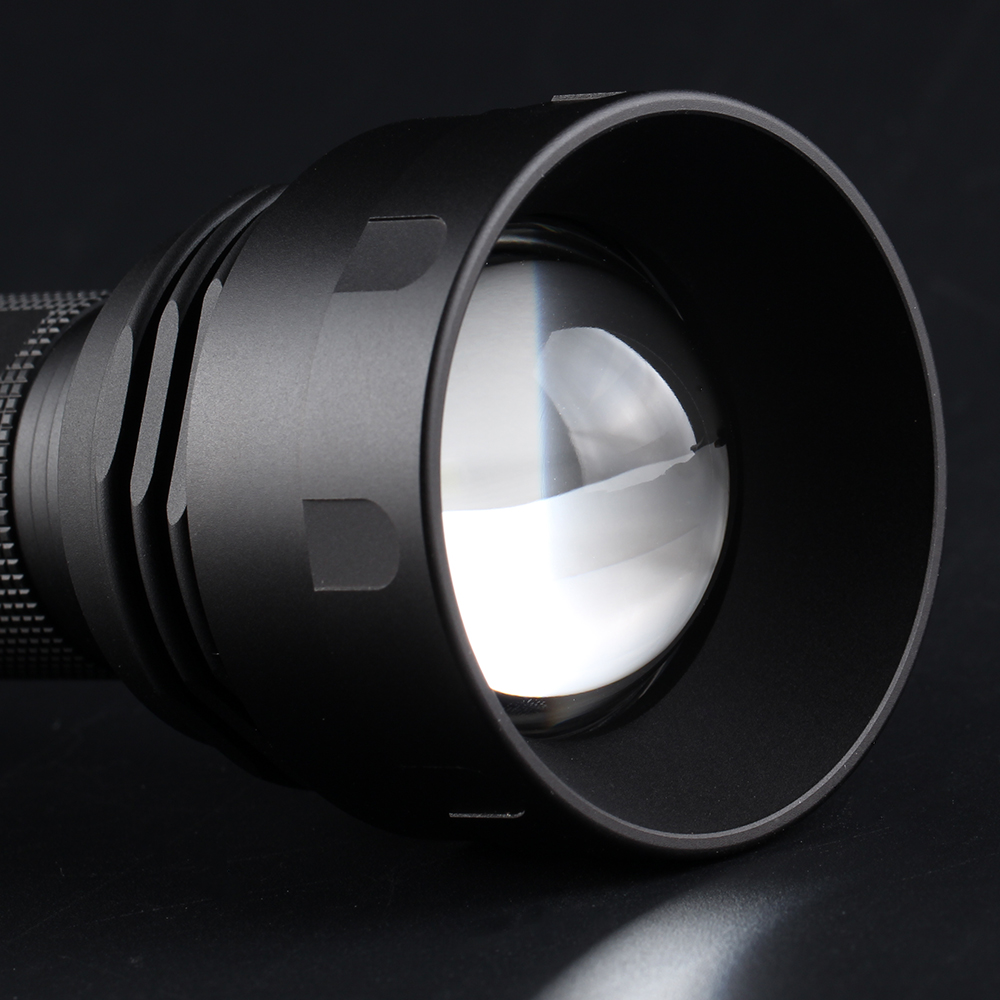

Lens: Convex lens (high borosilicate glass)
Diameter: Head 52mm /tail 28.2mm
Length: 135.8mm(zoom in)/149.5mm(zoom out)

Package type:

A. With 21700 battery:
1*Flashlight
1*21700 rechargeable battery
1*USB charger

B. No battery:
1*Flashlight

Driver (12 groups):

1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turnedon,tap the switch 20 times quicklyto enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
Option 1(normal-flash 1 time + buzz-flash):tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2(normal-flash 2 times + buzz-flash):tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
