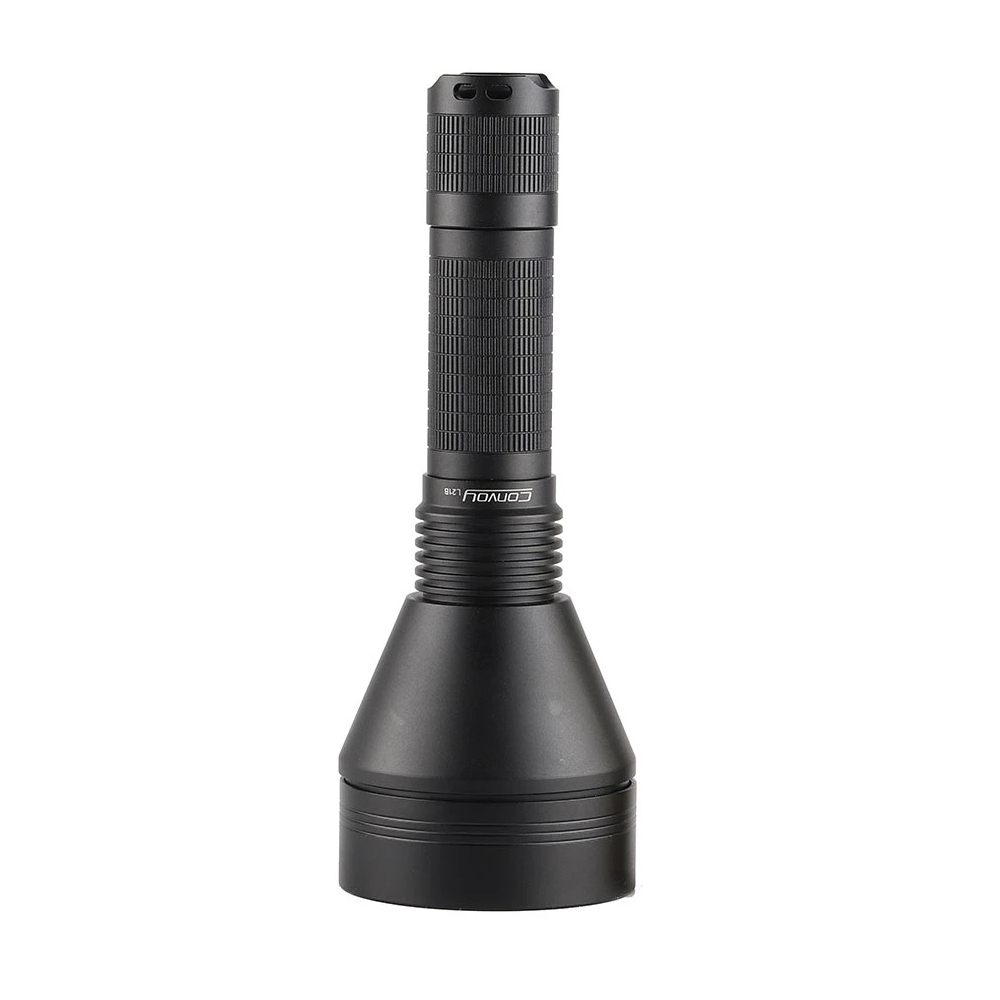

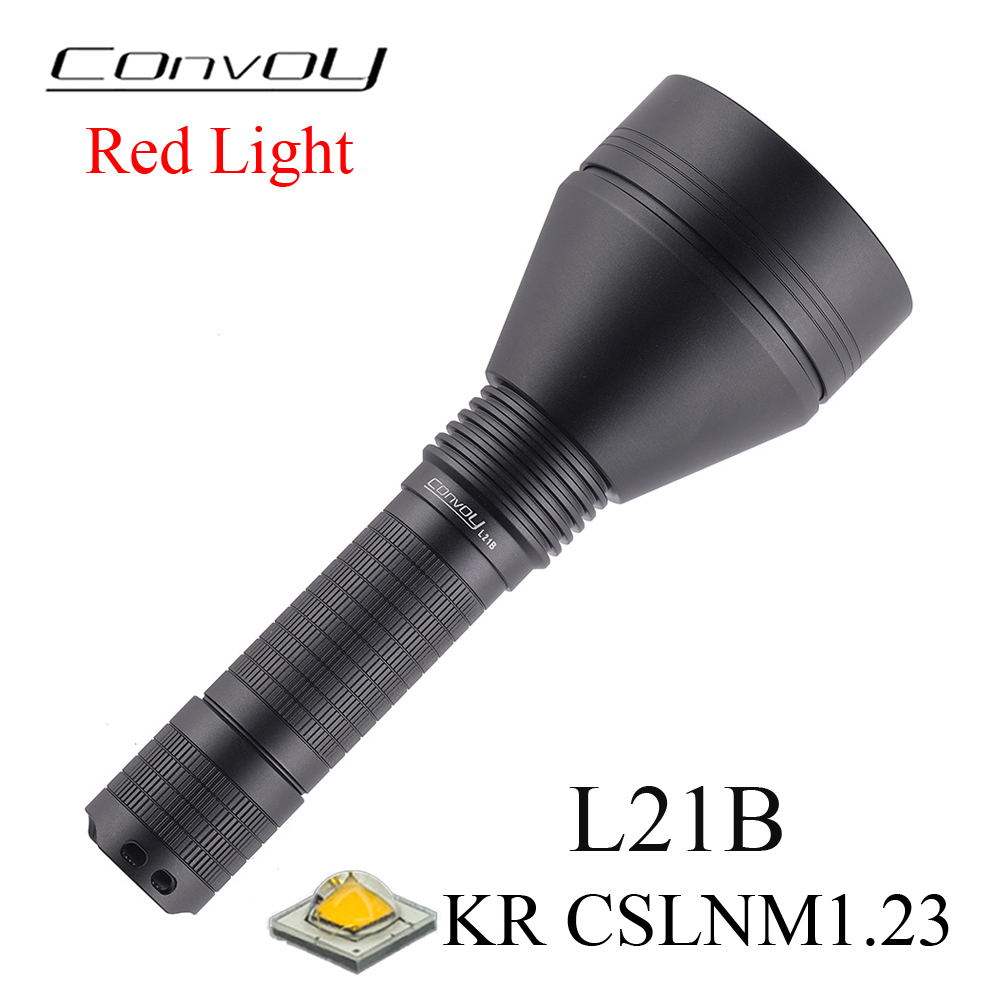

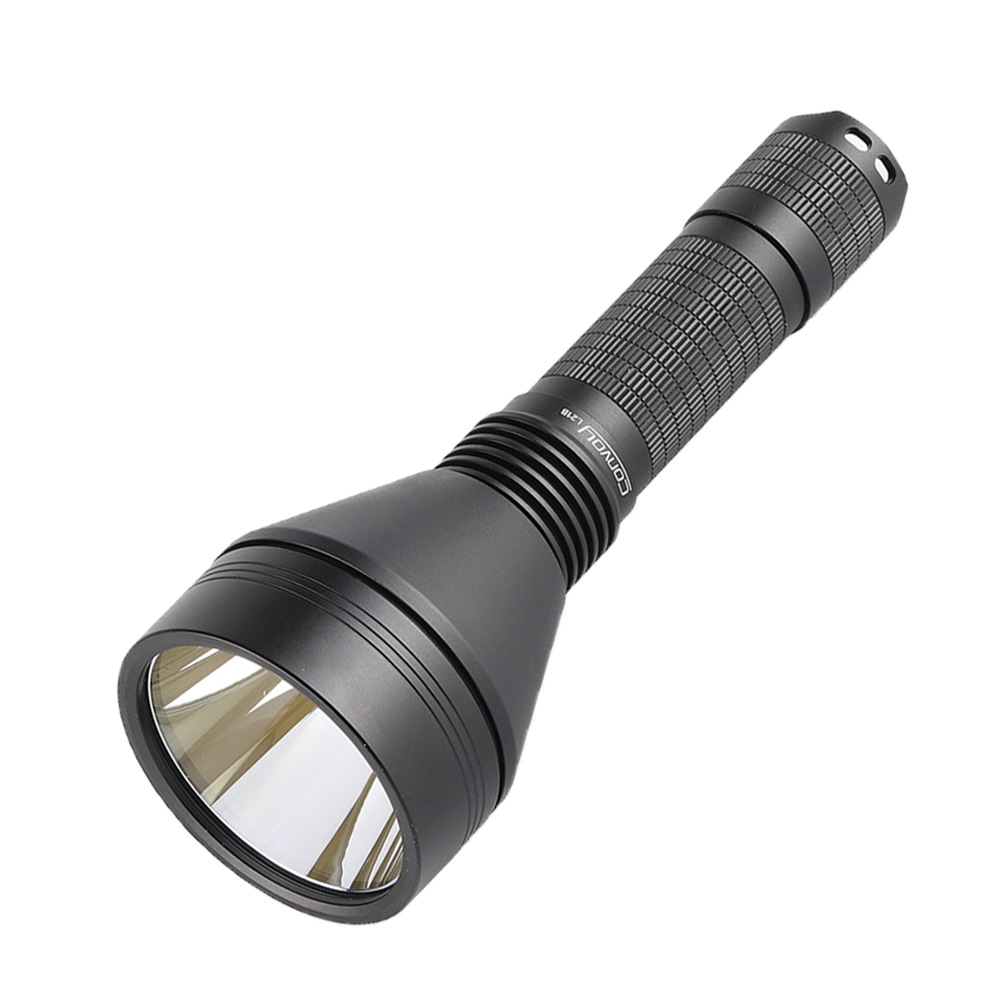

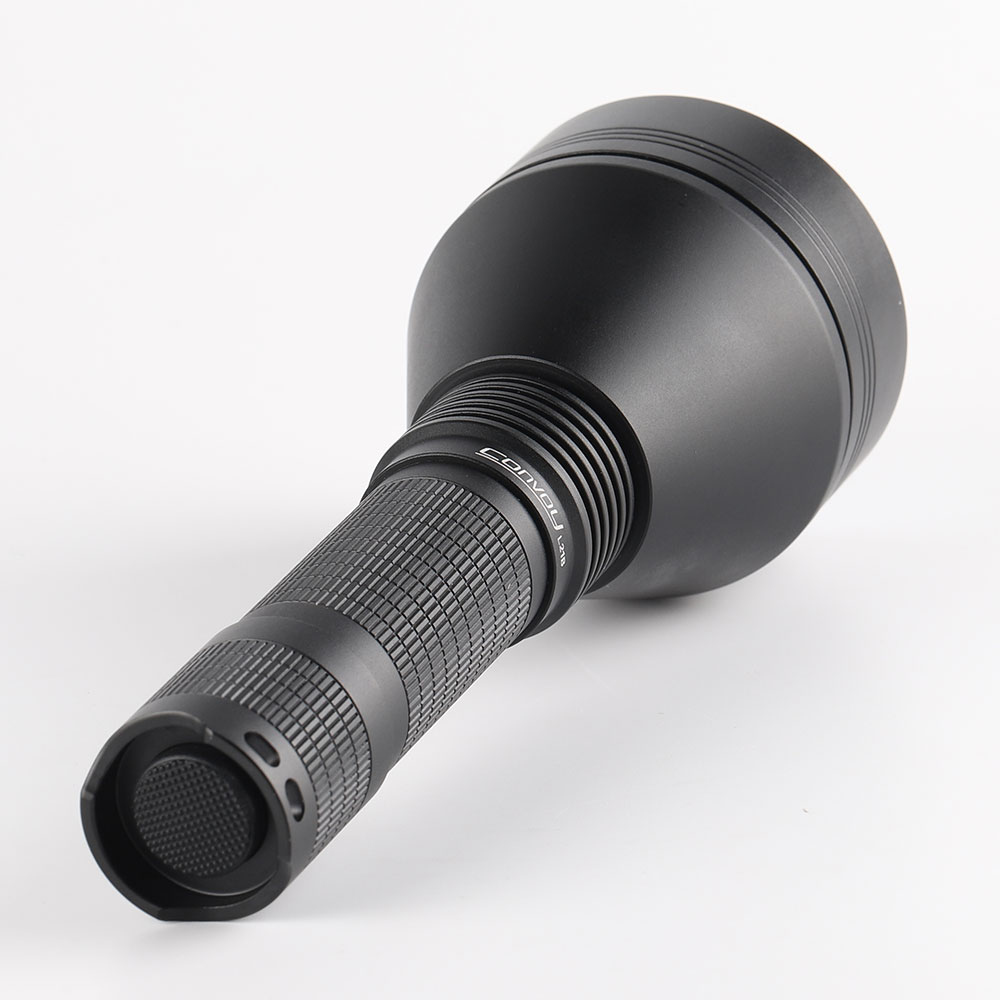

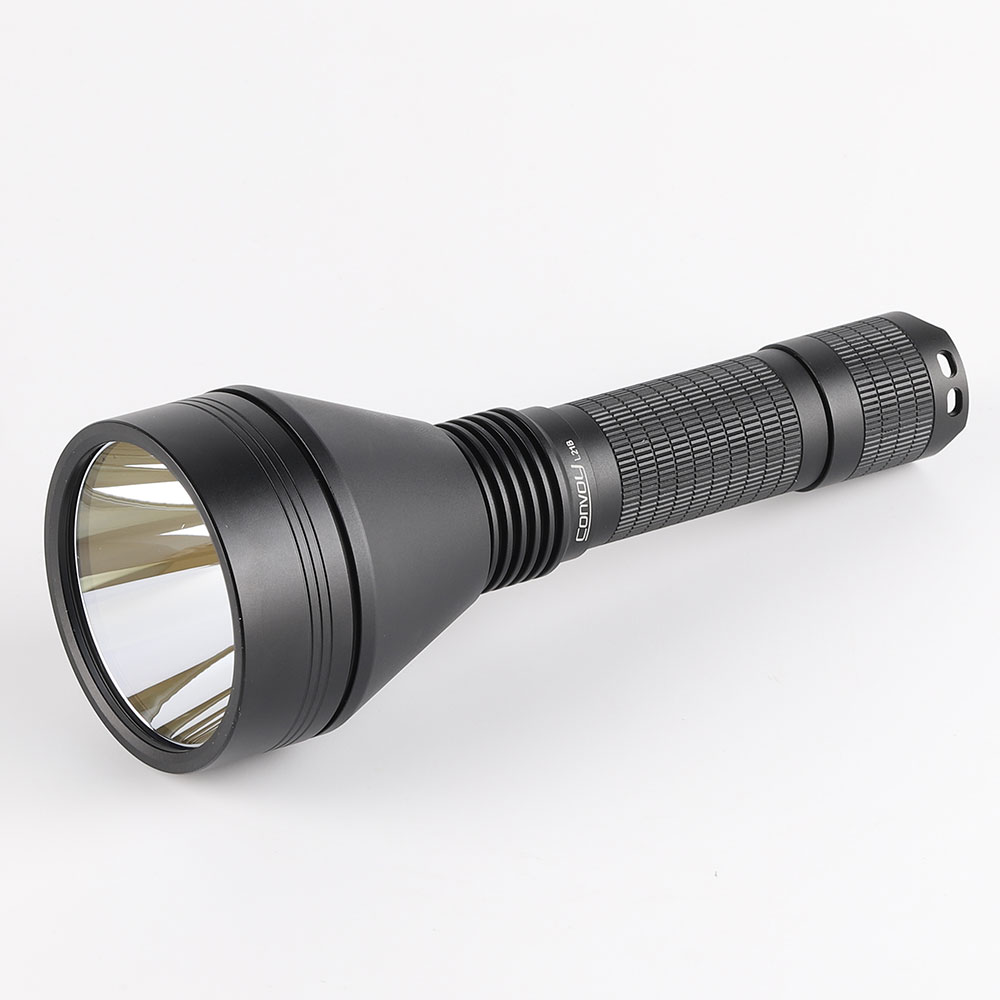

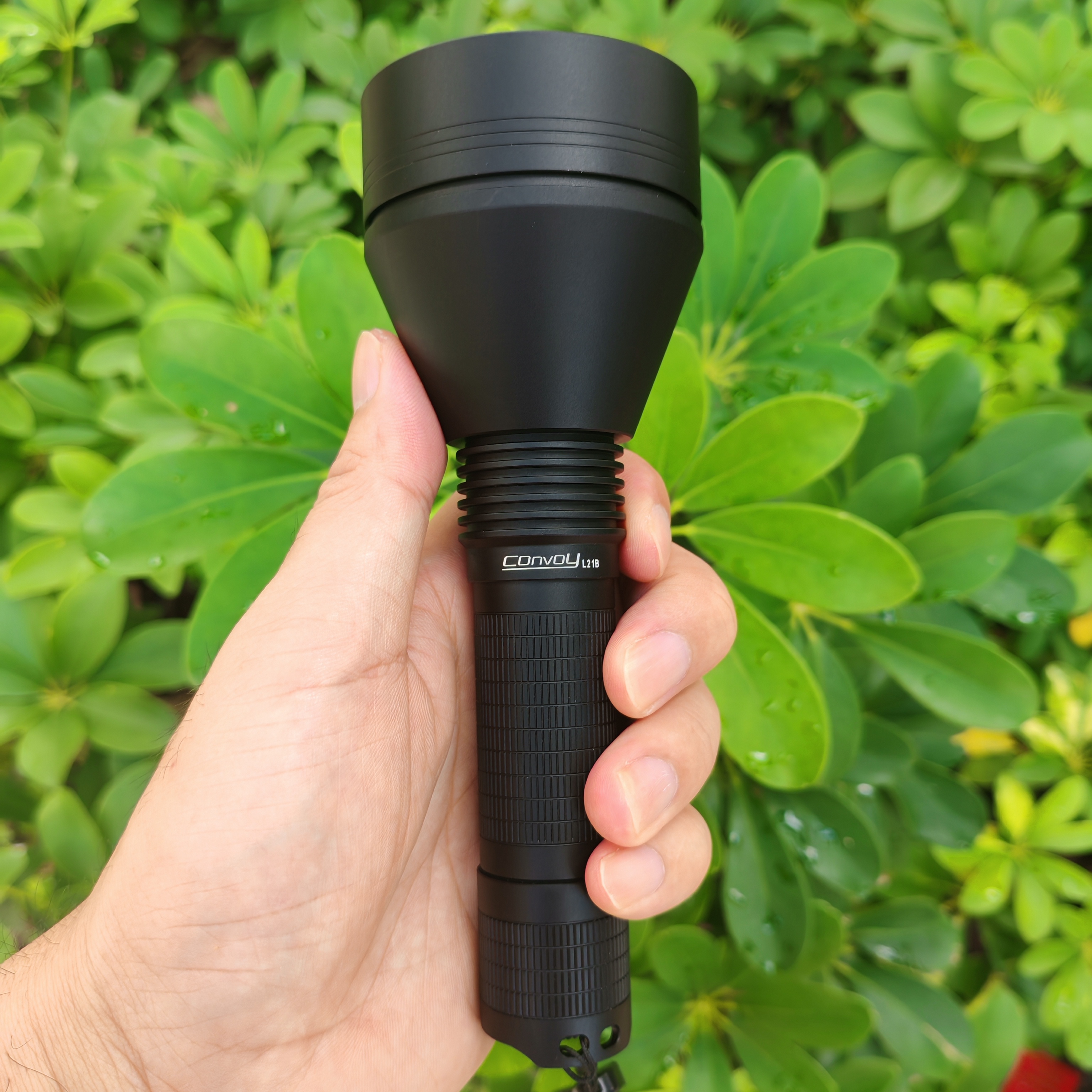

Convoy Red Light Flashlight L21B KR CSLNM1.23 High Powerful 21700 Flash Torch Light Long Range Camping Hunting Lamp

Parameter: :

Material: Aluminum Alloy
LED: KR CSLNM1.23 red light
Low voltage warning: Yes
Reverse polarity protection: Yes
Lens type: Ar-coated glass lens
Reflector: smooth
Mode memory: Yes
Tailstand: Yes
Required battery type: 21700 lithium battery
Required battery quantity: 1pcs
Driver: 12groups
Temperature protection management inside
Length / Head diameter / Body diameter : 170.5mm / 62.6mm / 26.1mm
Net weight: 212g
Gross weight：247g

Package type:

A. With 21700 battery:
1*L21B Flashlight
1*21700 rechargeable battery
1*USB charger
1*Rope

B. No battery:
1*L21B Flashlight
1*Rope

1. Operation instructions: (12 groups)

1.Click the switch to turn the flashlight on/off,tap the switch to select mode
2.If flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

2. Operation instructions: (5 groups)

1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (100%)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (100%-20%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%-strobe)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (20%-100%)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (strobe-100%)
The mode has no memory.
The driver has low voltage protection
