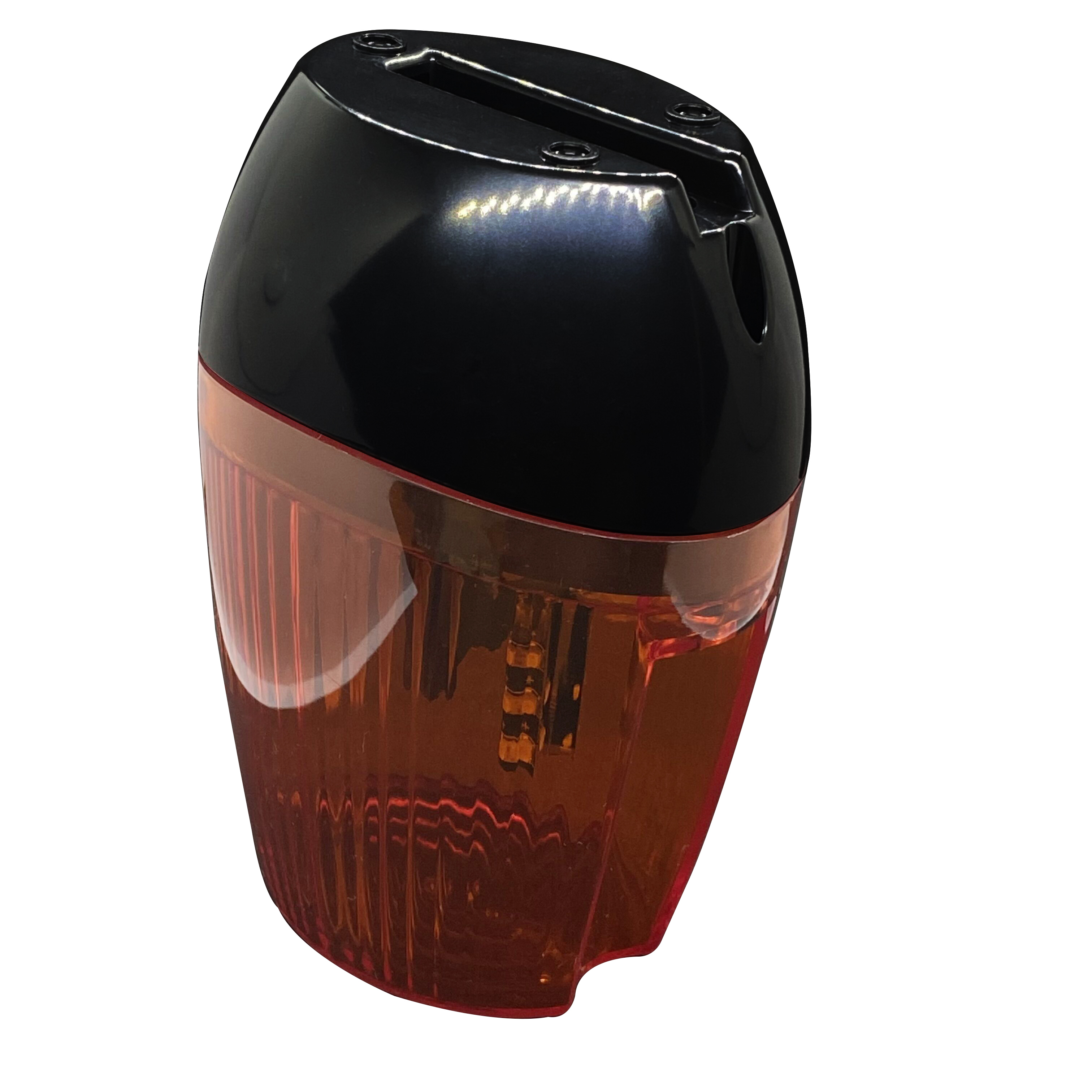

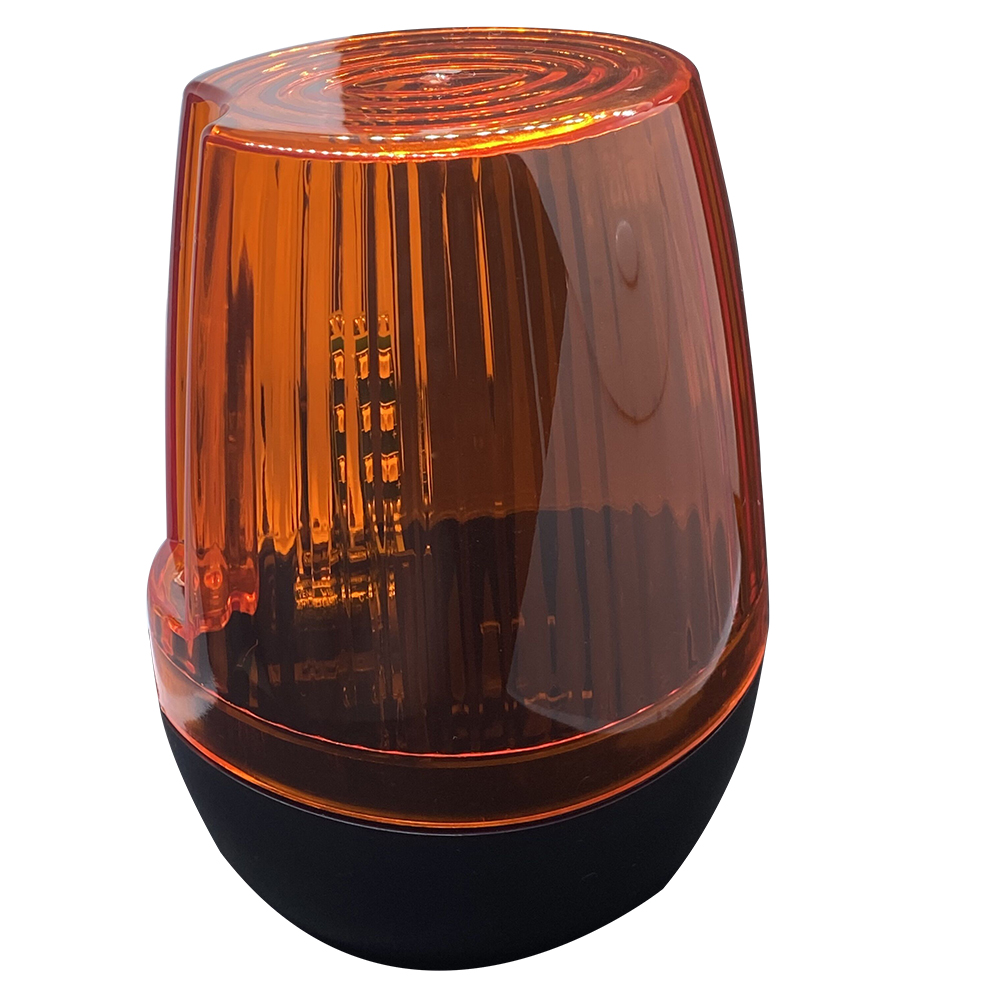

AC DC LED Gate Flashing Light Lamp Alarm Lamp For Swing Sliding Gate Opener/Barrier Gate Signal Strobe Flashing Lamp(no sound)
-
Estimated Delivery:Jul 20 - Jul 24
-
Free Shipping & Returns: On all orders over $75

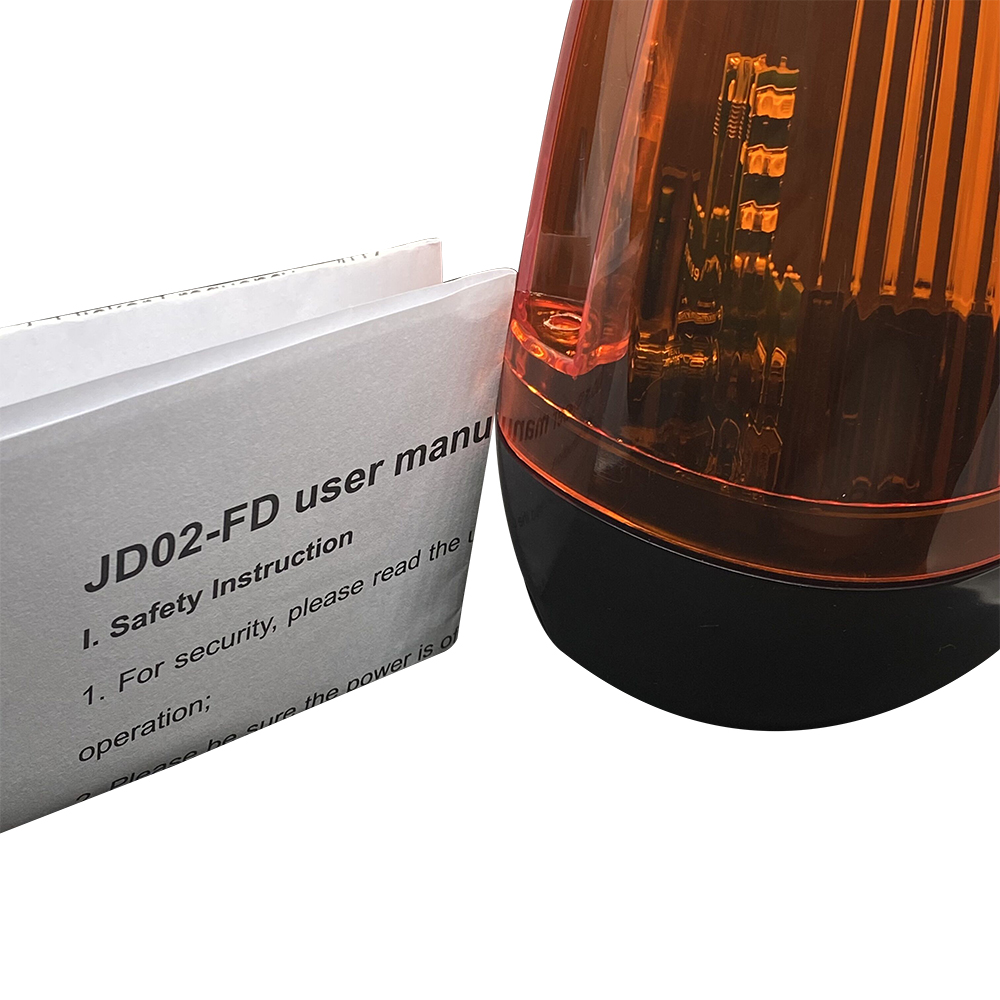

Safety Instruction
1.For security, please read the user manual carefully before initial operation;
2.Please be sure the power is off before connecting, the product is produced without fuse;
3.This system must not endanger life or property during the running failure or its security risks
have been eliminated.
Specification
Working voltage: 12-265V AC/DC
Loading capacity: 1.5W
Weight: 210g
Flashing frequency: 1Hz
Installation method: Vertical/horizontal
Working temperature: -20°C~+60°C
Protection level: IP54

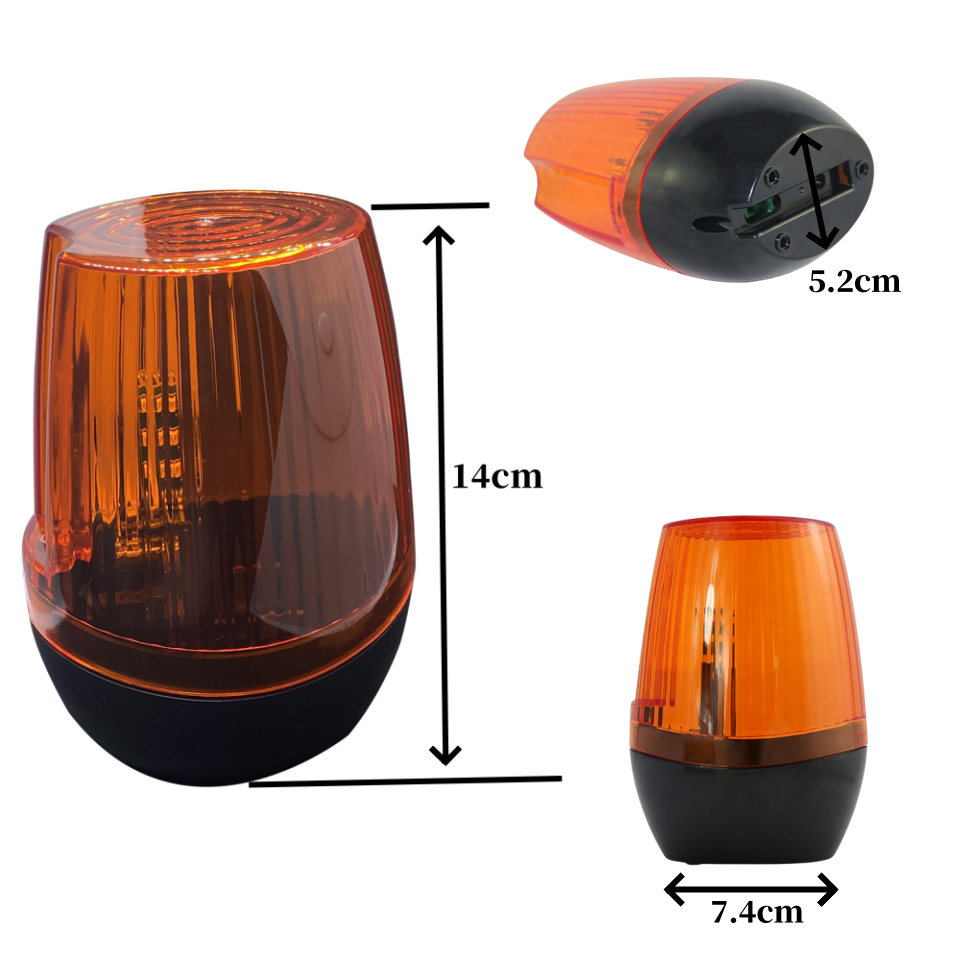

Size: 7.4*5.2*14cm
Antenna This is used to extend the effective distance of controller Waterproof and dustproof It is made of plastic material IP 54 .

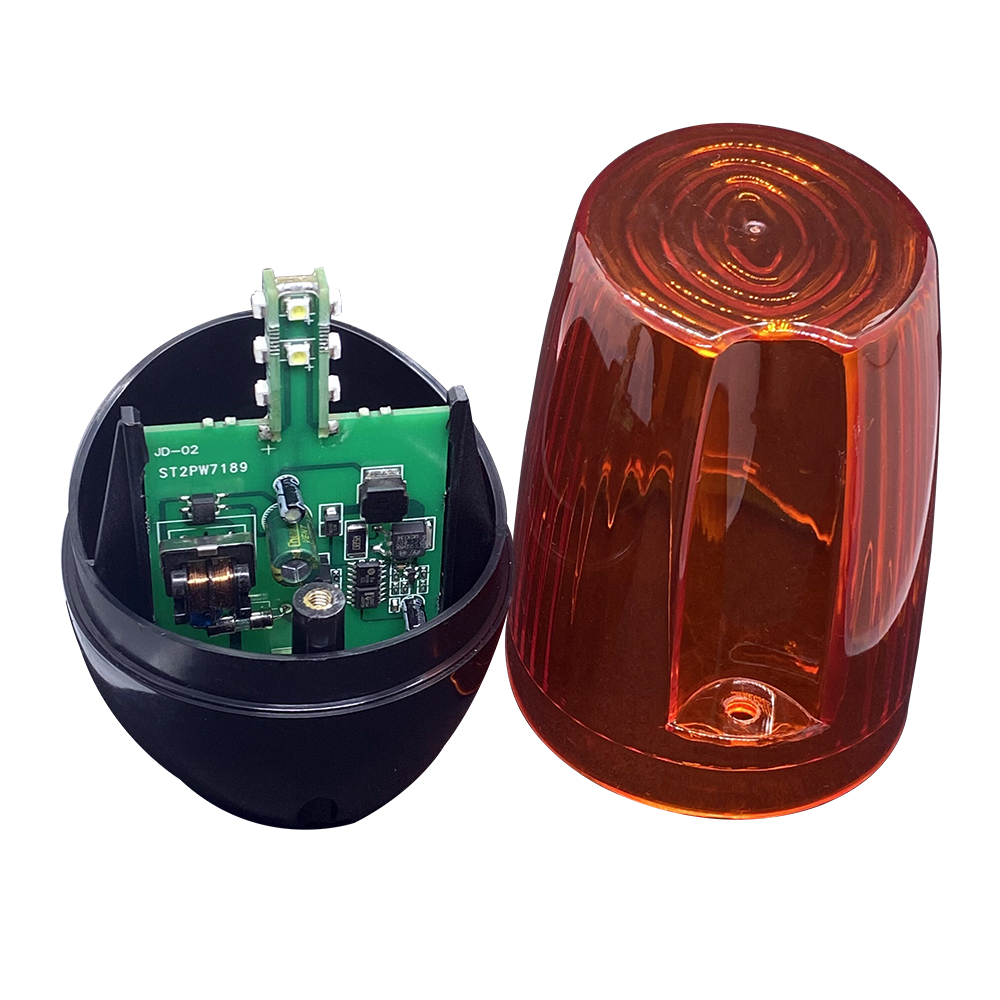

Connecting Instruction
1.Power input connect to PCB board terminal, Working power 12V-265V DCIAC
2 SW1 switch
It's the switch for switching LED in flickering or lighting,
When SW1 at connecting,LED will flicker after power on;
When SW1 at disconnecting,LED will light after power on

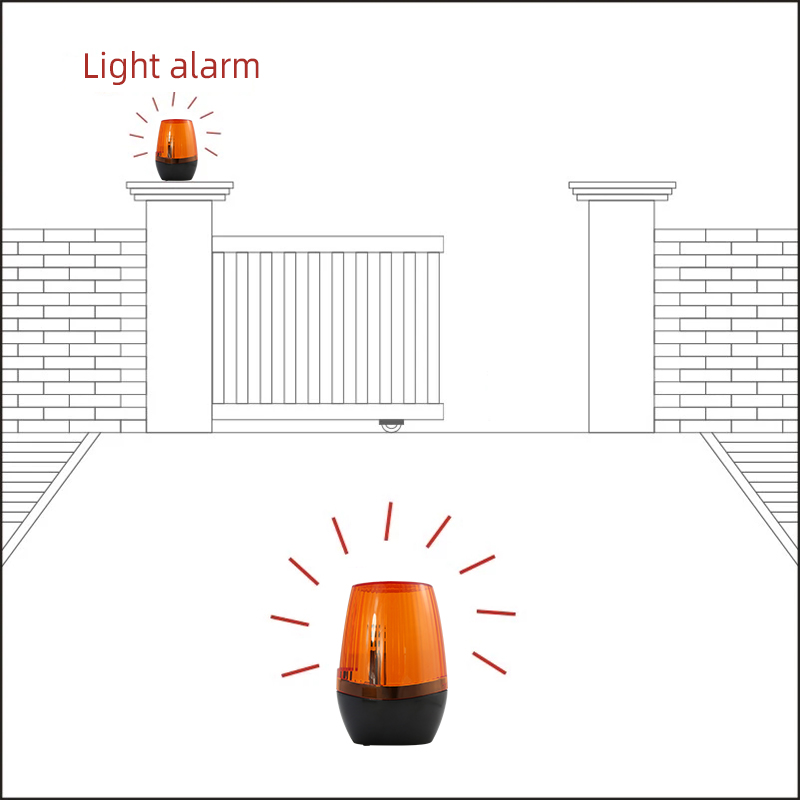

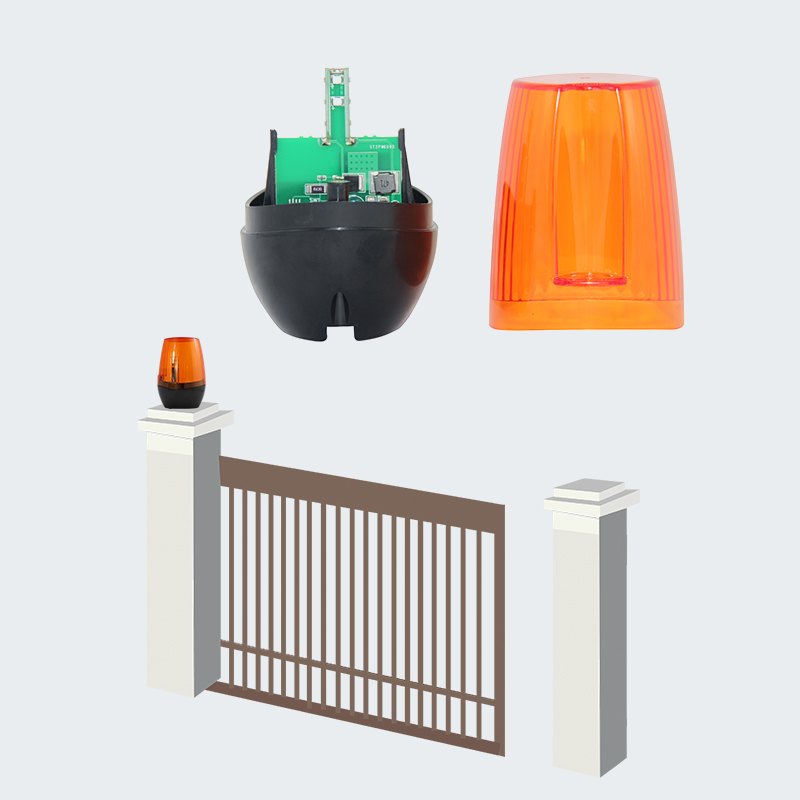

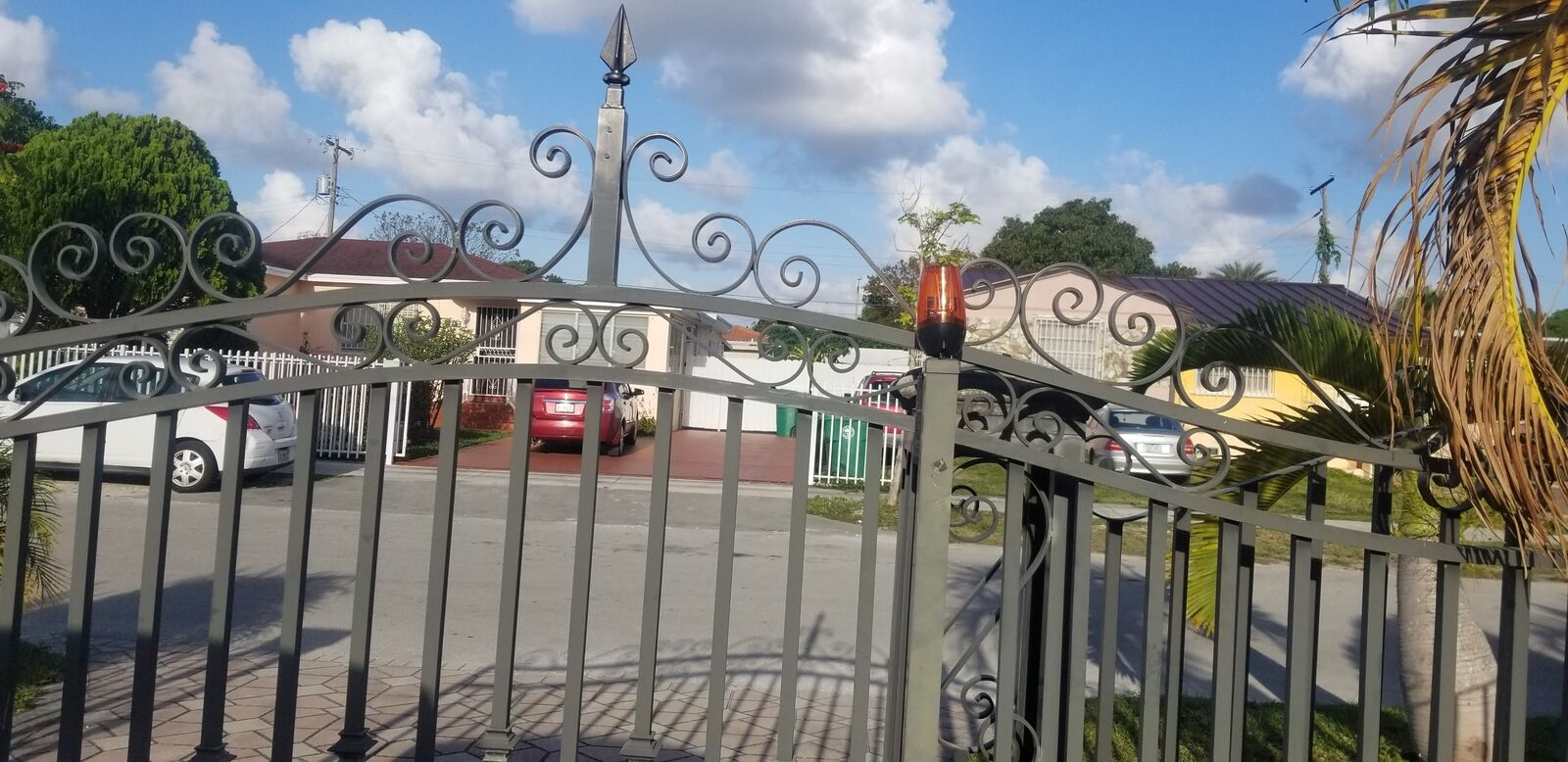

wide range of uses:
Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system
