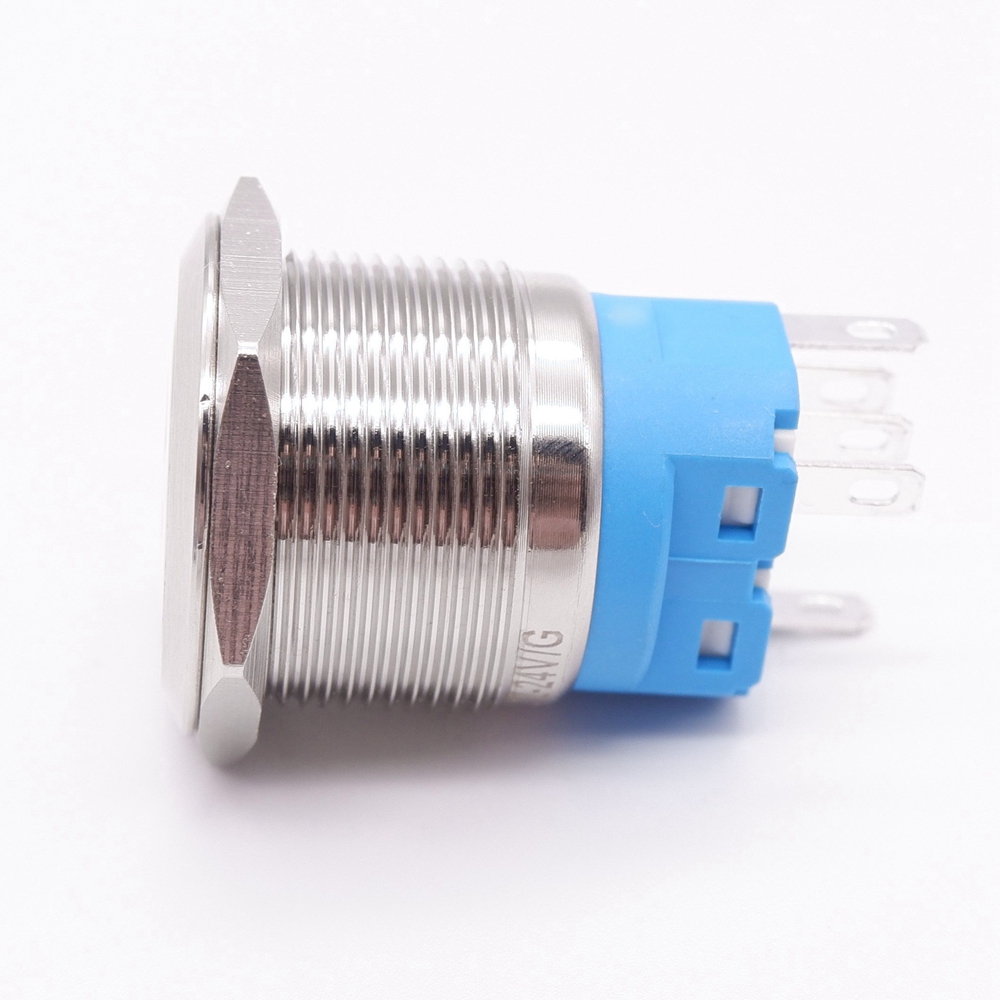

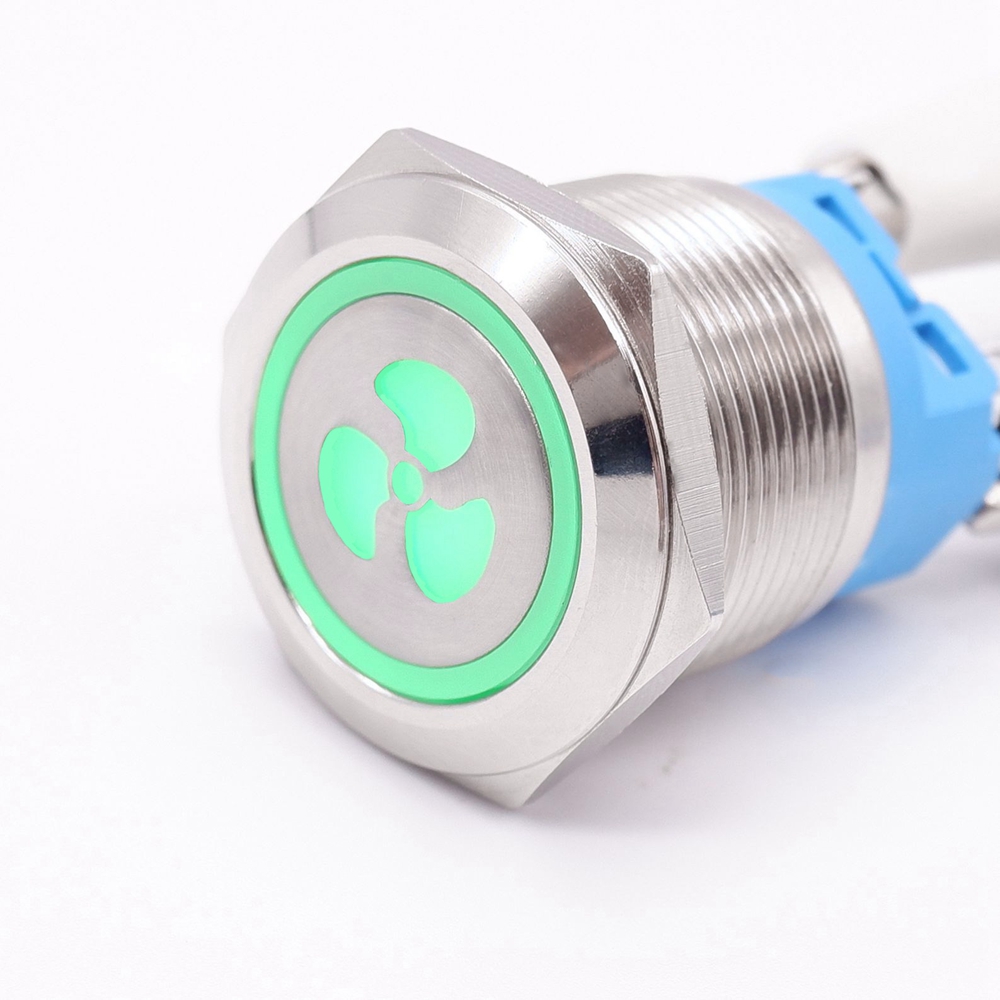

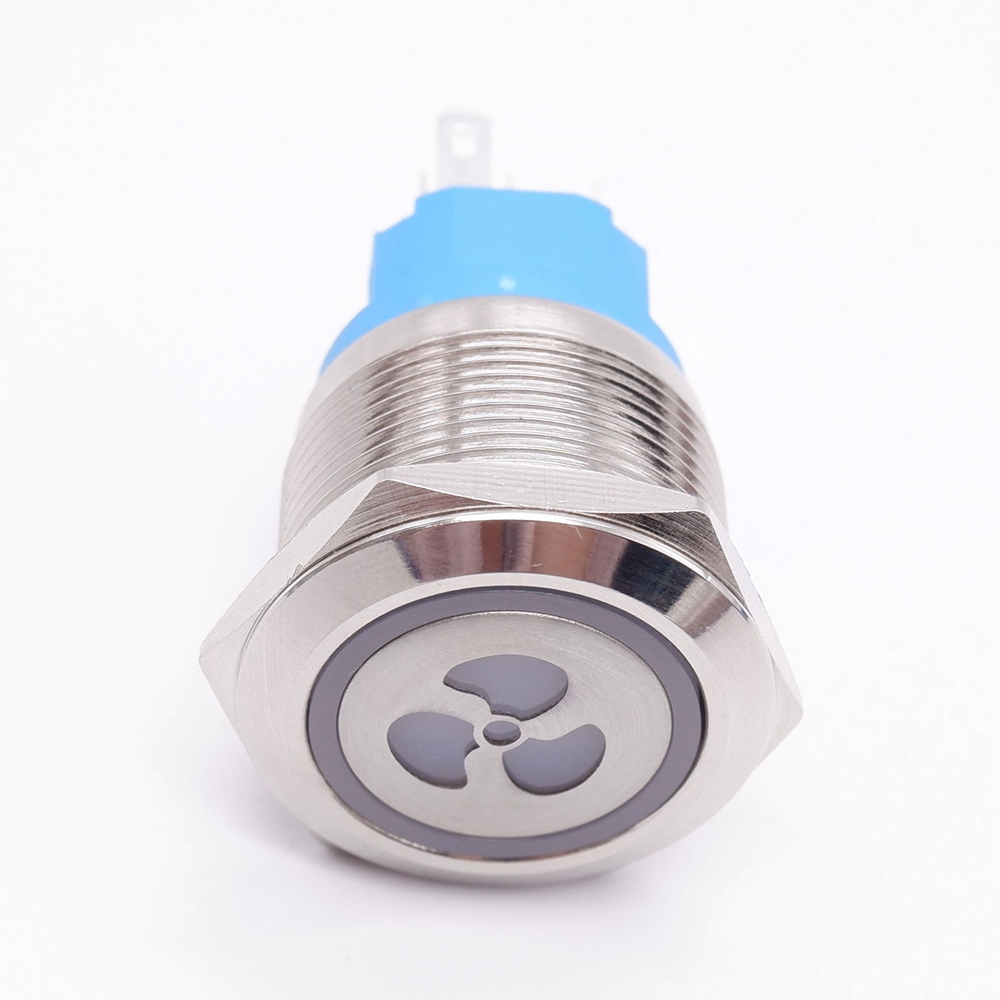

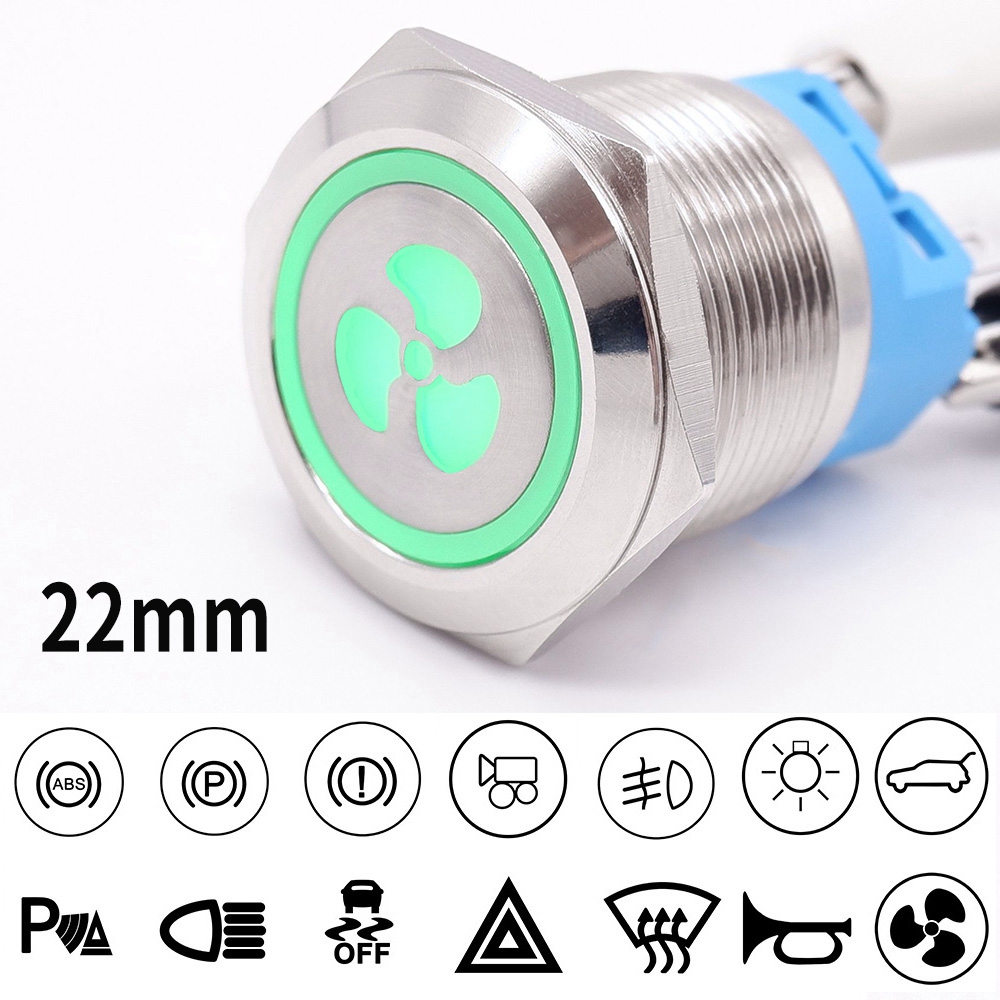

22mm Metal Push Button Switch Customizable Button Flat Head Self-reset/Latching With LED Light Car Function Glow Symbol 12V
-
Estimated Delivery:May 26 - May 30
-
Free Shipping & Returns: On all orders over $75
Product Types：Customizable push button switch
Hole diameter:22mm
Led color:red/orange/green/blue/white
Voltage:12V(for 12-24V)
Operation method:Momentary self-reset/Latching self-locking
Waterproof level:IP66
Contact type:1NO1NC

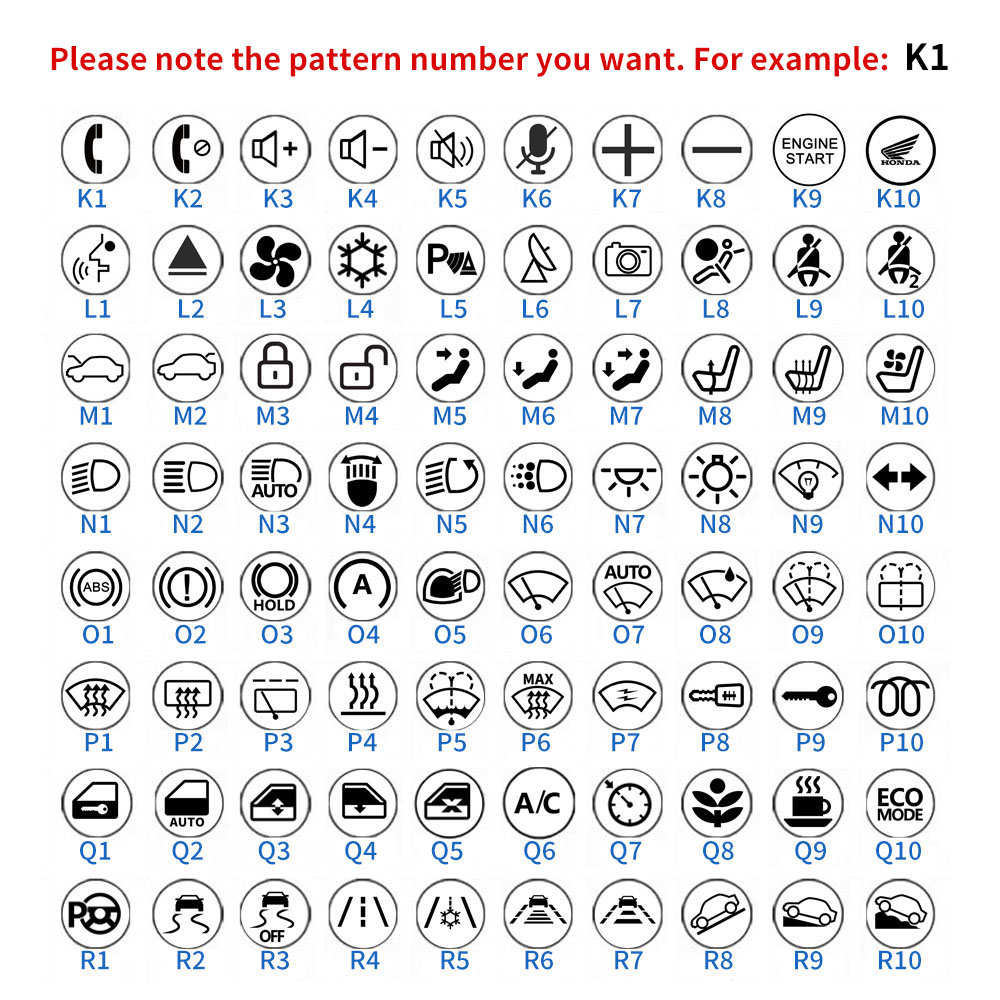

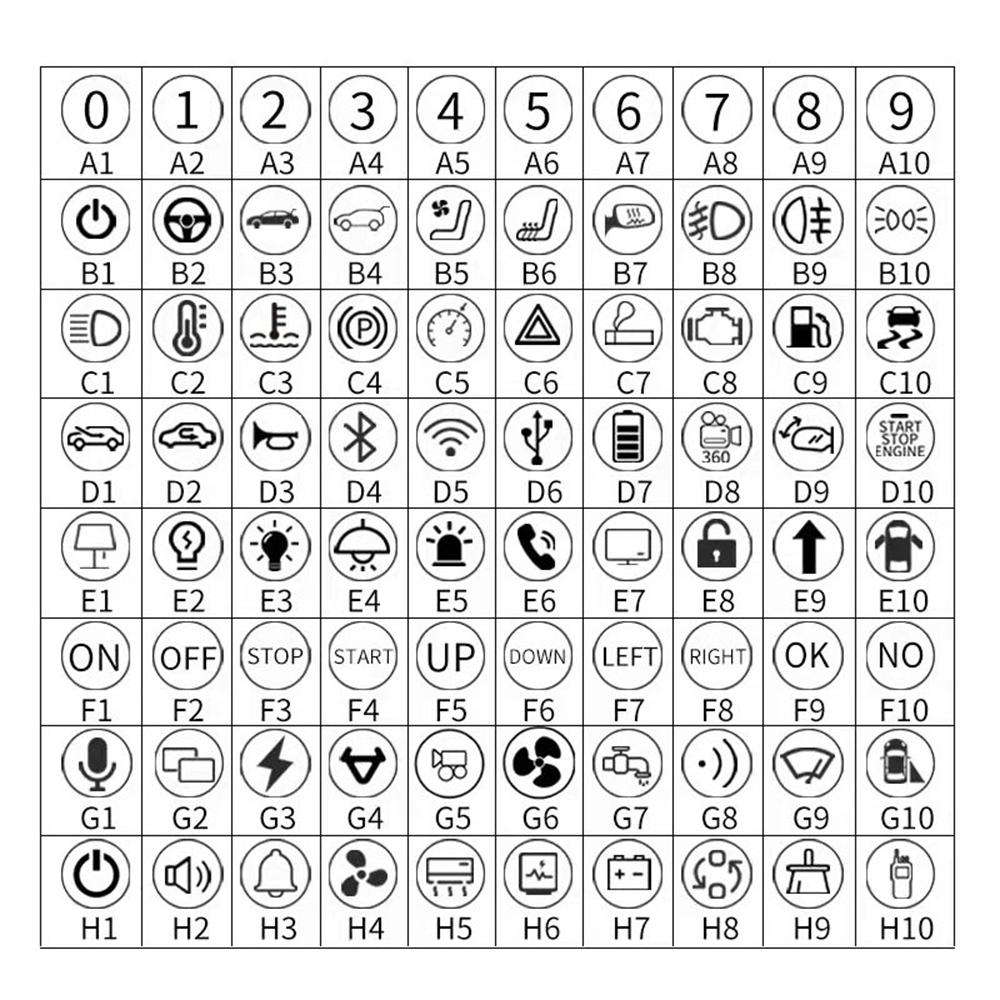

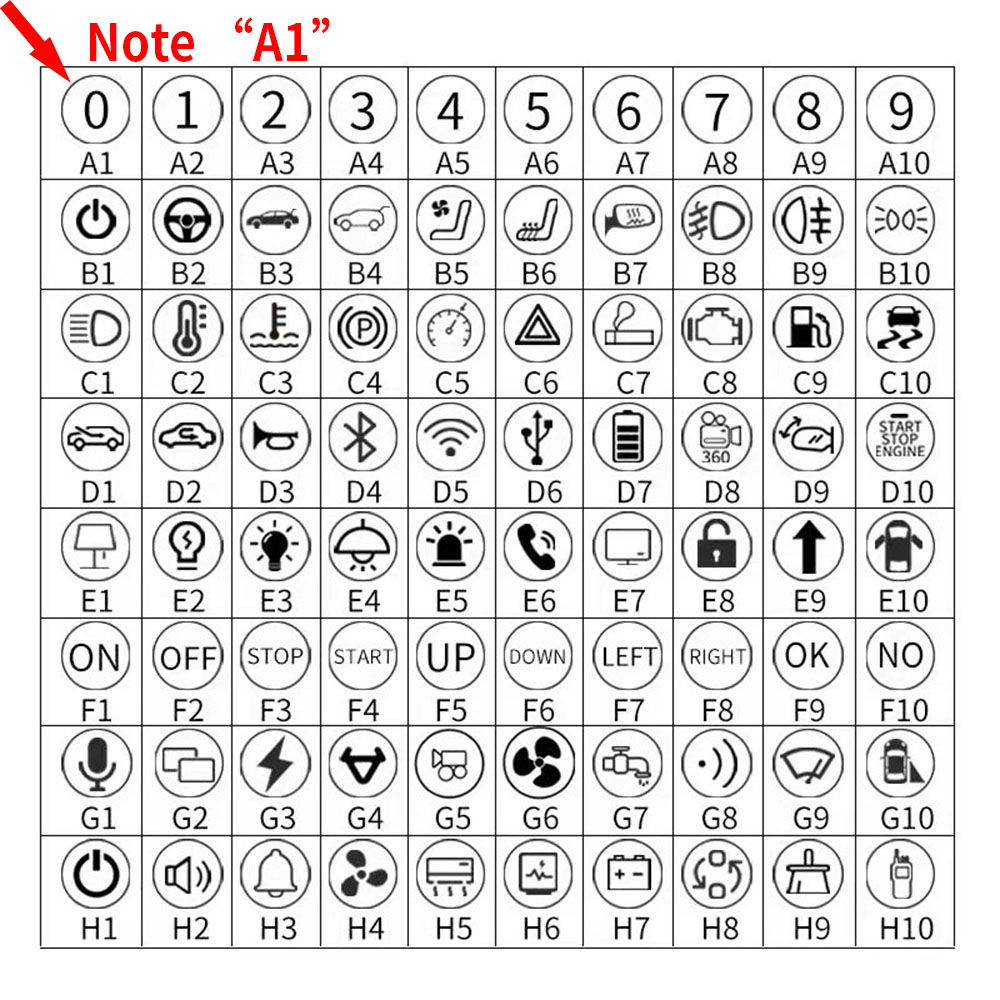

Please note the number you need. Such as the first, please note "A1"
Notice
1、If the icon you want is not here, please send me your drawing. But an HD image is required.

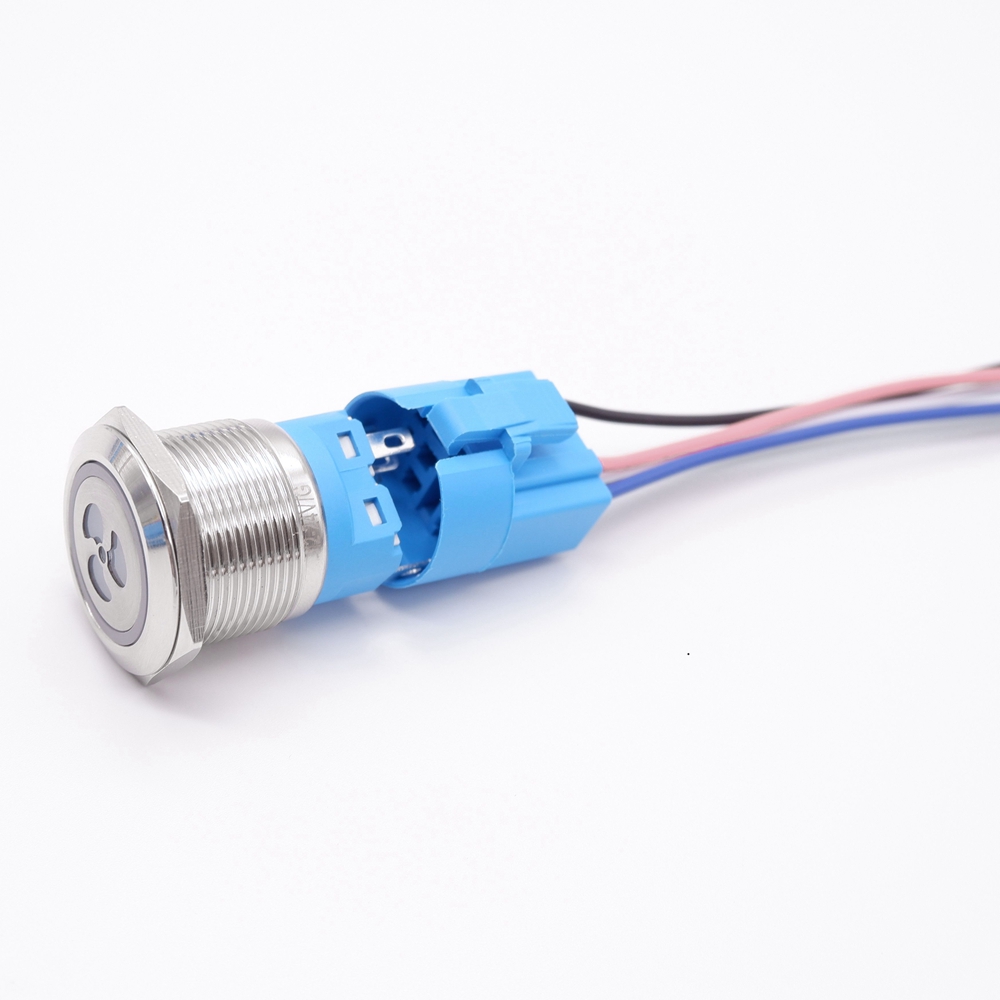

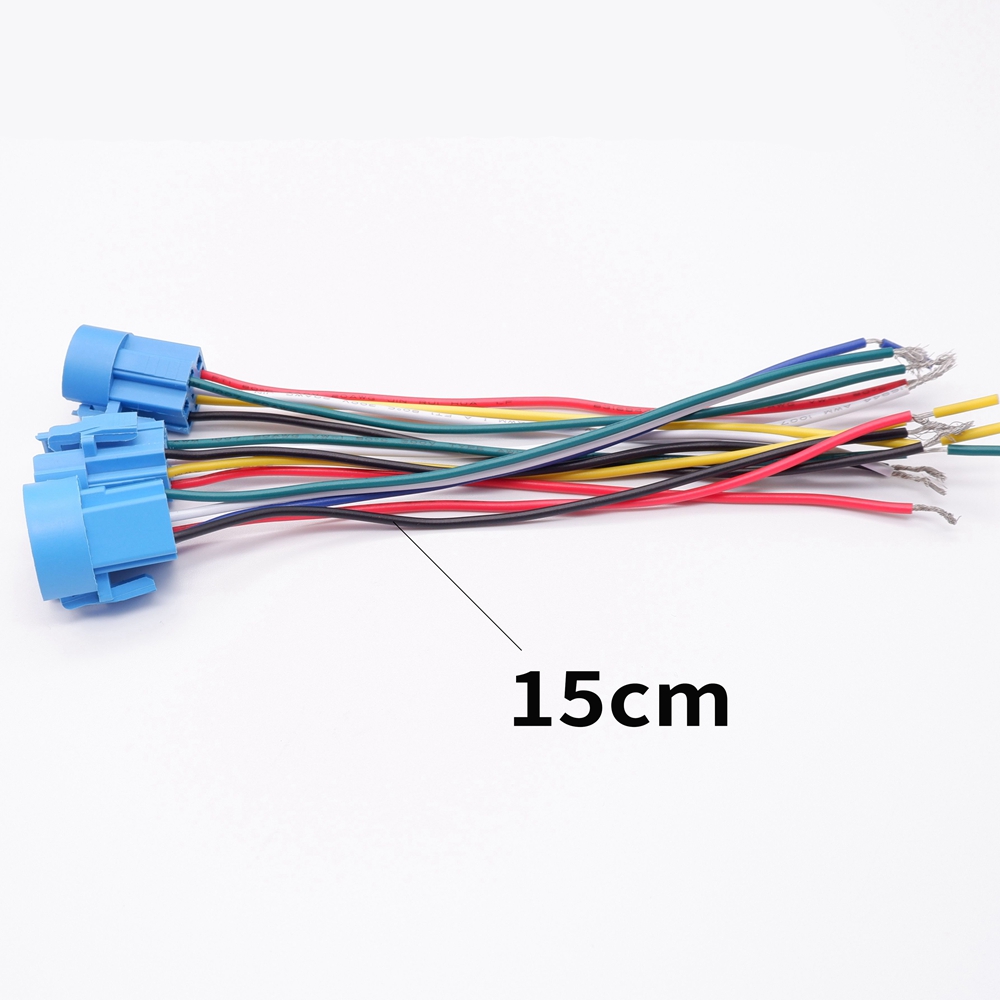

2、The connector needs to be purchased together with the button switch, which is only suitable for our own button switch.
3、It is a customized product and does not support return or exchange. Please choose the parameters carefully when placing an order.

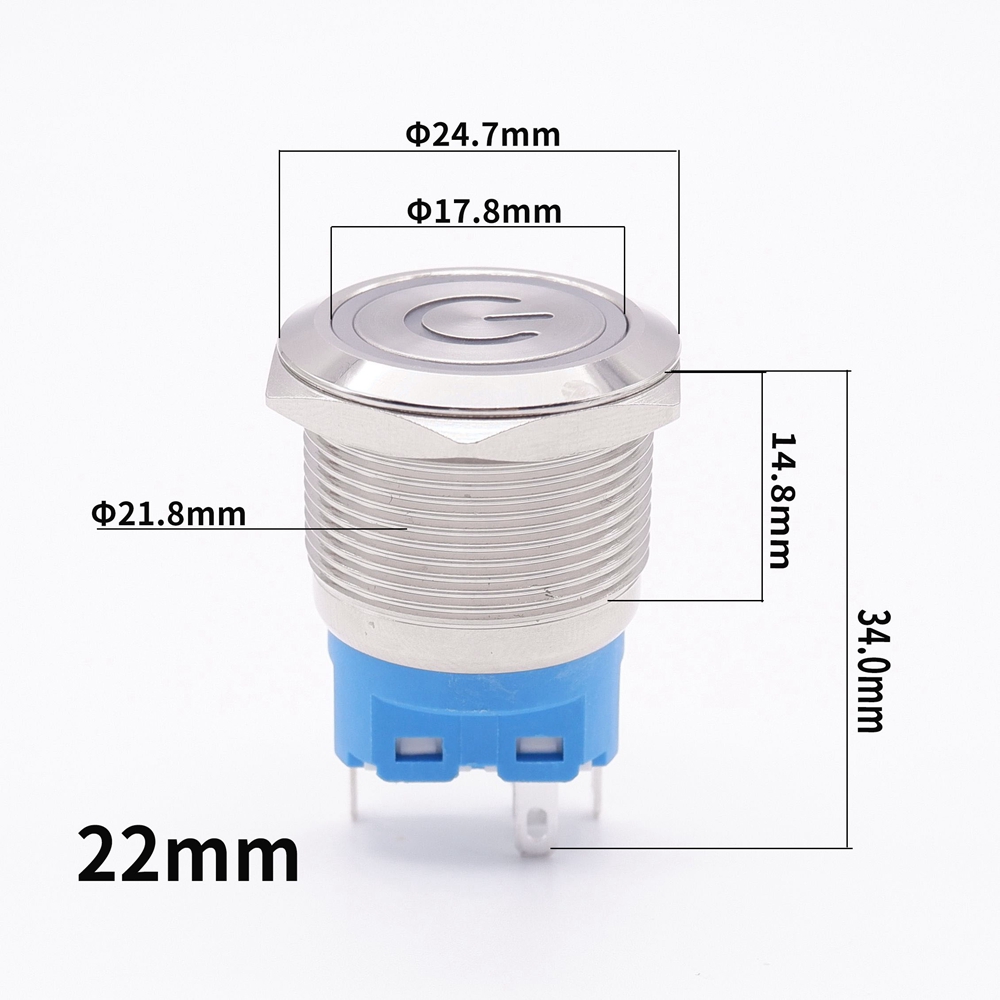

Manual measurement, there may be a little error.
Difference between Momentary self-reset and Latching self-locking:
1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.(Like a light switch.Press it-power on, press it again-power off.)
How to connect?
(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.

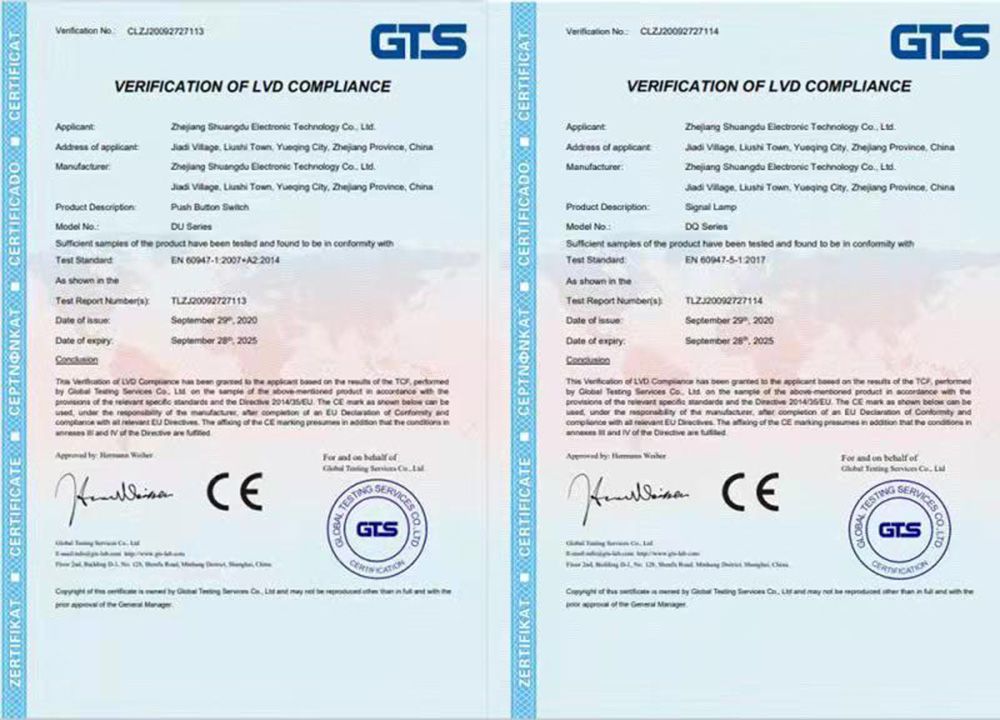

Certificate authentication

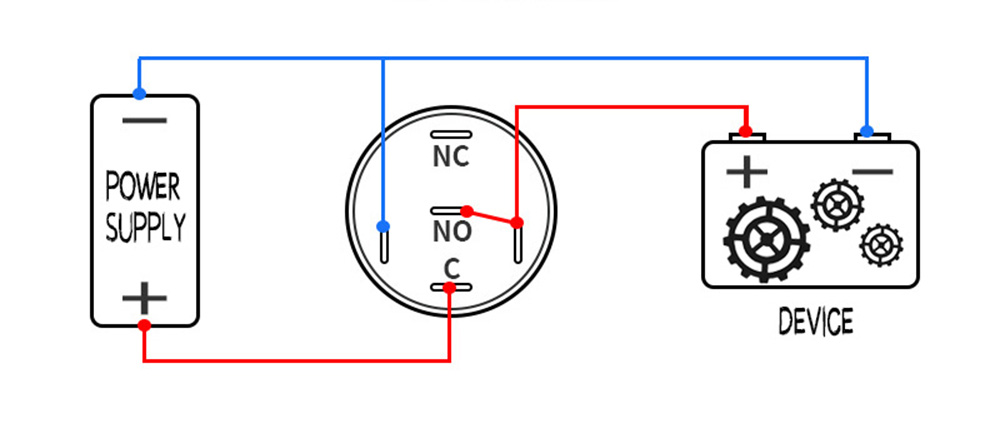

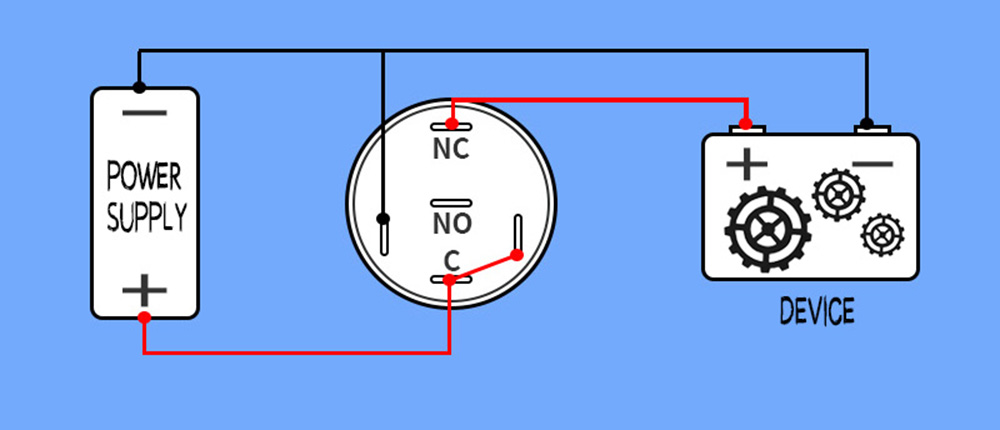

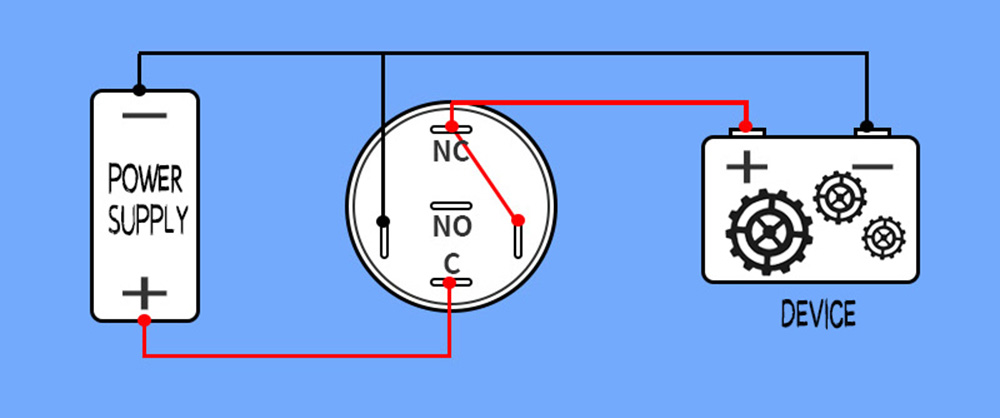

Wiring Diagram
1、The button turns the LED light on and off，the circuit is alway open unless press the button.
2、LED lights are always on，the circuit is alway open unless press the button.
3、 The button turns the LED light on and off，the circuit is alway close unless press the button.
4、LED lights are always on，the circuit is alway close unless press the button.
