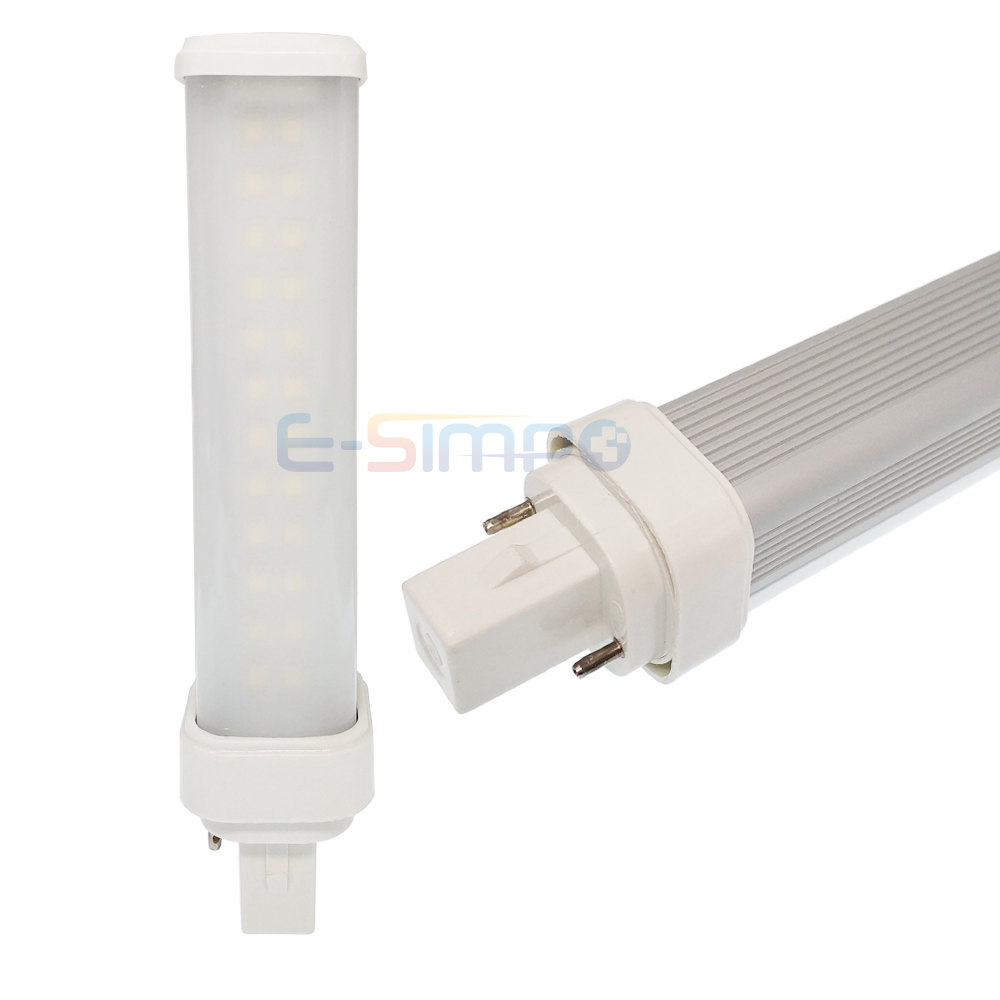

1PC G24d 2Pin 5W 7W 9W 11W 2U CFL PLC 13W 18W 26W LED Replacement Horizontal Retrofit PL Plug Lamp,Ballast Removal Required
-
Estimated Delivery:May 26 - May 30
-
Free Shipping & Returns: On all orders over $75
1PC G24d 2Pin 5W 7W 9W 11W 2U CFL PLC 13W 18W 26W LED Replacement Horizontal Retrofit PL Plug Lamp,Ballast Removal Required
Note: You have to bypass the ballast before install the LED Lamp.

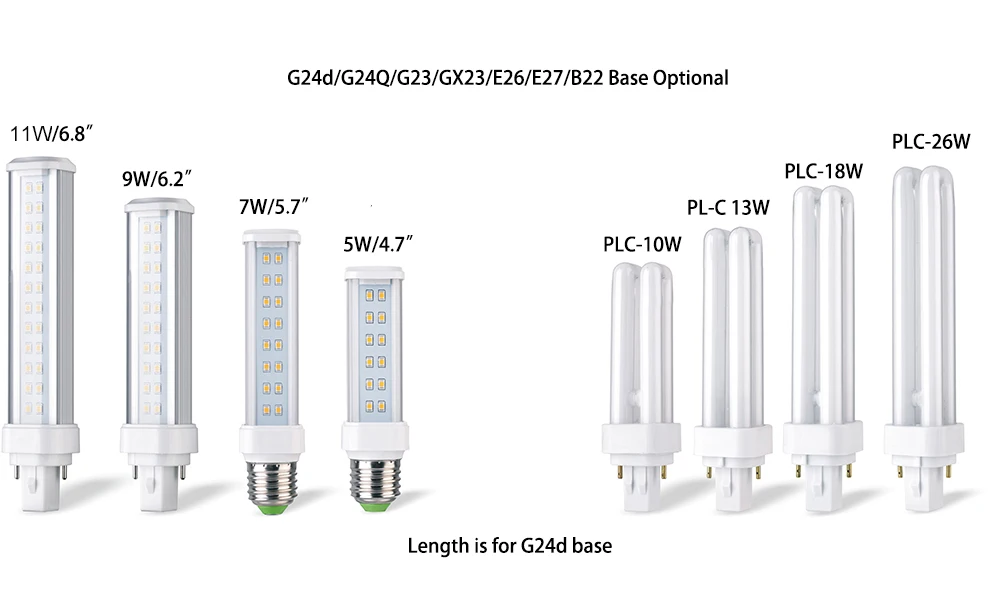

Product Description PL LED Replace 2U Fluorescent lamp Q base is 7mm shorter than D base

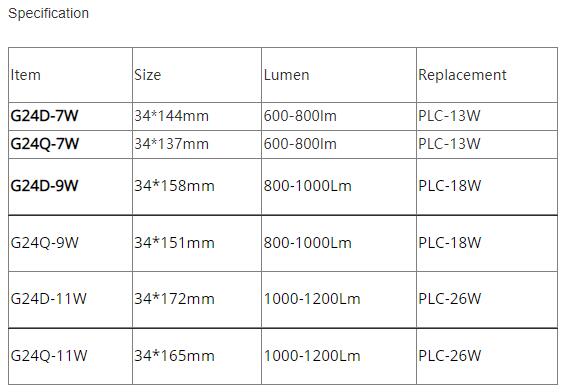

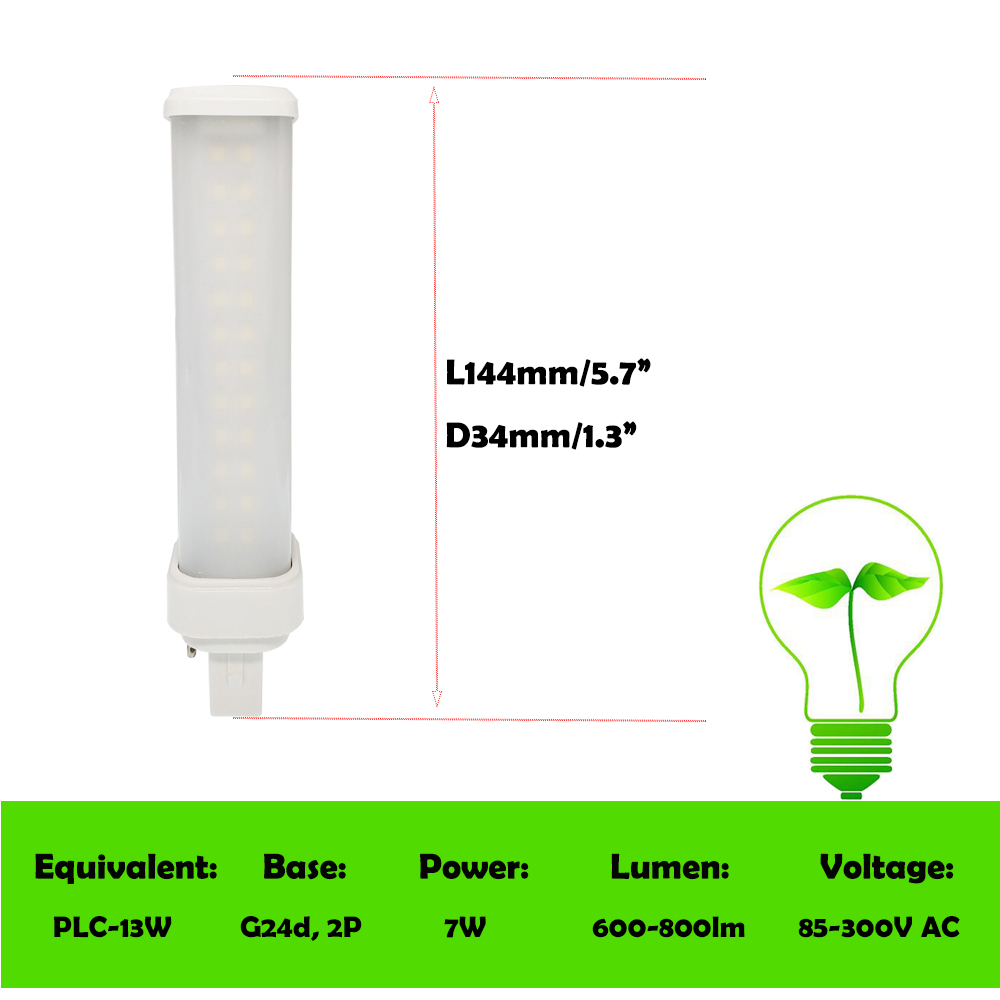

Specification
LED: SMD 2835
Color Rendering Index(Ra): more than 82
Input voltage: AC85-300V 50/60Hz
Beam angle:180o
Materials:Aluminium Alloy + PC Cover
Color Temperature(CCT): Warm white(3000-3500K), Natural white(4000-4500K), Cool white(6000-6500K)

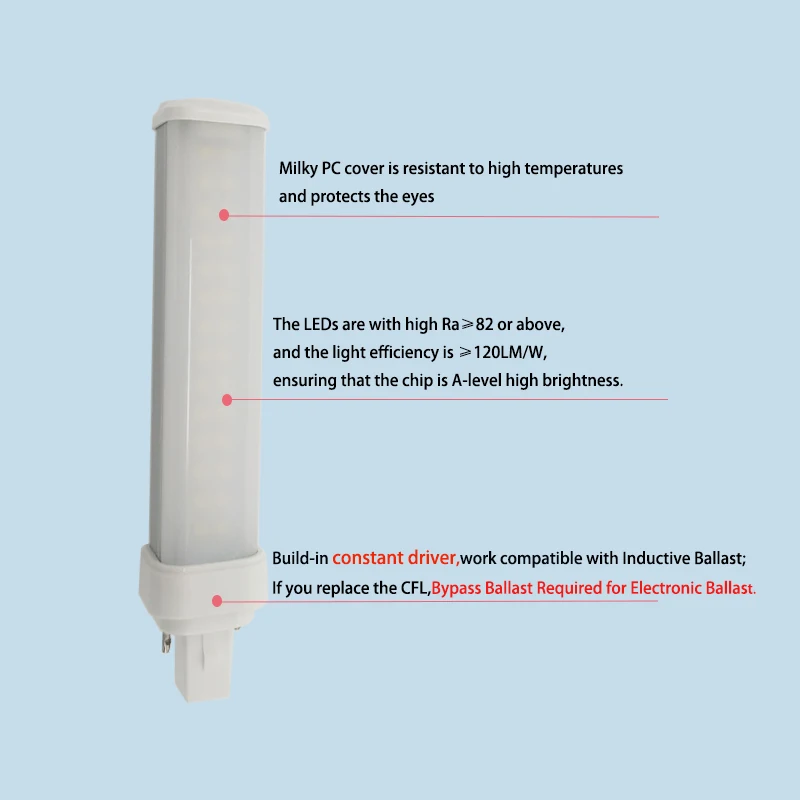

NOTE: Please throw away the electronic ballast before install this lamp.

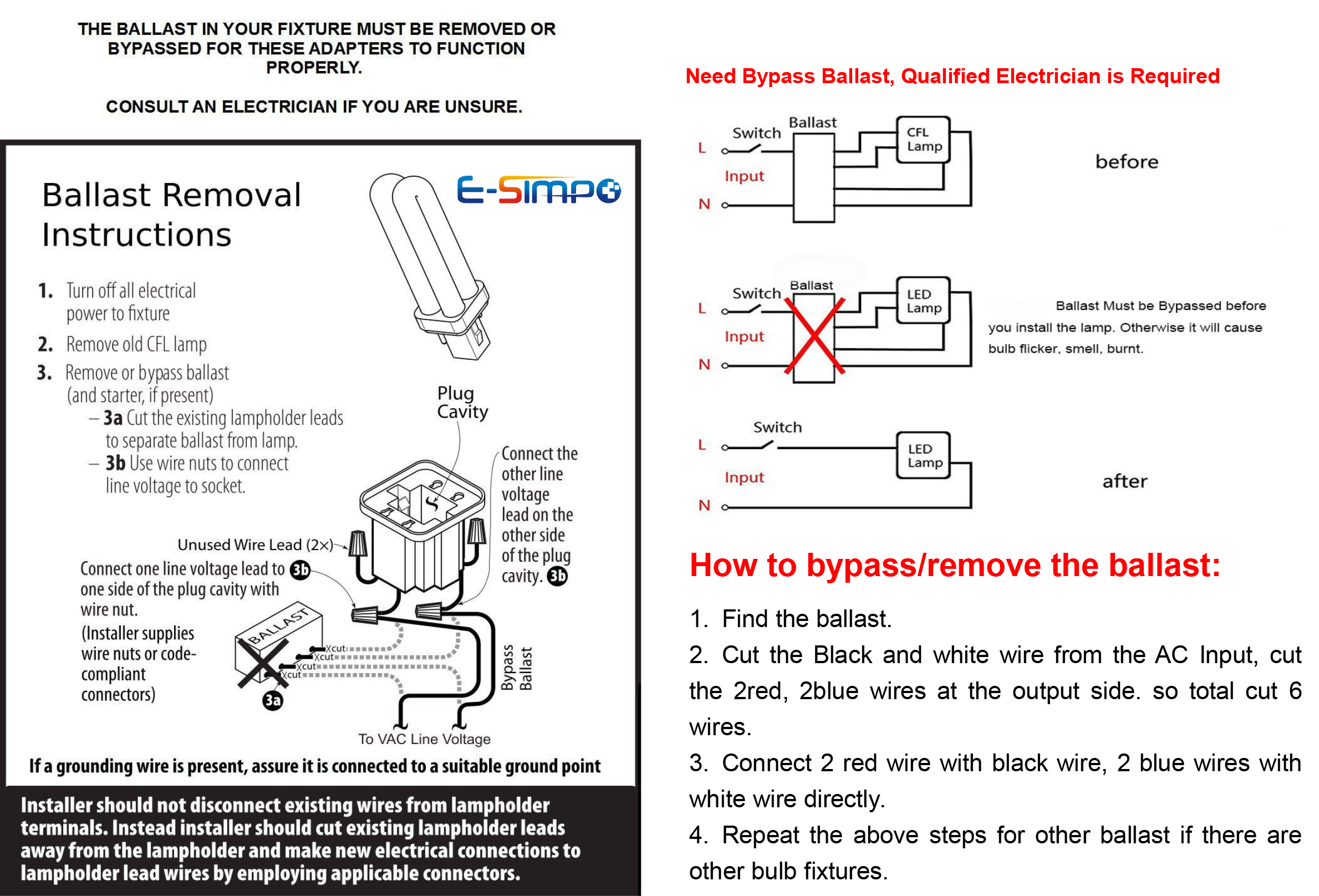

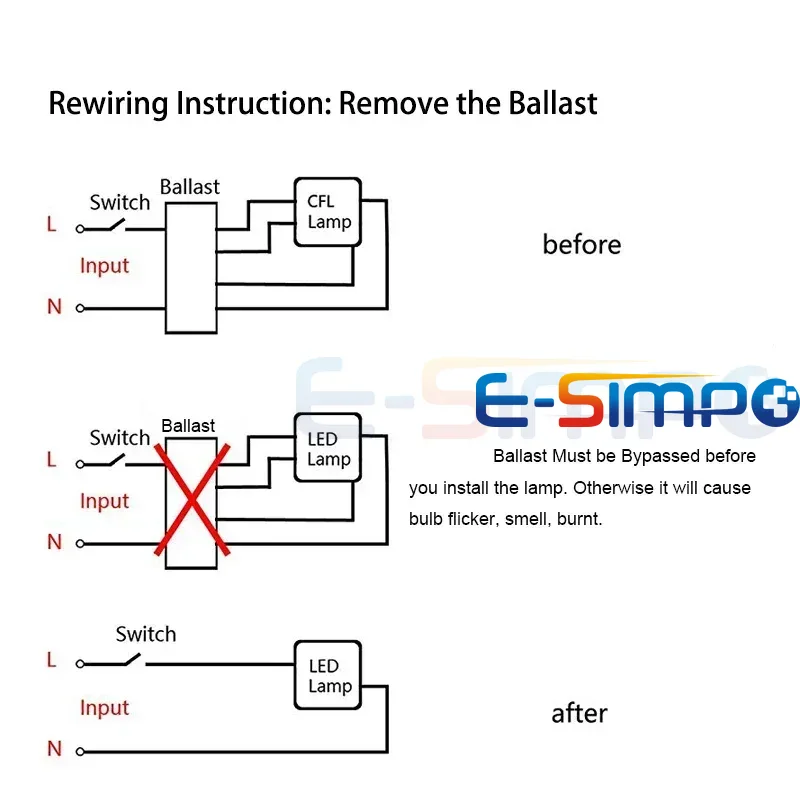

How to bypass the ballast?
1. Turn Off the Power.
2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast.
3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut.
4. Then, you can connect the two red wires to the black wire.
5. Next, connect the two blue wires to the white wire. now ballast is bypassed.
Features
1. Low heat, low power consumption, more than 60% energy saving than traditional fluorescent lamps and environmental friendly;
2.180 degree rotatable lamp base to adjust the direction of light;

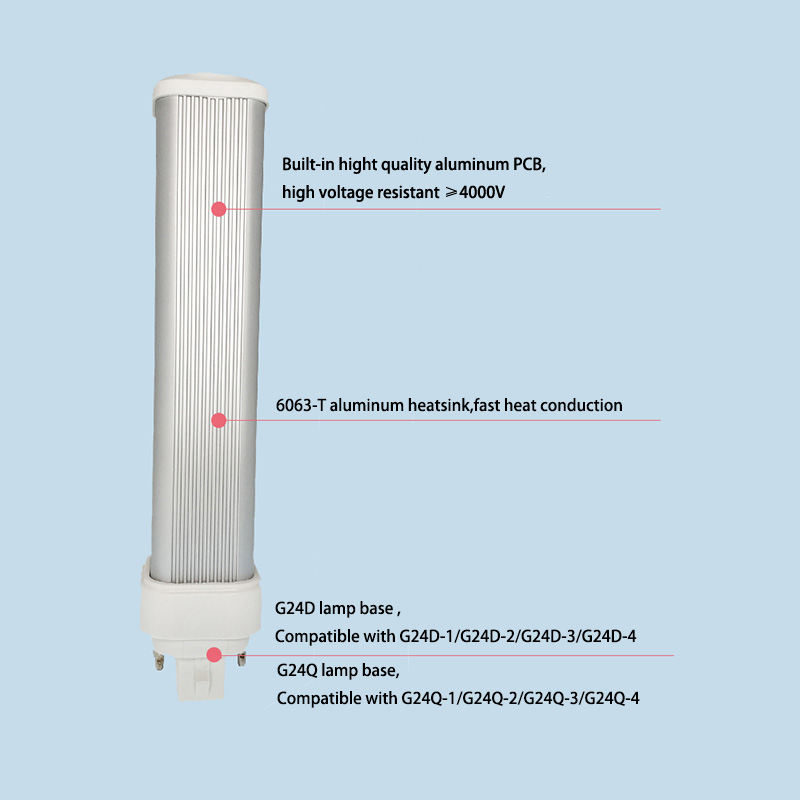

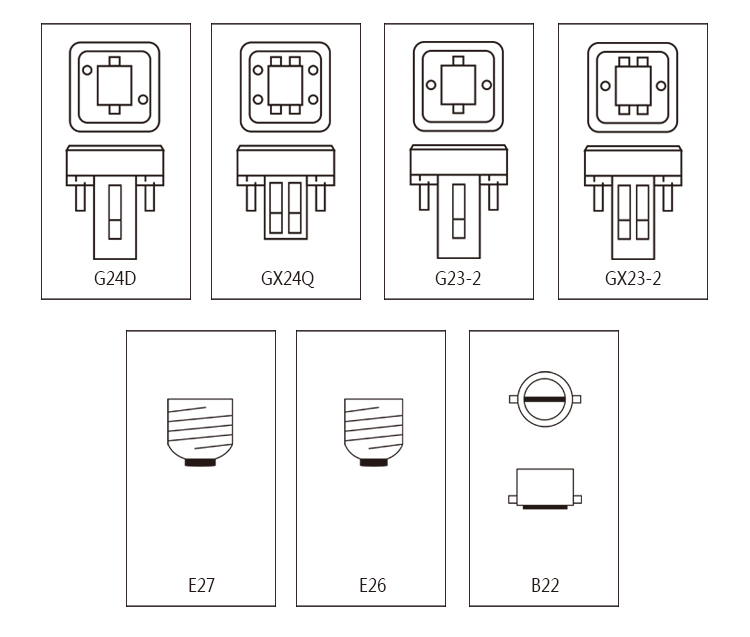

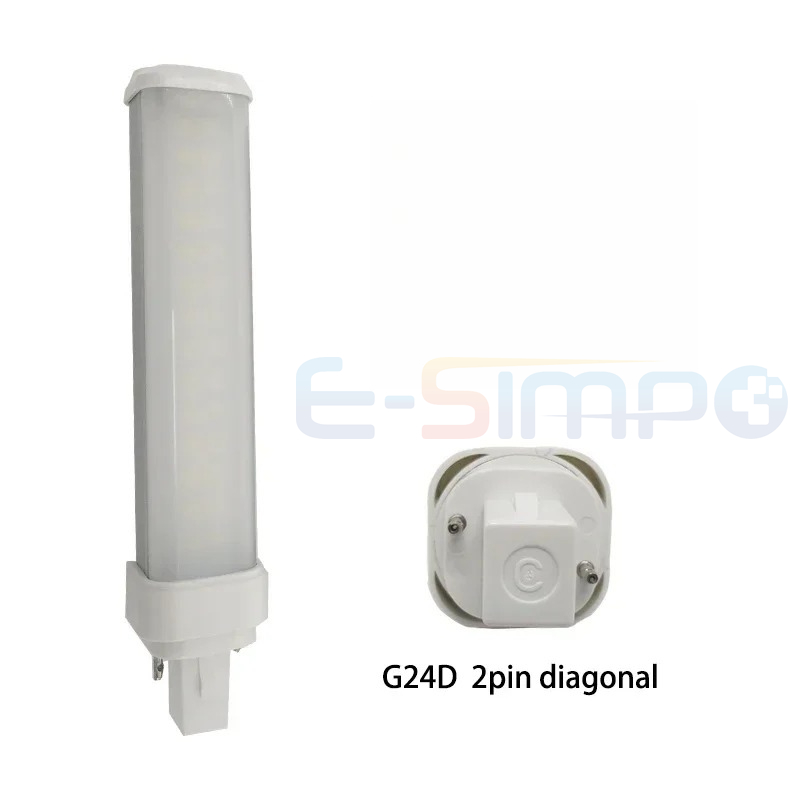

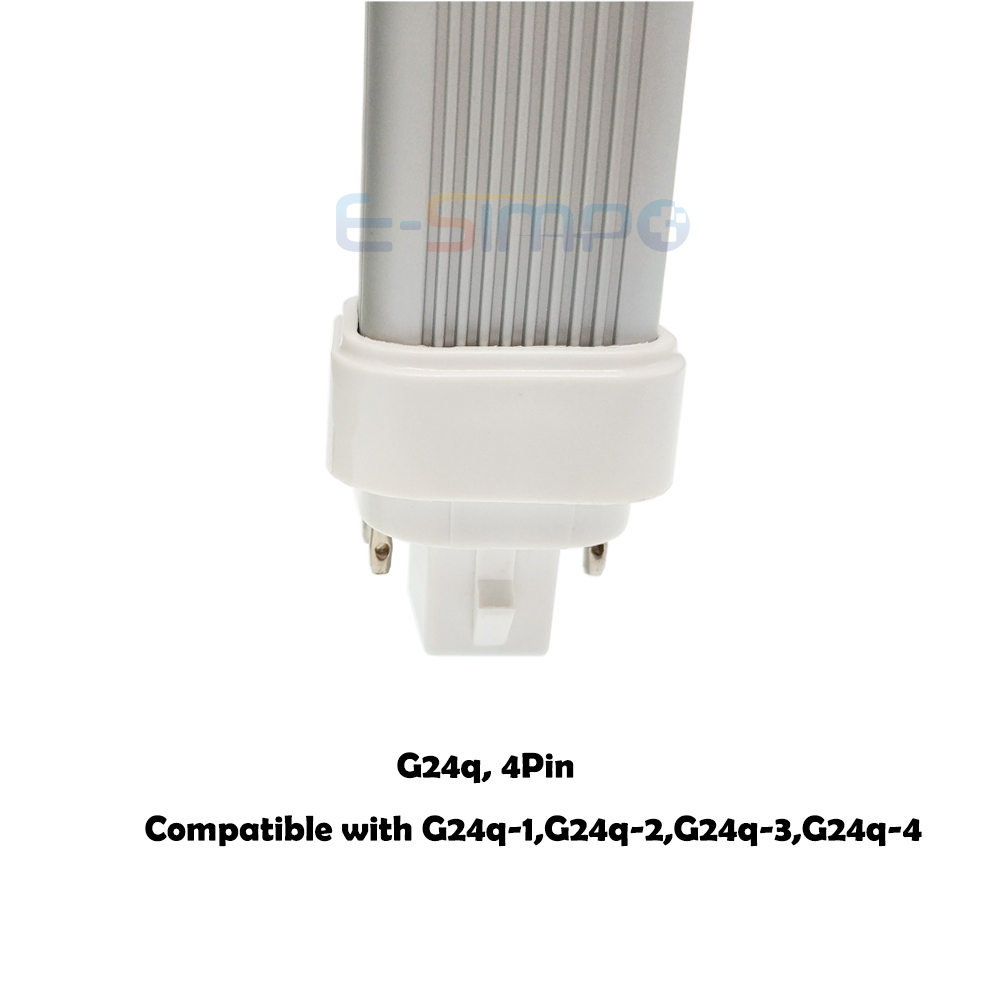

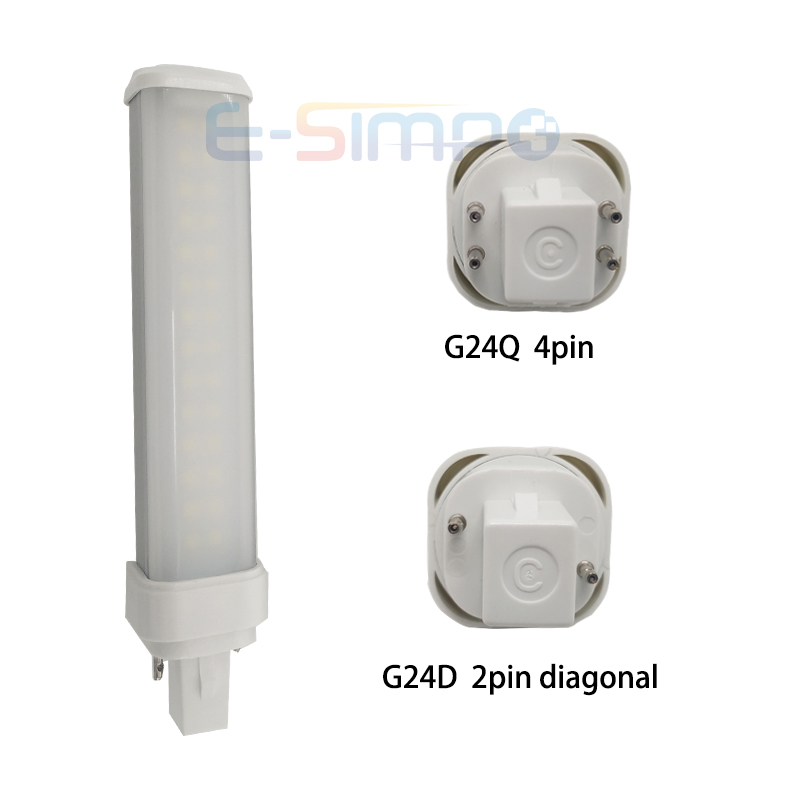

3. G24D/GX24Q standard base
4. No lead, NO mercury,No UV or IR radiation, started without delay;

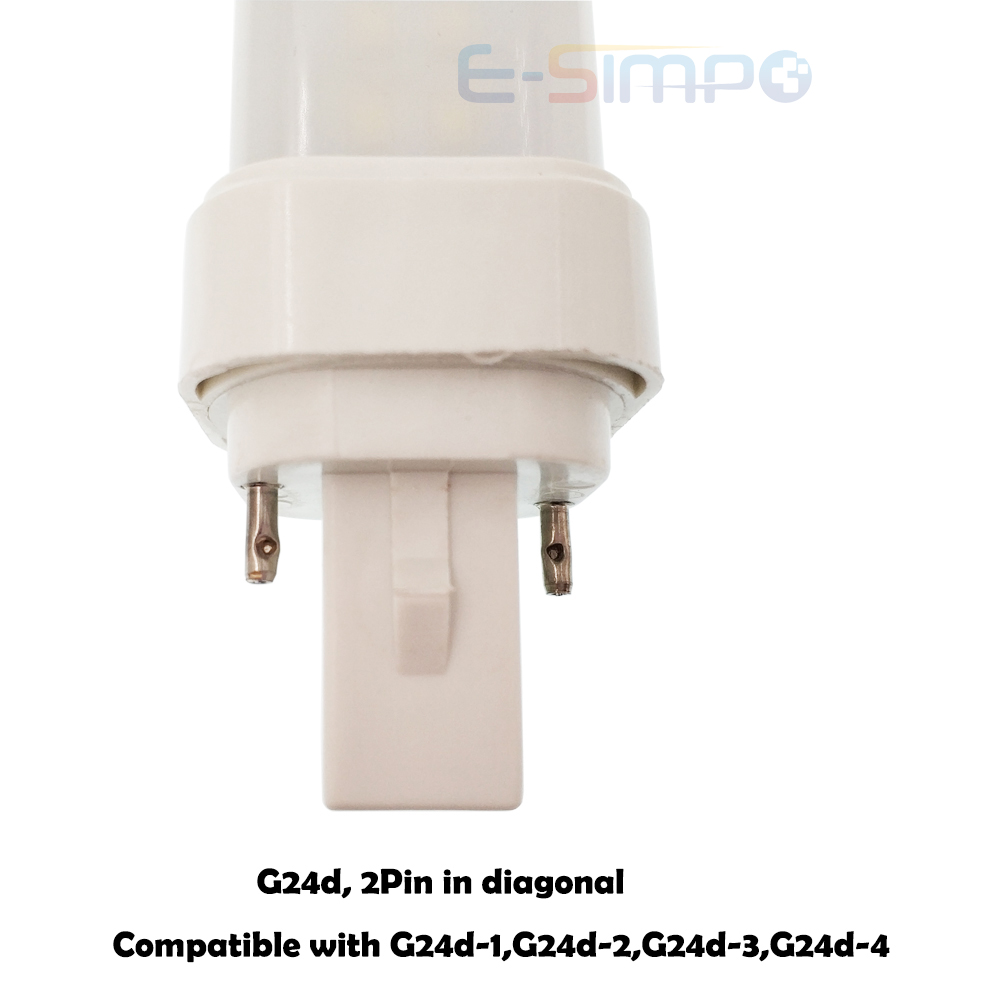

5.compatible with G24d-1(G24q-1)/G24d-2()/G24d-3()/G24d-4()G24q-2G24q-3G24q-4ideal replacement for traditional energy saving Downlight for CFL excellent heat dissipation,Long lifespan,can work for up to 30000hrs;
6. High Color Rendering Index,RA 82. Ideal for both commercial and residential applications such as Desk Lamp, Wall sconces,Recessed can lighting for down light,Step lighting. Wide operation voltage ranges,suitable for use throughout the world,l

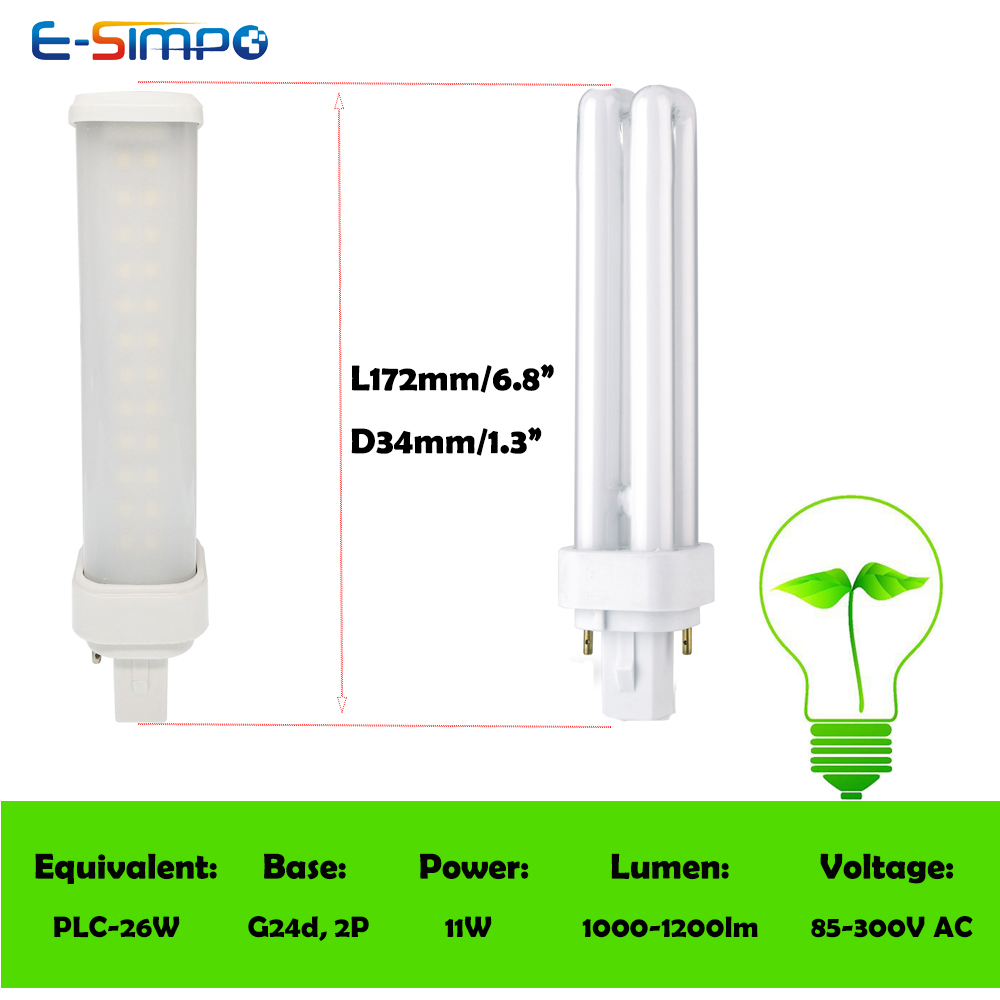

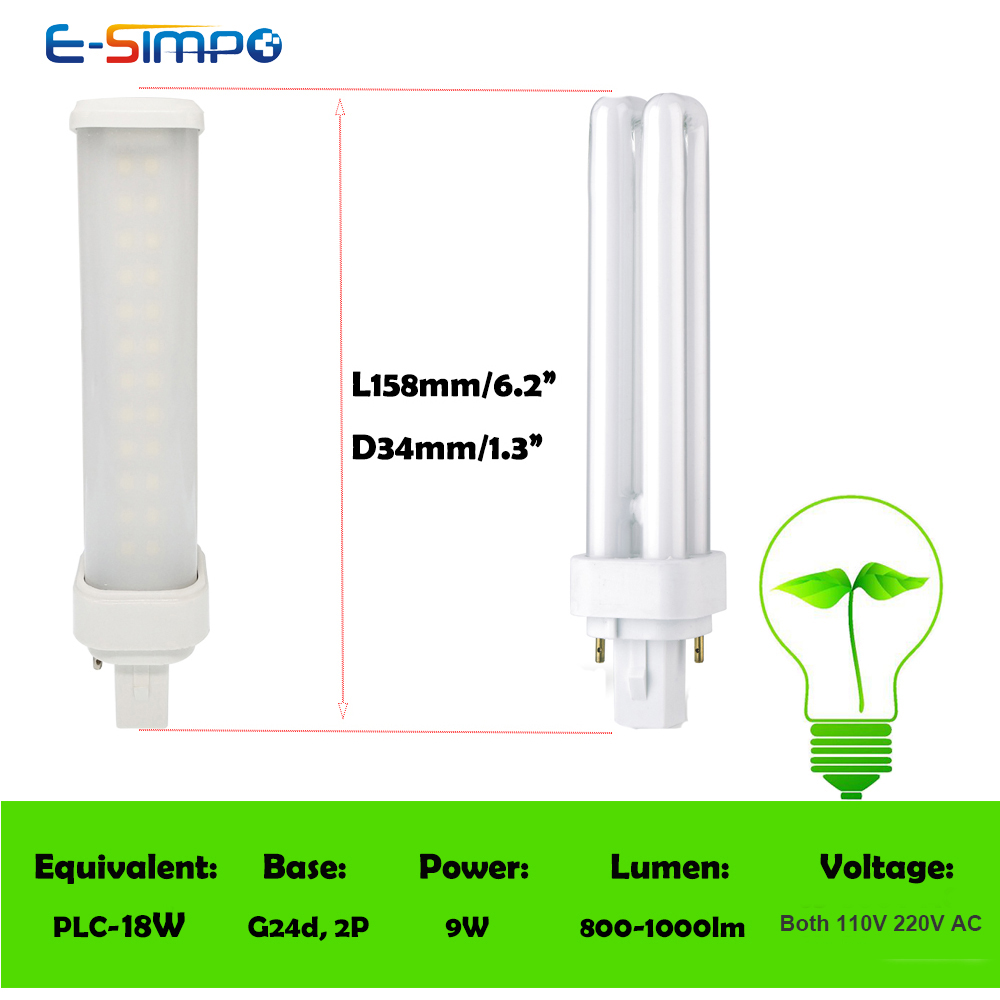

Details
Installation Note

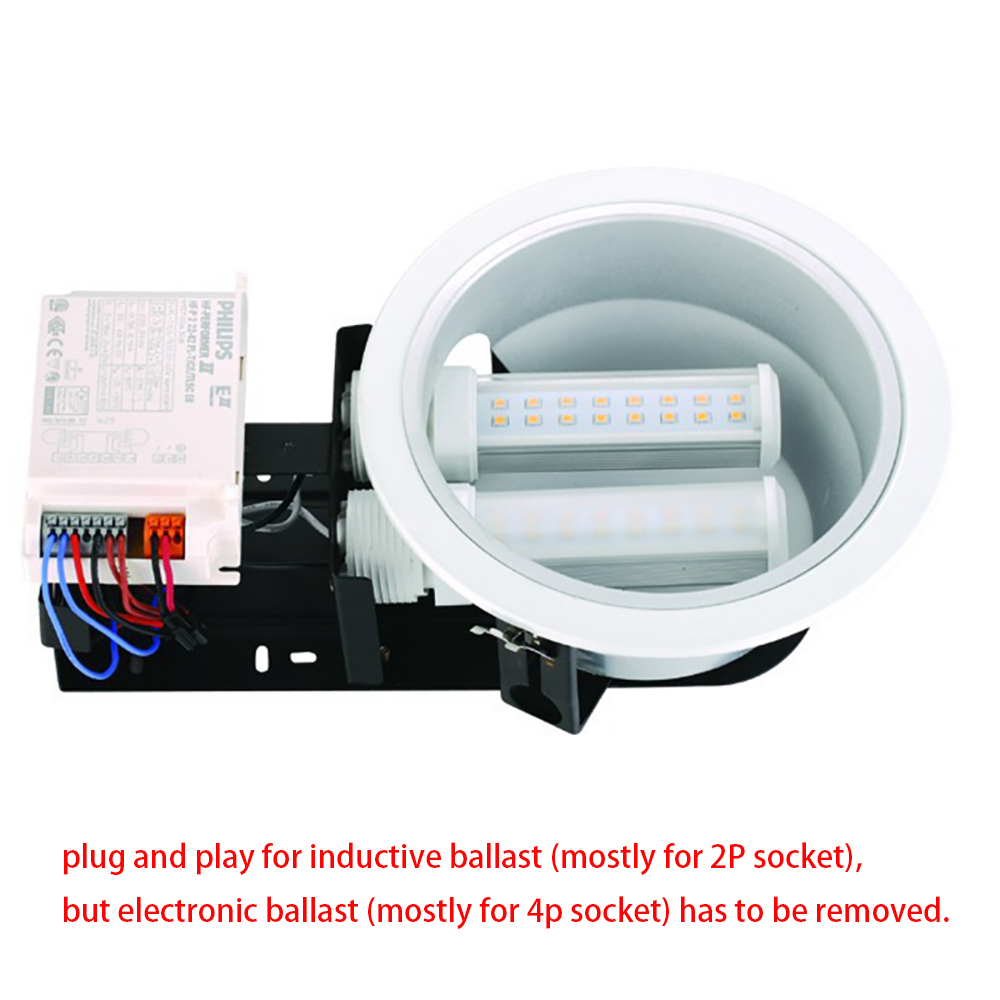

If there are 2 lamps in one fixtre like below, you need to remove the ballast, even it is inductive ballast, you have to remove it.
For electronic ballast, you must remove it before install the LED Lamp.
Certification

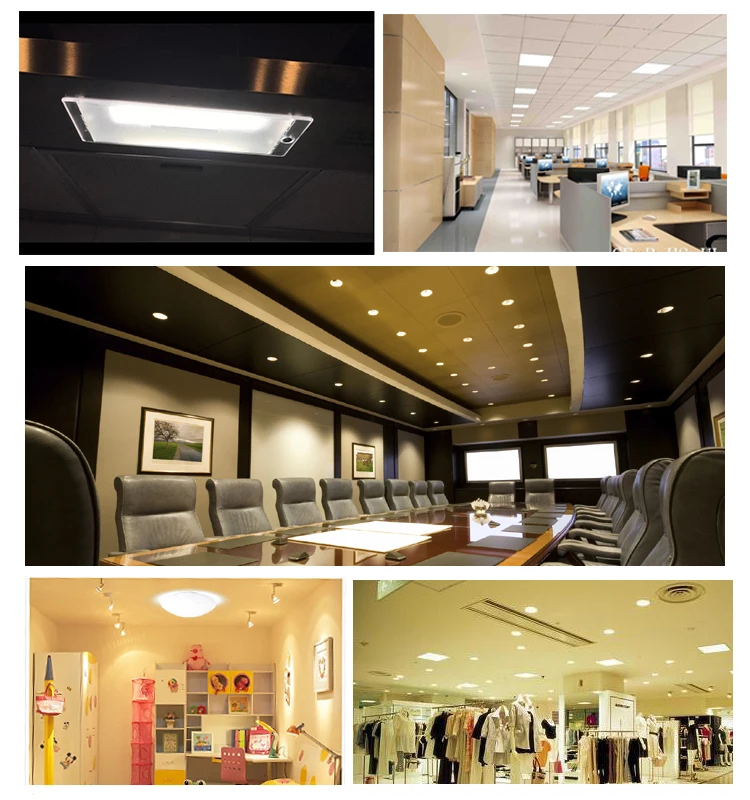

Application
