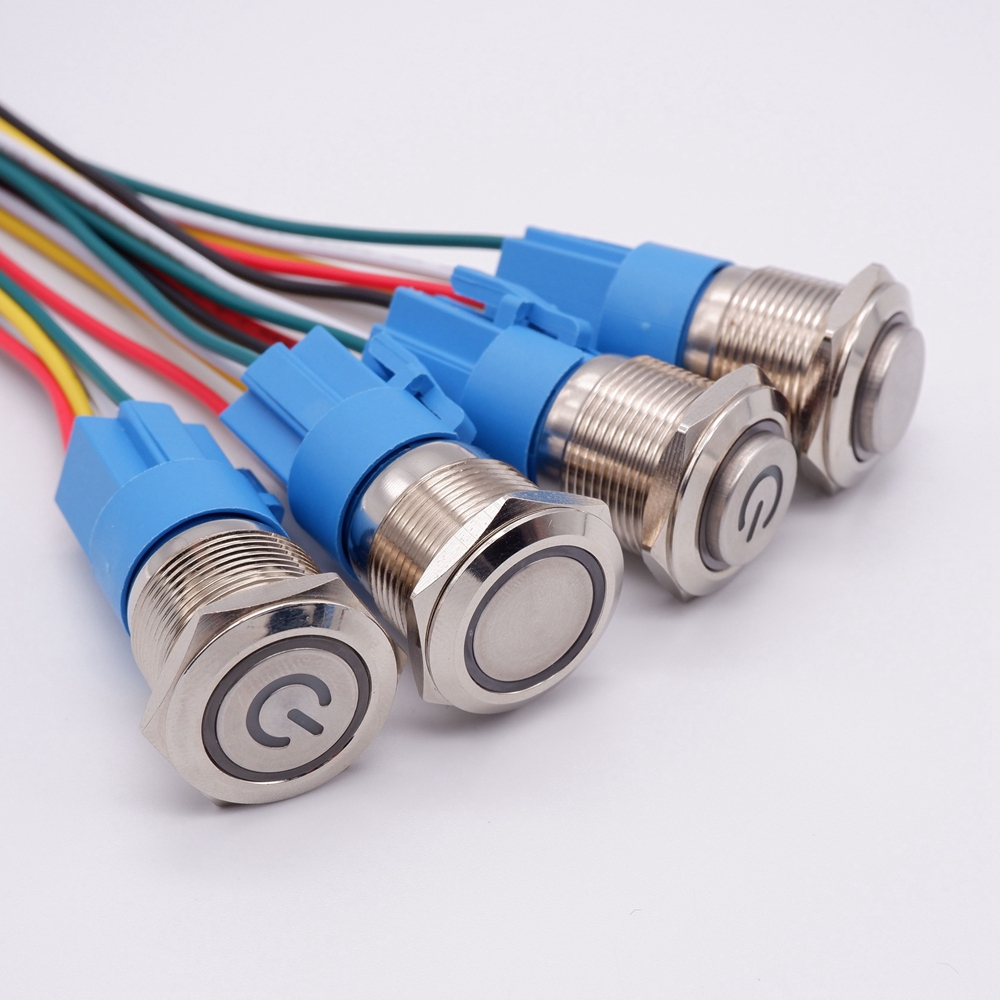

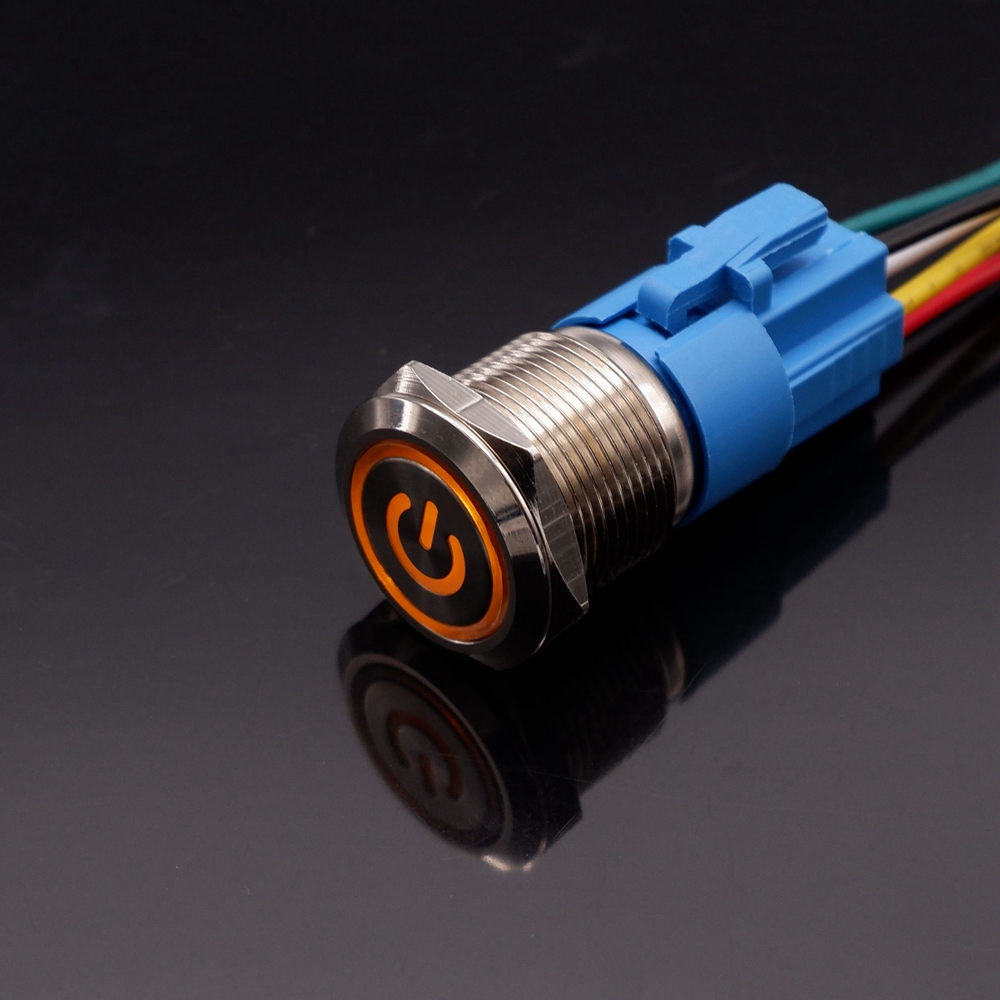

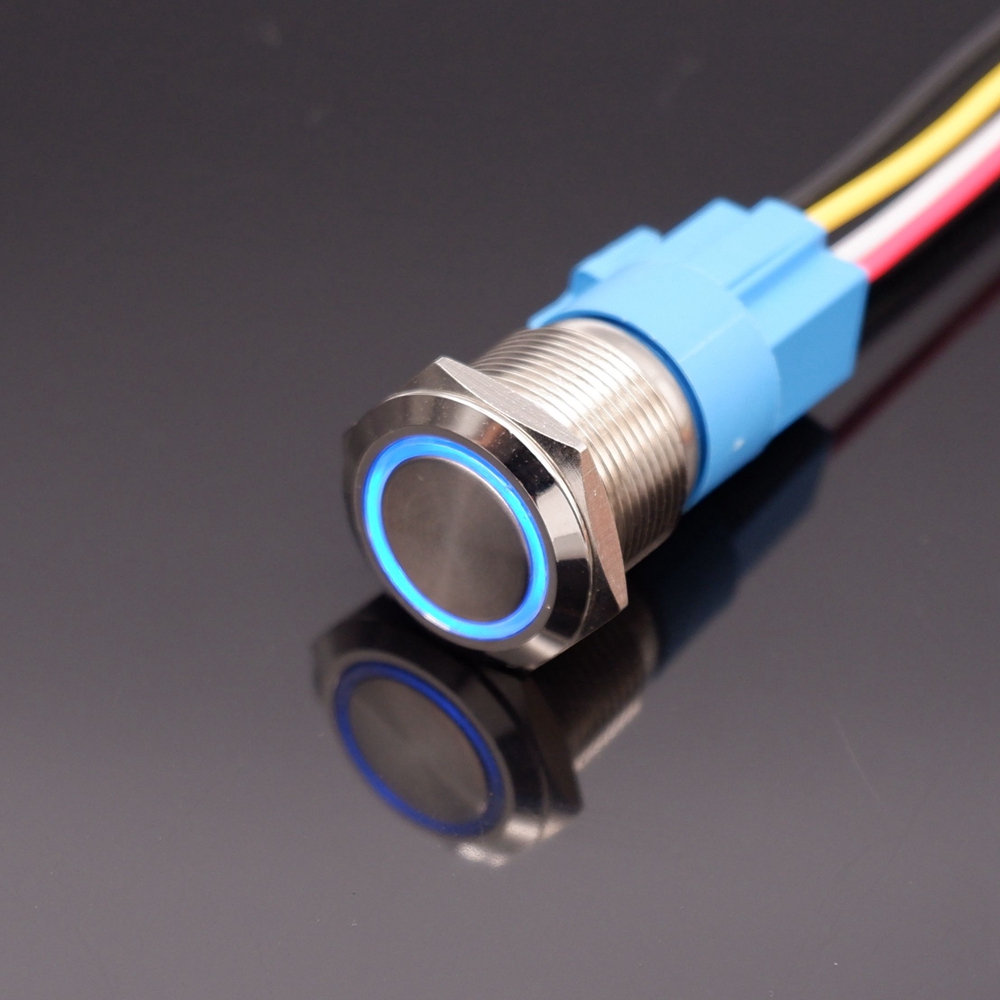

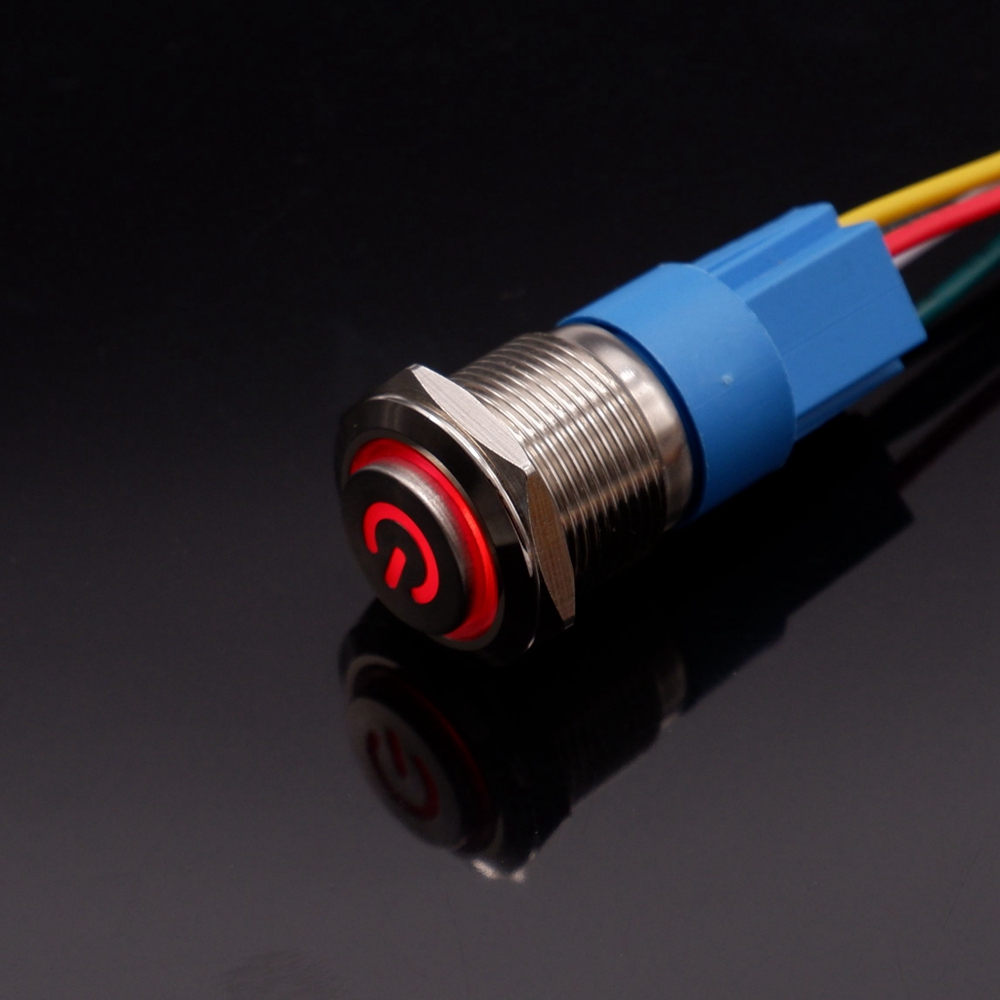

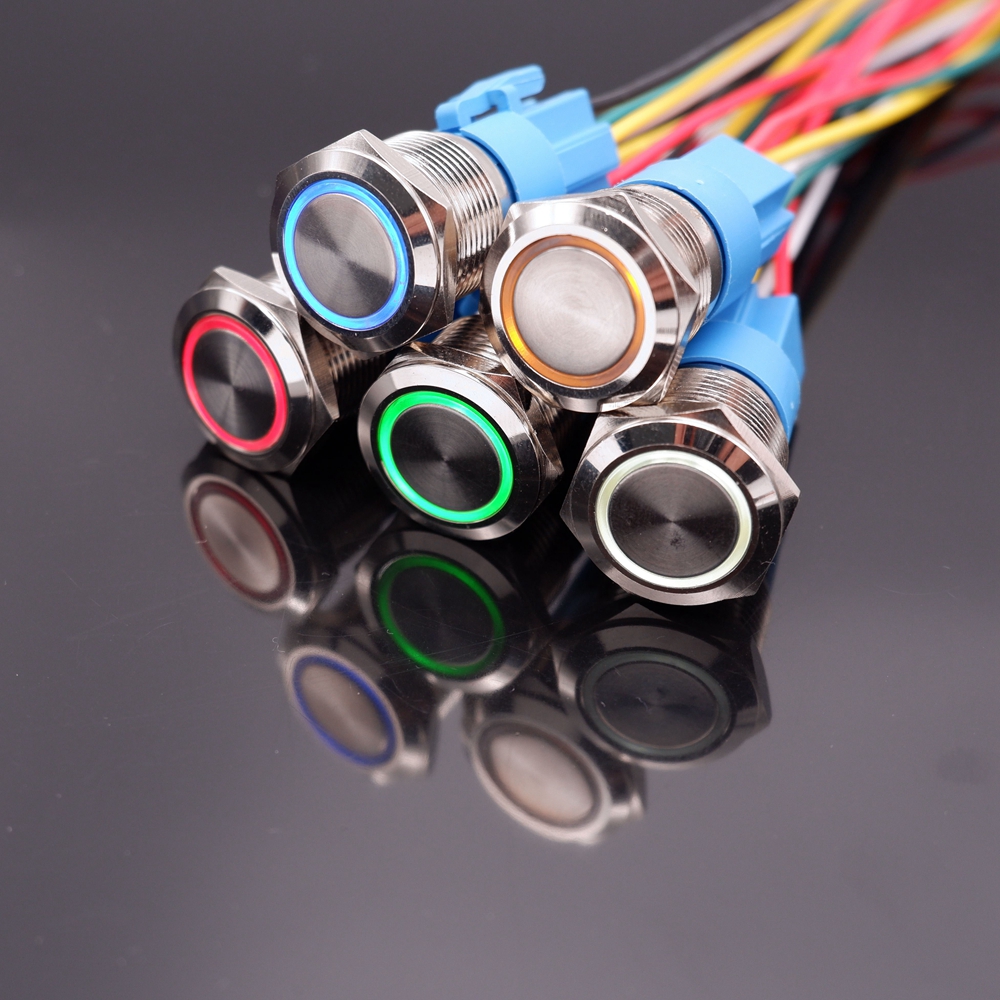

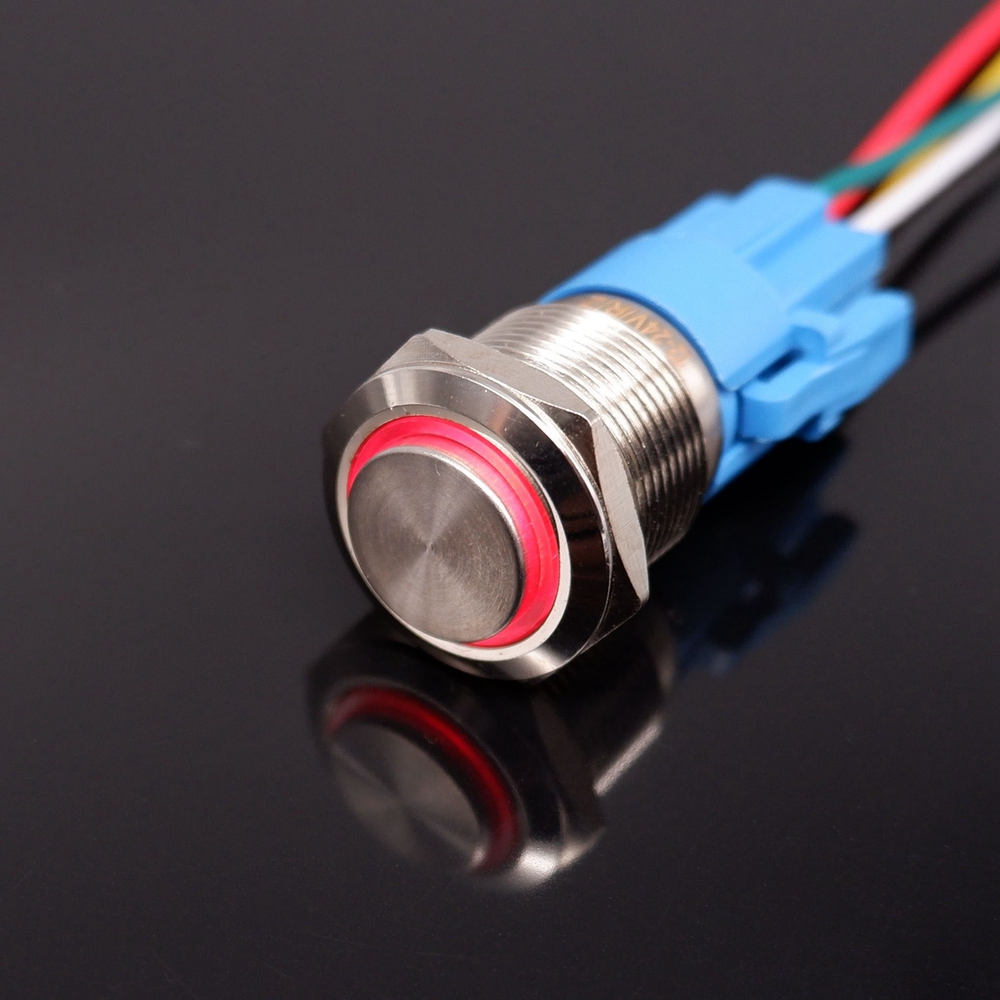

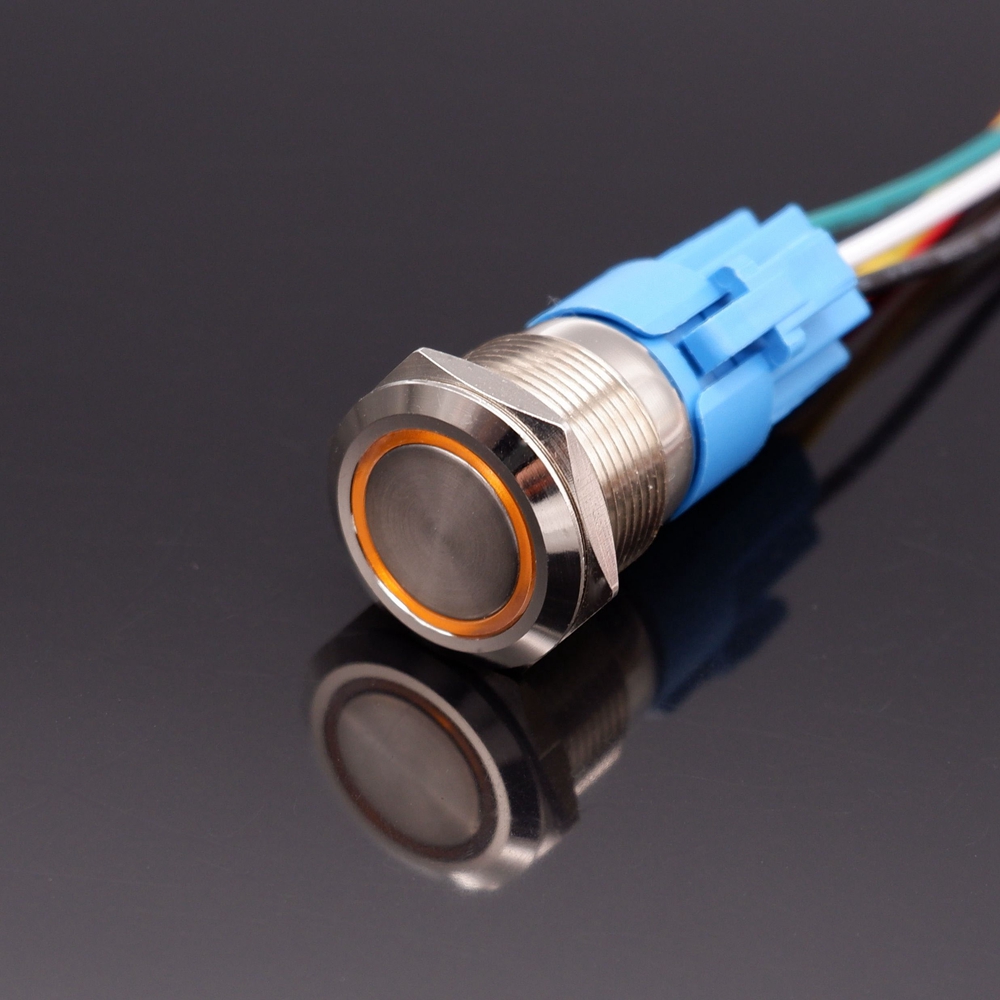

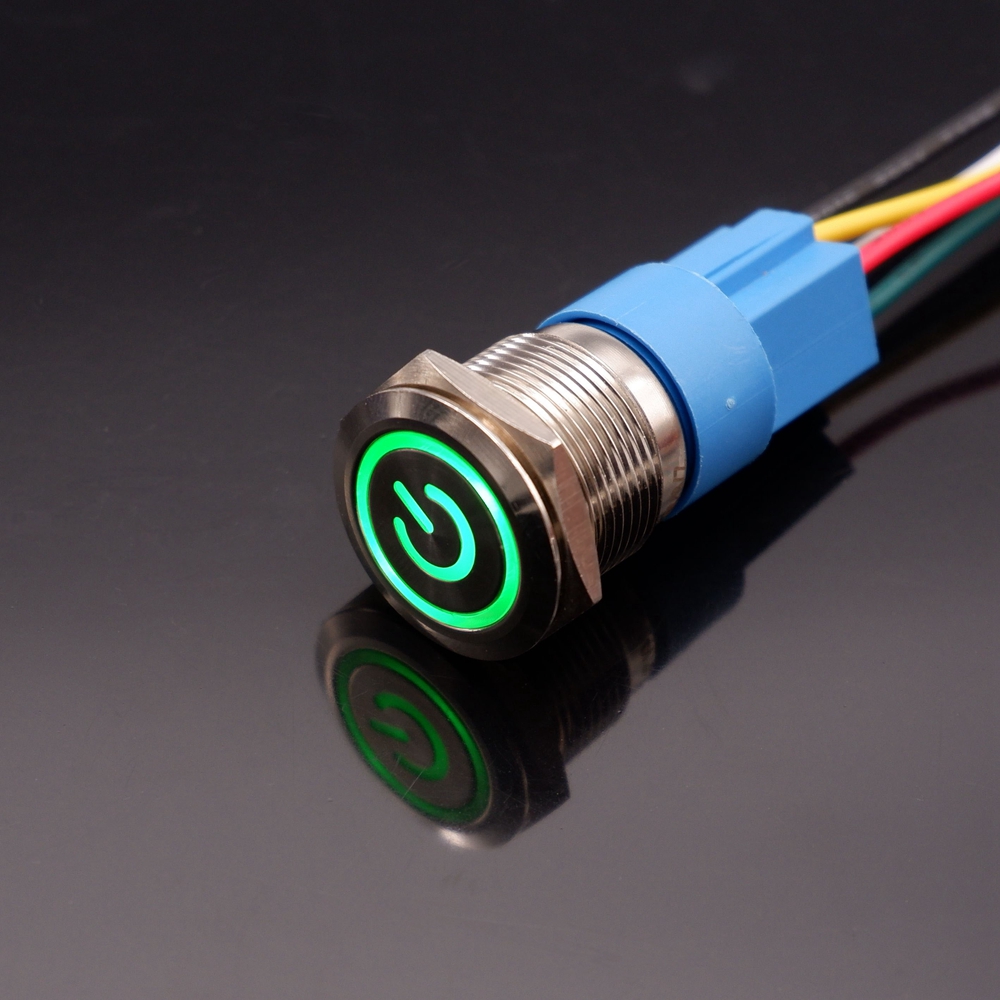

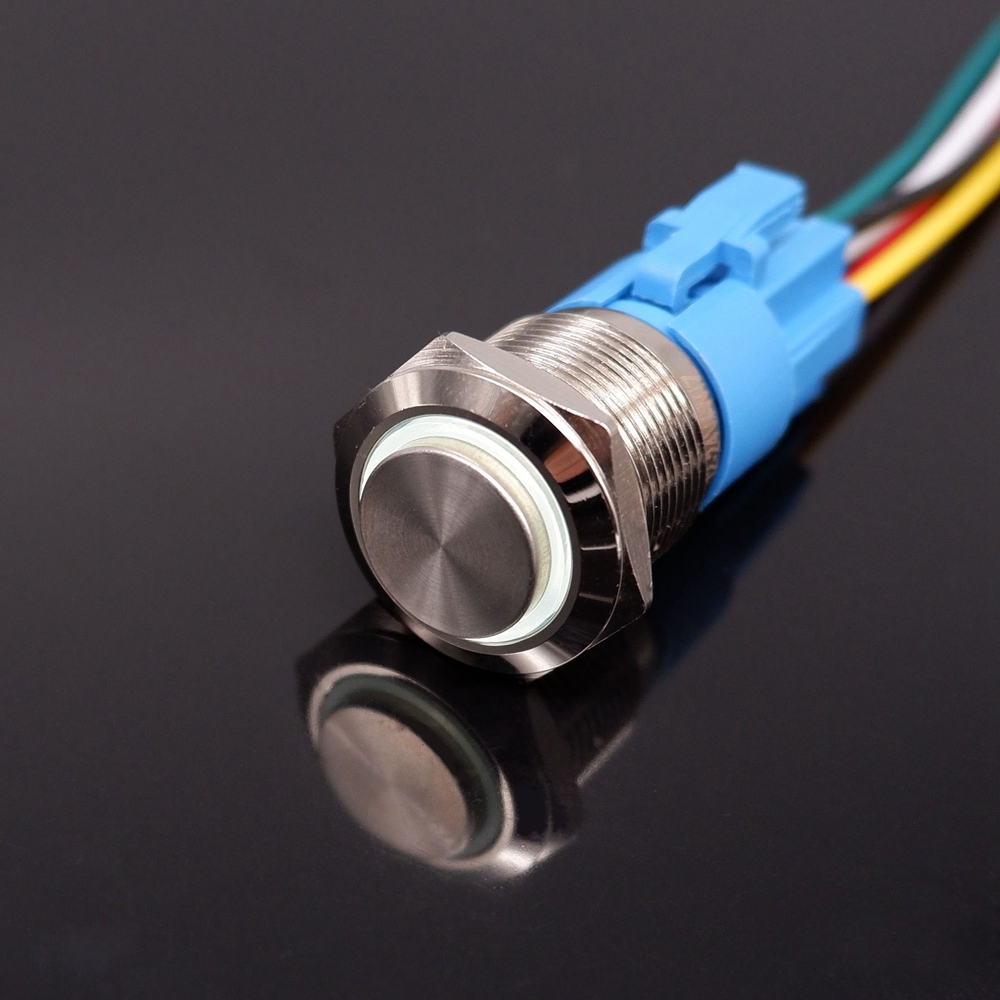

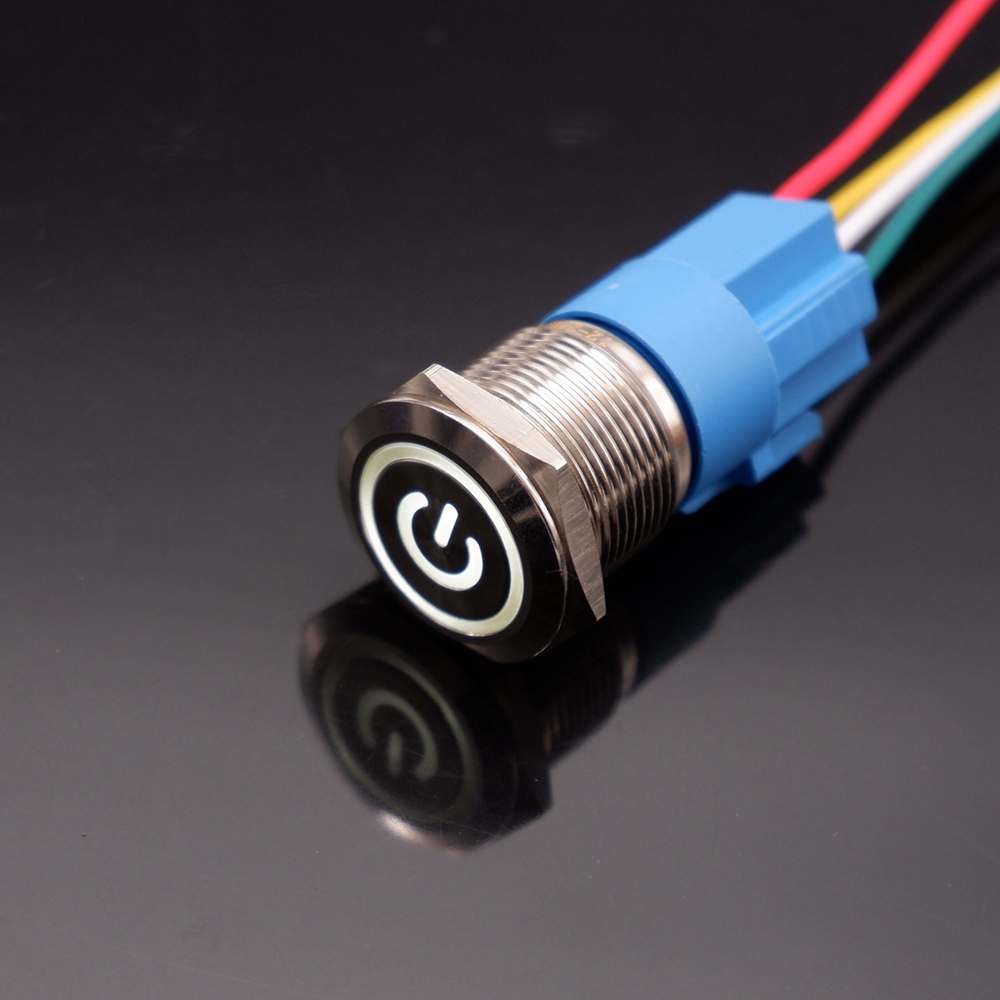

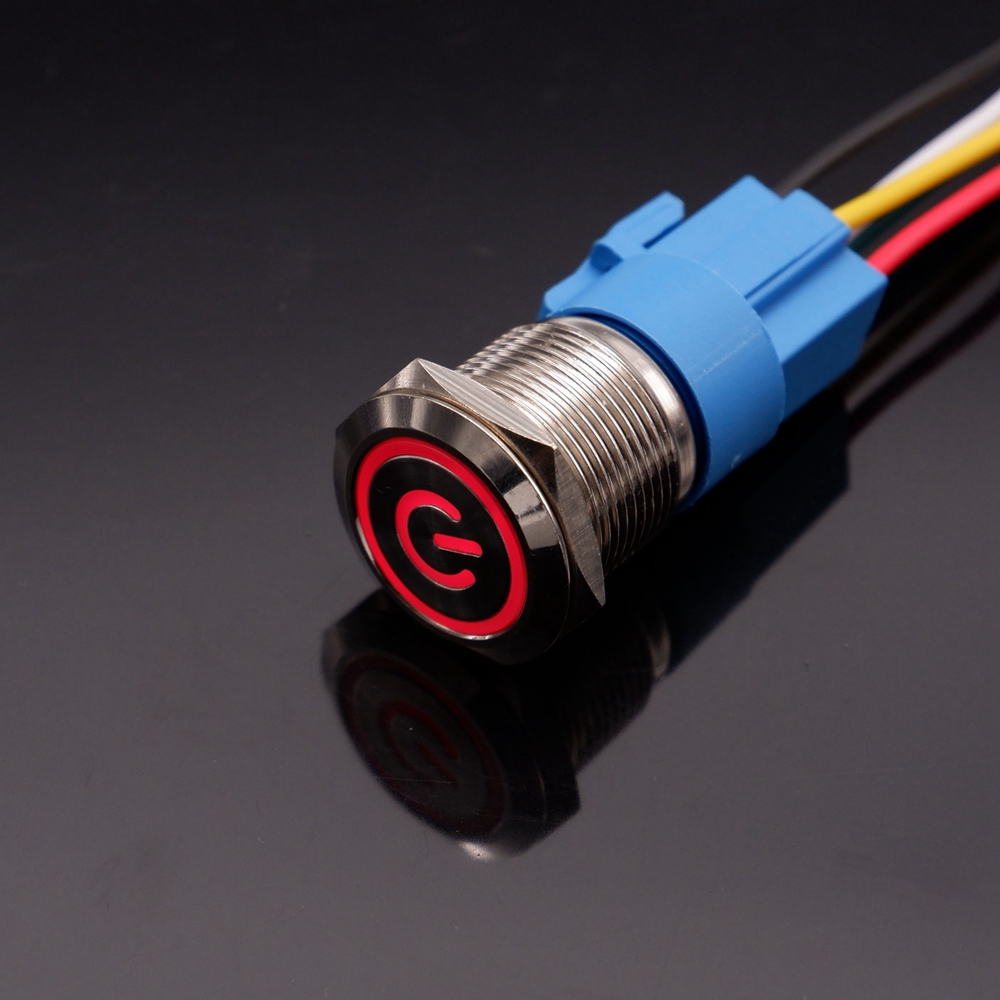

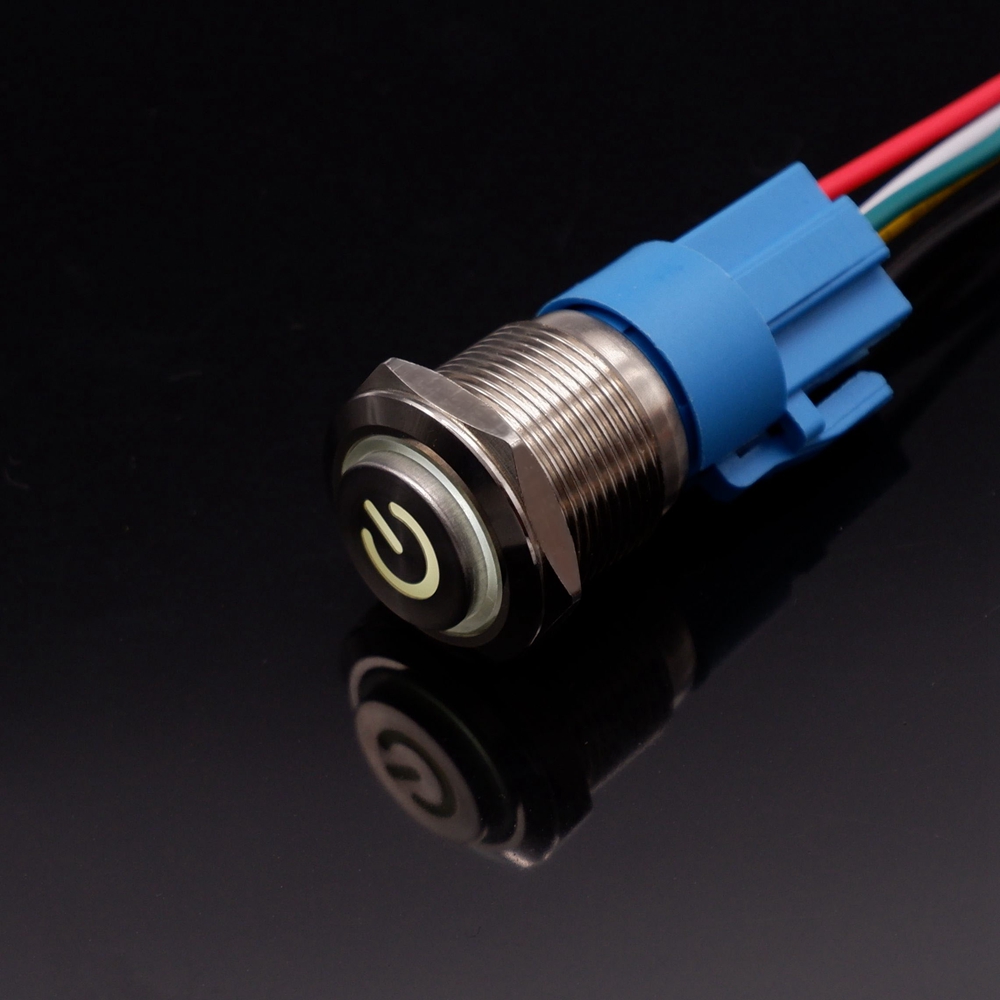

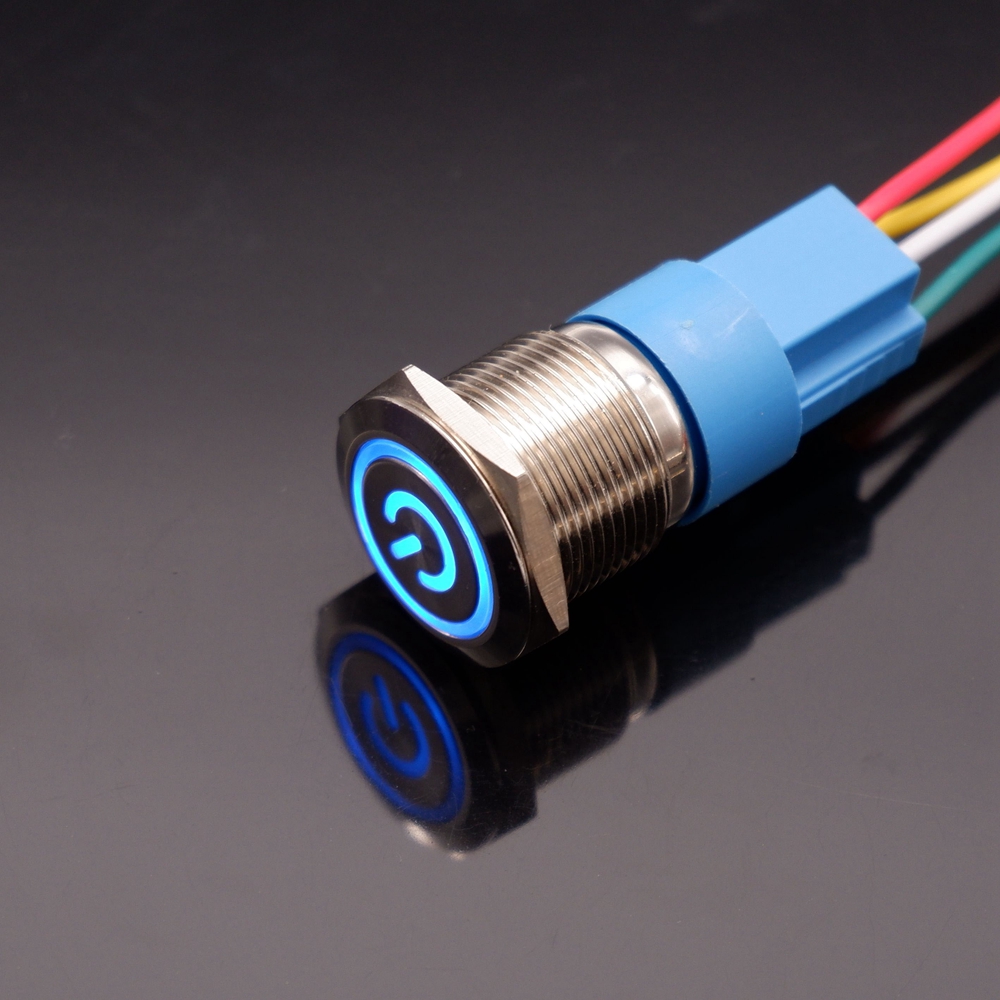

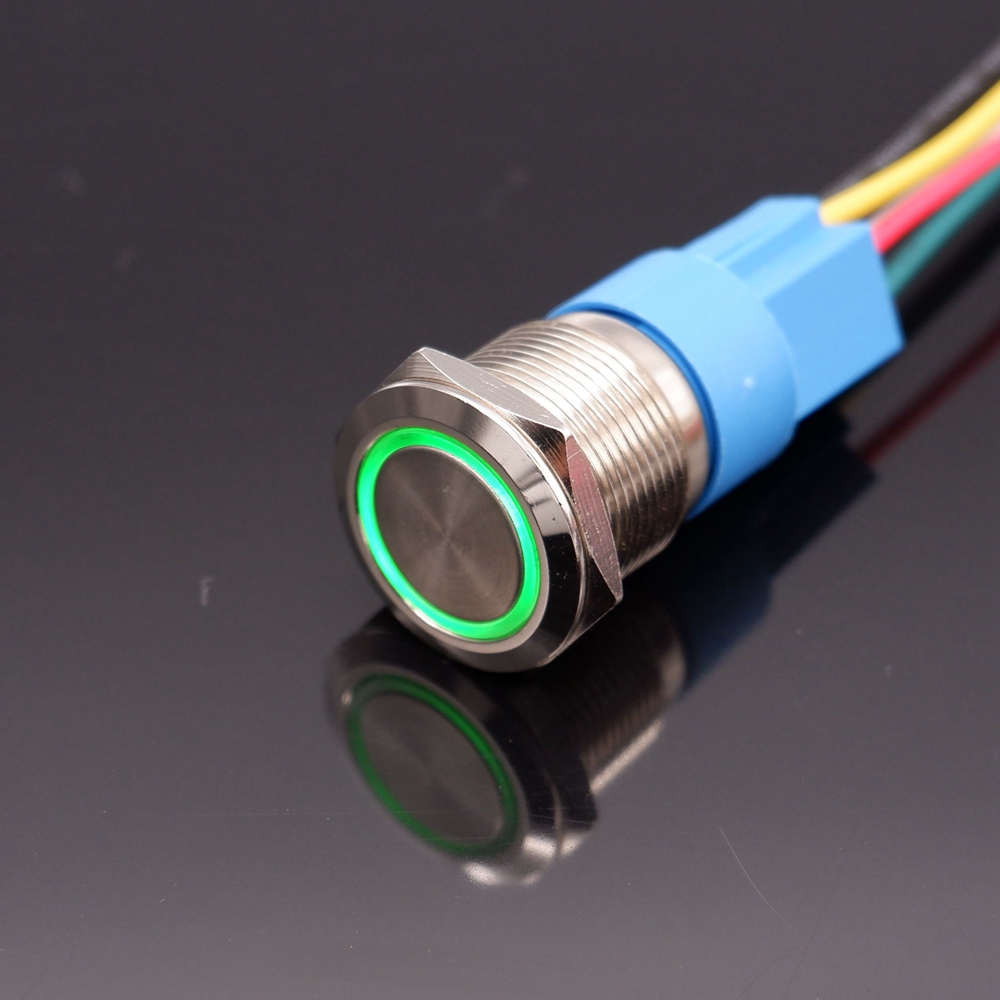

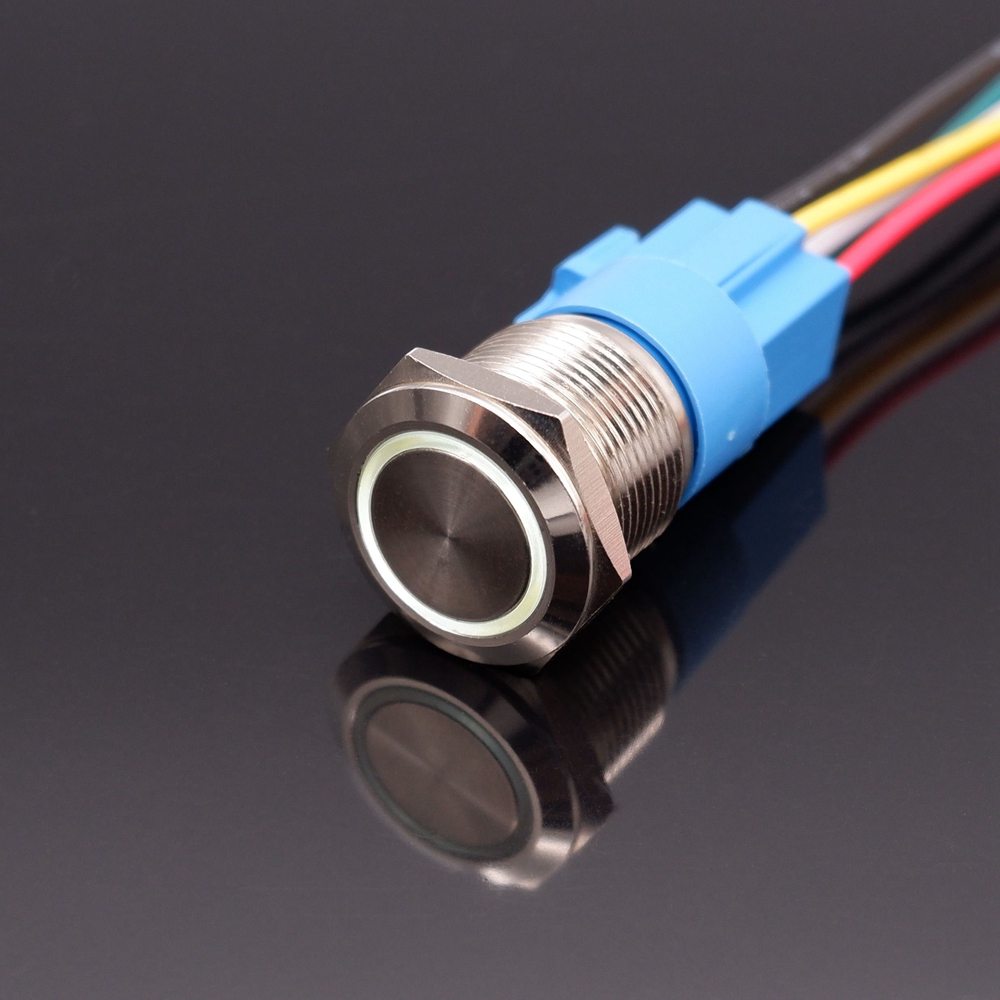

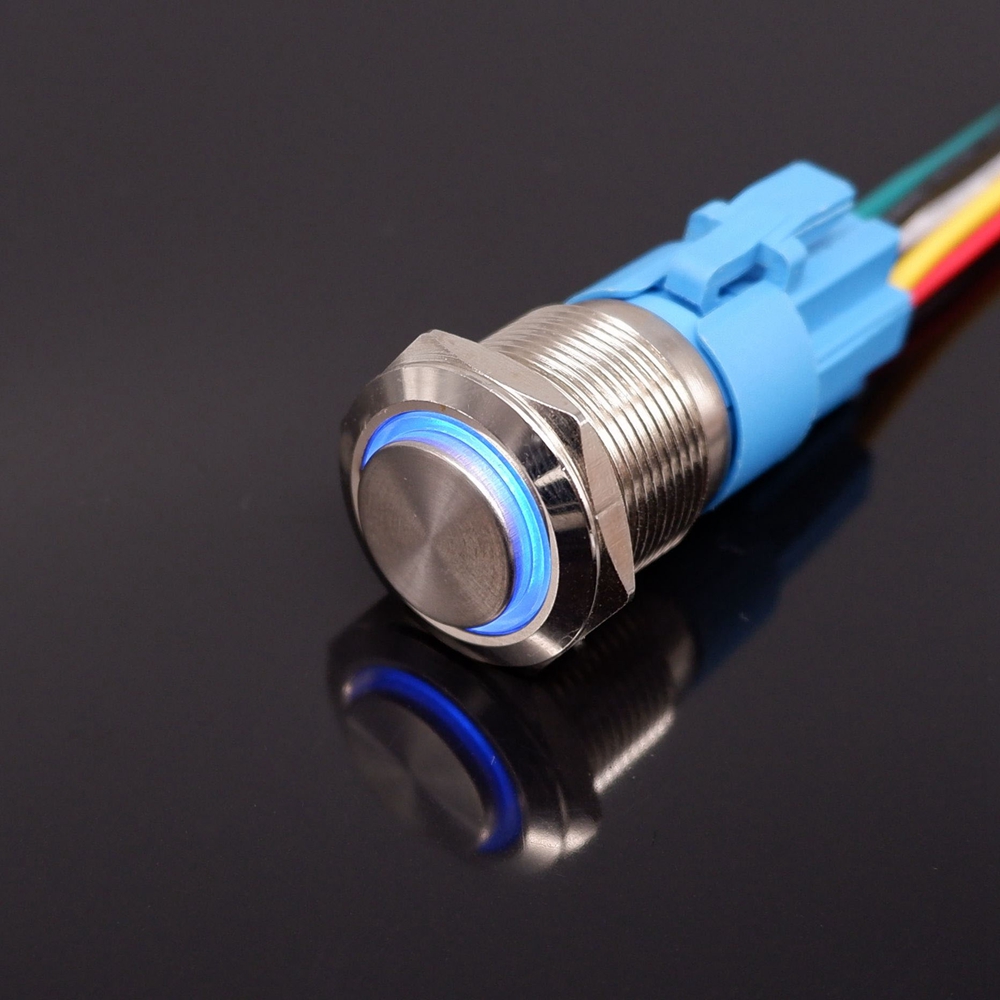

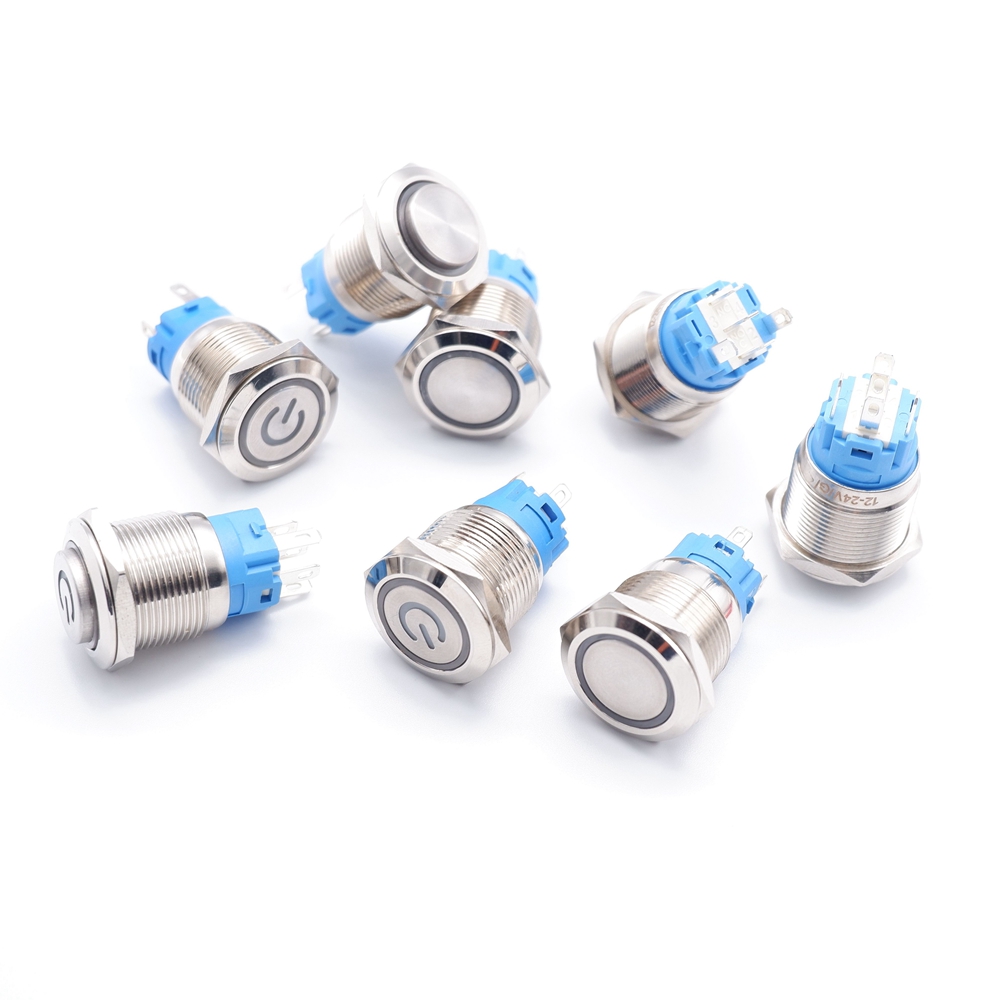

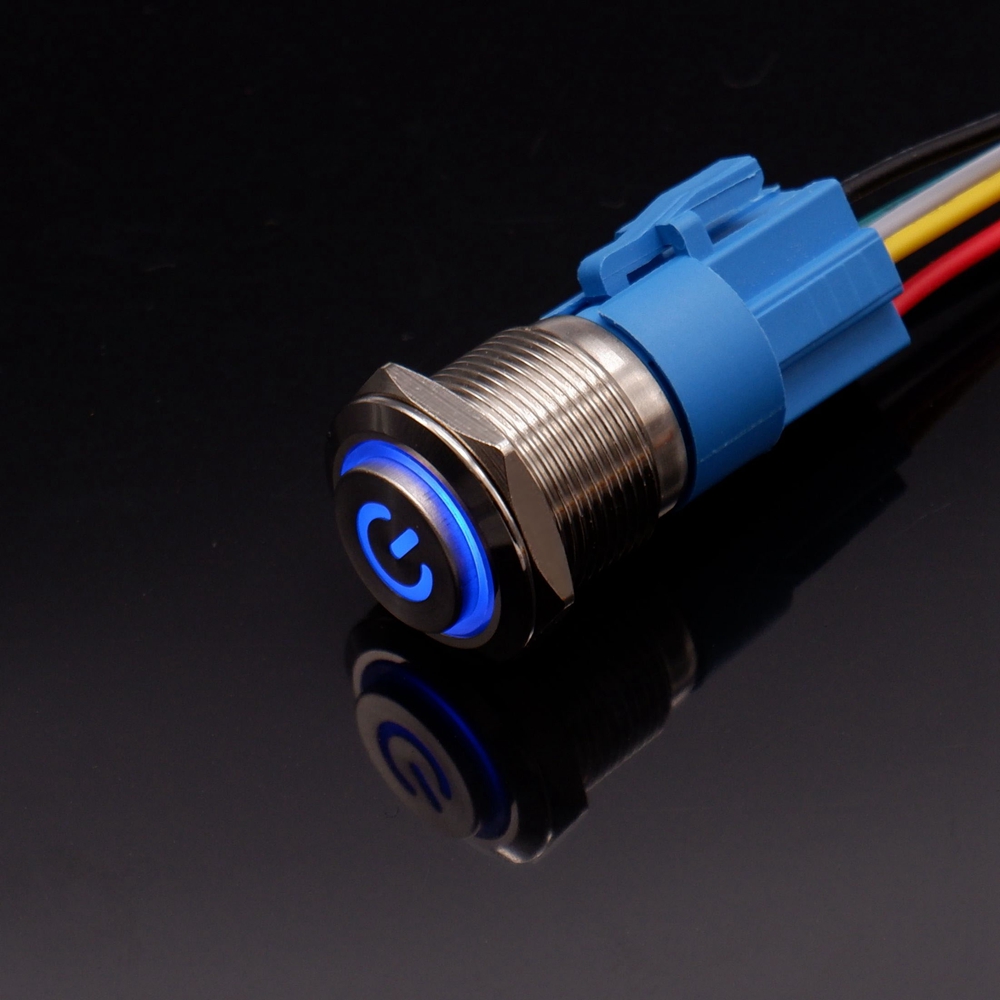

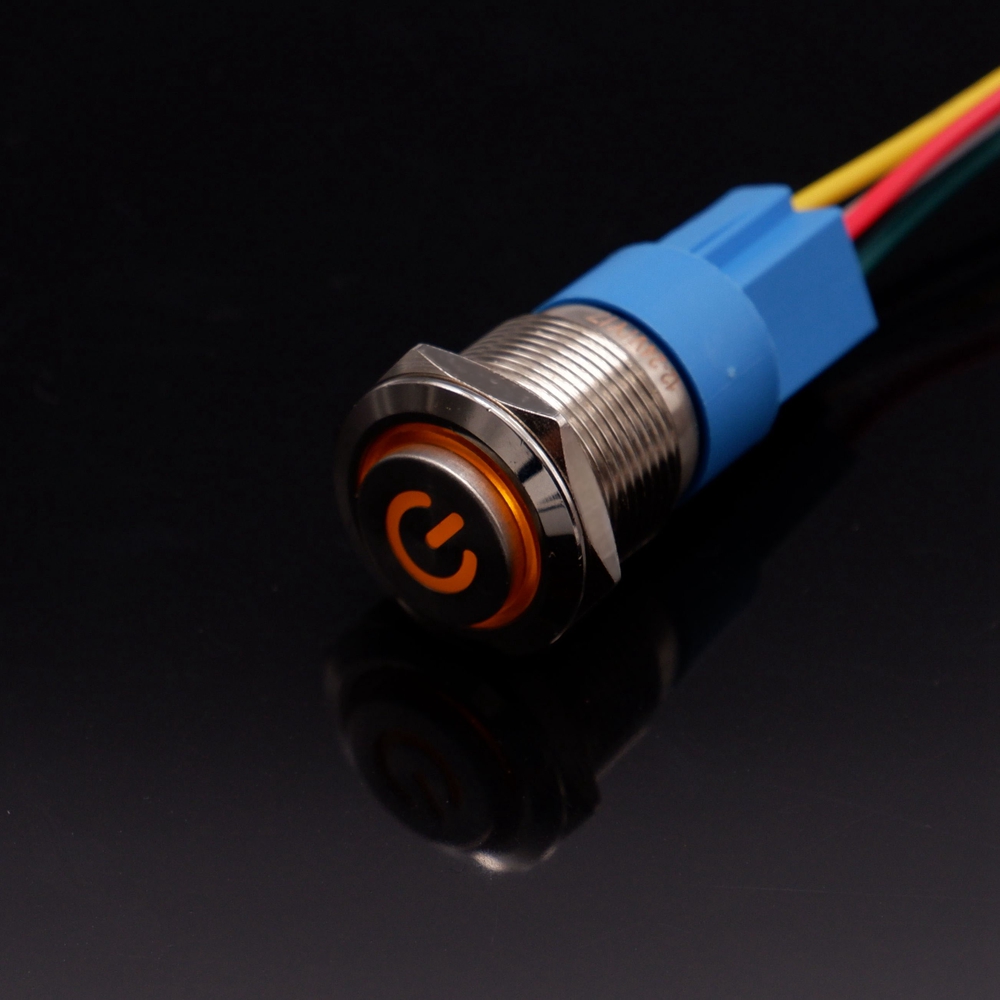

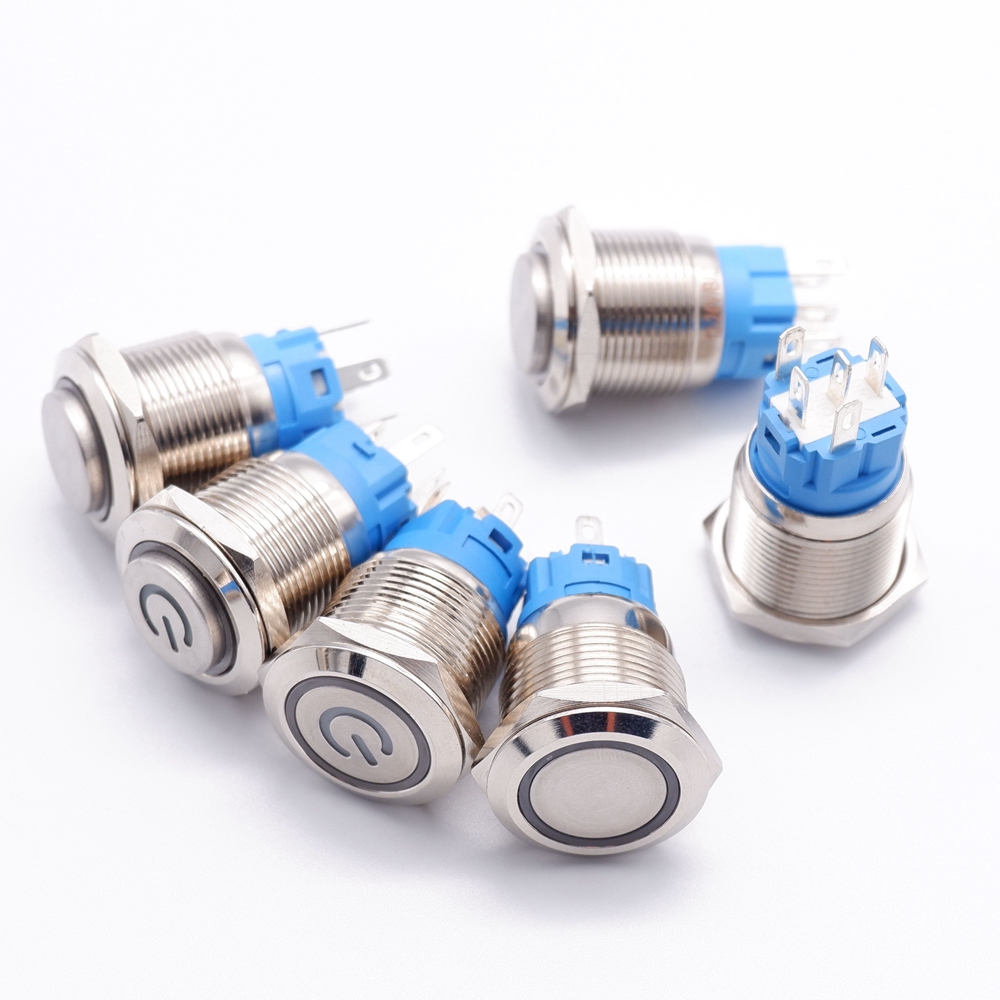

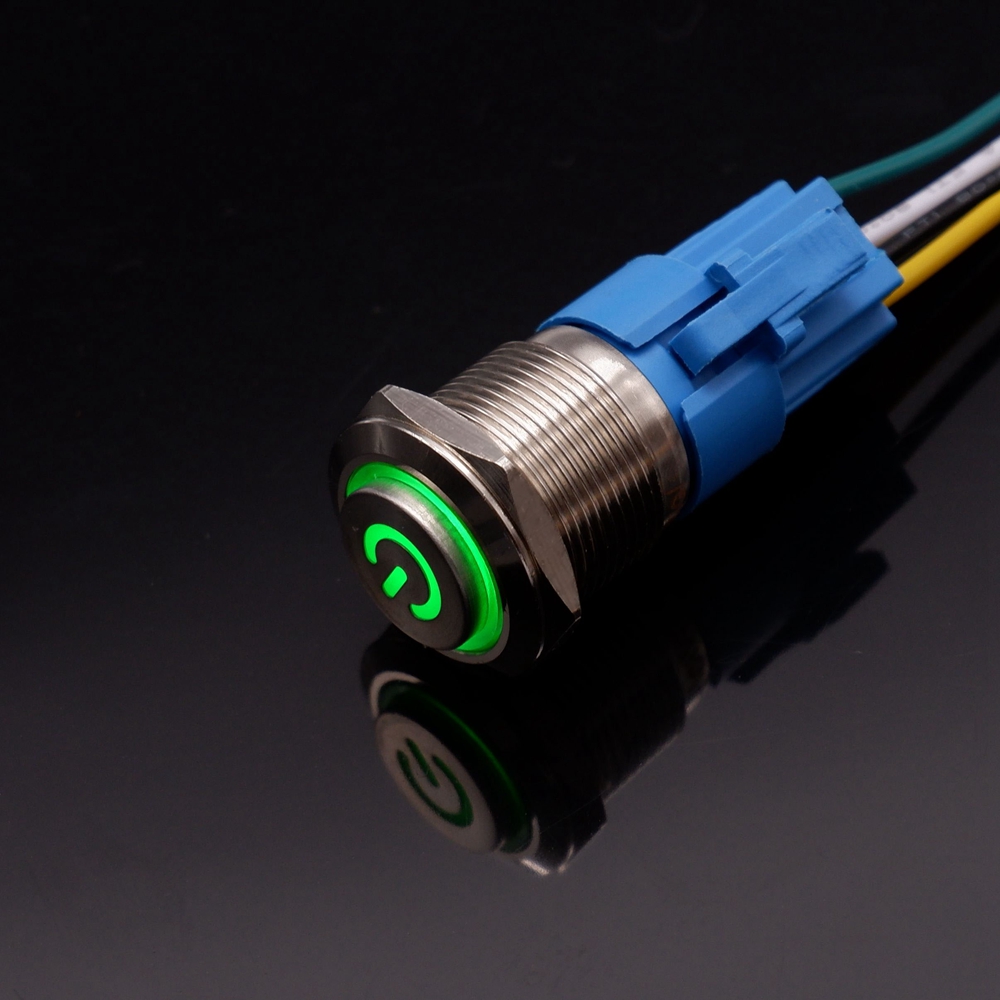

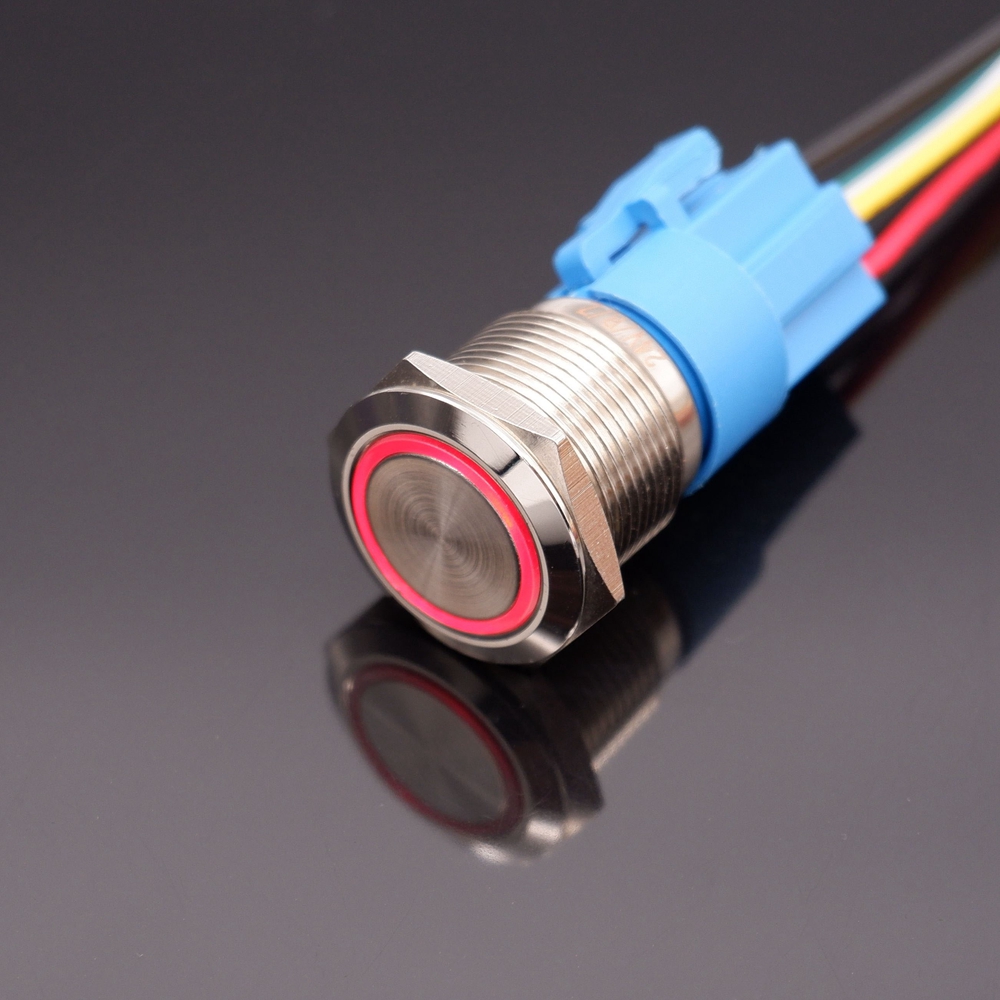

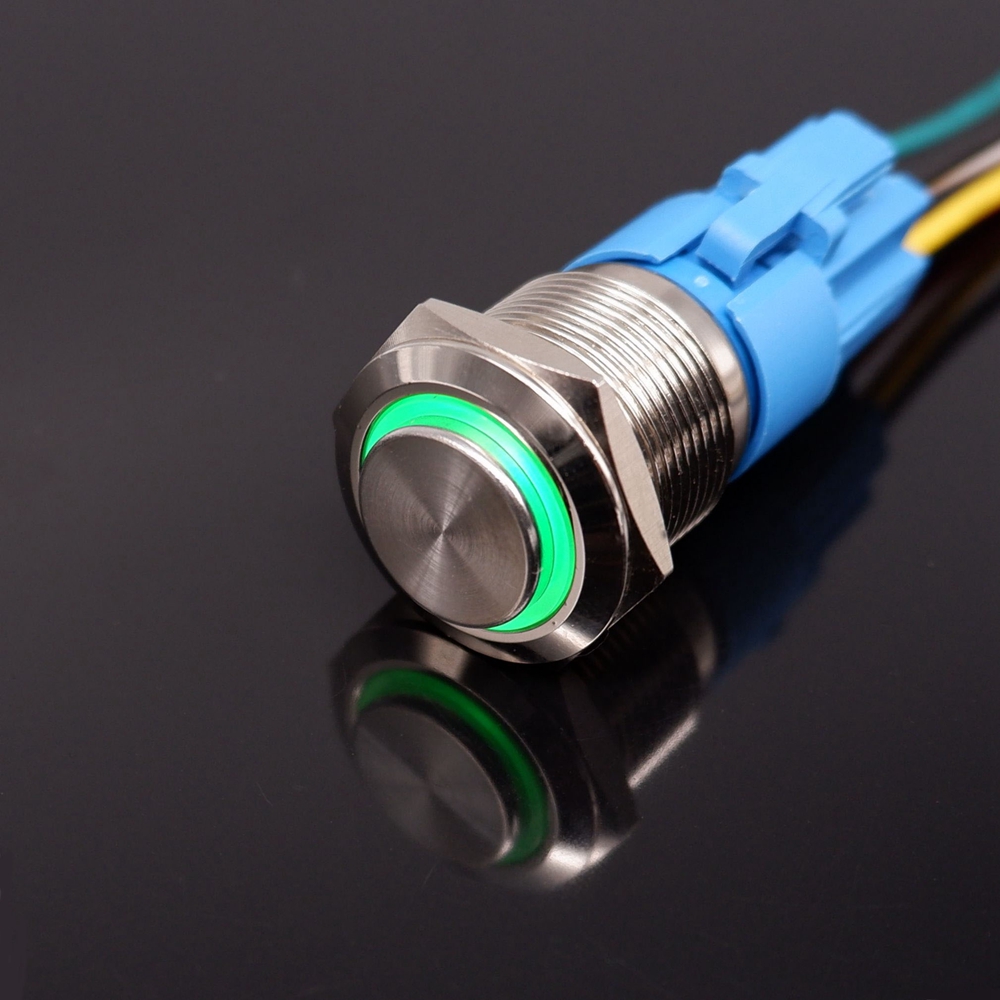

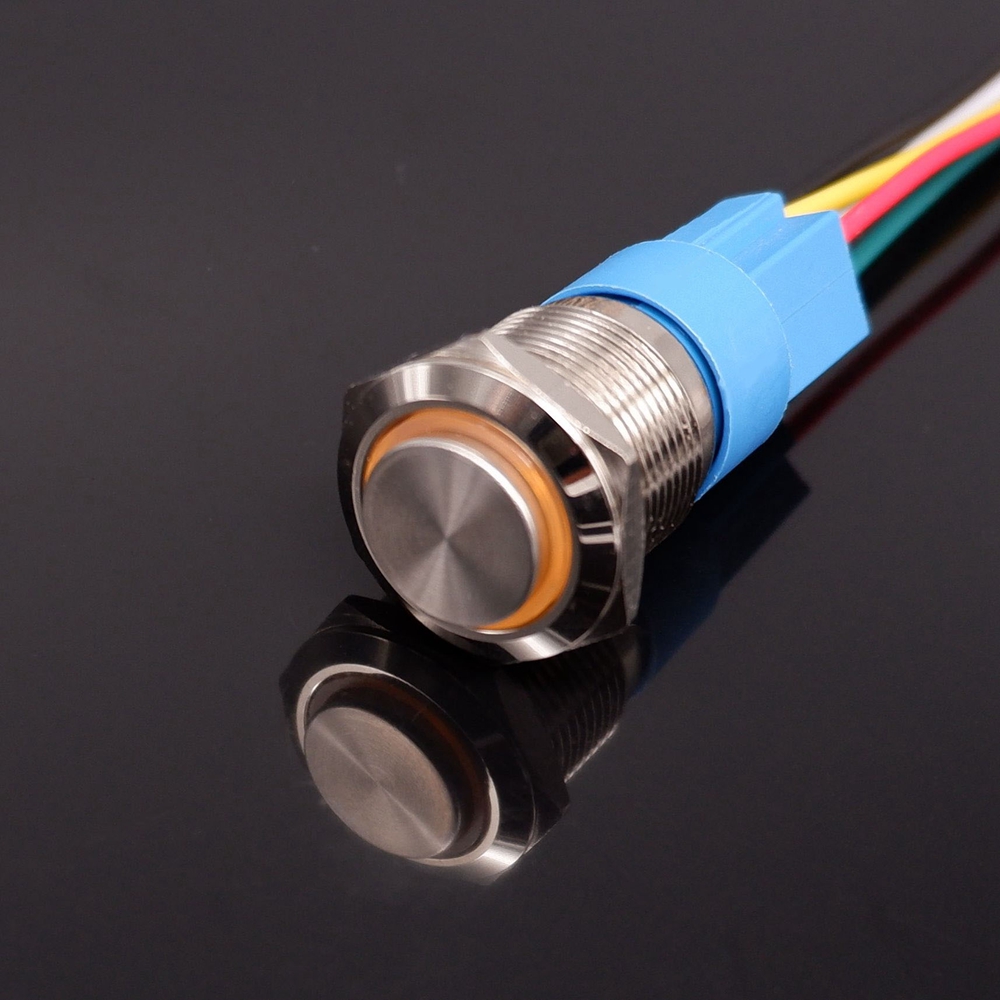

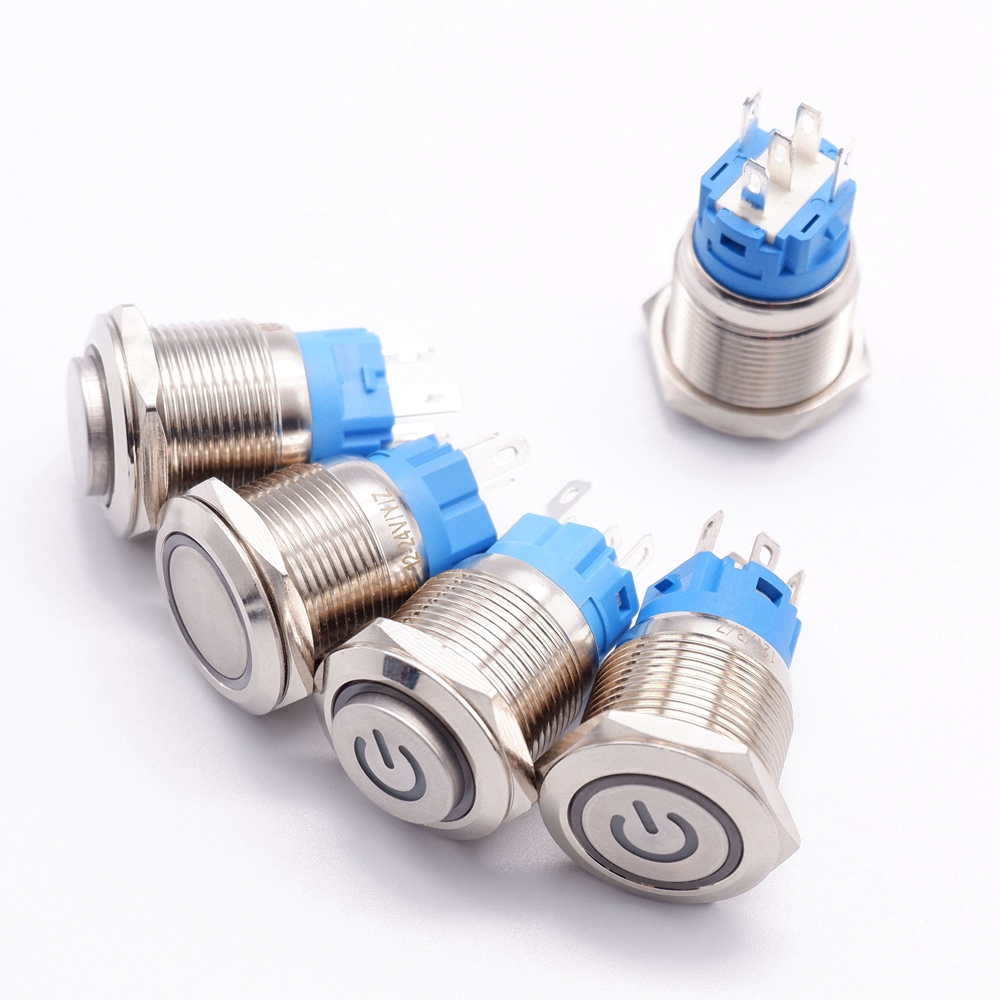

19mm Metal Push Button Switch Circular Power Button Waterproof LED Light Car Engine Power Switch Switch Instant Lock 6v 24v 220v
-
Estimated Delivery:May 26 - May 30
-
Free Shipping & Returns: On all orders over $75
Switch type:power switch button

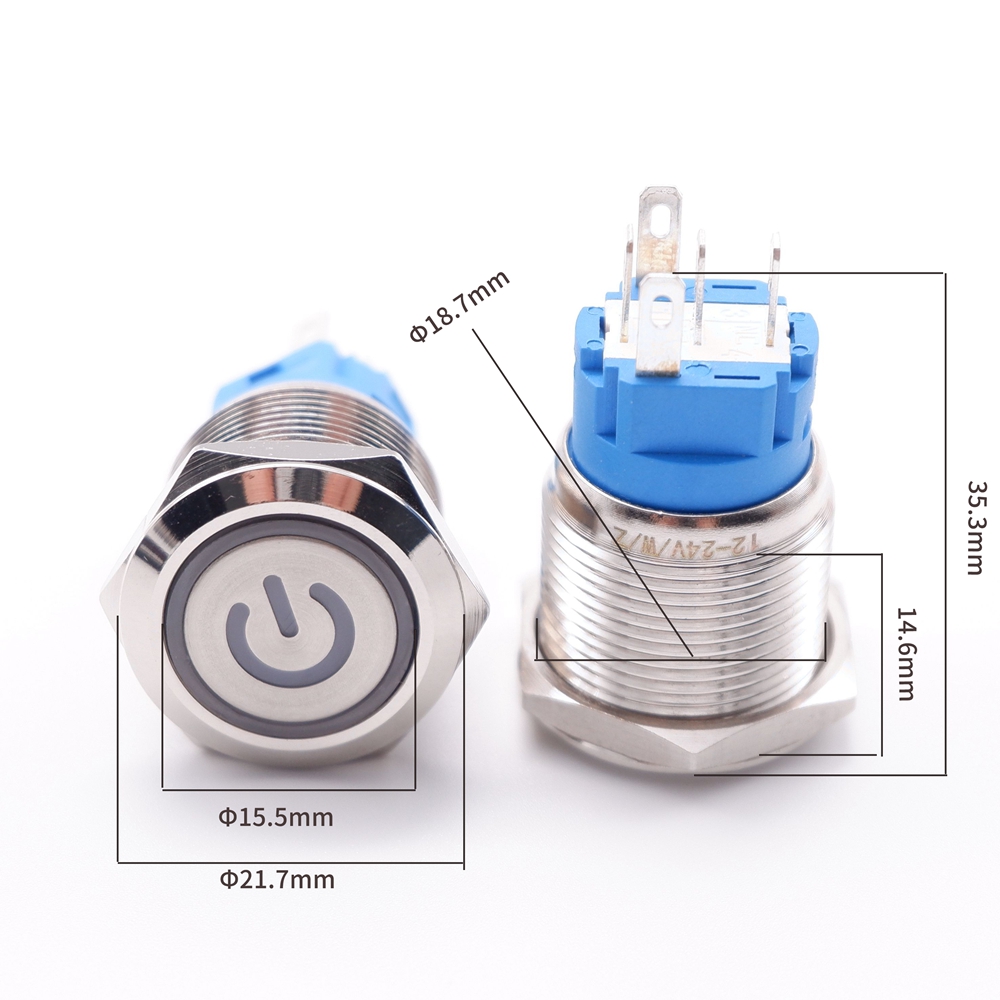

Hole diameter:19mm

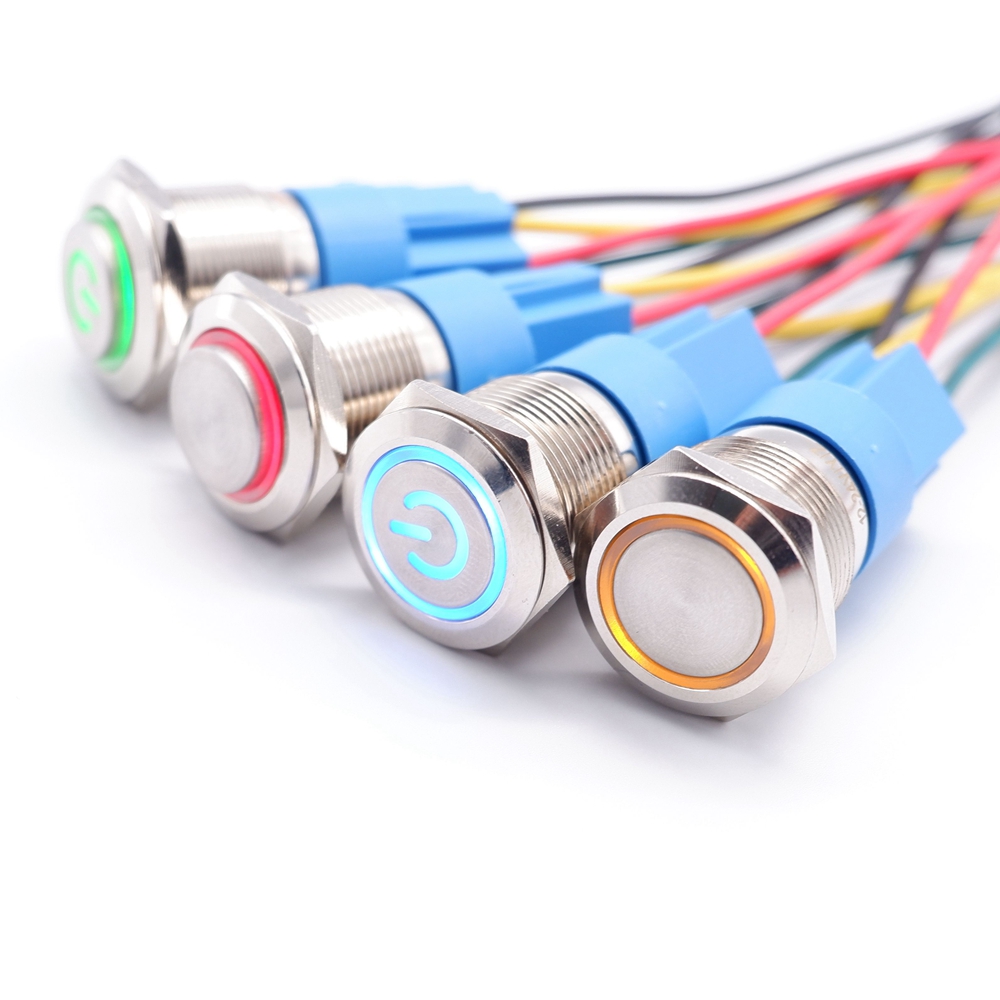

Led color:red/orange/green/blue/white
Shell color:silver
Operation method:Momentary self-reset/Latching self-locking
Led Voltage:3-6V/12-24V/110-220V
Maximum current:4A
Waterproof level:IP66
Contact type:1NO1NC
Due to manual measurement, please allow a little error.
Difference between Momentary self-reset and Latching self-locking:
1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
2.Latching self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.(Like a light switch.Press it-power on, press it again-power off.)

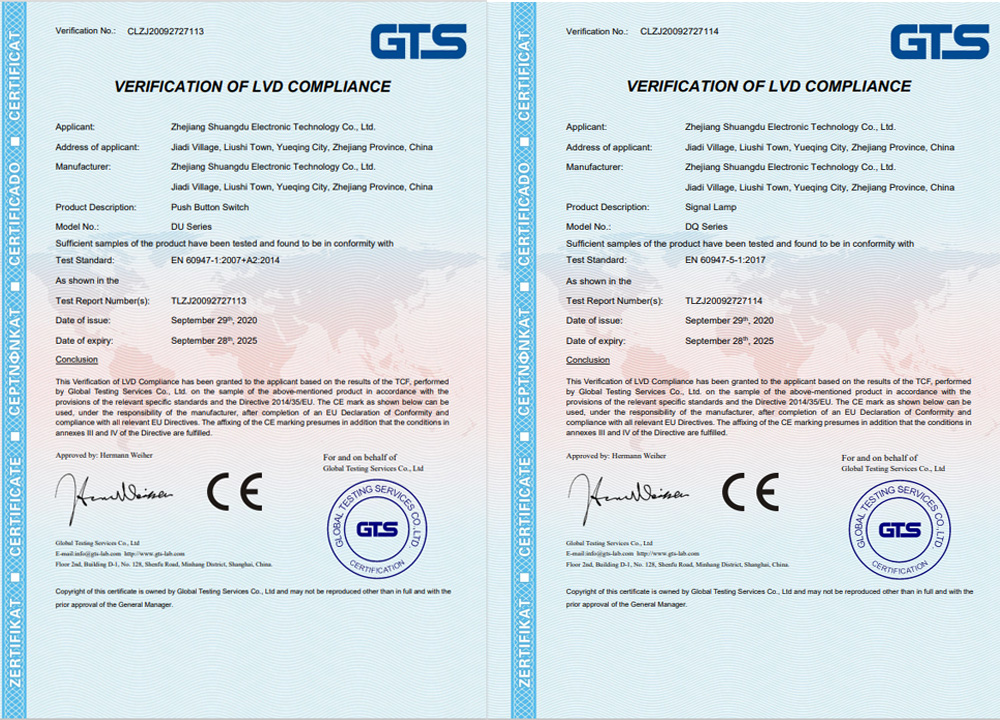

Certificate
Wiring Instructions
1.What does the signal “C”、"NC" and "NO" means?
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.Do lights and switches have electrodes?
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

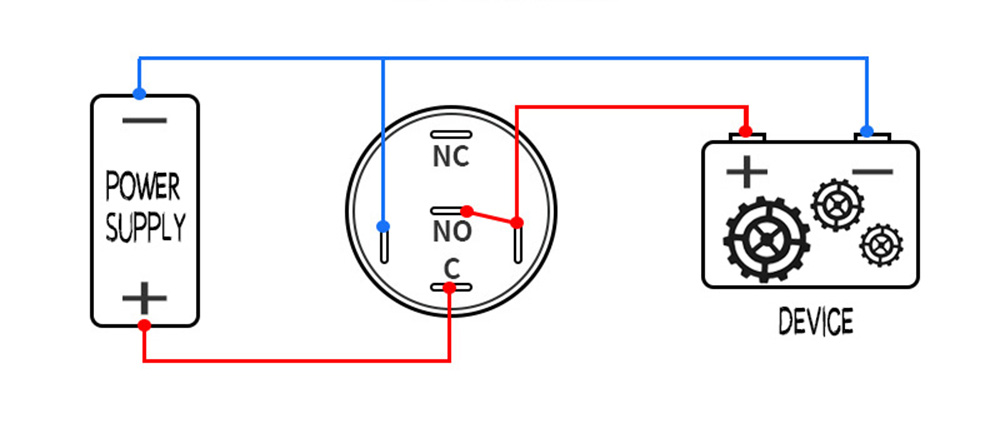

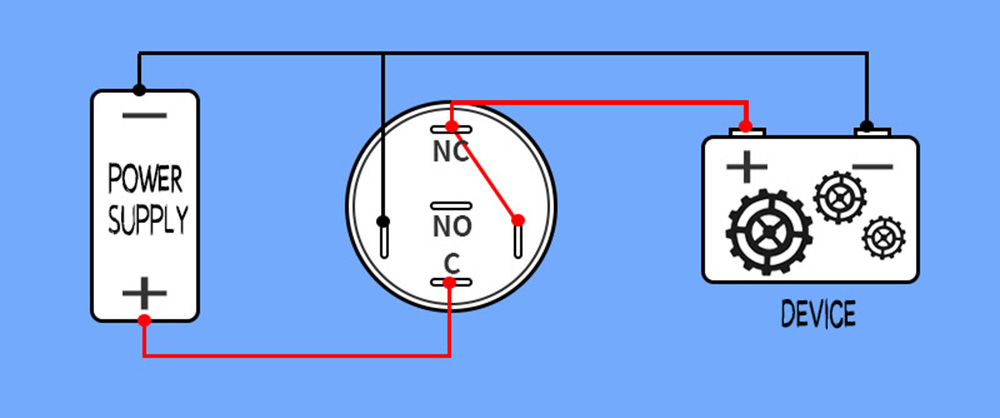

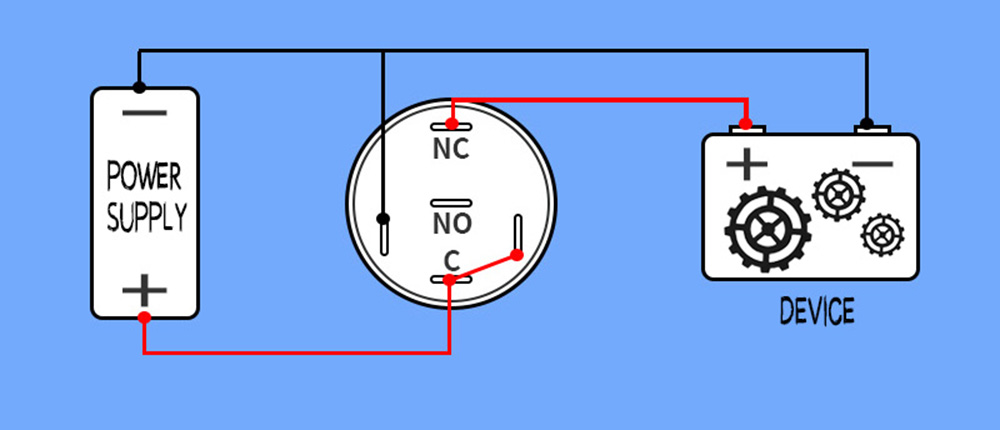

Wiring Diagram
1、The button turns the LED light on and off，the circuit is alway open unless press the button.
2、LED lights are always on，the circuit is alway open unless press the button.
3、 The button turns the LED light on and off，the circuit is alway close unless press the button.
4、LED lights are always on，the circuit is alway close unless press the button.
