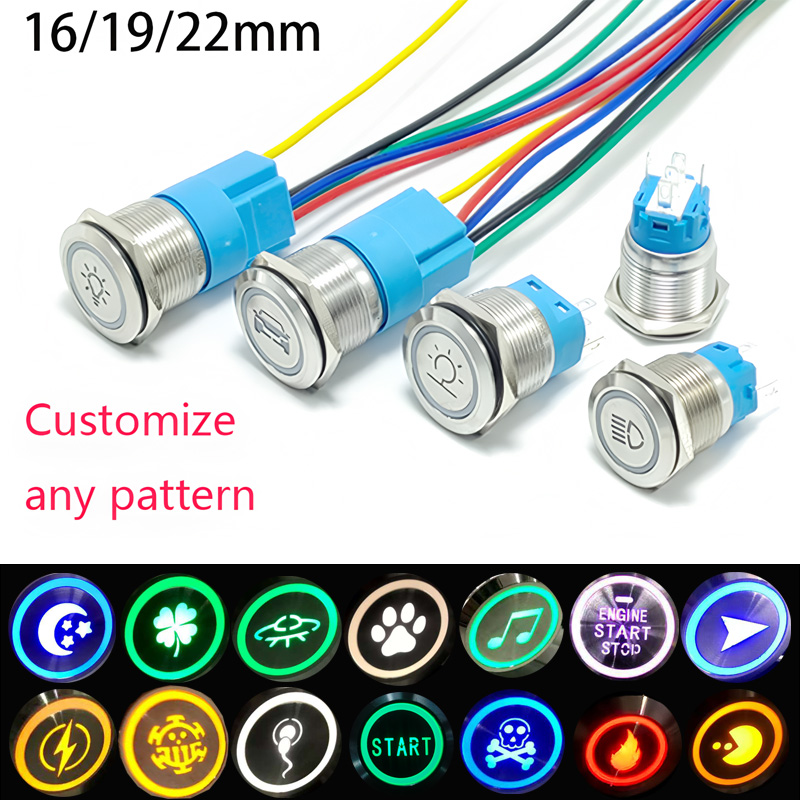

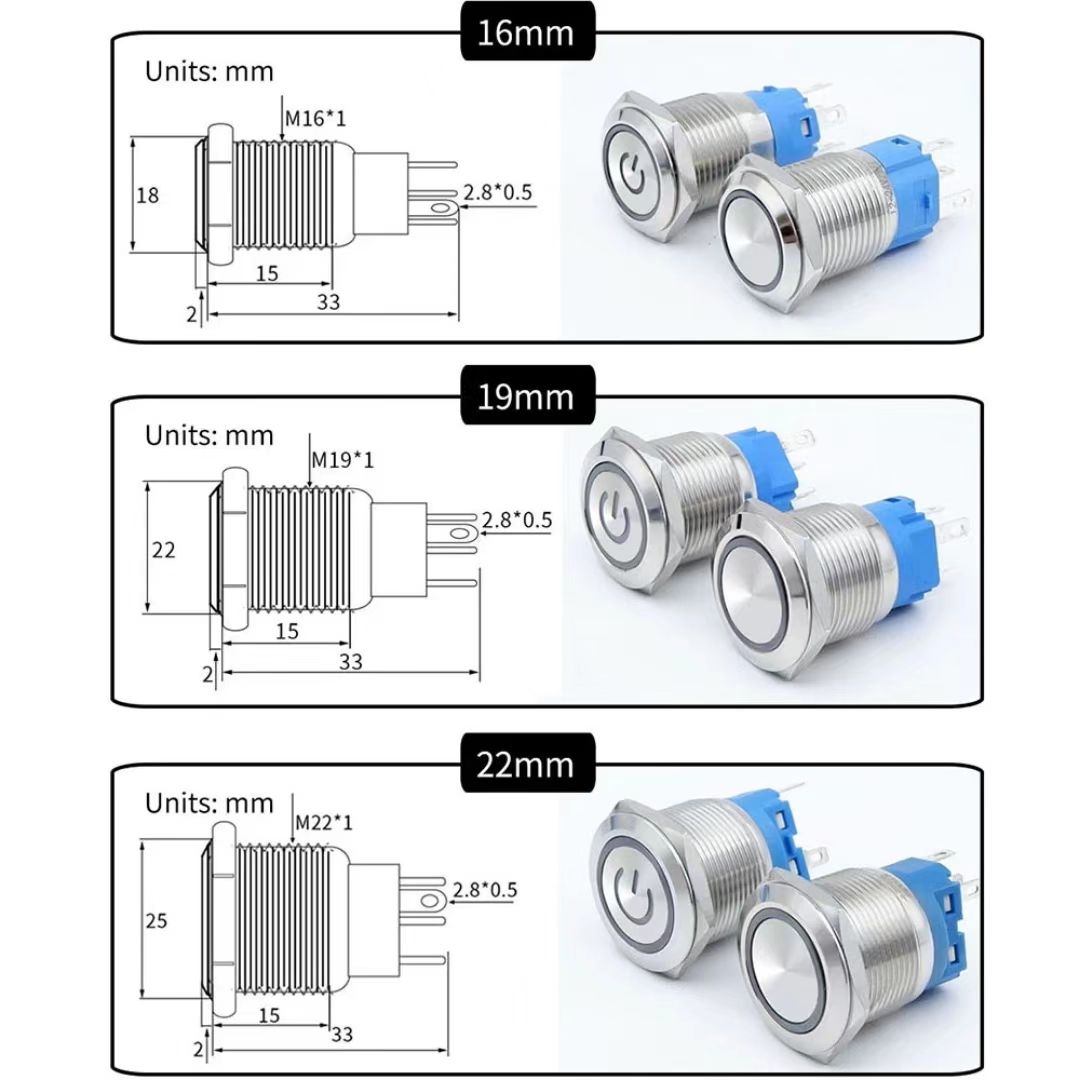

16mm 19mm 22mm Custom Metal Push Button Switch Silver LED lamp Waterproof 12V 24V Start Light For Car Fog Switch Motorcycle
-
Estimated Delivery:Oct 25 - Oct 29
-
Free Shipping & Returns: On all orders over $75
Wiring Instructions
1.What does the signal “C”、"NC" and "NO" means?
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.Do lights and switches have electrodes?
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

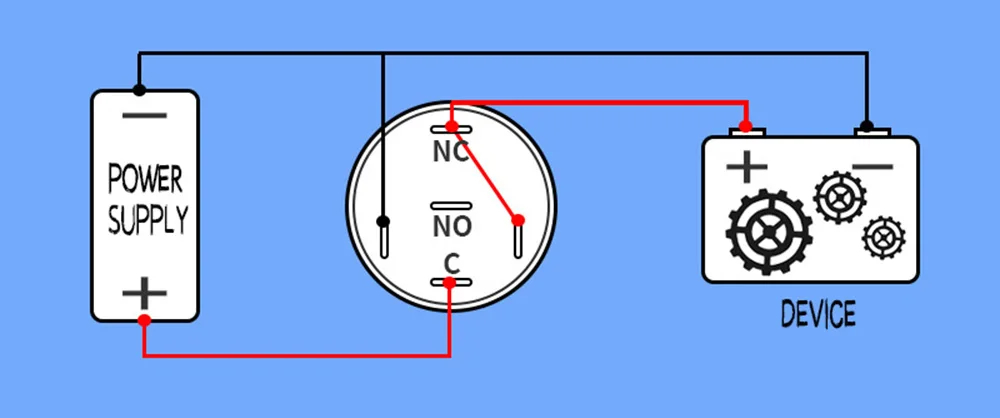

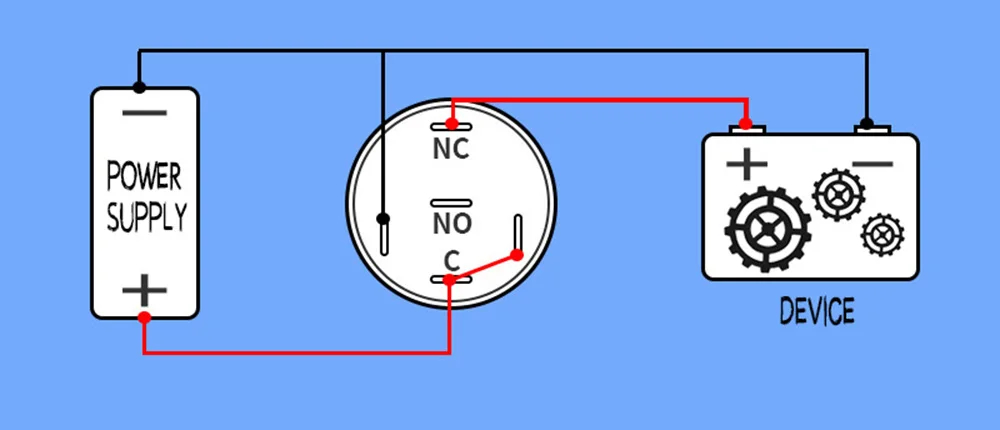

Wiring Diagram（16mm/19mm/22mm）

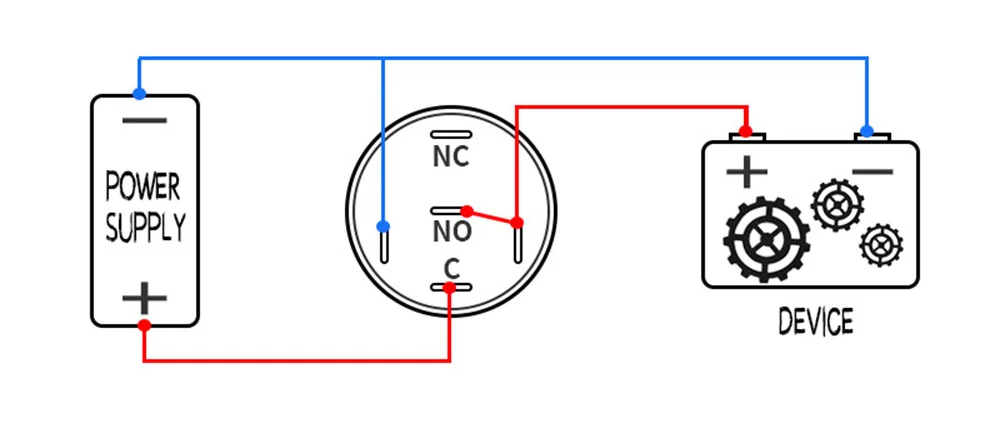

1、The button turns the LED light on and off，the circuit is alway open unless press the button.

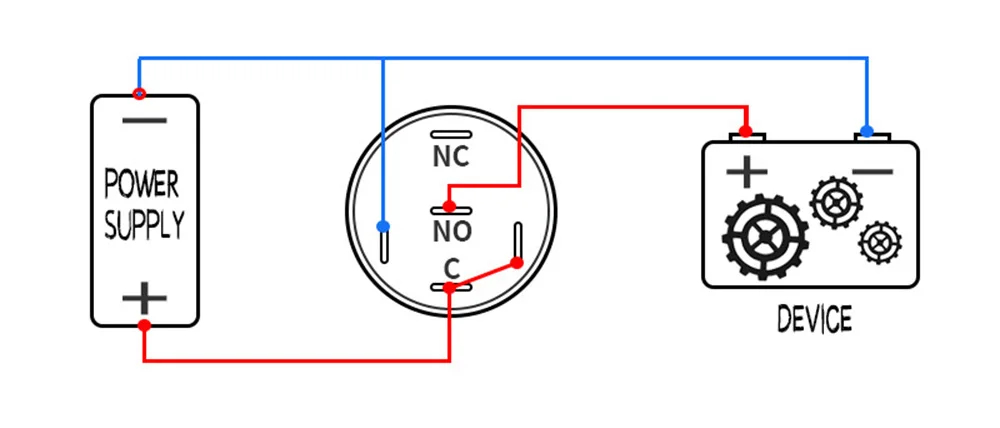

2、LED lights are always on，the circuit is alway open unless press the button.
3、 The button turns the LED light on and off，the circuit is alway close unless press the button.
4、LED lights are always on，the circuit is alway close unless press the button.
