12mm Momentary and Latching NO Waterproof IP67 Types Special Symbol Push Button Car Switch 3V 6V 12V 24V 220V On Off
-
Estimated Delivery:May 26 - May 30
-
Free Shipping & Returns: On all orders over $75

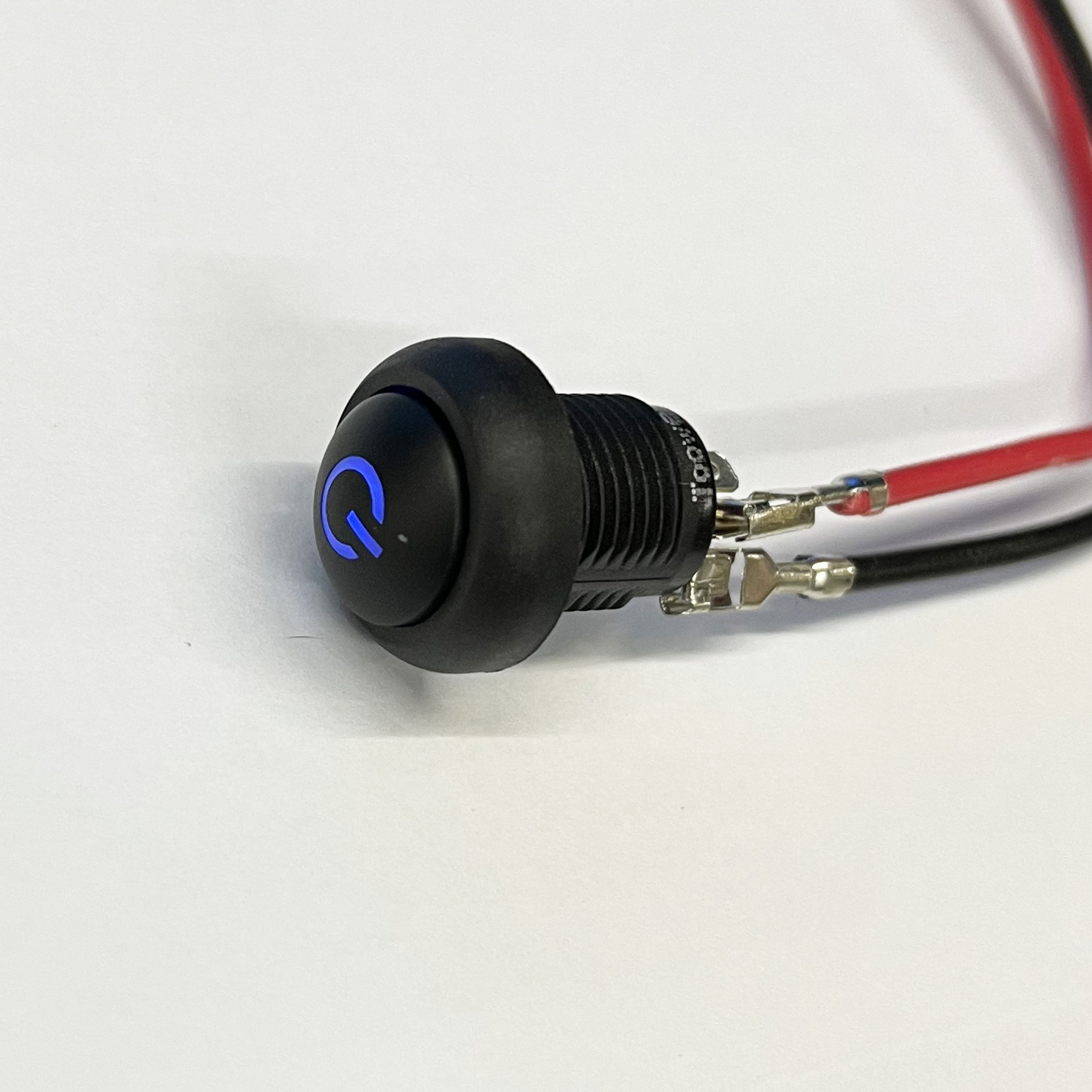

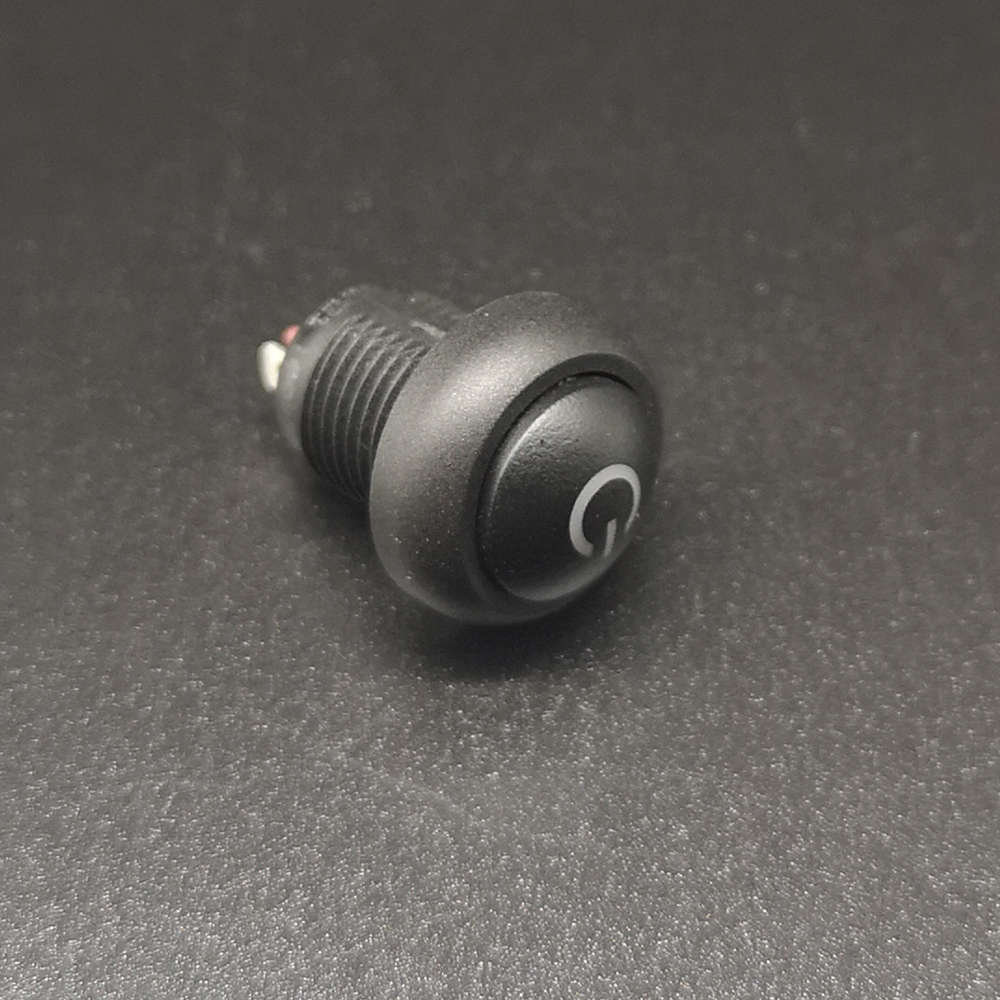

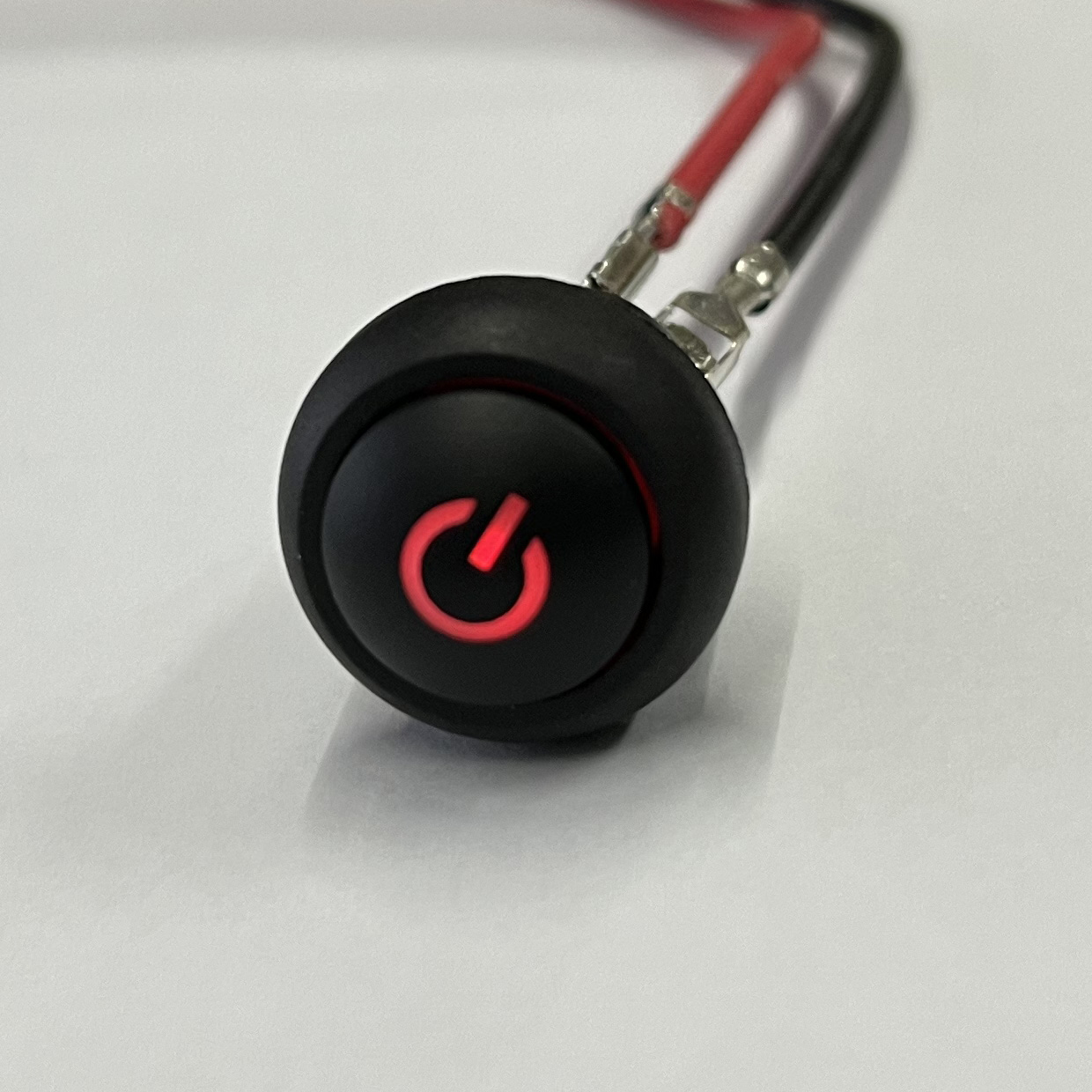

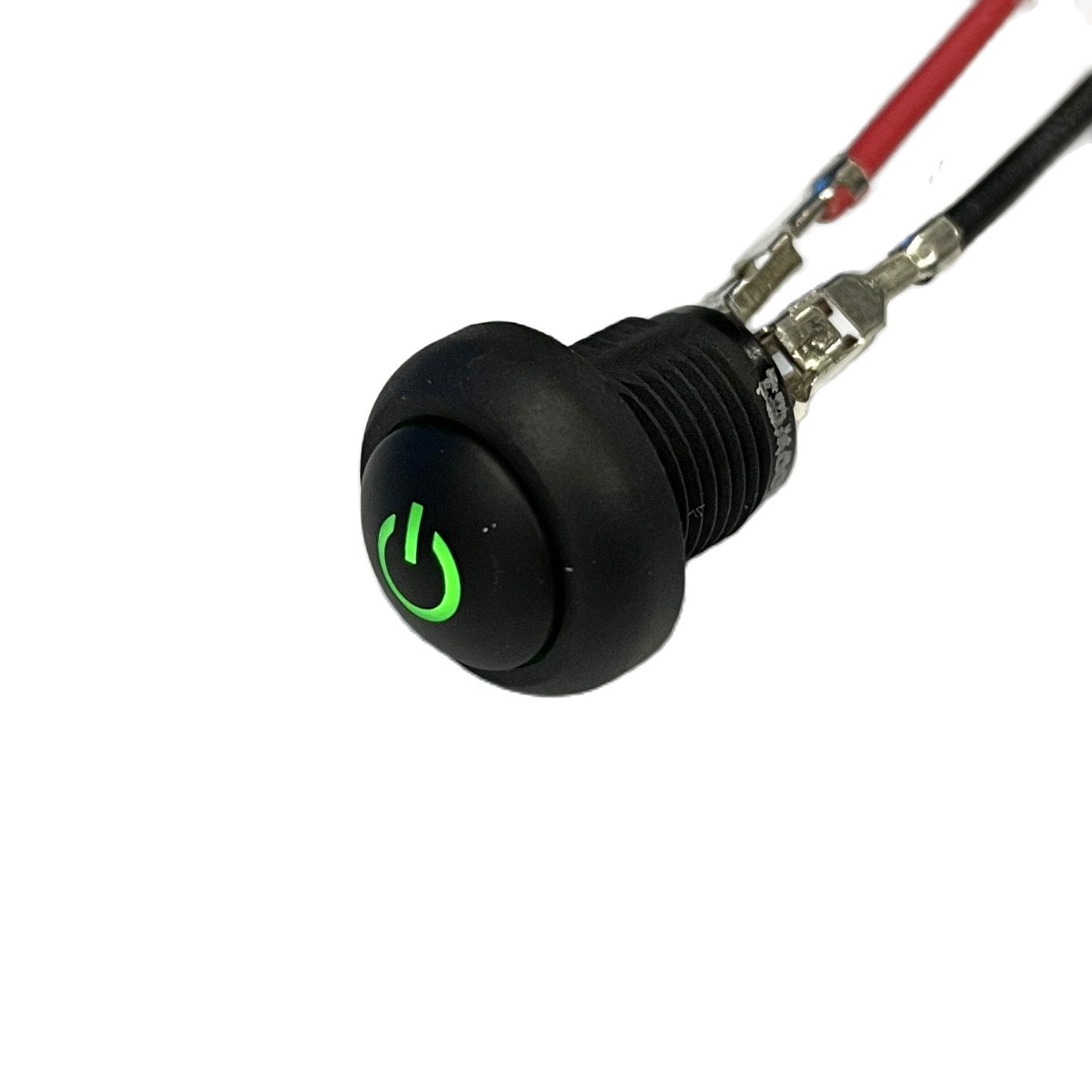

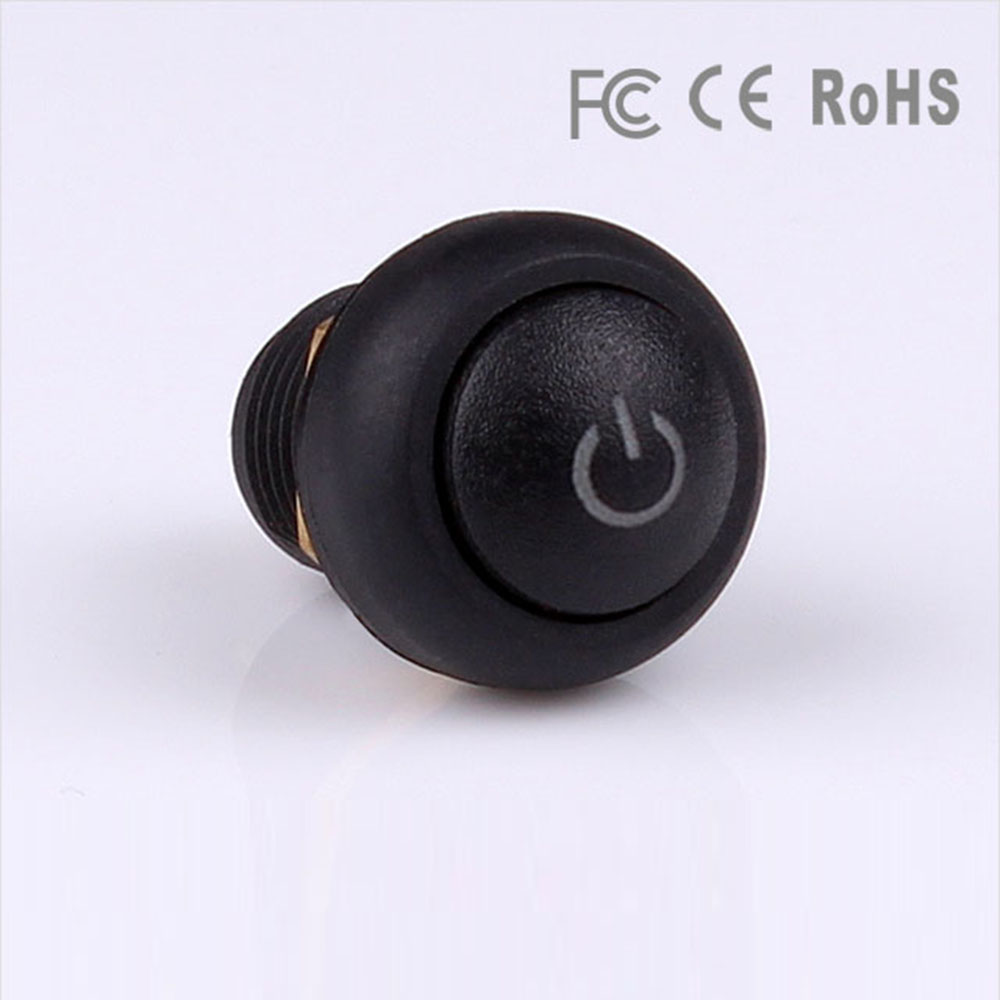

12mm Momentary and latching normal open Waterproof IP67 Types Special Symbol Printed Push Button Switches
A4126 series waterproof push button switch , protection degree reach IP67 ,installation size is 12mm. According to the material , it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two different kinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment , small yacht, lamps, medical equipment , military communication intelligent network equipment and the other instruments .
Function
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
Note

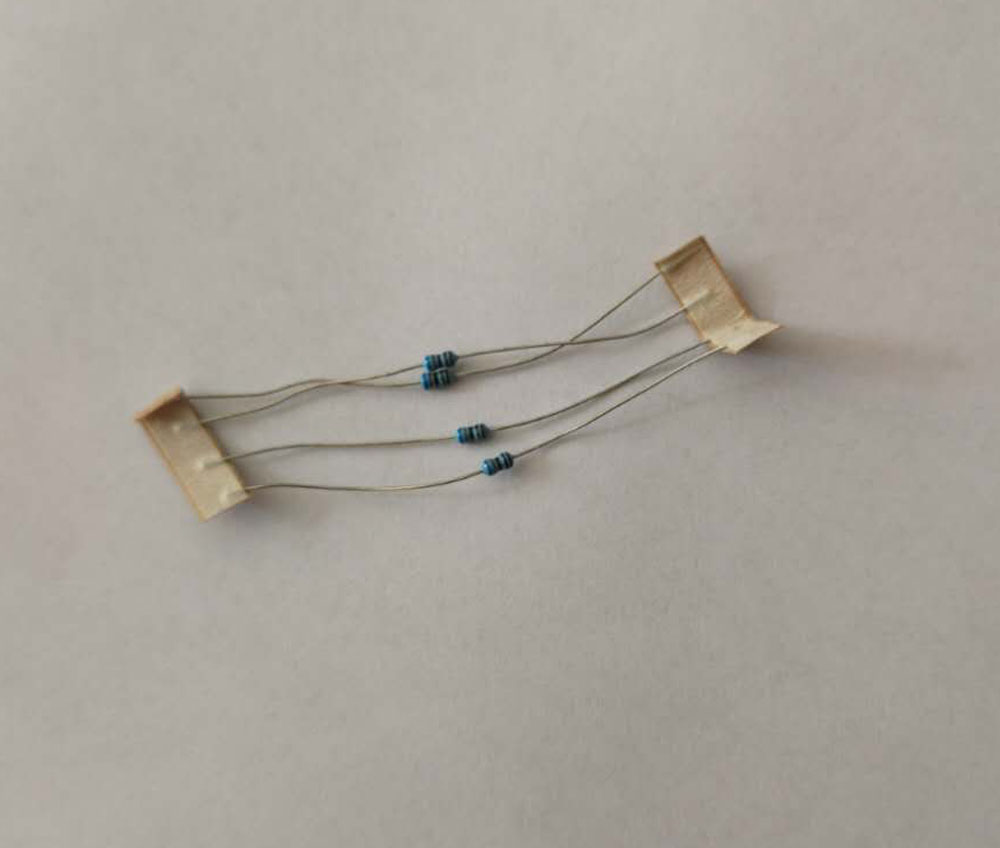

Resistor not inside ,should soldering resistor outside when operation.
LED voltage 2.4V does not need the outside resistor

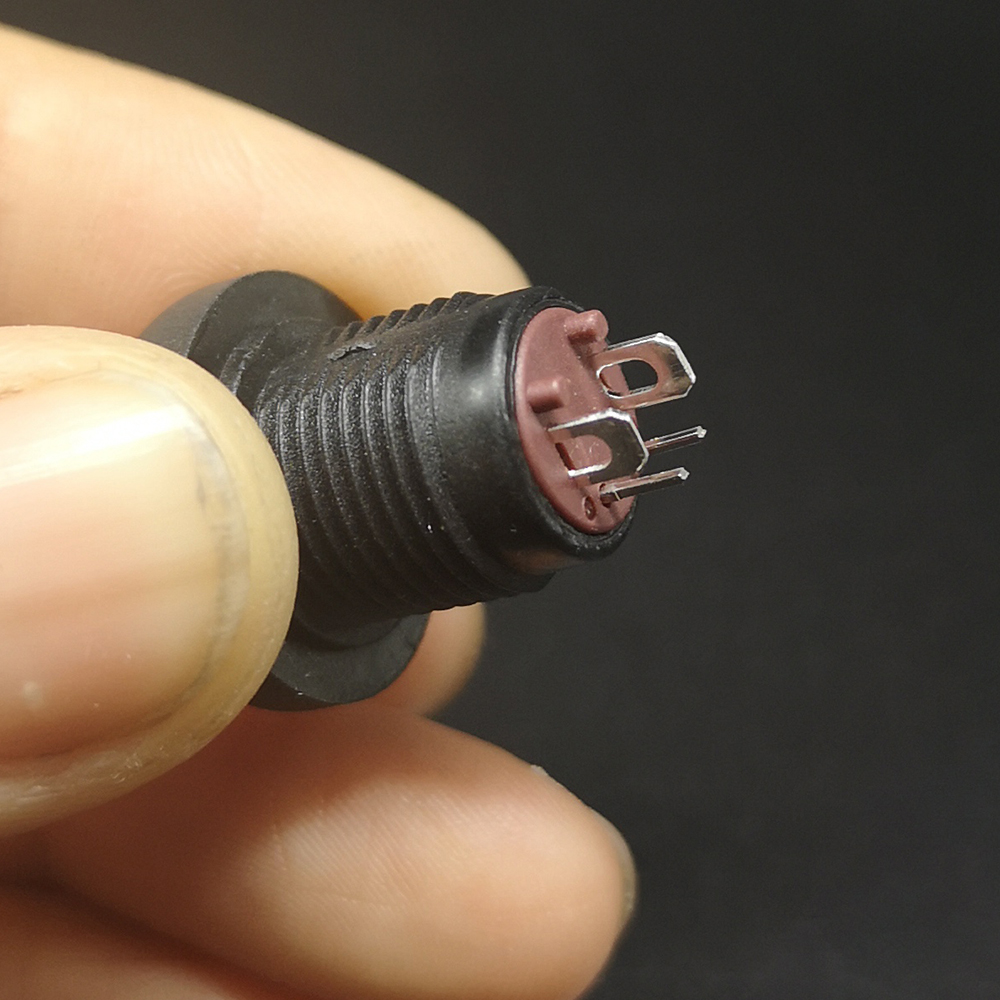

no cable only switch
Technical Paremeters
1. Operating force ≤6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10 Material: Dupont Nylon PA66+20% glass fiber

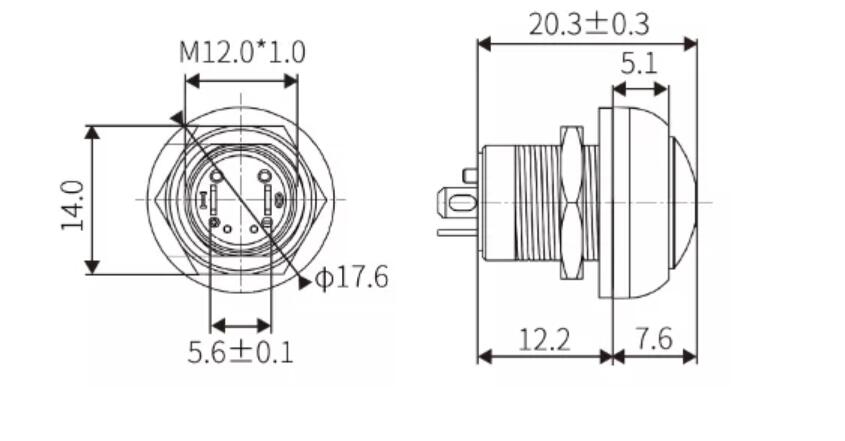

11. Installation size: 12mm
